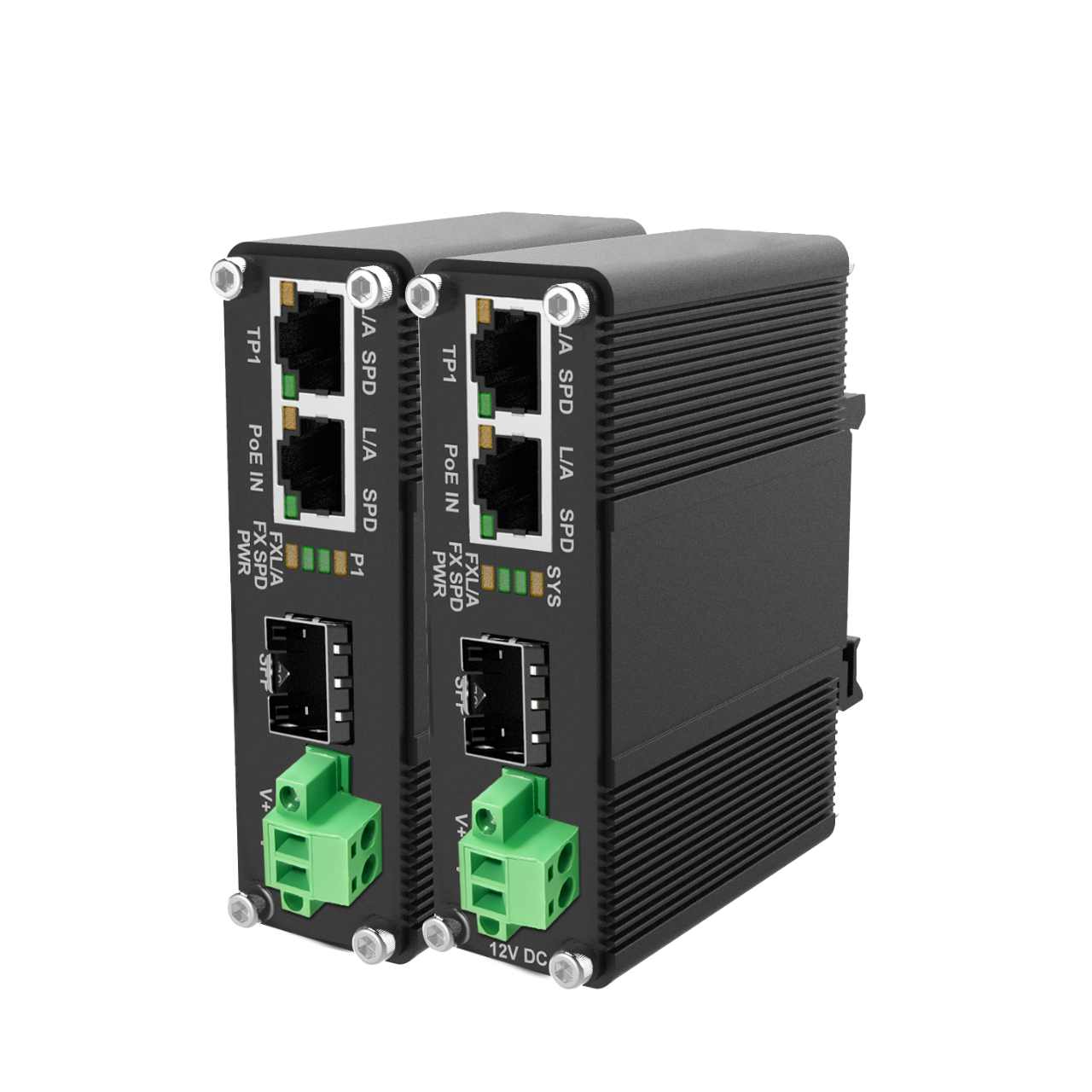

Rugged Industrial Media Converter with Gigabit PoE PD & SFP Slot
This rugged industrial media converter is engineered for reliable operation in the most demanding environments, supporting an operating temperature range of -30℃ to +70℃. It offers exceptional deployment flexibility by accepting power via either the IEEE 802.3at/bt Standard as a Powered Device (PD) or a traditional DC 36-48V power input. The unit seamlessly bridges fiber and copper networks, featuring one 10/100/1000BASE-T RJ45 port that supplies IEEE 802.3af/at PoE+ to connected devices like wireless access points or IP cameras, and one 1000BASE-X SFP slot for versatile fiber uplink connectivity. This robust design ensures critical network extensions remain stable and powered in harsh industrial, outdoor, and utility settings.
Deploy Network Power Anywhere with Fiber and PoE PD
This rugged media converter eliminates the barriers of remote installation by receiving its own power via IEEE 802.3at/bt PoE over the network cable. It then converts a fiber optic SFP uplink to a standard Gigabit copper connection, all while supplying PoE+ to a connected device like an access point or camera. Built for extreme conditions with an operating temperature of -30℃ to +70℃, it delivers unparalleled flexibility, allowing you to place powered equipment virtually anywhere—on factory floors, along perimeter fences, or in outdoor enclosures—without the need for a local AC power source.
| Hardware Specifications | |||

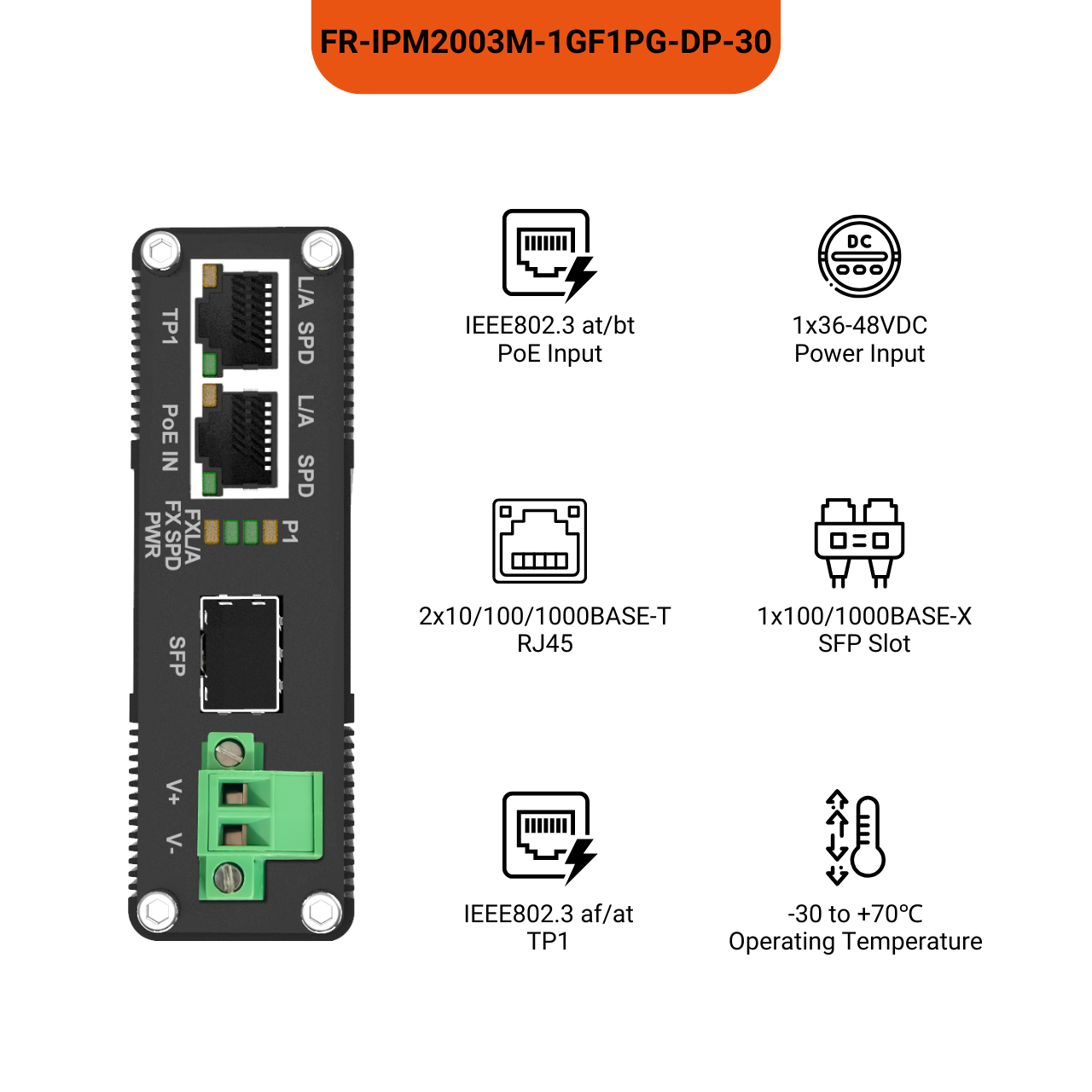

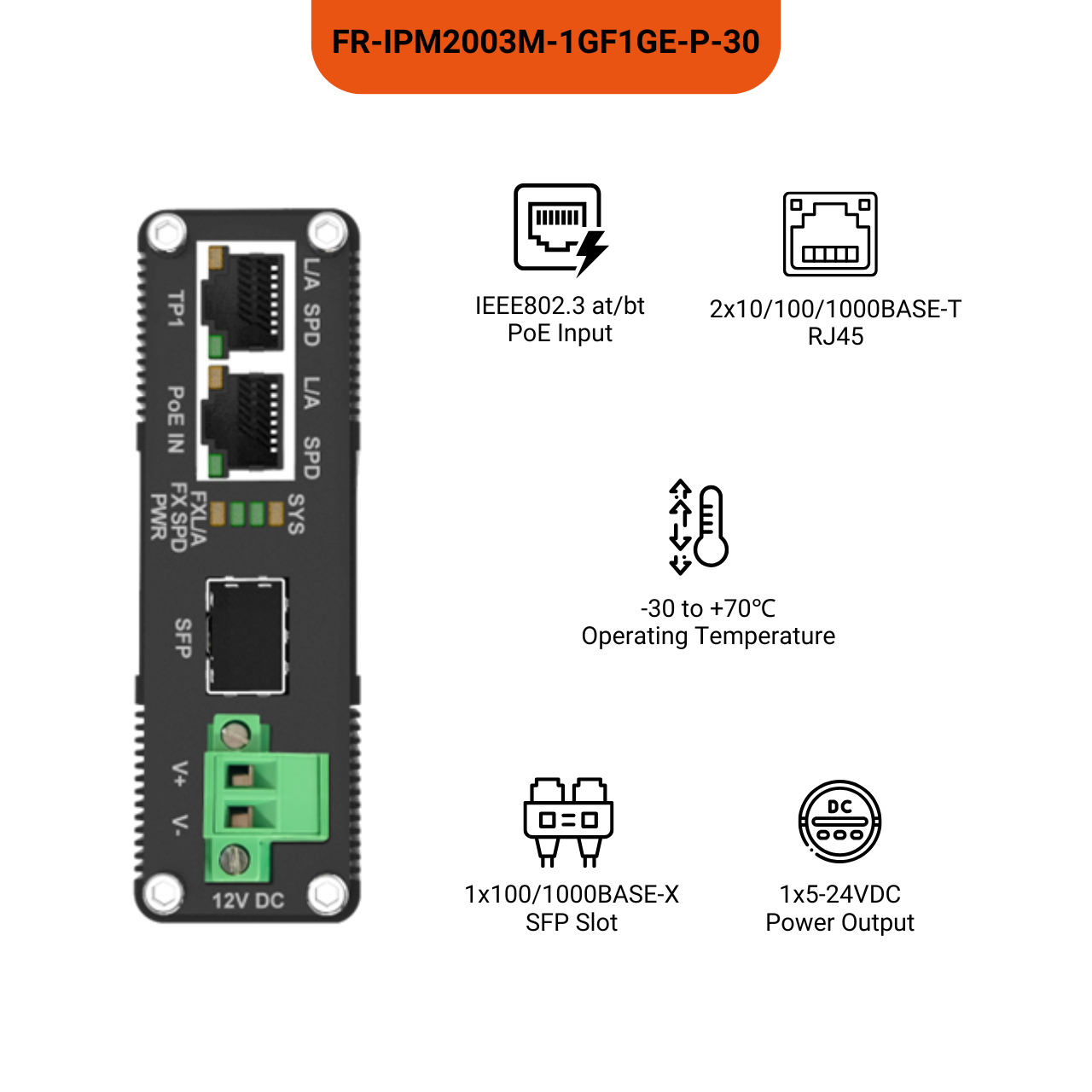

| Product | FR-IPM2003M-1GF1PG-DP-30 | FR-IPM2003M-1GF1GE-P-30 | |
| Copper Ports | 2×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (TP1 and PoE IN), Auto-Negotiation | ||
| Fiber Ports | 1×100/1000BASE-X SFP Slots | ||
| Enclosure | IP40 aluminum case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 95mm x 70mm x 30mm (L x W x H) | ||
| Weight | 250g(Bare weight) | ||
| Network Cable | 10/100/1000BASE-T:
2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA/ TIA-568 100-ohm STP (maximum 100 meters) 100BASE-FX/1000BASE-SX/LX Multi-mode: 50/125um or 62.5/125um optical fiber Single-mode: 9/125um optical fiber |
||
| Power Supply and PoE | |||
| Power Input | PD Port/DC Terminal | PoE Input(TP2), IEEE802.3 at/bt or DC36-48V (V+/V-) | |
| Input Voltage | PoE Input: DC48-57V or DC Input: DC36-48V(Option） | ||
| DC Power Output | Connector | / | 1 removable 2-contact terminal blocks |
| Output Voltage | / | 5-24VDC (Shared 60W power) | |
| Power Consumption | 5 Watts Max (without PoE load) | ||
| PoE Ports | TP1 IEEE802.3 af/at | / | |
| PoE Power Supply Type | End-span | / | |
| Power Supply Pin | 1/2(+), 3/6(-) | / | |
| Max Power Per Port | 30W | / | |
| Total Power Budget | 30W Maximum
(Depending on power input) |
30W Maximum
(Depending on power input) |
|
| Environmental | |
| Operating Temperature | -30℃ to +70℃ (-22 to 158 ℉) |
| Storage Temperature | -40℃ to +85℃ (-40 to 185 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Cooling | Passive Cooling |
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ |
| LED Indicators | |
| PWR | ON: Power is being supplied ,OFF: Power is not being supplied |
| RJ45 Port Green LEDs(L/A) | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active |
| RJ45 Port Amber LEDs(SPD) | ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s |
| P1 (Model Dependent) | ON: Connected PD load |
| SYS | ON: System running well |
| FX L/A | ON: Opti fiber cable is connected well, but no data transmission. Blinking: Receiving data |
| FX SPD | ON: FX 1000M running, OFF: FX 100M running |
