Industrial IEEE 802.3at PoE Splitter

The Fiberroad Industrial PoE Splitter is an ideal solution for powering traditional network devices in demanding environments. It efficiently converts standard 48-56V PoE input (IEEE 802.3at) into a 24V DC output, delivering up to 25 watts to high-power devices. By leveraging existing Ethernet cabling for both data (10/100/1000Mbps) and power, it eliminates the need for costly electrical installations, providing a flexible and reliable power solution for growing industrial applications.

Video Gallery

Share This Product

Simplify Your Setup: The Best Industrial PoE Splitter for Non-PoE Devices

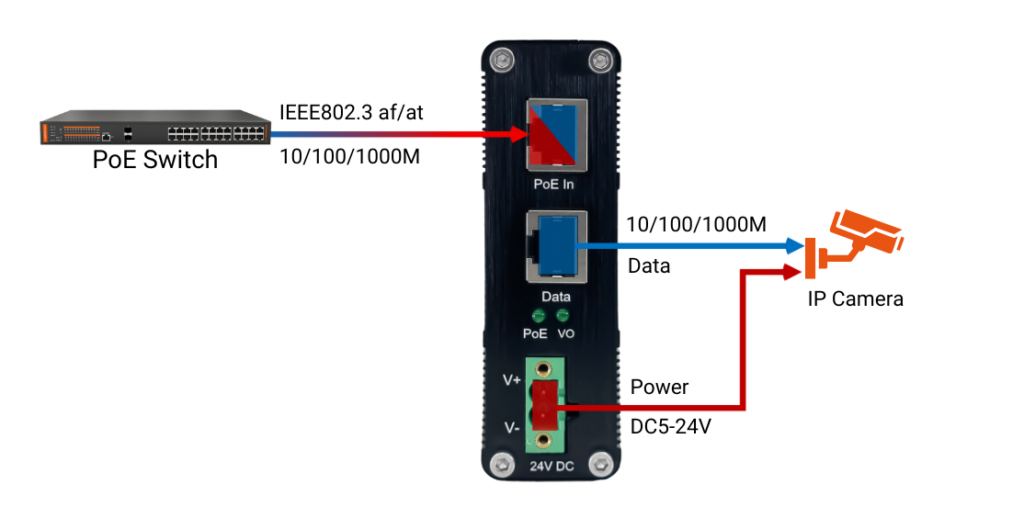

The Fiberroad Industrial PoE Splitter is a high-power solution designed to integrate traditional non-PoE devices into Power over Ethernet networks. It efficiently splits the standard 48-56V DC power from an Ethernet cable, converting it to a stable 12V or 24V DC output. Compliant with the IEEE 802.3at standard, it delivers up to 25 watts of power while maintaining a seamless 10/100/1000Mbps data connection.

Built for demanding environments, this splitter operates reliably in extreme temperatures from -30°C to 70°C (-40°F to 167°F). It is the ideal solution for powering high-demand devices like PTZ cameras and wireless access points in industrial settings, eliminating the expense and complexity of installing additional electrical outlets and wiring.

Hardware Specifications
Product FR-IPM2002T-P-30
Interface Input Port:1 x 10/100/1000BASE-T RJ45, PoE (Data + Power) In
Output Port:1 x 10/100/1000BASE-T RJ45 , Data outOutput power terminal block: 1 removable 2-Pin terminal block
Network Cable 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m);

100BASE-TX: UTP category 5, 5e cable (maximum 100 m);

1000BASE-T: UTP category 5e cable or above (maximum 100 m)

Enclosure IP40 aluminum case

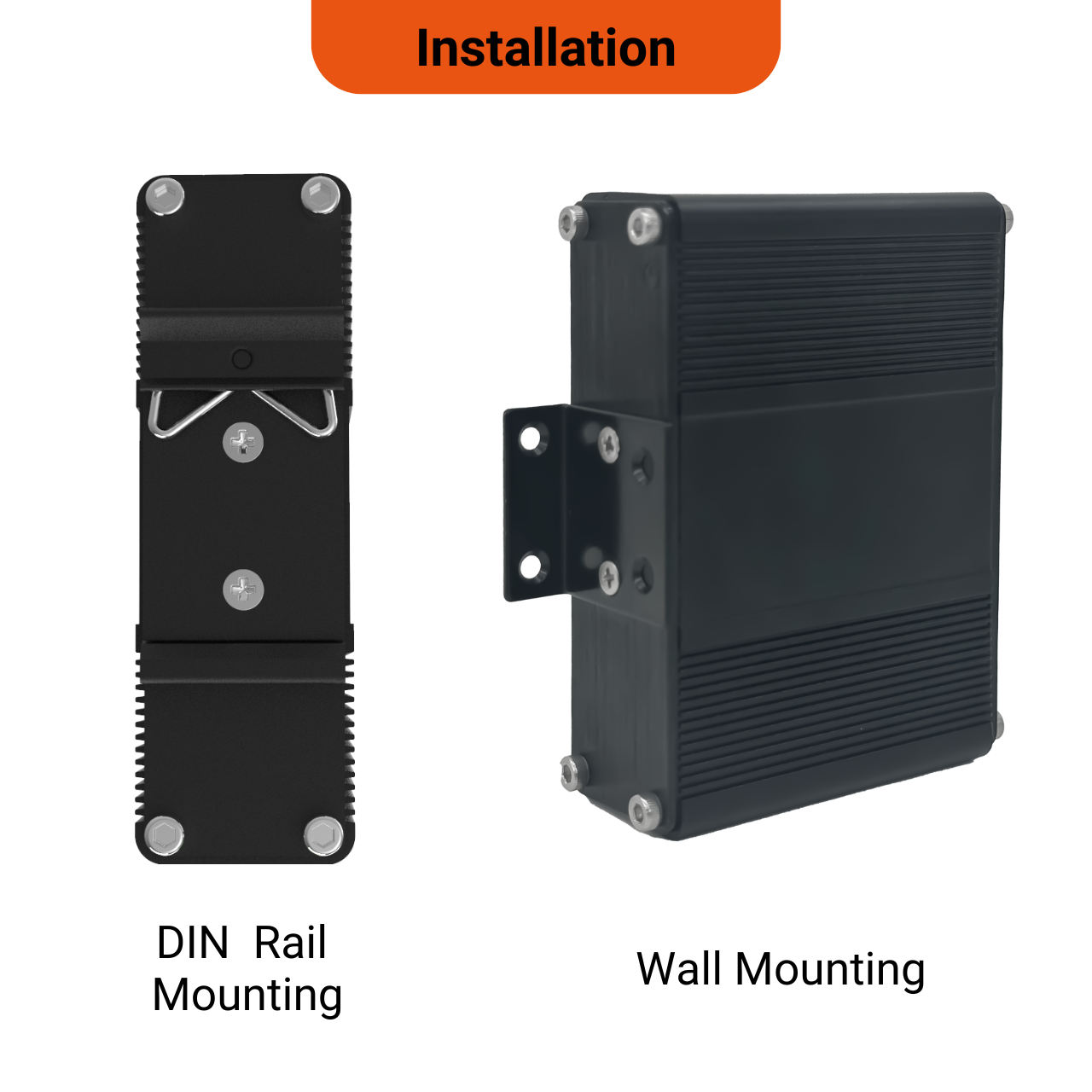

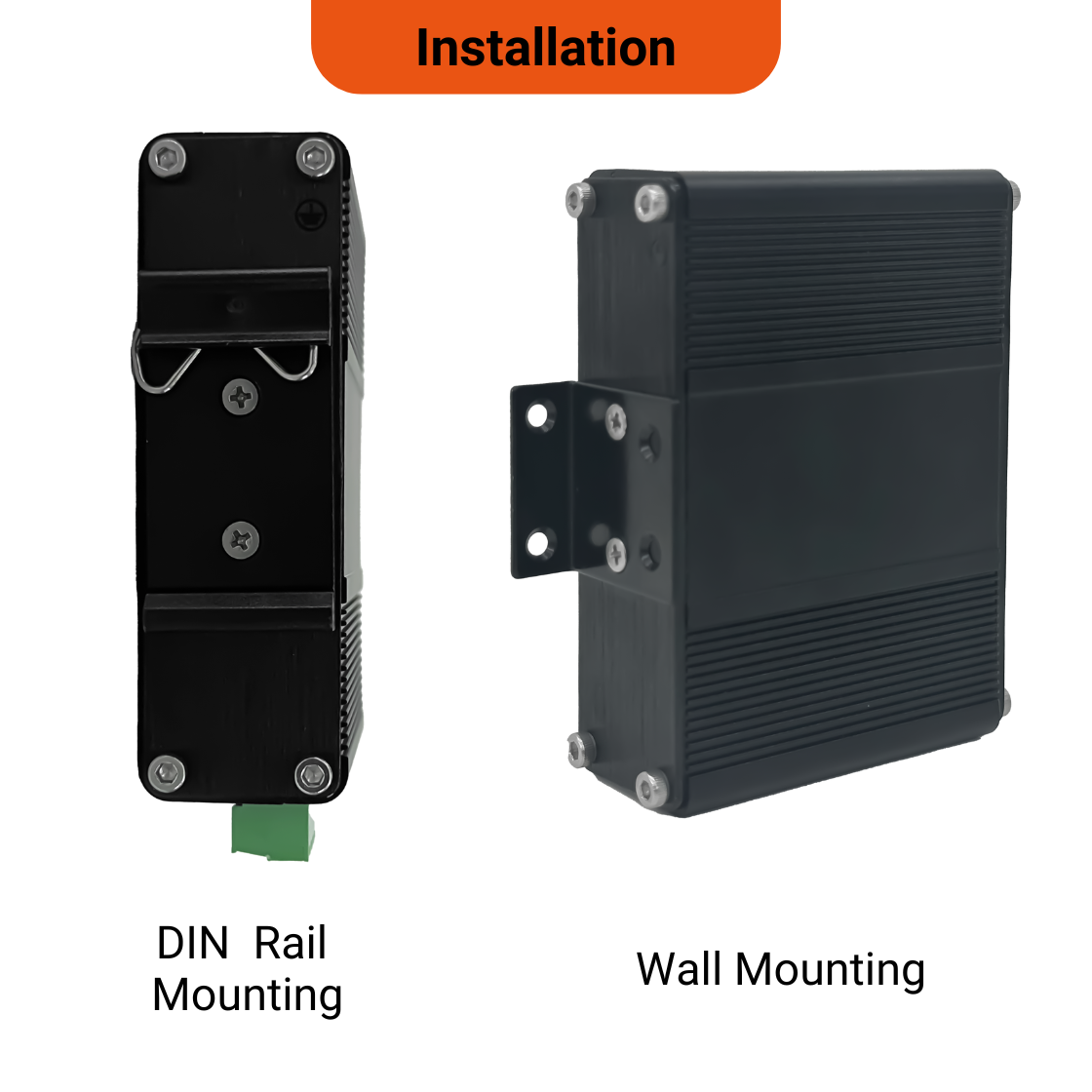

Installation DIN-Rail and Wall-mount
Dimension 95mm x 70mm x 30mm (L x W x H)
Weight
Power Supply and PoE
Power Input 802.3at PoE 48-56V DC
Power Output 24V DC, max 2A
PoE Standard IEEE 802.3at PoE+
Environmental
Operating Temperature -30℃ to +70℃ (-22 to 158 ℉)
Storage Temperature -40℃ to +85℃ (-40 to 185 ℉)
Operating Humidity 5%~90% (non-condensing)
Cooling Passive Cooling
MTBF >500,000 hours @MIL-HDBK-217F GF 25℃
LED Indicators
VO(Green) ON: Output power is being supplied ,OFF: Output power is not being supplied
PoE(Green) ON: PoE in Use, OFF: PoE not in Use
