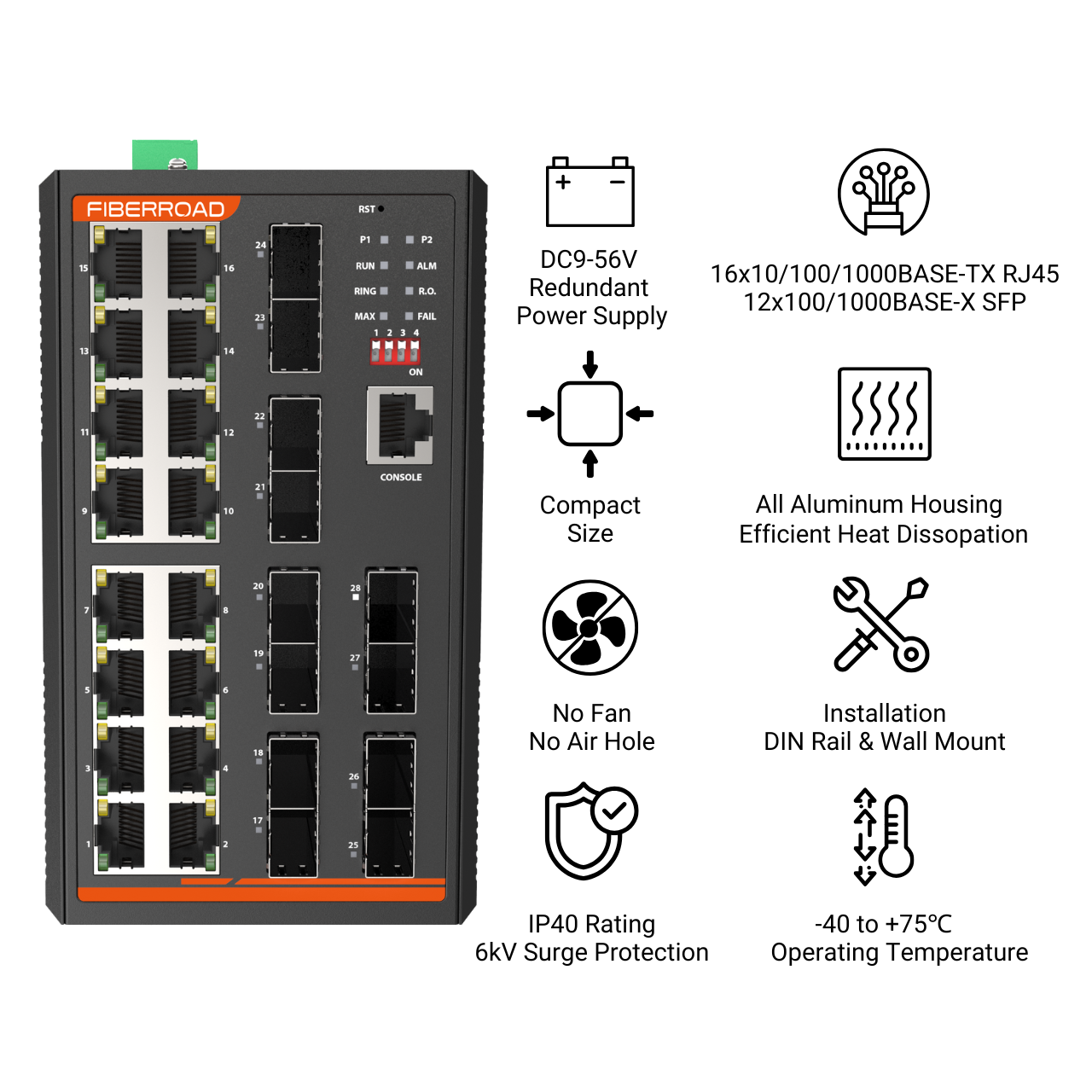

28 Port Industrial Ethernet Switch
Experience unparalleled performance with the Layer 2+ Plus Managed Industrial Ethernet Switch, designed specifically for demanding industrial environments. Engineered for exceptional stability and reliability, this switch ensures seamless Ethernet transmission in factories, outdoor settings, and harsh conditions. Its robust construction withstands the rigors of industrial applications while delivering advanced management features that facilitate optimal network control. Elevate your operational efficiency and safeguard your critical data communications with a solution that has consistently proven its mettle across various sectors. Invest in enduring quality—choose the Layer 2+ Plus Managed Industrial Ethernet Switch for your networking needs.
Product Features
- 16×10/100/1000BASE-T Gigabit Ethernet RJ45
- 12×100/1000BASE-X SFP Slots
- Optionally support IEEE 802.3 af/at/bt Power Over Ethernet Standard
- Full gigabit L2+ management, easy to manage the network by CLI/WebGUI/NMS.
- Build up a redundant industrial network with STP/RSTP/MSTP/ERPSv2
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- Traffic Classification Based on IEEE 802.1p, COS, WRR, and Strict Mode
- SNMPv1/v2c/v3 for different levels of network management
- Wide operating temperature range -40 to 75℃(-40 to 167℉)
Video Gallery
Product Brief Introduction
Layer 2+ Web Network Management
Quality Certifications
Guarantee
Share This Product
24-Port Gigabit L2+ Industrial Ethernet Switch, with 4xGigabit SFP
Fiberroad FR-7M348F is a 28 port managed din rail ethernet switch designed for the industrial ethernet network. This rugged enclosure features advanced IPv6/IPv4 management interfaces, comprehensive Layer 2 switching features, and Layer 3 static routing. The industrial Ethernet switches operate reliably under temperatures between -40 and 75 degrees and allow either DIN-rail or wall mounting for efficient cabinet installation.
Extreme 28 Port Industrial Ethernet Switches for Harsh Environment
With IP40 Durable Aluminum housing and fanless design also provide efficient heat dissipation. The 24 port din rail Ethernet Switch provides a high level of immunity against electromagnetic interference and heavy electrical surges, usually found on plant floors or curb-side traffic control cabinets. It also possesses an integrated power supply source with a wide range of voltages (9 to 56V DC) for worldwide high availability applications requiring dual or backup power inputs. Indeed, The design of the switch ensures operates in Harsh Environment.
28 Port Industrial Ethernet Switch Enrich Industrial Ethernet Network Connectivity
With 4x100M/1000M SFP uplink, the 24-Port Industrial Network Switch can handle extremely large amounts of data in a secure topology linking to an industrial backbone or high-capacity servers. The FR-7M348F is capable of providing non-blocking switch fabric and wire-speed throughput.
The Layer 2+ Managed Industrial Switch series allows the administrator to conveniently boost network efficiency by manually configuring Layer 3 IPv4/IPv6 VLAN static routing. FR-7M348F supports redundant ring technology and features a strong, rapid self-recovery capability to prevent interruptions and external intrusions. In addition to using advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching), Spanning Tree Protocol, and redundant power input systems, it enhances system reliability and uptime in harsh factory environments.
Remains in control of your Industrial Network
28 Port DIN Rail Ethernet Switch allows various network management methods, such as the Cloud(MQTT), WebGUI, CLI and NMS. The notion of easy to use, particularly with no additional hardware investment and installation. Industrial Network Switch can deploy centralised management, Layer 2 to Layer 4 QoS, Bandwidth allocation, real-time monitoring, etc.
| Hardware Specifications | |||
| Product | FR-7M348F/A | FR-7M348FP | FR-7M348FBT |
| Copper Ports | 16×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (Port 1-16) | ||
| Fiber Ports | 12×100/1000BASE-X SFP Slots(Port 17-28) | ||
| Console | 1x RJ45-to-RS232 Serial Port(115200) | ||
| Connector | 1 removable 6-contact terminal block
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm |
||
| Alarm | One relay output for power failure, Alarm relay current carry ability: 1A@24V DC | ||
| RAM | 128Mbyte | ||
| FLASH | 32MByte | ||
| Reset Button | ＜5 sec: System Reboot; ＞10 sec: Factory Default | ||
| Surge Protection | ±6kV DC, ±4kV RJ45 | ±6kV DC, ±6kV RJ45 | |
| Enclosure | IP40 aluminum case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 155x128x88mm | ||
| Weight | 1500g(Bare weight), 1800g(With package) | ||
| Switching | |||
| Switch Architecture | Store-and-Forward | ||
| Switch Fabric | 56Gbps/non-blocking | ||
| Forwarding Rate | 41.66Mpps(64-byte packet size) | ||
| Packet Buffer Size | 4 Mbits | ||
| Maximum Packet Length | 10K bytes | ||
| MAC Address Table | 8K entries, automatic source address learning and aging | ||
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex | ||
| PoE & Power Supply | |||
| PoE Ports | \ | Port 1 to 16 IEEE802.3 af/at | Port 1 to 16 IEEE802.3af/at/bt |
| PoE Power Supply Type | \ | End-span | End-span |
| Power Supply Pin | \ | 1/2(+), 3/6(-) | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Max Power Per Port | \ | 30W | 90W |
| Input Voltage | DC9-56V | DC48-56V | DC52-56V |
| PoE Power Budget | \ | 240W maximum
(Depending on power input) |
240W maximum
(Depending on power input) |
| Environmental | |||
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) | ||
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) | ||
| Operating Humidity | 5%~95% (non-condensing) | ||
| MTBF | 907,476 hours @ Telcordia SR-332 Standard | ||
| Heat Dissipation | 65 BTU/h (non-PoE mode)
1054 BTU/h (with 240W PoE load) |
||
| Cooling | Passive Cooling, Fanless Design | ||
| Noise Level | 0 dBA | ||
