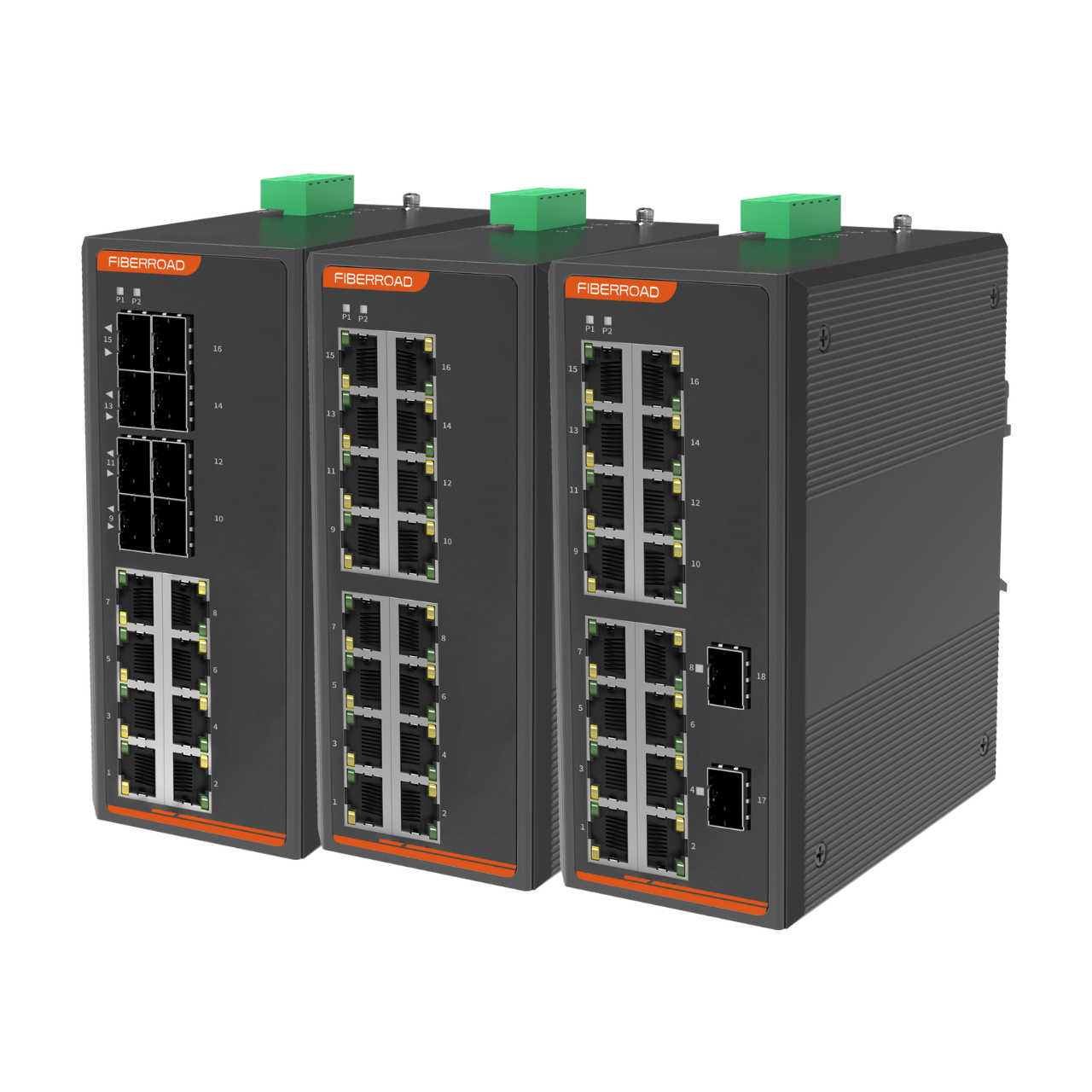

16 Port Unmanaged Industrial Switches

The High Port Density Unmanaged Industrial Switch is a versatile and reliable solution for industrial network applications. With its easy access to Gigabit Ethernet, this switch offers seamless connectivity for demanding environments. Its robust design ensures durability in industrial and outdoor surveillance settings, making it an ideal choice for rugged conditions. The switch can be easily mounted on DIN-Rail or Wall, providing flexibility in installation options. The built-in LEDs offer convenient visual monitoring of connected devices through the RJ45 ports, enhancing ease of use and efficiency in managing network connections.



Main Features

  • 10/100/1000Base-T RJ45, 1000Base-X SFP
  • Full/Half-duplex self-adaptation
  • MDI/MDIX automatic recognition
  • Jumbo Frame up to 10K, 52G backplane bandwidth
  • Operating temperature -40 to 75℃
  • Wide-range DC9~56V power input
  • Support power input polarity protection; no worries about the reverse connection
  • All-Aluminium shell, fanless design
  • Free fall, shock-proof and vibration-proof for industries
  • All-aluminum Case, Compact and Fanless Design
  • Plug and play, no software configuration.

Video Gallery

Share This Product

Enhance Reliability and Performance with 16 Port Unmanaged Industrial Switches

When it comes to ensuring reliable and high-performance networking in industrial environments, the 16 Port Unmanaged Industrial Switch is an essential tool. With its rugged design and wide operating temperature range of -40 to 75℃, this switch can withstand even the harshest conditions. Its wide-range DC9~56V power input further enhances its reliability, allowing it to be powered by various sources commonly found in industrial settings. Whether you’re working in a factory, warehouse, or outdoor location, this switch provides seamless connectivity for up to 16 devices without the need for complex configurations. Trust in the durability and efficiency of the 16 Port Unmanaged Industrial Switch to keep your network running smoothly under any circumstances.

16 Port Unamanged Industrial Switch

Experience Seamless Connectivity with 16 Port Unmanaged Industrial Switch

The 16 Port Unmanaged Industrial Switch offers seamless connectivity for industrial applications, providing reliable networking solutions for various environments. With a jumbo frame of up to 10K and a backplane bandwidth of 52G, this switch ensures high-speed data transmissions with minimal delays. Its unmanaged feature simplifies installation and maintenance, making it easy to set up and operate without the need for complex configurations. Whether used in factories, warehouses, or outdoor settings, this switch guarantees stable connections for multiple devices without compromising performance. Experience the convenience of efficient networking with the 16 Port Unmanaged Industrial Switch – a versatile solution designed to meet the demands of modern industrial operations.

16 Port Unamanged Industrial Switch
Ethernet Interface

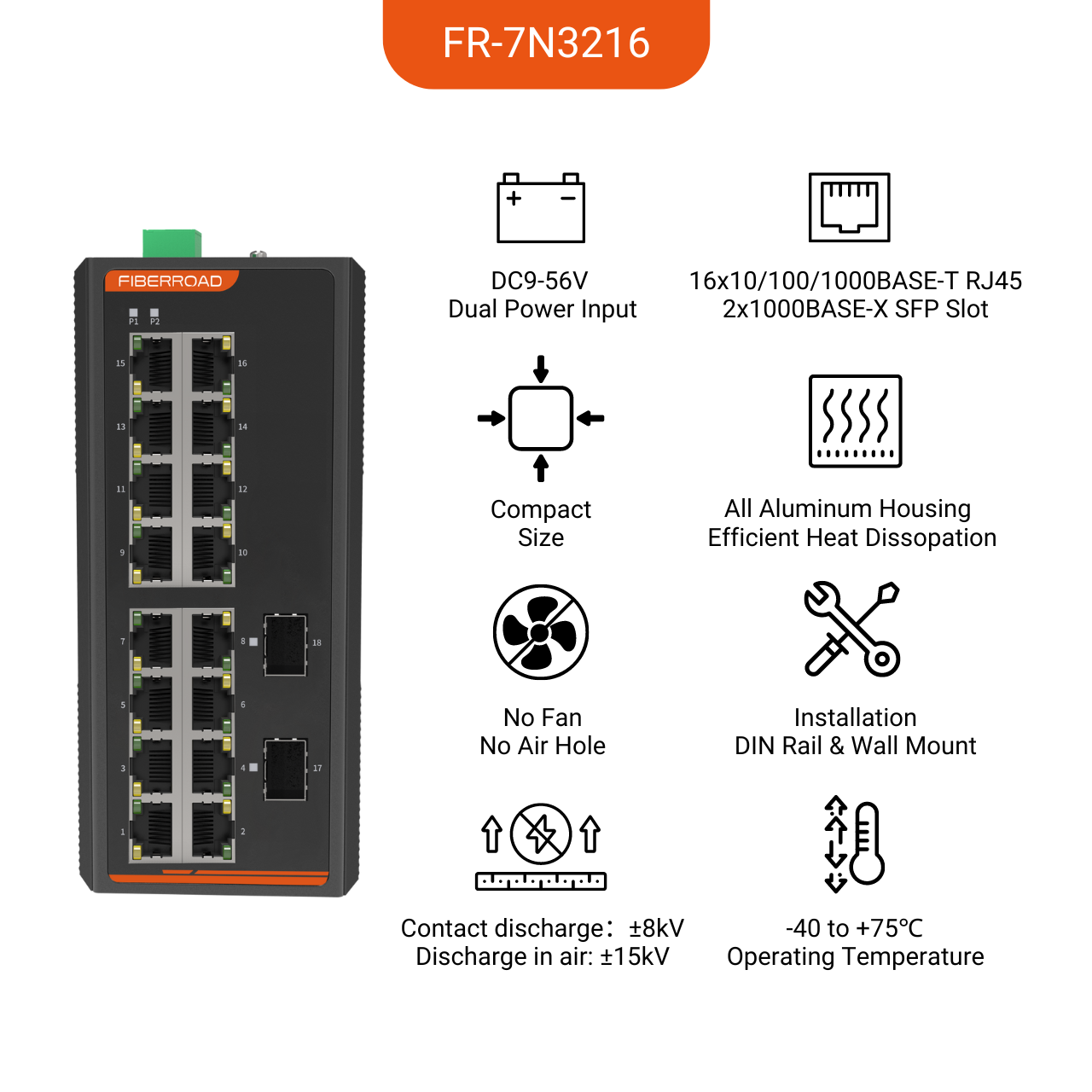

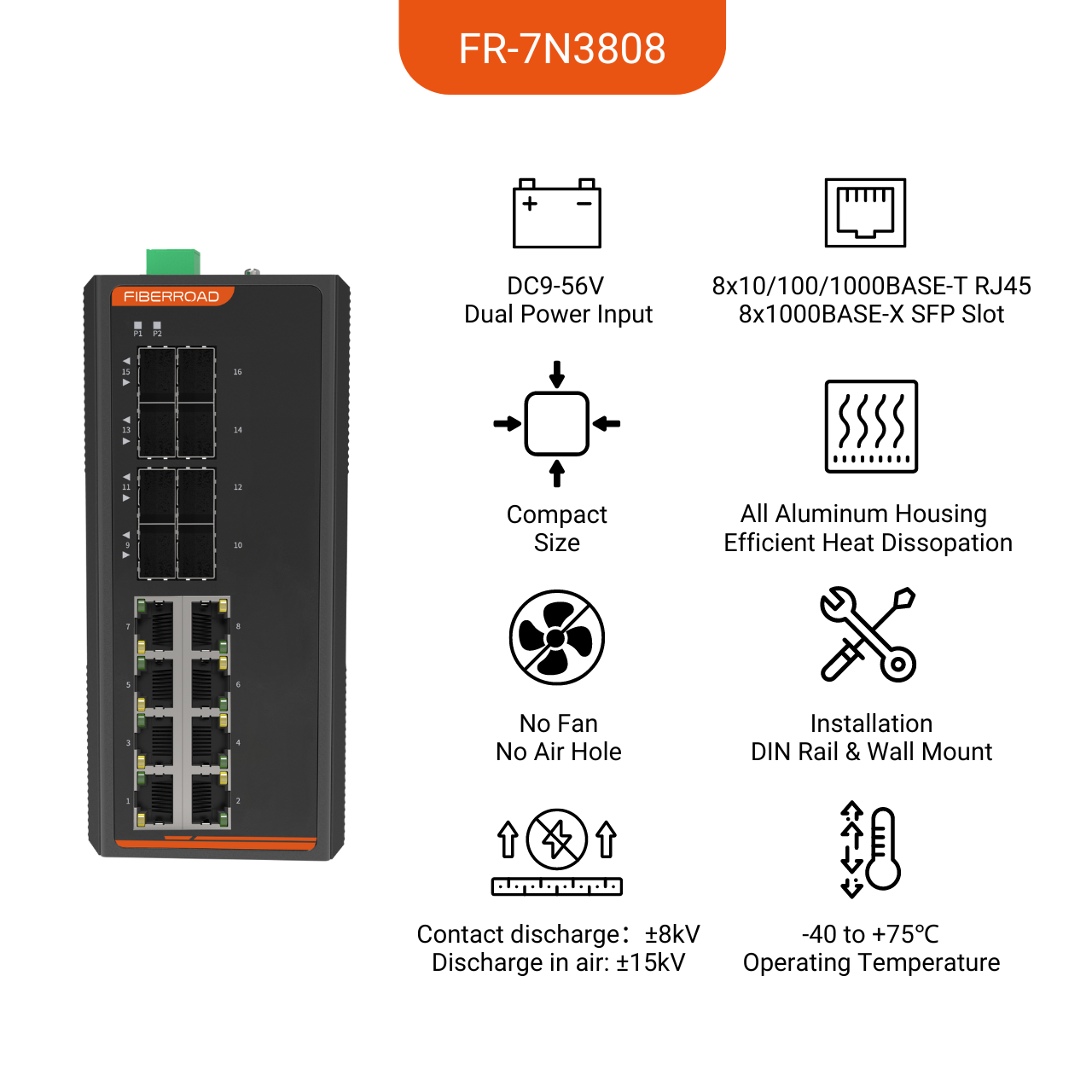

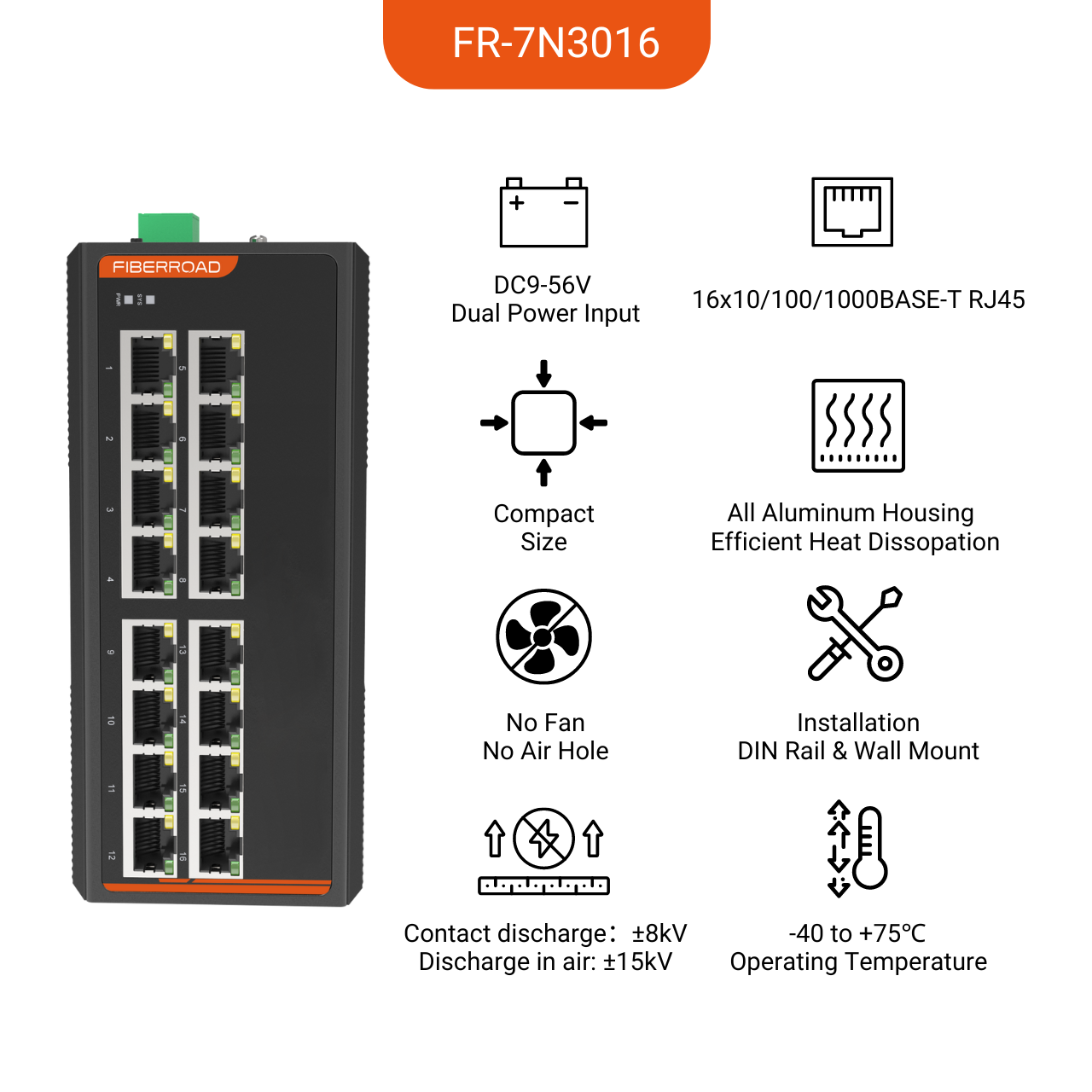

Model FR-7N3808 FR-7N3016 FR-7N3216
Ports 8×10/100/1000BASE-T RJ45

8x1000BASE-X SFP Slots

16×10/100/1000BASE-T RJ45 16×10/100/1000BASE-T RJ45

2x1000BASE-X SFP Slots

Port Mode(Tx) Auto-Negotiation

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for 10BaseT

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x for flow control and back pressure

IEEE802.3az for Energy Efficient Ethernet(EEE)

Packet Buffer Size 4M
Maximum Packet Length 10K
MAC Address Table 8K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Switching Capacity: 52G

Physical Characteristics
Housing Aluminum case
IP Rating IP40
Dimensions 160mmx132mmx70mm

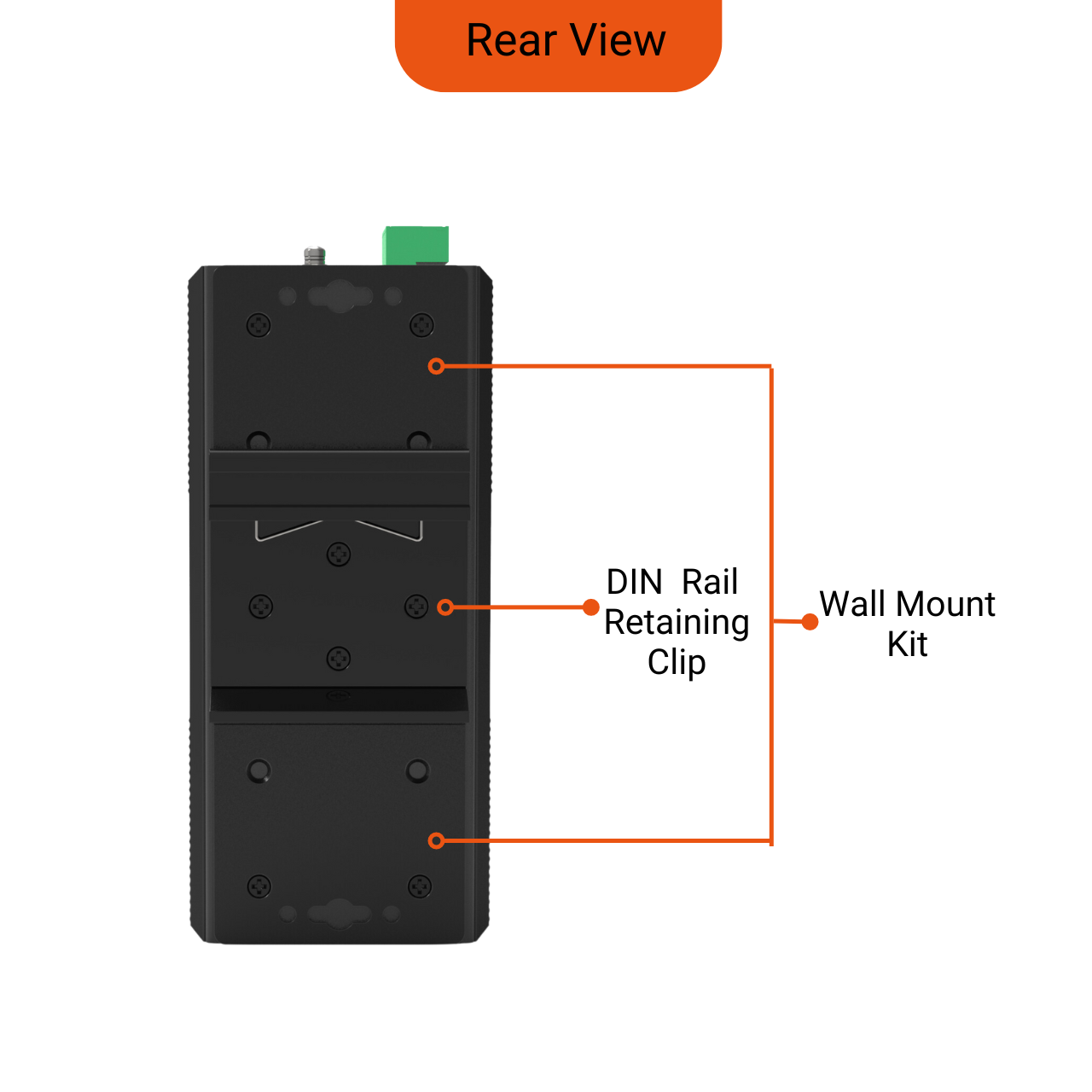

Installation DIN Rail/Wall Mount
Weight 1200g
Environmental
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~95% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
MTBF 500,000 hours @ Telcordia SR-332 Standard
Heat Dissipation 34 BTU/h (non-PoE mode)
Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA



Power Supply
Power Consumption 24 Watts Max(without PoE load)

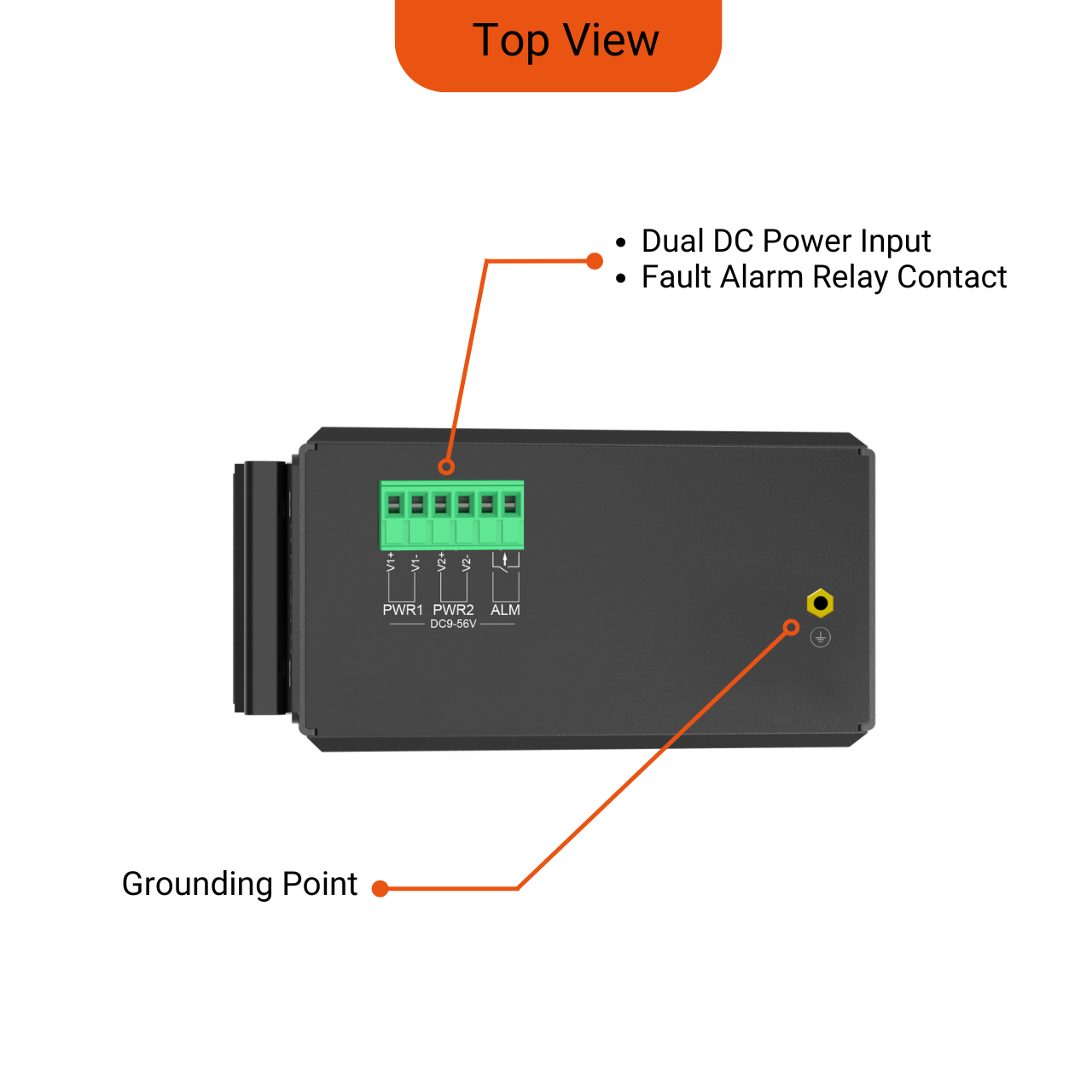

Power Inputs 2
Input Voltage 9-56VDC,Redundant dual inputs
Connector 1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection Overload Current Protection, Reverse Polarity Protection

Support Documents

Item Type Version Release Date
16 Port Unmanaged Industrial Switch_Product Data Sheet
408 KB
Datasheet
2D Drawing_160MMX132X70MM(Unmanaged)
86 KB
2D Drawing
Quick Start Guide for Fiberroad 7 Series (Edited on 2023_7_26)
1 MB
Manual
