Extended Industrial Temperature Range

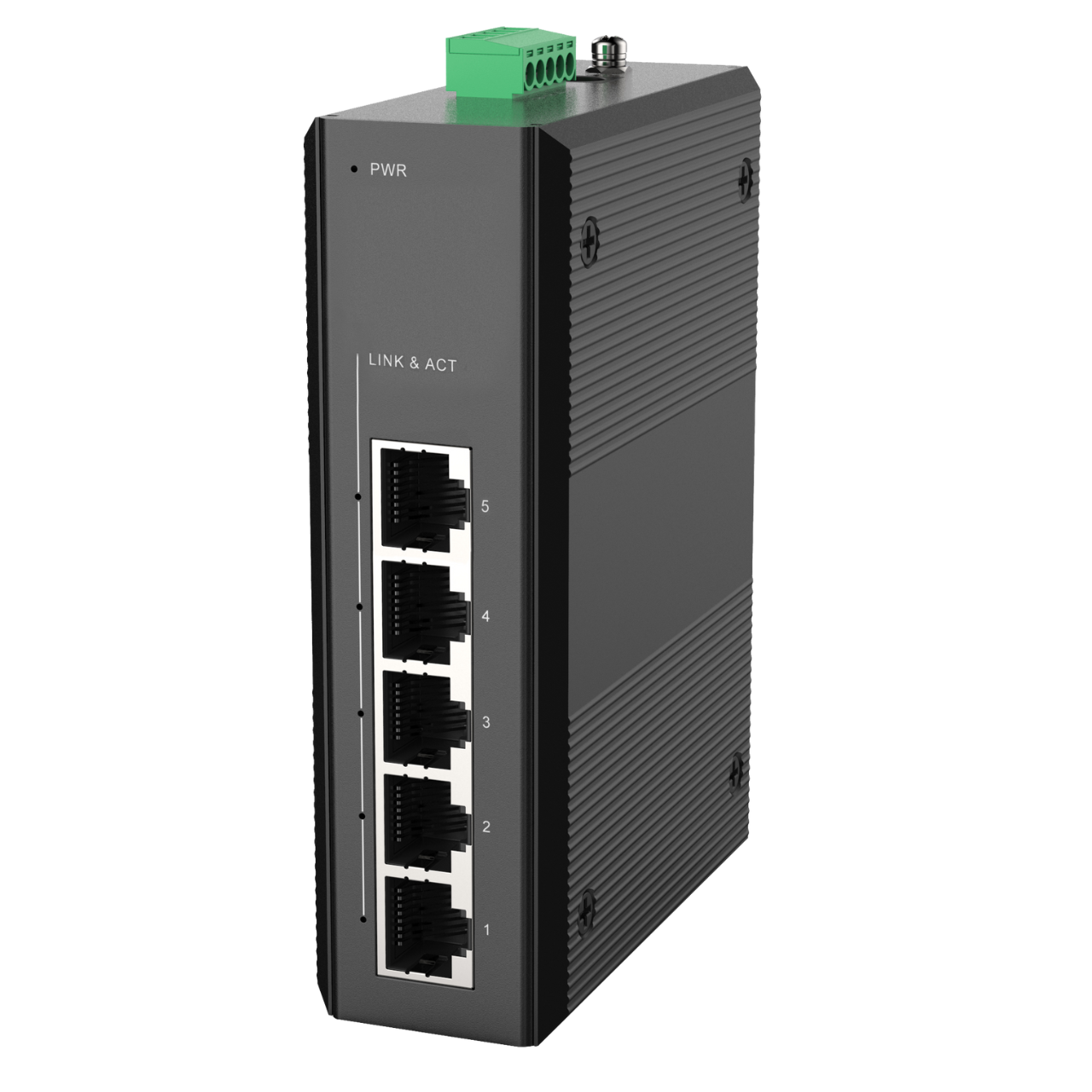

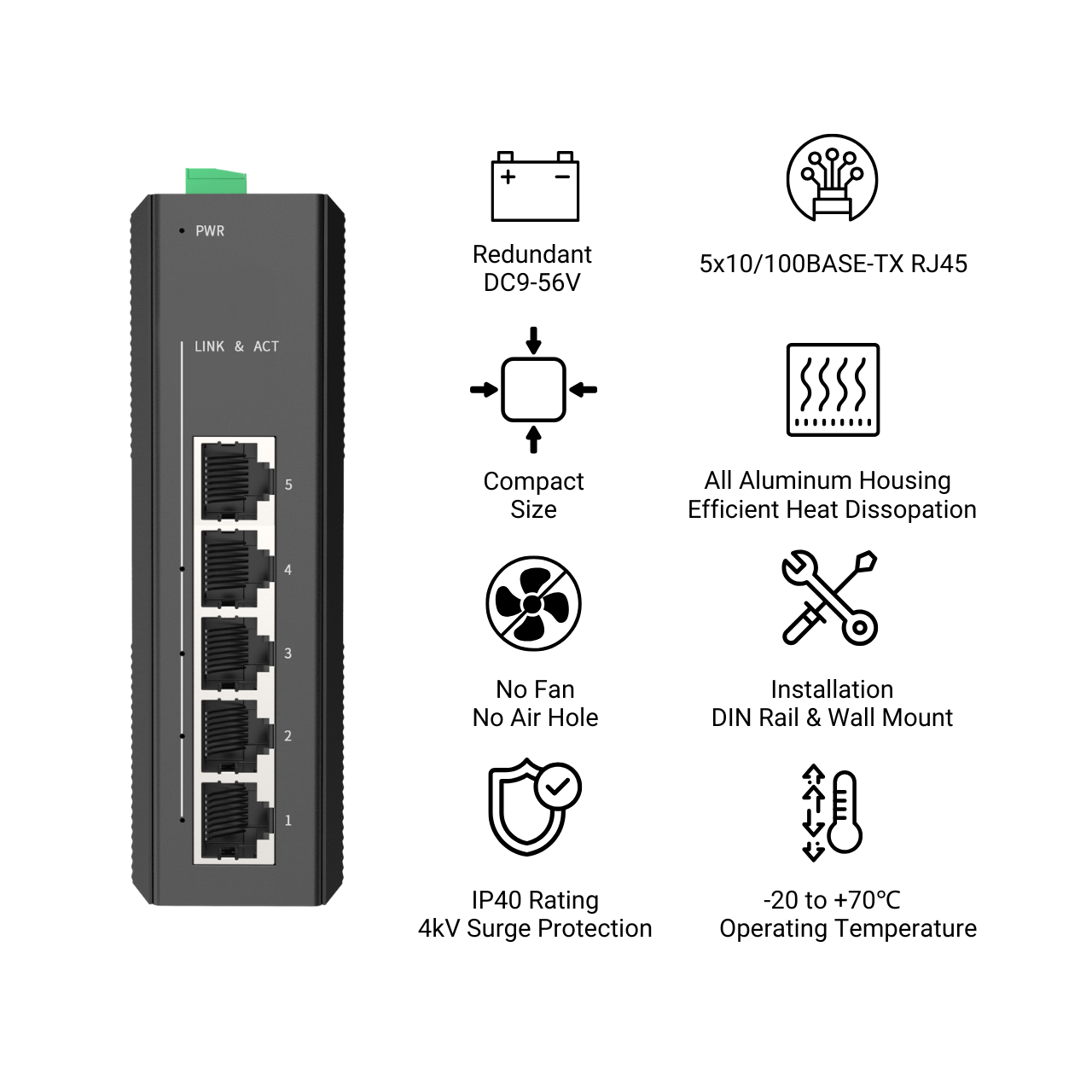

Built to withstand challenging environments, this 5-port Ethernet switch operates seamlessly in temperatures from -20°C to +70°C. Its rugged design ensures reliable performance in industrial automation, outdoor installations, or temperature-fluctuating settings, making it a dependable choice for harsh operational conditions.
Versatile 5-Port Auto-Negotiation Design
Featuring five 10/100TX auto-negotiation ports, this switch intelligently adapts to connected devices, supporting seamless integration between 10Mbps and 100Mbps hardware. This flexibility simplifies network expansion, optimizes bandwidth usage, and ensures backward compatibility with legacy equipment.
Cost-Effective Scalability
Designed for budget-conscious deployments, this industrial switch delivers essential Layer 2 functionality without unnecessary complexity. Its affordability and compact form factor make it ideal for small-to-medium networks, enabling easy scalability in factories, surveillance systems, or IoT applications.
Industrial-Grade Reliability and Durability
Engineered with robust metal housing and protection against electrical interference, vibration, and moisture, this switch guarantees long-term stability in demanding environments. Its unmanaged, plug-and-play operation ensures hassle-free installation, reducing downtime and maintenance costs in critical infrastructure setups.
| Hardware Specifications | |
| Product | FR-6N1005 |
| Copper Ports | 5×10/100BASE-TX RJ45 Auto-MDI/MDI-X (Port 1-5) |
| Fiber Ports | \ |
| Enclosure | IP40 aluminum case |

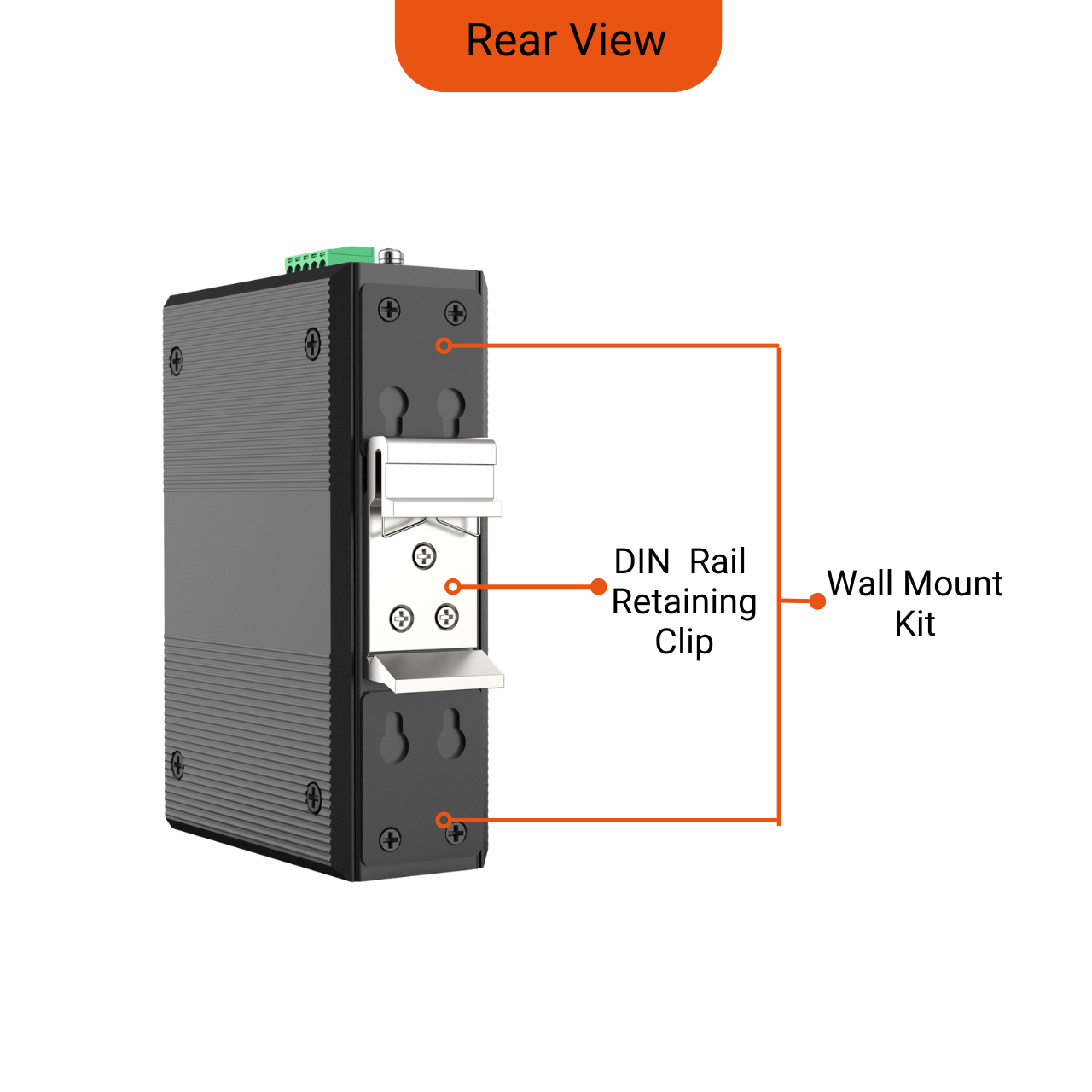

| Installation | DIN-Rail and Wall-mount |
| Dimension | 120 x 90 x 35 mm |
| Weight | 380g(Bare weight), 460g(With package) |
| Surge Protection | ±4kV DC, ±2kV RJ45 |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 1.8Gbps/non-blocking |
| Forwarding Rate | 0.74 Mpps(64-byte packet size) |
| Packet Buffer Size | 1 Mbits |
| Maximum Packet Length | 1536 bytes |
| MAC Address Table | 2K entries, automatic source address learning and aging |
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Power | |
| Power Input | 2 |

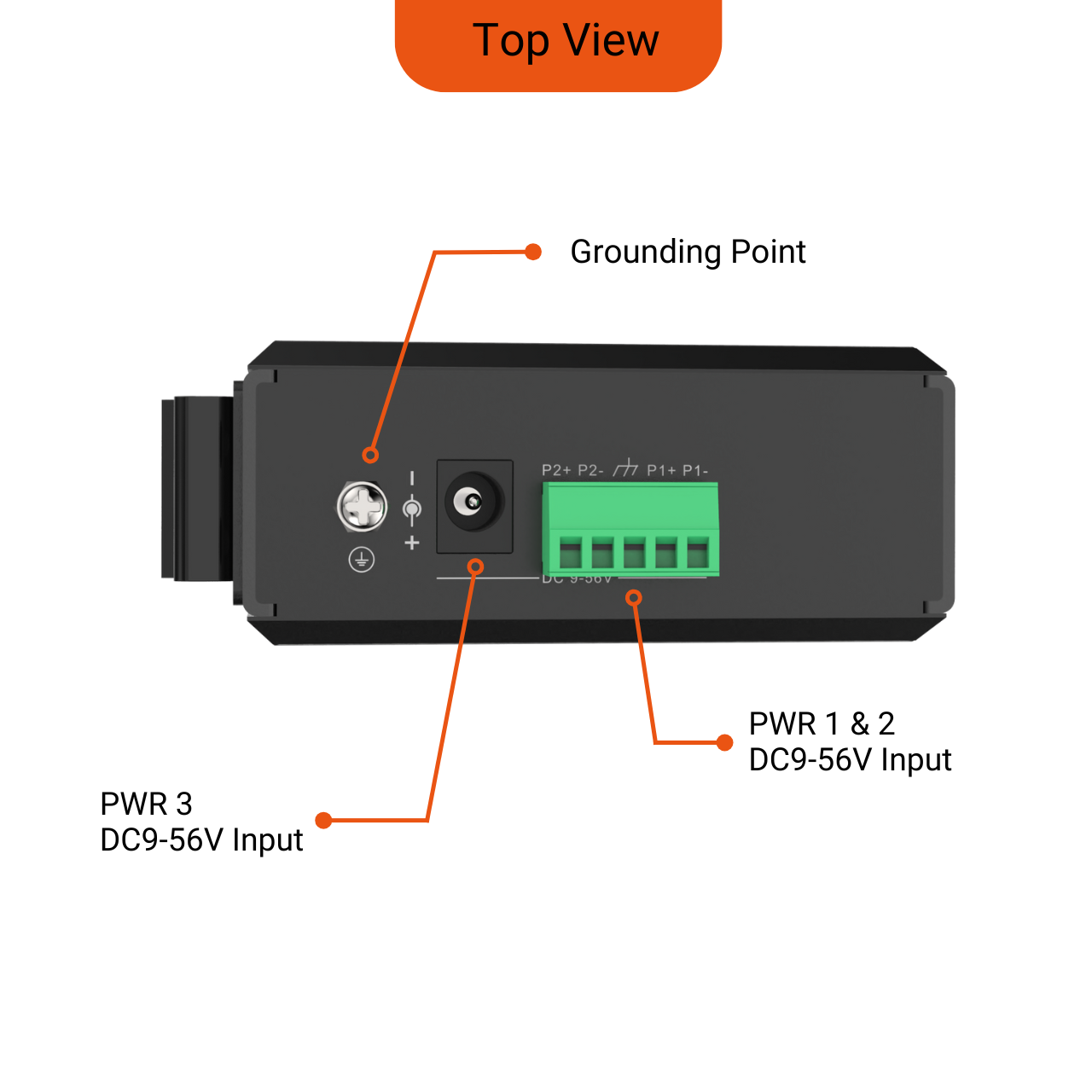

| Power Connector | 1 removable 5-contact terminal blocks
Pin 1/2 for Power 1, Pin 4/5 for Power 2 |
| Operating Voltage | 9-56V DC |
| Power Consumption | 5 Watts Max |
| Protection | Reverse Polarity
Overload Current |
| Environmental | |
| Operating Temperature | -20℃~70℃ (-4 to 158 ℉) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Heat Dissipation | 10 BTU/h |
| Cooling | Passive Cooling |
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ |
| LED Indicators | |
| PWR | ON: Power is being supplied
OFF: Power is not being supplied |
| LINK & ACT (Port 1-5) | ON: Port connection is active
OFF: Port connection is not active |
