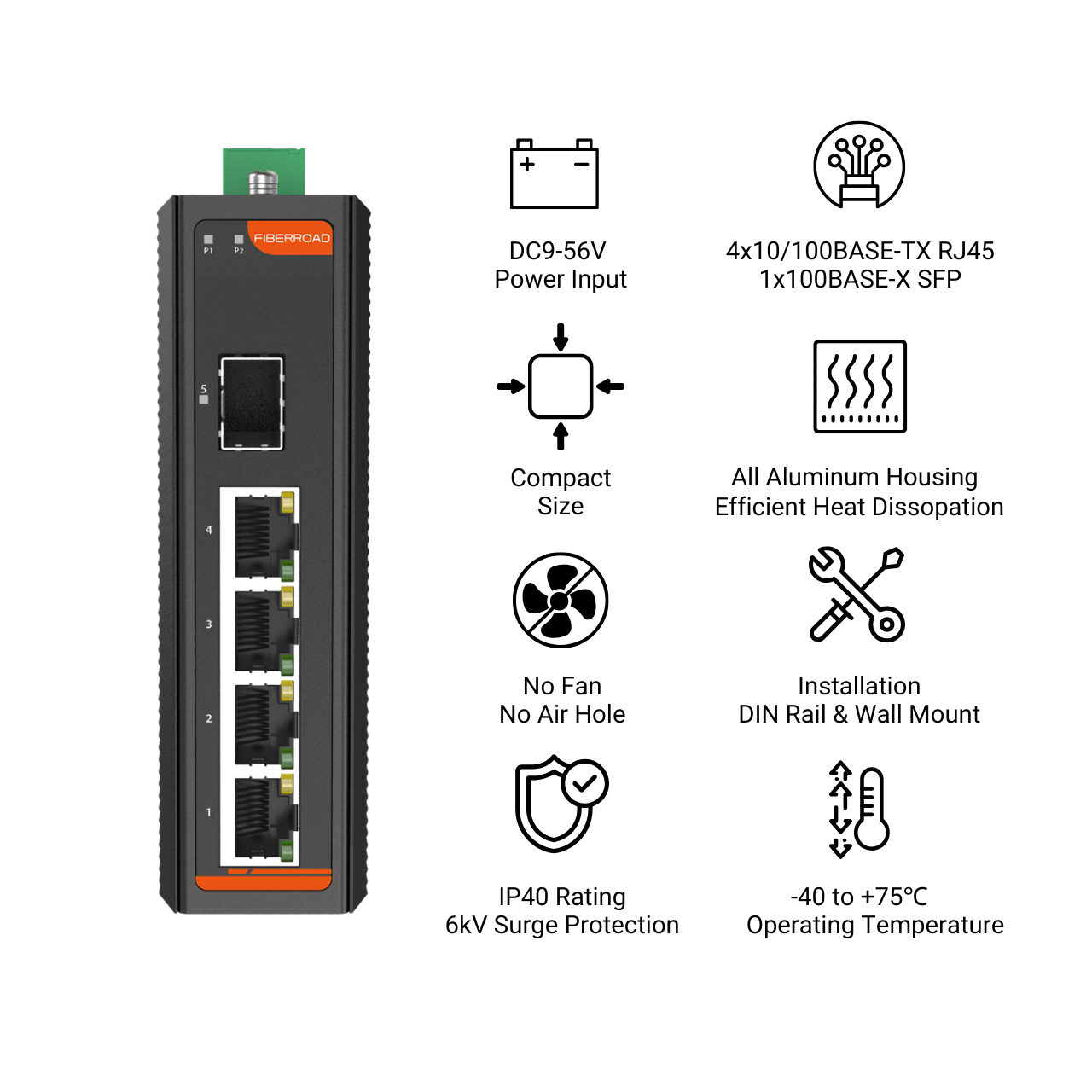

Industrial-Grade Durability and Wide Temperature Range
Built to withstand harsh environments, this Ethernet switch features an IP40-rated aluminum case and a fanless design, ensuring resistance to dust, physical impacts, and overheating. Operating reliably in extreme temperatures from -40°C to +75°C, it thrives in demanding settings like manufacturing plants, outdoor installations, or transportation systems where ruggedness and thermal resilience are paramount.
Hybrid Copper and Fiber Connectivity
Combining four 10/100BASE-TX copper ports with a 100BASE-X SFP slot, this switch supports versatile network configurations. The copper ports connect legacy devices like PLCs and sensors, while the SFP fiber port enables long-distance, noise-resistant communication. Ideal for bridging mixed-media networks in industrial automation, utilities, or remote monitoring applications.
Redundant DC Power with Reverse Polarity Protection
Equipped with a wide-range 9-56V DC dual power input, this switch ensures uninterrupted operation in mission-critical environments. Redundant power support and reverse polarity protection guard against electrical faults and voltage fluctuations, providing robust reliability for industrial grids, renewable energy systems, or mobile installations.
Plug-and-Play Auto-Negotiation Ports
Featuring auto-negotiation on all copper ports, the switch automatically adjusts speeds between 10Mbps and 100Mbps for seamless integration with mixed-speed devices. Its plug-and-play design eliminates manual configuration, enabling rapid deployment in dynamic networks such as IoT clusters, assembly lines, or legacy system upgrades.
Maintenance-Free Fanless Operation
The fanless design eliminates moving parts, reducing wear and minimizing maintenance needs. Coupled with the aluminum casing’s superior heat dissipation, this ensures silent, long-lasting performance in dusty or vibration-prone environments, making it ideal for 24/7 industrial applications where downtime is not an option.
| Hardware Specifications | |||
| Product | FR-7N1104 | FR-7N1104P | FR-7N1104BT |
| Copper Ports | 4×10/100BASE-TX RJ45 Auto-MDI/MDI-X (Port 1-4) | ||
| Fiber Ports | 1x100BASE-X SFP Slot (Port 5) | ||
| Enclosure | IP40 aluminum case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 120 x 90 x 35 mm | ||
| Weight | 380g(Bare weight), 480g(With package) | ||
| Surge Protection | ±6kV DC, ±4kV RJ45 | ±6kV DC, ±6kV RJ45 | |
| Switching | |||
| Switch Architecture | Store-and-Forward | ||
| Switch Fabric | 1.8Gbps/non-blocking | ||
| Forwarding Rate | 0.74 Mpps(64-byte packet size) | ||
| Packet Buffer Size | 1 Mbits | ||
| MAX. Packet Length | 1536 bytes | ||
| MAC Address Table | 2K entries, automatic source address learning and aging | ||
| Power Supply and PoE | |||
| Power Input | 2 | ||
| Power Connector | 1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm(As required) |
||
| Operating Voltage | DC9-56V | DC48-56V | DC52-56V |
| Power Consumption | 5 Watts Max (without PoE load) | ||
| Protection | Reverse Polarity, Overload Current | ||
| PoE Ports | \ | Port 1 to 4 IEEE802.3 af/at | Port 1 to 4 IEEE802.3 af/at/bt |
| PoE Power Supply Type | \ | End-span | End-span |
| Power Supply Pin | \ | 1/2(+), 3/6(-) | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Max Power Per Port | \ | 30W | 90W |
| PoE Power Budget | \ | 120W
(Depending on power input) |
120W
(Depending on power input) |
| Environmental | |||
| Operating Temperature | -40℃ to +75℃ (-40 to 167 ℉) | ||
| Storage Temperature | -40℃ to +85℃ (-40 to 185 ℉) | ||
| Operating Humidity | 5%~95% (non-condensing) | ||
| Heat Dissipation | 10 BTU/h (Non-PoE), 430 BTU/h (with 120W PoE load) | ||
| Cooling | Passive Cooling | ||
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ | ||
| LED Indicators | |||
| P1 & P2 | ON: Power is being supplied ,OFF: Power is not being supplied | ||
| Fiber Port | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Amber LEDs | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Green LEDs | ON: Port is operating at 100 Mb/s, OFF: Port is operating at 10 Mb/s | ||
