16-Port 10/100/1000BASE-T Layer 2+ Managed Industrial PoE Ethernet Switch

Take your industrial network to the next level with this rugged, full-featured Layer 2+ managed Ethernet switch. Built to withstand extreme temperatures from -40 to 75 degrees Celsius, this 16-port switch delivers reliable Gigabit performance with 16 RJ45 ports. Manage your network easily using the CLI, WebGUI or NMS software, while advanced features like STP/RSTP, ERPSv2 and VLANs ensure a robust, high-availability network. Optionally choose PoE/PoE+/PoE++ models to power devices over Ethernet. Tight security features include IEEE 802. X, RADIUS, HTTPS, SSH and SNMPv3 to safeguard your data. With its combination of extreme temperature tolerance, full manageability, advanced network tools and strong security, this Fiberroad switch provides the connectivity and control you need to build a high-performance industrial network that just keeps running.



Main Features

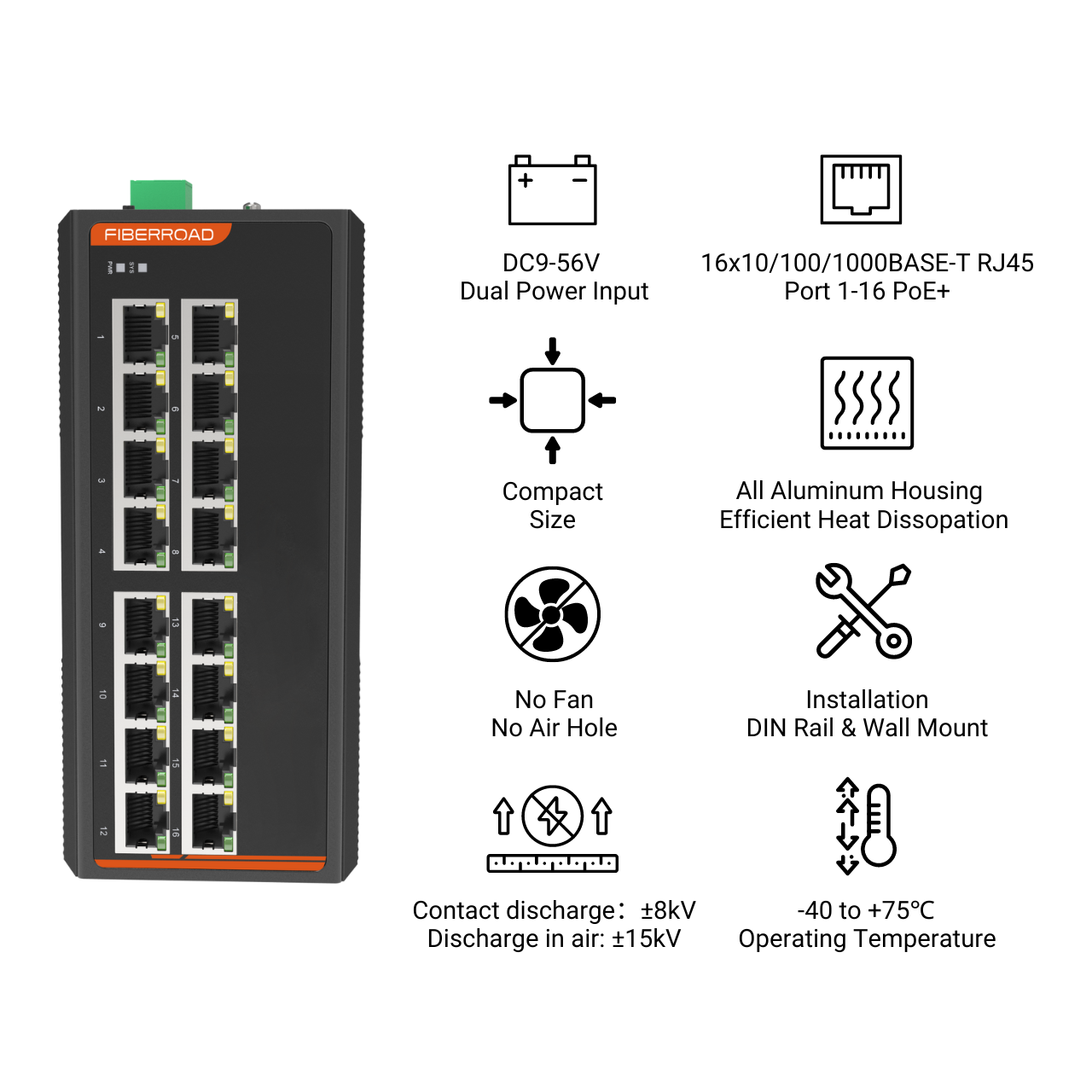

  • 16×10/100/1000BASE-T Gigabit Ethernet RJ45 Ports
  • Full gigabit L2+ management, easy to manage the industrial network by CLI/WebGUI/NMS.
  • PoE 1-16 support IEEE 802.3 af/at Standard
  • All-aluminum Case, Compact and Fanless Design
  • -40 to 75℃ temperature maintains performance in extreme conditions
  • DIN Rail and wall-mountable – quick to install and remove for maintenance
  • Build up a redundant network with STP/RSTP/MSTP/ERPSv2.
  • RADIUS, IEEE 802.1X, SNMPv3, HTTPs and SSH to enhance network security.
  • Bandwidth management prevents unpredictable network status with a” Lock Port” to restrict access to authorized MAC addresses.
  • QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including SP, WRR&SP+WRR

Video Gallery

Share This Product

Streamlining Operations with Layer 2+ Managed Industrial PoE Ethernet Switches

Layer 2+ Managed Industrial PoE Ethernet Switches are revolutionizing the way businesses manage their network infrastructure. These advanced switches offer enhanced network efficiency by providing intelligent features such as VLAN support, Quality of Service (QoS) prioritization, and bandwidth management. By incorporating Power over Ethernet (PoE) technology, these switches also simplify the deployment of IP cameras, wireless access points, and other PoE devices in industrial settings.

Enhancing Reliability: How Industrial Switches Can Improve Network Performance

Layer 2+ Managed Industrial PoE Ethernet Switches are the ultimate solution for industries operating in harsh environments. These switches offer a myriad of benefits that can significantly enhance the efficiency and reliability of industrial networks. Specifically designed to withstand extreme temperatures, moisture, dust, vibrations, and electromagnetic interference commonly found in industrial settings, these switches provide unparalleled durability and resilience.

layer 2 managed industrial switch

Unlocking the Power of Secure Industrial Network Connectivity with Advanced Switches

Layer 2+ Managed Industrial PoE Ethernet Switches play a vital role in maximizing efficiency and productivity in today’s fast-paced industrial environment. With the use of technologies such as MSTP and ERPSv2, businesses can ensure seamless communication between devices while maintaining a high level of security. These advanced switches provide the necessary infrastructure for secure industrial network connectivity, allowing for enhanced data transmission speeds and improved reliability. By investing in Layer 2+ Managed Industrial PoE Ethernet Switches, companies can streamline their operations and stay ahead of the competition in an increasingly digital world.

MSTP layer 2 managed industrial switch

MSTP

ERPS layer 2 managed industrial switch

ERPSv2

PoE Schedule for Energy Savings

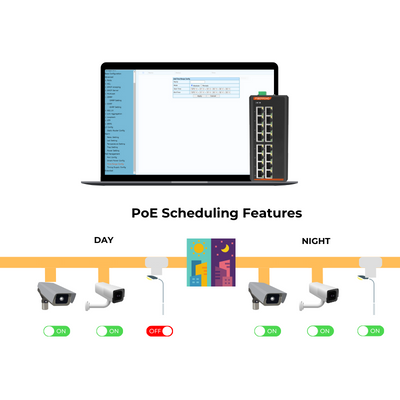

To contribute to energy conservation worldwide and environmental protection, the FR-7M3016P is capable of effectively controlling the power supply in addition to providing high power levels. It is a powerful tool for small and medium-sized businesses to save power and money by using the built-in “PoE schedule” function to enable or disable PoE power feeding for each PoE port at specified intervals.

PoE Power Management

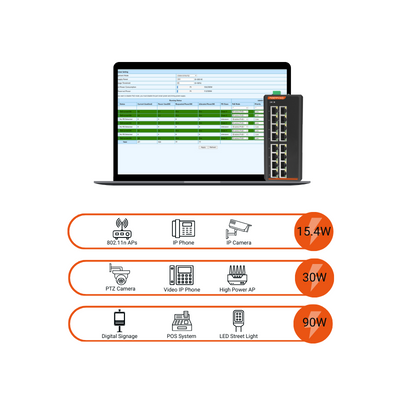

You can configure the maximum power, percentage of PoE power to be reserved, PoE power alarm threshold, and maximum power on each interface depending on the quantity, type, and input voltage of the PoE-capable module. Power parameters can be set based on the requirements of PDs connected to a device to use PoE power effectively and ensure device stability.

Harnessing the Power of Console, Web, and SNMP Interfaces

The Layer 2+ Managed Industrial PoE Ethernet Switches revolutionize network management by offering a seamless and efficient solution for monitoring and controlling network infrastructure. With the power of console, web, and SNMP interfaces at their disposal, users can easily access and manage their networks with unparalleled ease. This innovative device streamlines the process of overseeing network operations, making it easier than ever to ensure that all systems are running smoothly. The comprehensive capabilities of the Layer 2+ Managed Industrial PoE Ethernet Switches provide a versatile tool for maintaining optimal performance and stability within any network environment.

layer 2 managed industrial switch management
Ethernet Interface
Ports 16×10/100/1000Base-T Ports(RJ45 connector)
Port Mode(Tx) Auto Negotioation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

IEEE 802.1X for authentication

IEEE 802.3ad for Port Trunk with LACP

Packet Buffer Size 4Mbits
Maximum Packet Length Up to 10k
MAC Address Table 8k
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 52Gbps

IGMP GroupS 2048
Max. No. of VLAN 64
VLAN ID Range VID 1 to 4094



PoE & Power Supply
Model FR-7M3016P FR-7M3016BT
PoE Ports Port 1 to 16 IEEE802.3af/at @PoE+ Port 1 to16 IEEE802.3af/at/bt @PoE++
Power Supply Pin Default: 1/2(+), 3/6(-) Default: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Max Power Per Port 30W 90W
Total PWR /Input Voltage 480W(DC48-56V) (Model Dependent)
Power Consumption 10 Watts Max(without PoE load)
Power Inputs 2
Input Voltage Non-PoE Mode: 9-56VDC

30W PoE Mode: 48-56VDC

90W PoE Mode: 52-56VDC(IEEE802.3bt model)

Connector 1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection Overload Current Protection, Reverse Polarity Protection
Ethernet Software Features
Redundancy Protocols Support STP/RSTP/ERPSv2, Link Aggregation
Multicast Support Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
VLAN Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
Time Management SNTP
QOS Flow-based redirection

Flow-based rate limiting

Flow-based packet filtering

8*Output queues of each port 802.1p/DSCP priority mapping

Diff-Serv QoS, Priority Mark/Remark

Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL Port-based Issuing ACL

ACL based on port and VLAN

L2 to L4 packet filtering, matching first 80 bytes message.

Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

POE Management (Depending on model) Total power limit of PoE power supply

PoE output power allocation

PoE output priority configuration

PoE working status

Scheduling of PoE operation

Diagnostic Maintenance Support port mirroring, Syslog, Ping
Management Function Support CLI、WEB、SNMPv1/v2/v3,Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT
Alarm Management Support 1 way relay alarm output, RMON, TRAP
Security Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82,802.1X security access,

Support user hierarchical management, ACL access control list,

Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advance Layer 2+ Features IPv4/IPv6 Management

Static Route

Physical Characteristics
Housing Aluminum case
IP Rating IP40
Dimensions 160mmx132mmx70mm(L x W x H)
Installation DIN Rail/Wall Mount
Weight 1200g
Environmental

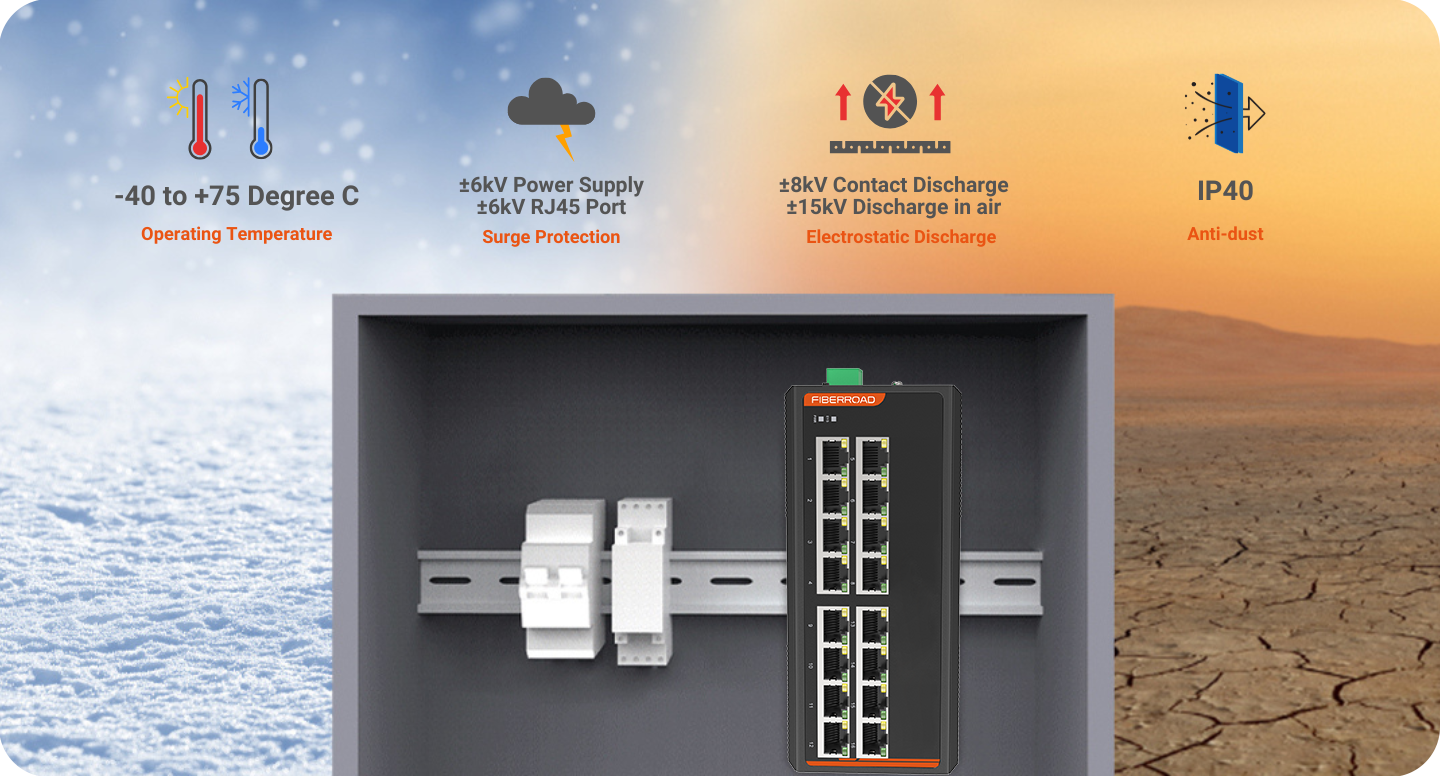

Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~90% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
MTBF 907,476 hours @ Telcordia SR-332 Standard
Heat Dissipation 65 BTU/h (non-PoE mode)
Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
Electrostatic Discharge Contact discharge: 8kV

Discharge in air:  15kV

Surge Protection Power Supply(Common mode): ±8kV/DM 2kV

RI45 Port: ±4kV
