Managed Gigabit PoE Switch – Secure, Scalable Networking with PoE+ Support

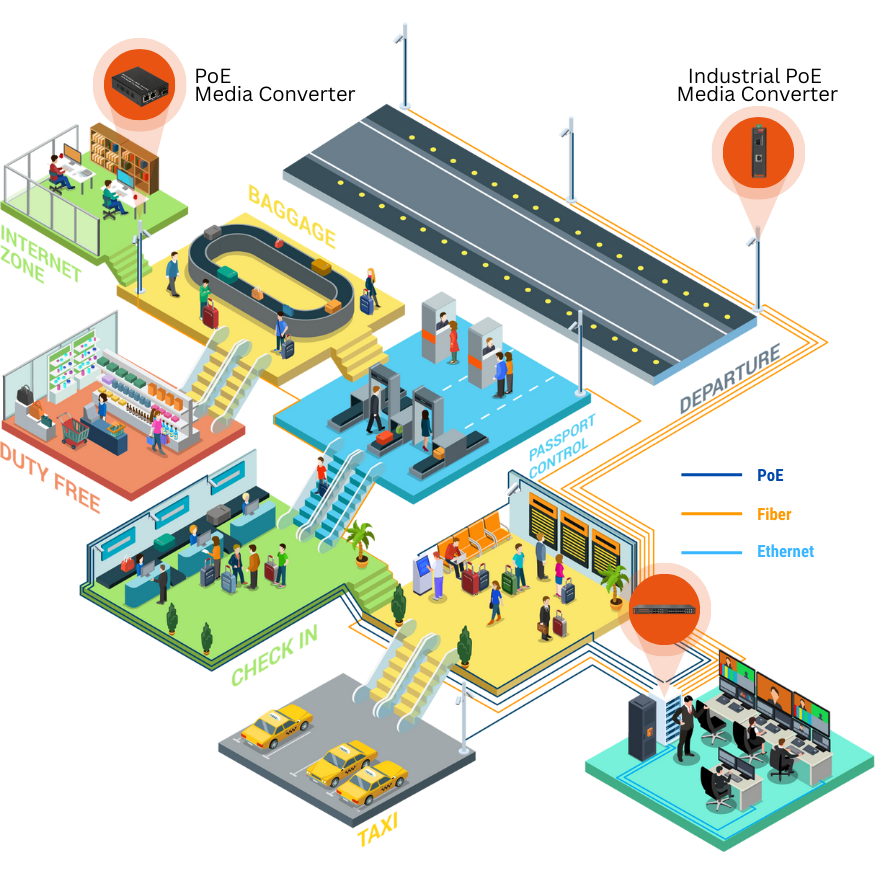

The Managed Gigabit PoE Switch delivers secure, high-performance networking with PoE+ (IEEE 802.3at) support, providing up to 30W per port to power devices like IP cameras, VoIP phones, and wireless access points while ensuring seamless data transmission. With advanced Layer 2 management features, including VLANs, QoS, and ACLs, this switch optimises traffic flow and enhances security across your network. Its scalable design simplifies expansion, reducing cabling complexity and infrastructure costs. Whether deploying in enterprise offices, surveillance systems, or smart buildings, this switch offers reliable power delivery, robust security, and granular control—making it an ideal solution for modern, high-demand networks.

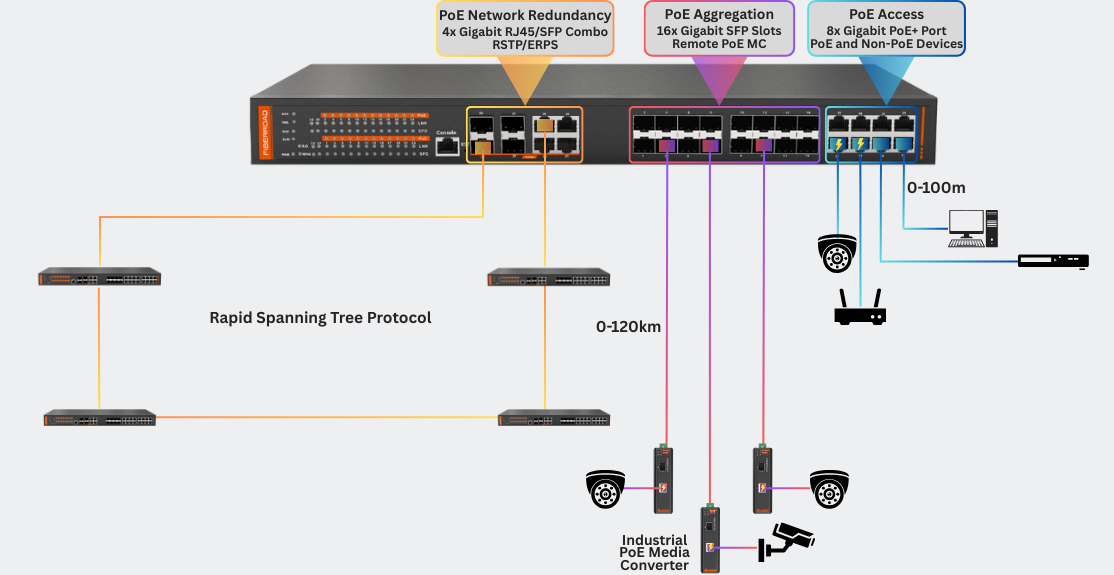

High-Availability Managed Gigabit PoE Switch with 4 Combo Uplink Ports for Network Redundancy

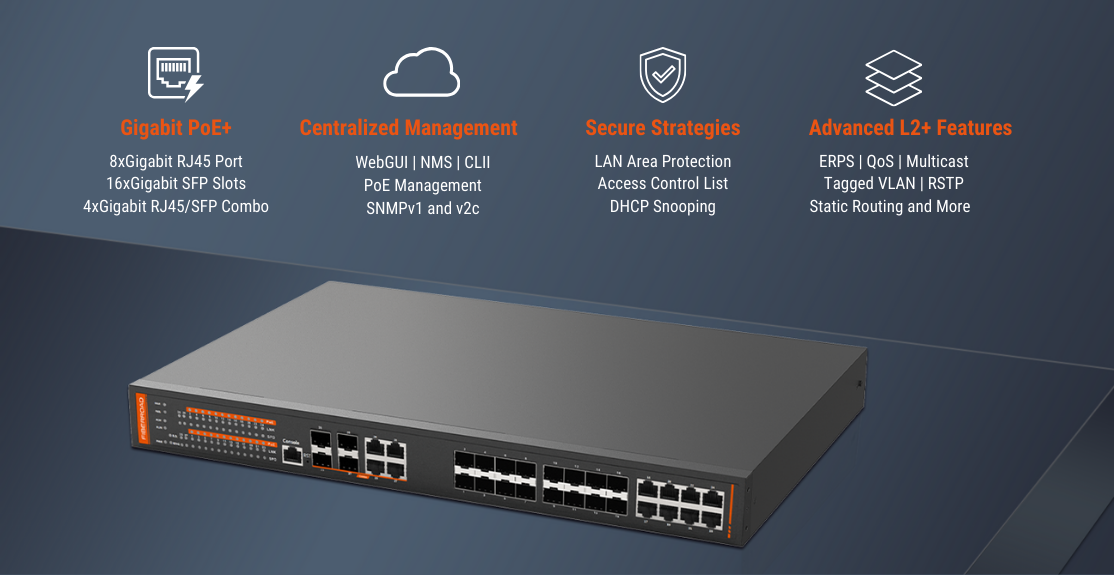

Managed Gigabit PoE Switch designed for both PoE access and aggregation, this high-performance switch features 8× Gigabit PoE+ ports (30W per port) to efficiently power IP cameras, wireless APs, VoIP phones, and other edge devices. For scalable connectivity, 16× Gigabit SFP fiber ports support long-distance, high-bandwidth uplinks, while 4× RJ45/SFP combo ports ensure flexible redundancy and failover protection—maintaining uninterrupted network stability.
Advanced Layer 2 Management, Network Automation & Operational Efficiency
Granular Traffic Control
- IEEE 802.1Q VLAN: Segment networks for security/performance.
- QoS (802.1p/DSCP): Prioritize voice/video traffic (4 queues per port).
- IGMP Snooping v1/v2/v3: Optimize multicast streaming (e.g., IPTV, surveillance).
Enterprise Security
- Port Security/MAC Filtering: Block unauthorised devices.
- 802.1X Authentication: RADIUS/TACACS+ integration.
- ACLs (Access Control Lists): Restrict traffic by IP/MAC/protocol.
Unified Management
- Triple Control: WebGUI, CLI (SSH/Telnet), and SNMPv3-compatible NMS.
- LLDP: Auto-discover and configure connected devices.
- Port Mirroring: Monitor traffic for diagnostics.
| Hardware Specifications | |||

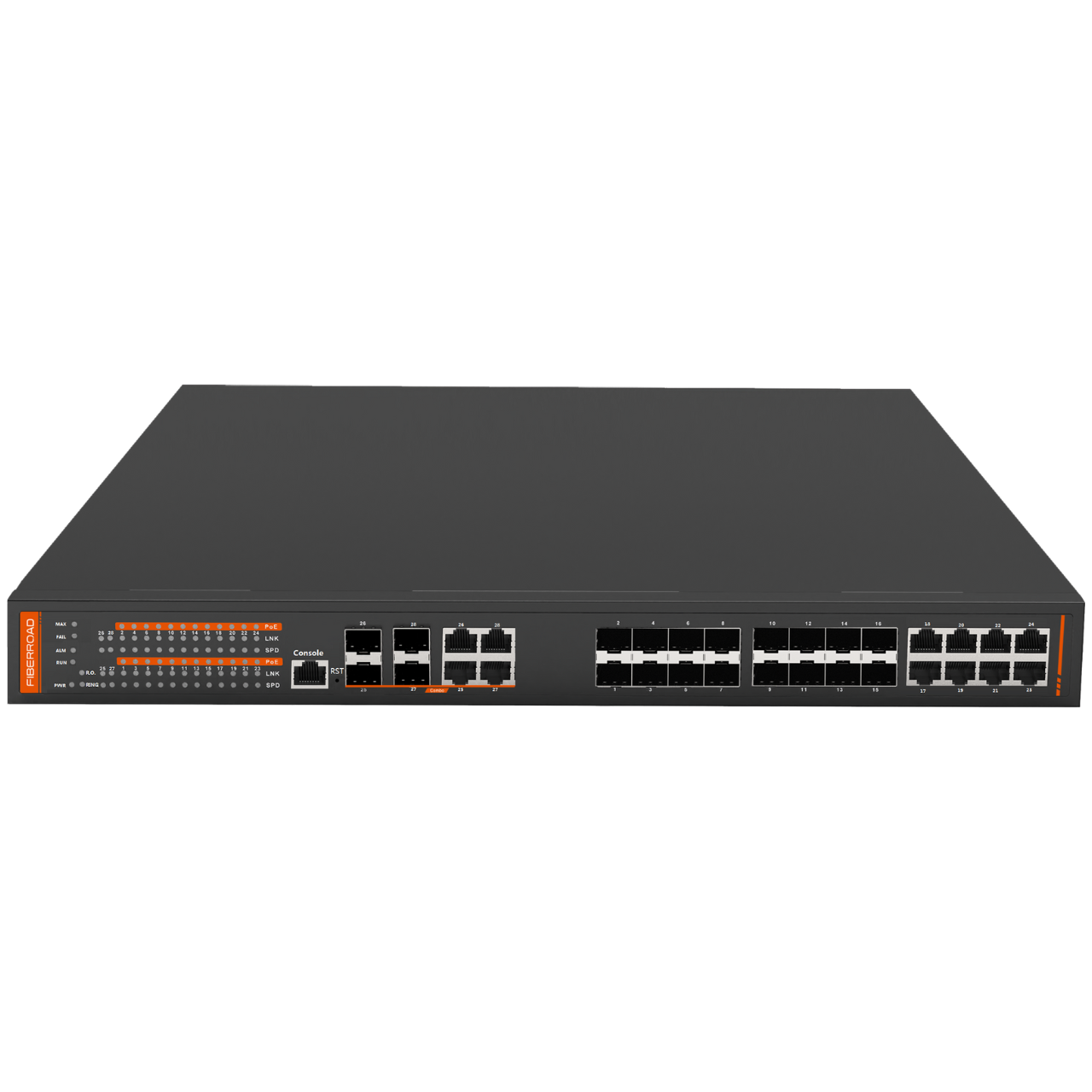

| Product | FR-5M34F8 | FR-5M34F8P | FR-5M34F8BT |
| Copper Ports | 8×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (Port 17-24) | ||
| Fiber Ports | 16×100/1000BASE-X SFP Slots (Port 1 -Port 17)
4×100/1000BASE-X SFP Slots (Port 25 -Port 28) / 4×10/100/1000BASE-T RJ45 Combo Port |
||
| Console | 1x RJ45-to-RS232 Serial Port(115200) | ||
| RAM | 128Mbyte | ||
| FLASH | 32MByte | ||
| Reset Button | ＜5 sec: System Reboot; ＞10 sec: Factory Default | ||
| Surge Protection | ±4kV DC, ±4kV RJ45 | ±4kV DC, ±6kV RJ45 | |
| Enclosure | IP30 Metal | ||
| Installation | 19inch Rack Mount or Desktop | ||
| Dimension | 440mm*300mm*45mm | ||
| Switching | |||
| Switch Architecture | Store-and-Forward | ||
| Switch Fabric | 56Gbps/non-blocking | ||
| Forwarding Rate | 41.66Mpps(64-byte packet size) | ||
| Packet Buffer Size | 4 Mbits | ||
| Maximum Packet Length | 10K bytes | ||
| MAC Address Table | 8K entries, automatic source address learning and aging | ||
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex | ||
| Power Supply & Power over Ethernet | |||
| Power Input | 1 | ||
| Input Voltage | AC 100-240V, 50/60Hz 0.15A | ||
| Power Consumption | 15 Watts Max (without PoE Load) | ||
| PoE Ports | \ | Port 17 to 24 IEEE802.3 af/at | Port 17 to 24 IEEE802.3 af/at/bt |
| PoE Power Supply Type | \ | End-span | End-span |
| Power Supply Pin | \ | 1/2(+), 3/6(-) | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Max Power Per Port | \ | 30W | 90W |
| PoE Power Budget | \ | 240W (Default) | 240W (On Demand) |
| Environmental | |||
| Operating Temperature | 0 ℃ to 50 ℃ | ||
| Storage Temperature | -20℃ to 70℃ | ||
| Operating Humidity | 5%~95% (non-condensing) | ||
| MTBF | 147,595 hours (Non-PoE Models) 126,424 hours (PoE Models) @MIL-HDBK-217F GB | ||
| Heat Dissipation | 102 BTU/h (non-PoE mode)
1672 BTU/h (with Max PoE load) |
||
| Cooling | Passive Cooling, Fanless Design | ||
| Noise Level | 0 dBA | ||
