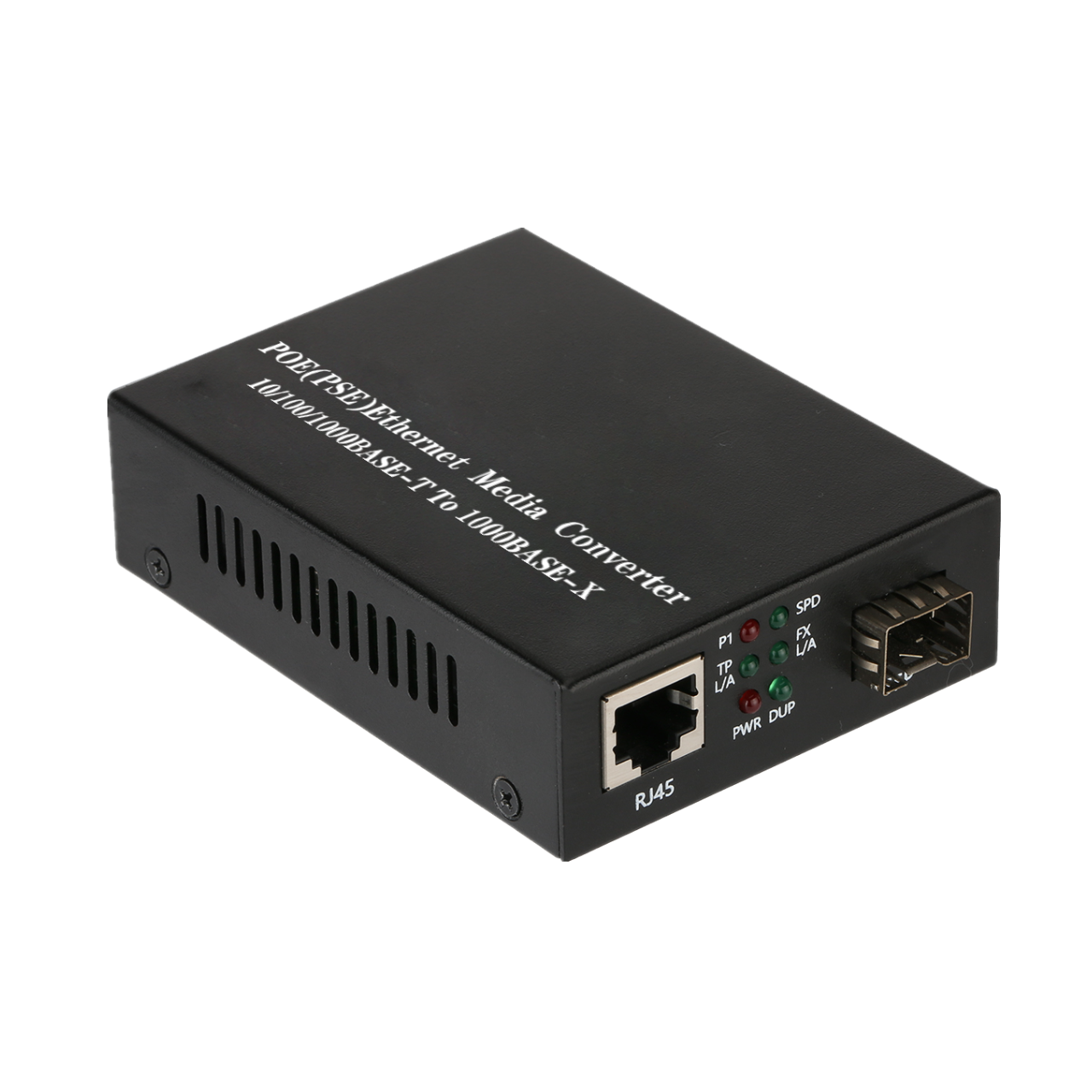

Gigabit PoE Fiber Media Converter With LFPT
The Gigabit PoE Fiber Media Converter Series is a versatile solution that caters to the increasing demand for higher power network equipment, such as PTZ cameras, VoIP telephones, and wireless access points. With both Single-port and Dual-port options, it supports Mid-span IEEE 802.3at power over Ethernet plus conversion. This allows for direct data and power delivery to devices like PTZ speed dome cameras and color touch-screen phones via RJ45 interfaces without the need for extra power outlets or cables. The integrated fiber interface also extends the deployment range up to 120km, making it suitable for various network applications. Additionally, by converting 10/100/1000BASE-T signal to 1000BASE-X, it provides diverse fiber connection types to further enhance flexibility. With a maximum distance of 100 meters between the PoE PSE and PD, this series is an efficient solution for powering network devices.
Product Features
- 802.3af/at PoE+ Compliance: Deliver up to 30W of power per port to connected devices such as IP cameras, wireless access points, VoIP phones, and IoT devices—eliminating the need for separate power sources.
- Fiber Flexibility: Supports both SFP modules (hot-swappable, for modern LC fiber connectivity) and traditional 1×9 optical fiber modules (SC/ST connectors), accommodating single-mode or multi-mode fiber for distances up to 120km.
- Gigabit Performance: Achieve lightning-fast data transfer rates up to 1000Mbps, ensuring smooth, lag-free communication between network segments.
- External Power Supply: Includes a stable, high-efficiency external power adapter for consistent performance, with optional redundancy support to minimize downtime.
- Plug-and-Play Simplicity: No configuration required—deploy instantly in existing networks for seamless copper-to-fiber conversion.
Video Gallery
Quality Certifications
Guarantee
Share This Product
Boosting Performance and Saving Costs: The Power of Gigabit PoE Fiber Media Converter
If you’re looking for a way to extend your Ethernet network beyond the reach of traditional cabling, a Gigabit PoE Fiber Media Converter is an ideal solution. By converting Ethernet signals to optical signals, these converters can extend your network over long distances without any degradation in performance. And because they use power over Ethernet (PoE) technology, they can also provide power to devices such as IP cameras or VoIP phones, making them a versatile and convenient solution for any application.
Why Gigabit PoE Media Converters are Essential for Business Networks
The Gigabit PoE Fiber Media Converter is a miniaturized media converter that is ideal for use in confined spaces. This media converter converts Ethernet signals to optical fiber signals, and vice versa. It supports both 10/100/1000Base-TX and 1000Base-FX standards, making it compatible with a wide range of devices. The Gigabit PoE Fiber Media Converter also features an integrated Power over Ethernet (PoE) injector, which provides power to PoE-powered devices through the Ethernet cable. This media converter is perfect for applications where space is limited, such as surveillance cameras and access control systems.
| Product Attributes | |||
|---|---|---|---|
| Ports | 1×10/100/1000Base-Tx RJ45 1x1000Base-x SFP/1×9 Port |
Port Mode(Tx) | Auto Negotiation Full/Half Duplex Auto MDI/MDIX |
| PoE Power Capacity | IEEE 802.3 af: 15.4W IEEE 802.3 at: 30W |
Frame Size | 9K |
| DIP Switch | LFP/ALS/FX Reset/FX 100M | Input Power | 48-56VDC/1.25A |
| Installation Mode | Desktop or Wall Mount | Power Consumption | af mode:20W at mode:35W |
| Housing | Metal | IP Rating | IP30 |
| Operating Temperature | 0 to 50℃ （32 to 122℉） | MTBF | 100,819 Hours |
How to Boost Your Network’s Reliability With Link Fault Pass-Through
A Gigabit PoE Fiber Media Converter with link fault pass-through features can be a great addition to your network. It can also help you extend the reach of your PoE network by connecting two devices that are far apart. The link fault pass-through feature allows you to keep your network running even if one of the devices is disconnected. This can be a great advantage if you have a large or complex network.
| Hardware Specifications | |||||
| Product | FR-POE232 | FR-POE233 | |||
| Copper Port | 1 x 10/100/1000BASE-T Ethernet TP interface | 2 x 10/100/1000BASE-T Ethernet TP interface | |||
| Auto-negotiation, auto MDI/MDI-X with PoE injector function | |||||
| Fiber Port | 1x 1000BASE-X | ||||
| Form Factor | 1X9 | 1X9 | SFP | ||
| Data Rate | 1.25G | 1.25G | 1.25G | ||
| Fiber Port Type | SC | SC | LC | ||
| Transmission Distance | 550m | 10km | 10km | ||
| Wavelength | 850nm | 1310nm | 1310nm | ||
| Transmitter Power | -9 to -3 dBm | -9 to -3 dBm | -9 to -3 dBm | ||
| Receiver Sensitivity | ＜ -18 dBm | ＜-22 dBm | ＜-22 dBm | ||
| Transmission mode | Store-and-Forward | ||||
| Flow Control | Back pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode |
||||
| Maximum Frame Size | 9K | ||||
| Dimension | 94x71x26mm | ||||
| Installation | Desktop or Wall Mount | ||||
| Power over Ethernet & Power Supply | |||||
| Standard | IEEE 802.3af PoE Standard
IEEE 802.3at PoE+ Standard |
||||
| Power Output | 52V DC, 30 watts, max | ||||
| PoE Power Supply Type | Mid-span | ||||
| Power Pin Assignment | 1/2(+), 3/6(-) | ||||
| PoE Power Budget | 30 watts | 60 watts | |||
| Power Supply | DC52V Input, external AC to DC adapter | ||||
| Environmental | |||||
| Operating Temperature | 0 to +50℃ (32 to +122℉) | ||||
| Storage Temperature | -20 to +70℃ (-4 to +158℉) | ||||
| Humidity | 5% to 90% (non-condensing) | ||||
| MTBF | ＞100,000 Hours @Telcordia SR-332 GB 25℃ | ||||
| Heat Dissipation | 113 BTU/h (with 30W PoE) | ||||
| Cooling | Passive Cooling | ||||
| Noise Level | 0 dBA | ||||
