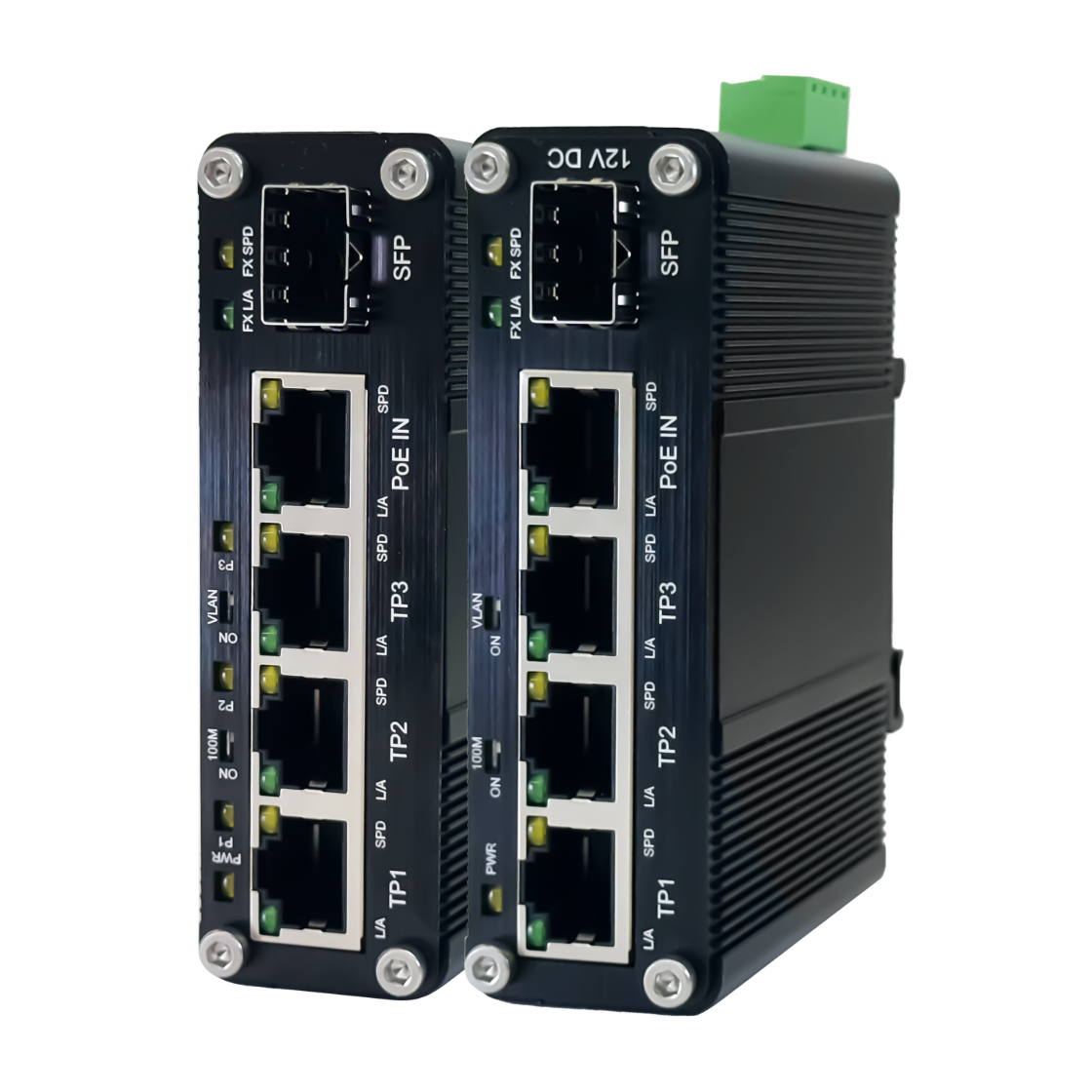

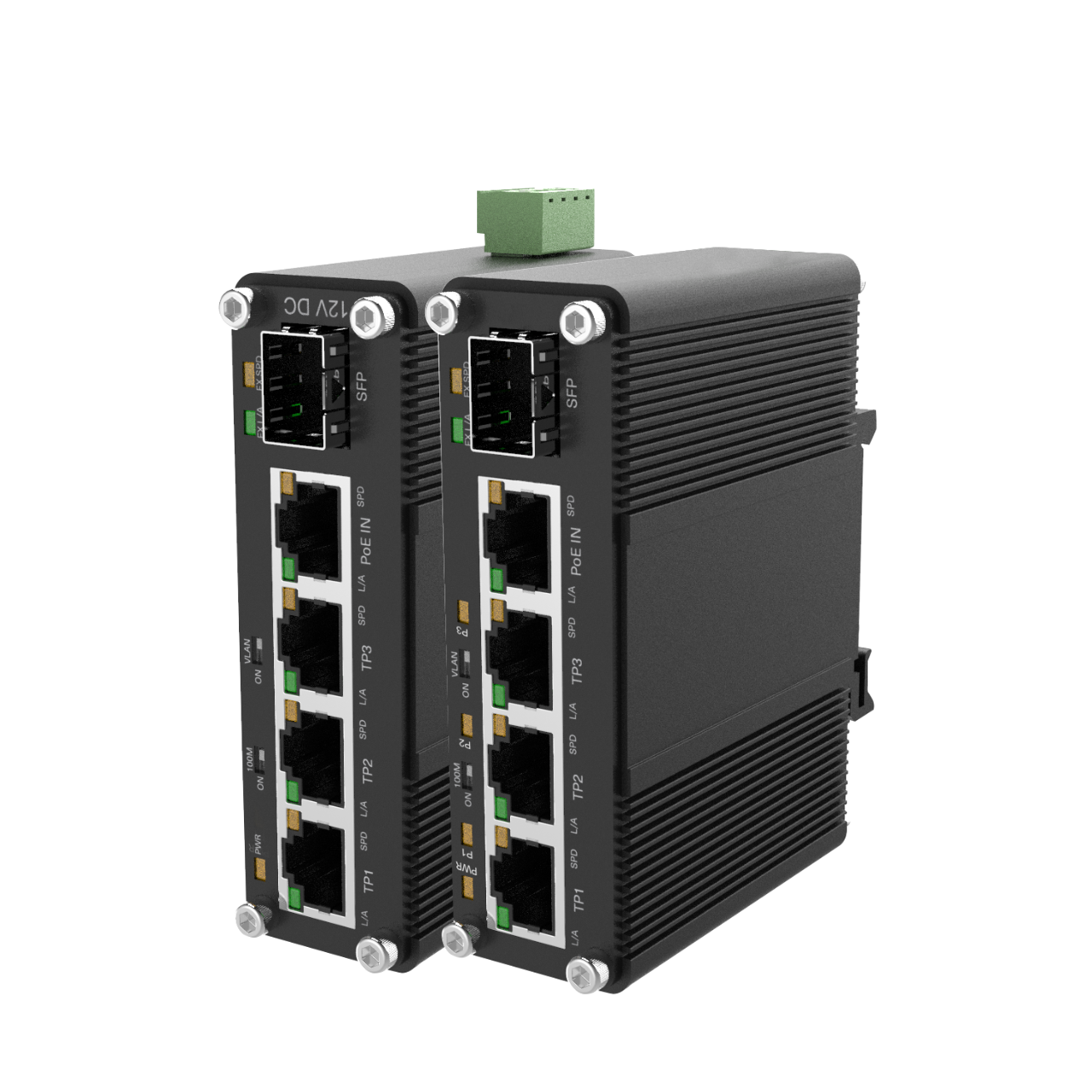

1 Port PoE++ Input to 4 Port Gigabit Industrial PoE Switch

The FR-IPS2005 Series is a compact industrial Ethernet switch designed for flexible and remote deployment. It features three 10/100/1000Base-T RJ45 ports with PoE+/DC output to power connected devices. For simplified installation, the switch receives its power via a dedicated PoE-in port from an upstream PSE switch or injector, eliminating the need for a local power source. A built-in 100/1000Base-X SFP slot provides an optional fiber optic uplink for extending network connectivity over long distances.

Video Gallery

Share This Product

Applications

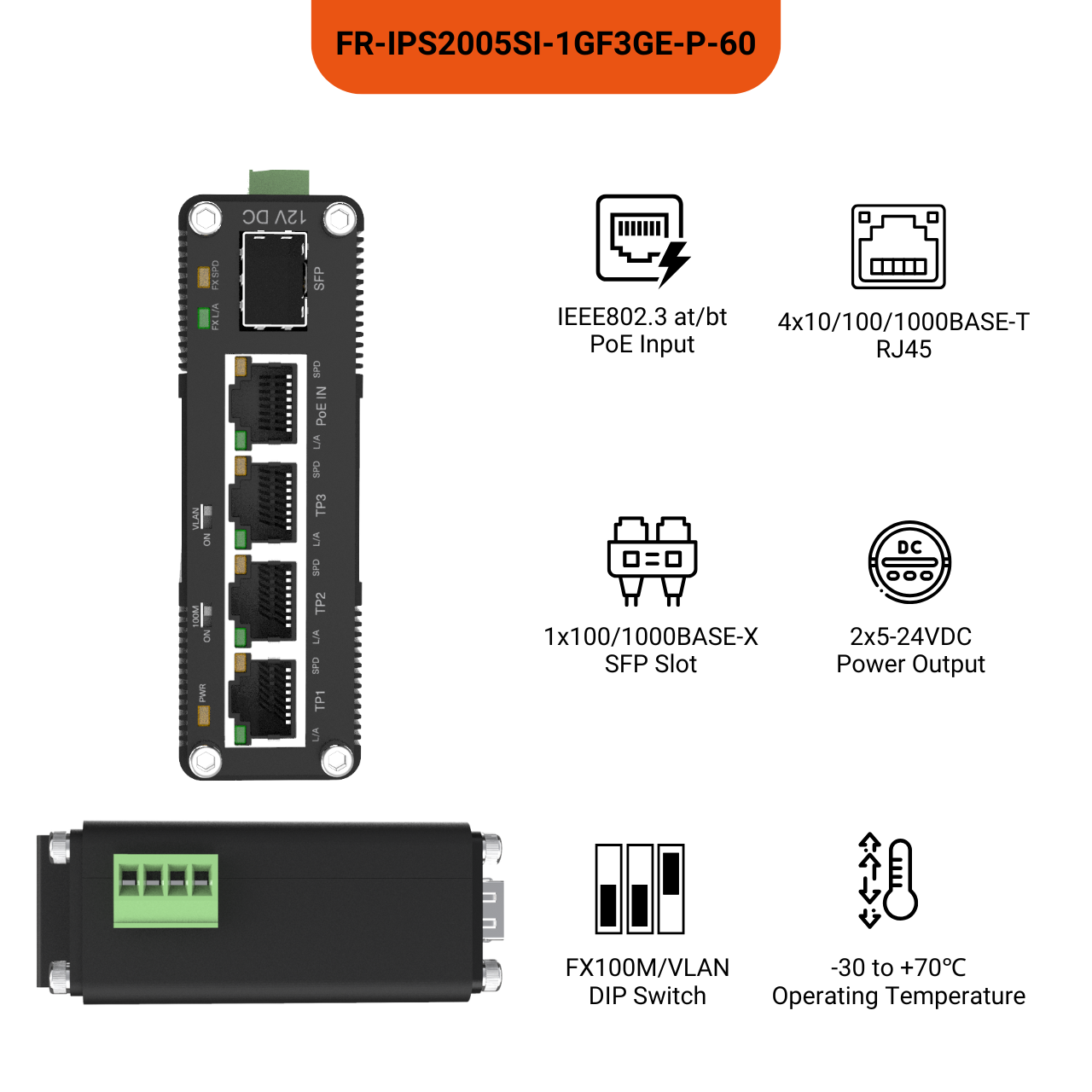

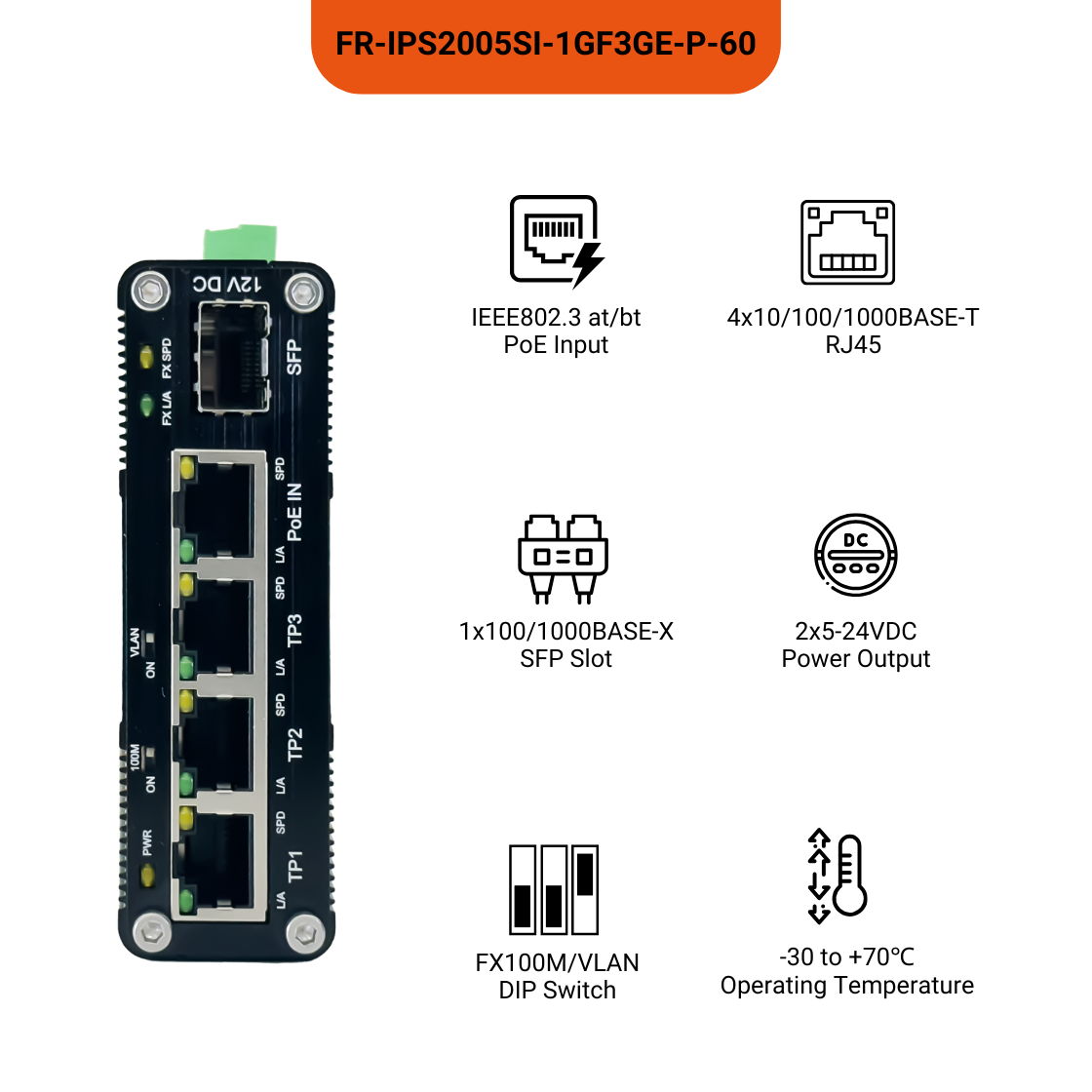

FR-IPS2005SI-1GF3GE-P-60

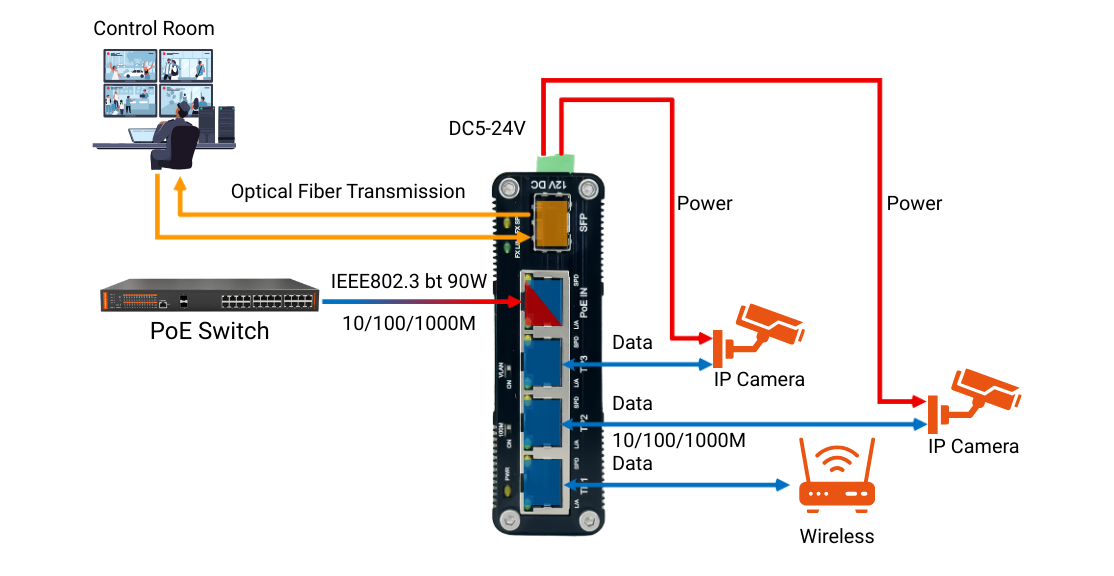

The Fiberroad Industrial PoE Switch delivers high-power connectivity tailored for modern surveillance systems. Supporting the IEEE 802.3bt 90W Power Input, making it ideal for power-hungry devices such as PTZ cameras and advanced access points. The switch features three 10/100/1000M RJ45 ports with dual DC 5-24V power outputs for flexible device integration, along with one 1000M SFP port for long-distance fiber optic transmission to the surveillance control room. Built for industrial environments, it ensures reliable, continuous operation while simplifying cabling and reducing installation costs.

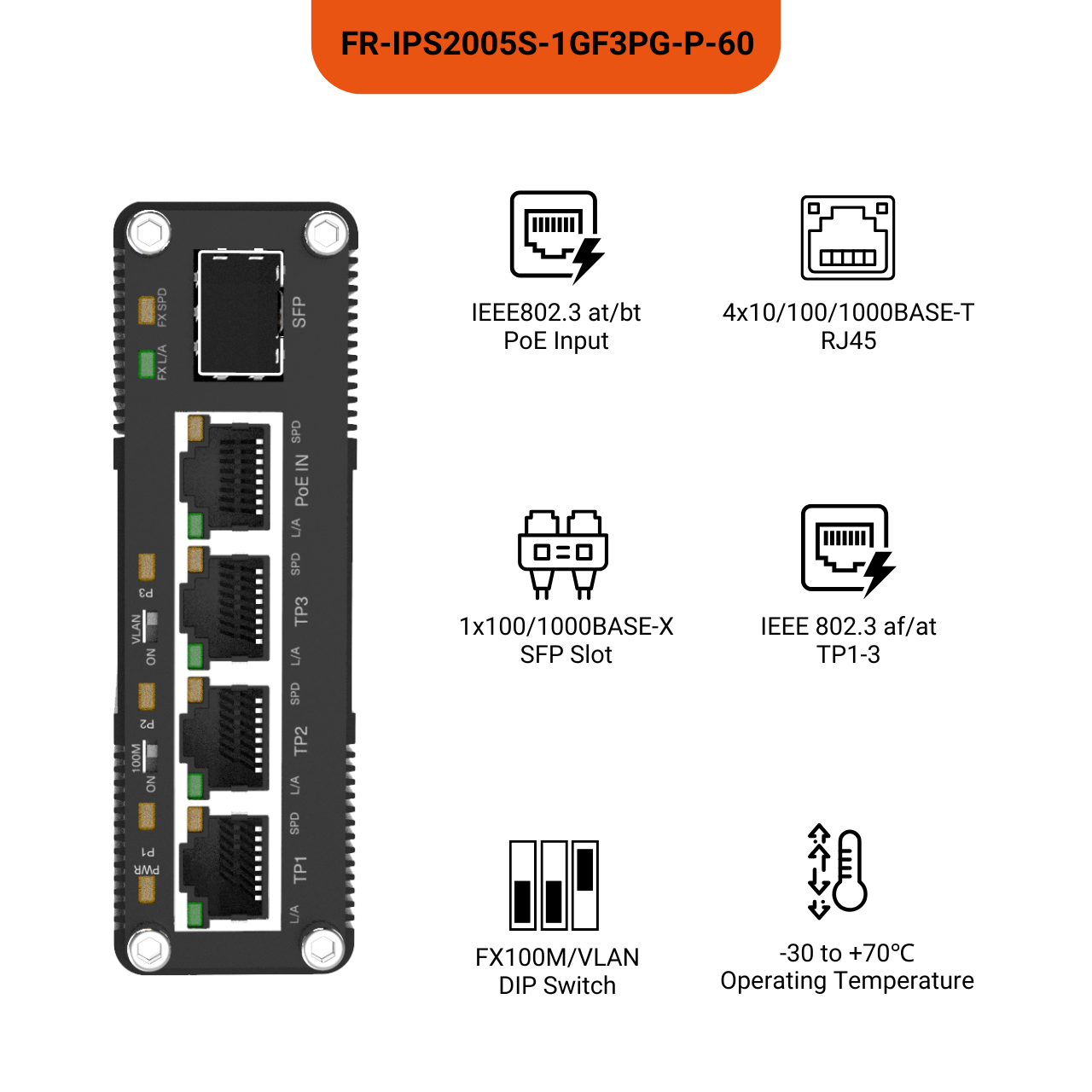

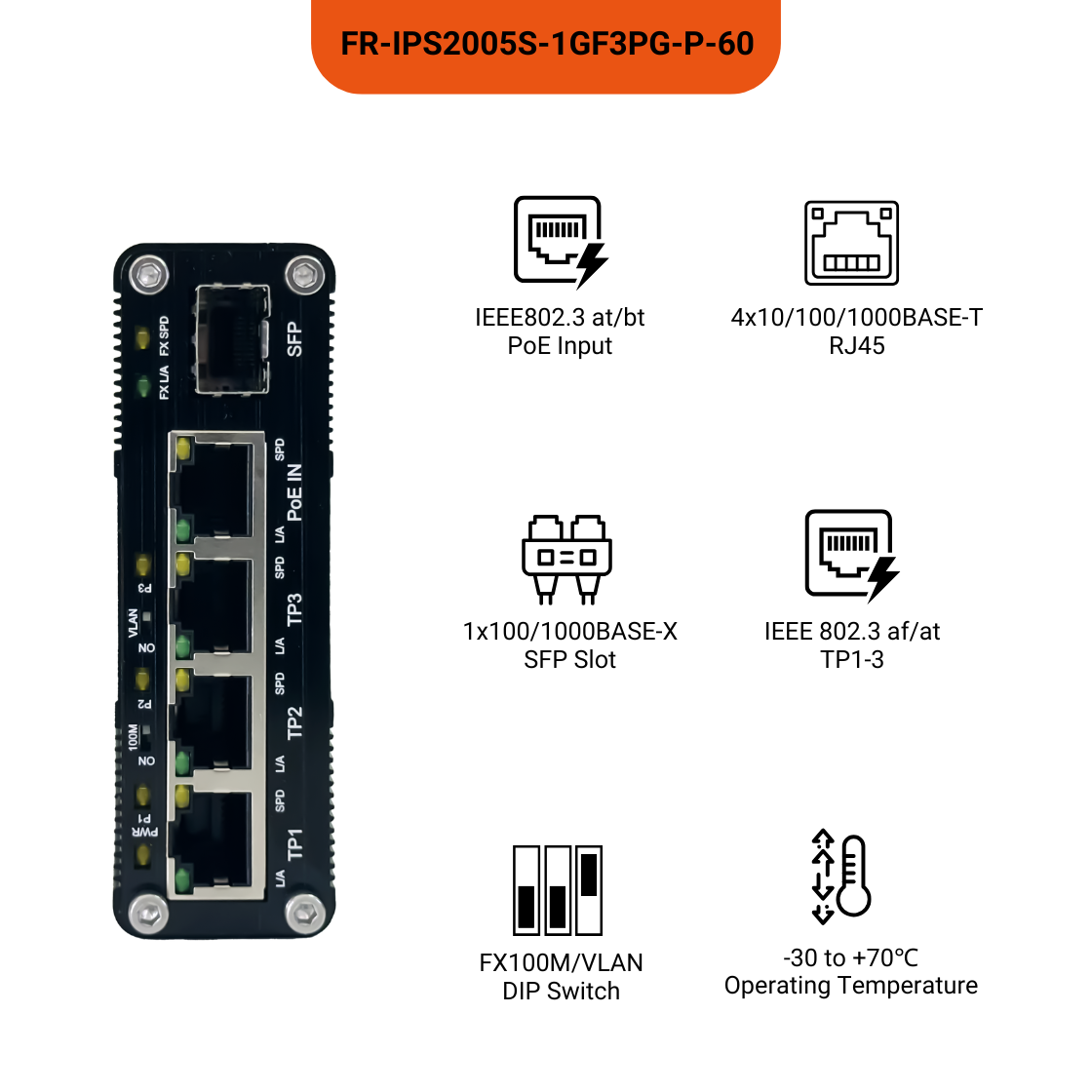

FR-IPS2005S-1GF3PG-P-60

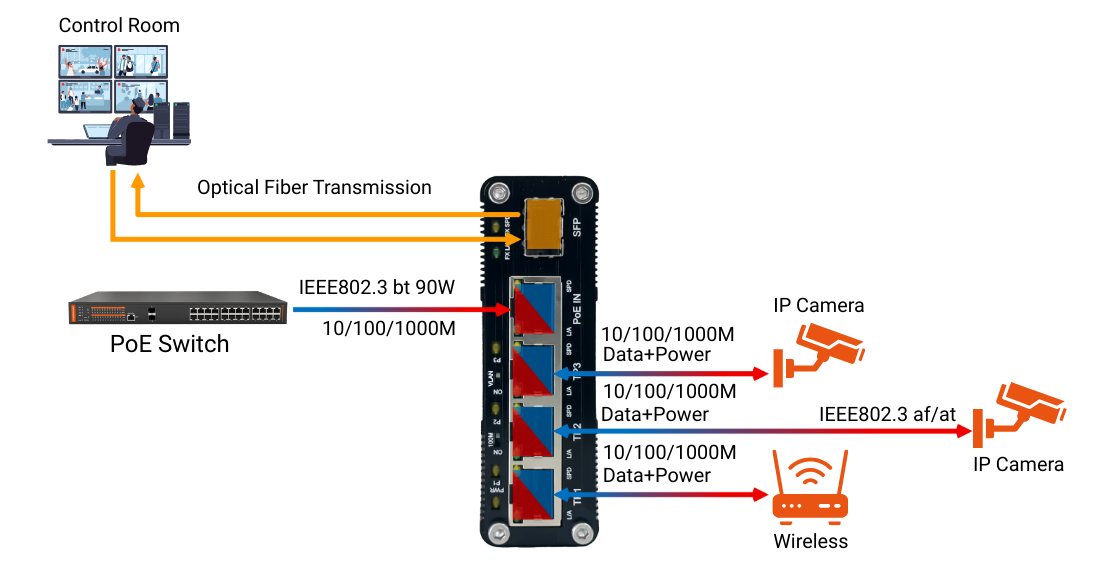

The Fiberroad Industrial PoE Switch is engineered for robust and flexible surveillance deployments. It features three 10/100/1000M RJ45 ports that support IEEE 802.3af/at standards, providing seamless power and data connectivity to IP cameras and other compatible devices. For demanding high-power equipment, the switch also supports the IEEE 802.3bt standard, delivering up to 90W of power input. A key addition is the 1000M SFP slot, which enables long-distance fiber optic transmission back to the surveillance control room, ensuring reliable data integrity over extended distances. This combination of versatile power options and extended connectivity makes it an ideal, all-in-one solution for industrial-grade security systems.

Hardware Specifications
Product FR-IPS2005S-1GF3PG-P-60 FR-IPS2005SI-1GF3GE-P-60
Copper Ports 4×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (TP1-3 and PoE IN), Auto-Negotiation
Fiber Ports 1×100/1000BASE-X SFP Slot
Enclosure IP40 aluminum case
Installation DIN-Rail and Wall-mount
Dimension 95mm x 70mm x 30mm (L x W x H)
Weight 250g(Bare weight)
Switching
Switch Architecture Store-and-Forward
Switch Fabric 10Gbps/non-blocking
Forwarding Rate 7.44 Mpps(64-byte packet size)
Packet Buffer Size 512 Kbits
MAX. Packet Length 9K bytes
MAC AddressTable 2K entries, automatic source address learning and aging
Power Supply and PoE
Power Input PD Port PoE Input(TP4), IEEE802.3 bt 90W
Input Voltage DC48-57V
DC Power Output Connector / 1 removable 4-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2

Output Voltage / 5-24VDC (Shared 60W power)
Power Consumption 6 Watts Max (without PoE load)
PoE Ports Port 1 to 4 IEEE802.3 af/at /
PoE Power Supply Type End-span /
Power Supply Pin 1/2(+), 3/6(-) /
Max Power Per Port 30W /
Total Power Budget 65W Maximum

(Depending on power input)
