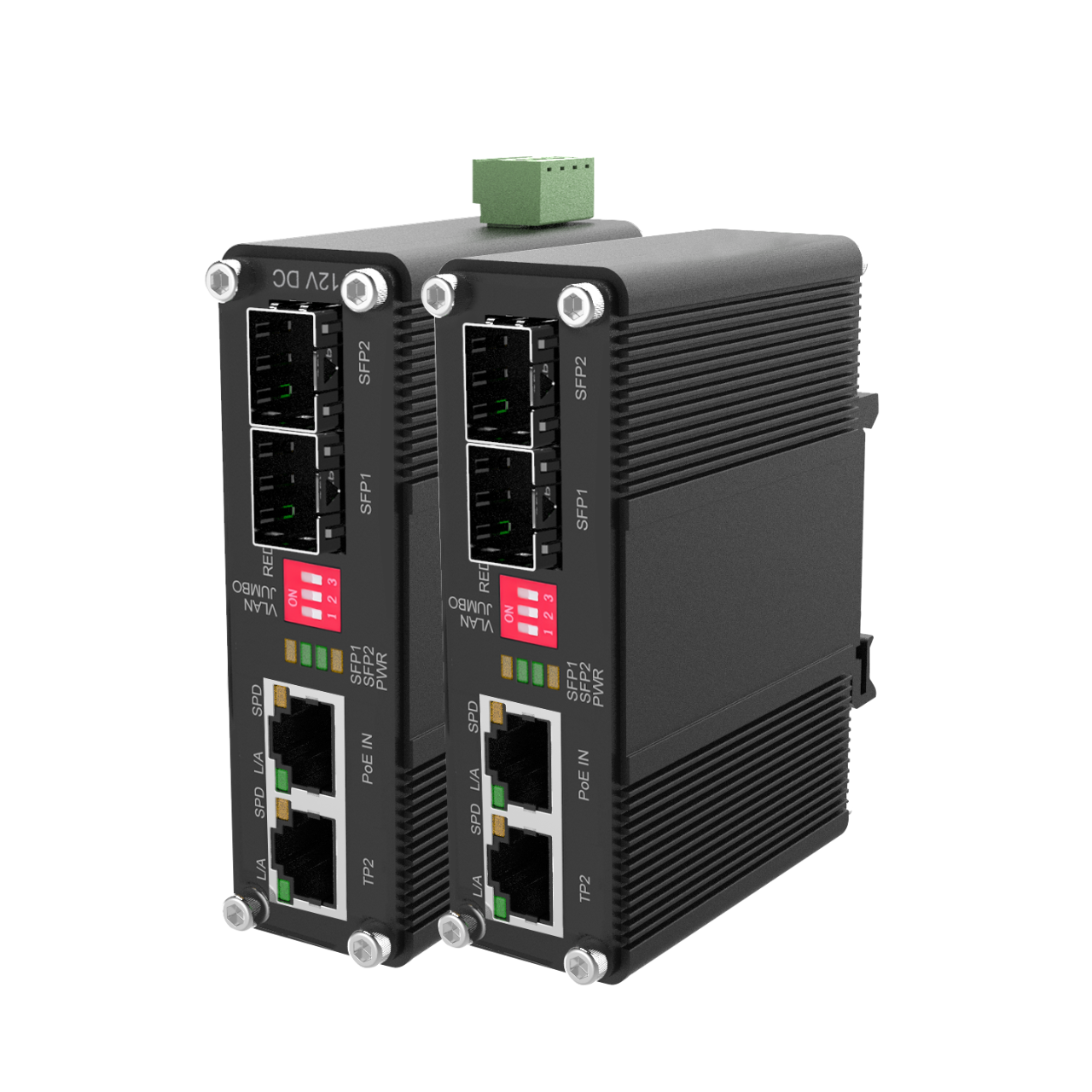

The Redundant Backbone for Mission-Critical Industrial Networks
The FR-IPS2004S Series Industrial Switch is a versatile and robust networking solution designed for demanding access applications. It features two 10/100/1000BASE-T RJ45 ports that uniquely support both IEEE 802.3 at/bt (PoE++) power input and IEEE 802.3 af/at (PoE+) output, allowing the switch to be powered by a compatible upstream device while simultaneously delivering both data and power to connected IP cameras or other equipment. This flexibility is complemented by two 1000BASE-X SFP ports, which enable the creation of high-speed fiber optic uplinks and support critical optical link redundancy to ensure maximum network uptime and reliability in mission-critical industrial environments.

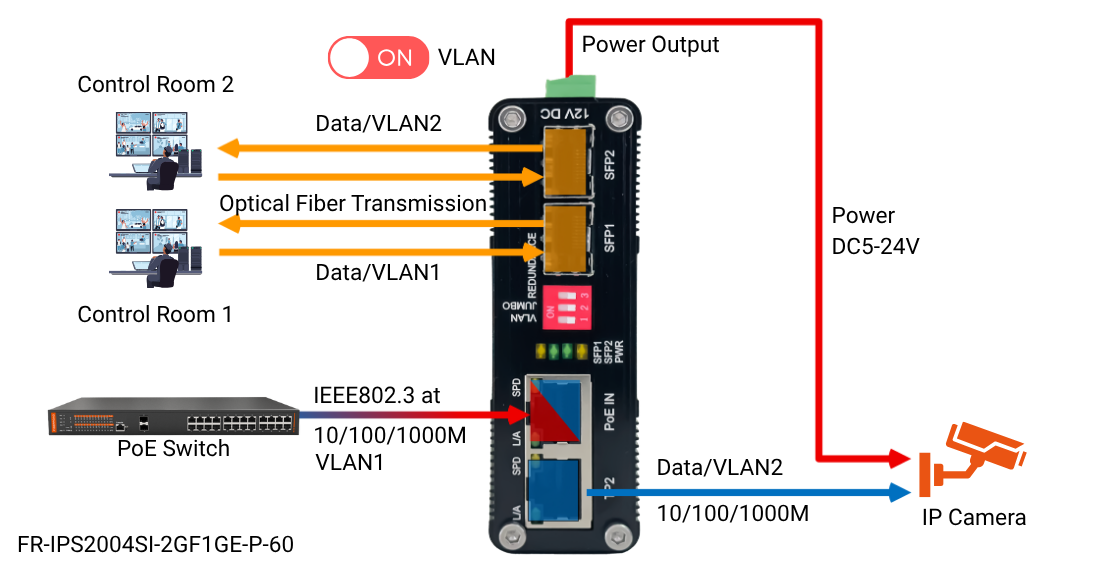

Simplify Network Segmentation: VLAN Configuration via DIP Switch
The FR-IPS2004S Series Industrial Switch delivers exceptional flexibility and robust network management for demanding access applications. It features two 10/100/1000BASE-T RJ45 ports: one (TP1) can accept IEEE 802.3at/bt (PoE+/PoE++) power input, while the other (TP2) provides a 10/100/1000BASE-T data connection along with a DC 5-24V output, enabling it to power and connect a wide range of devices like IP cameras directly. For critical network segmentation, the switch integrates a user-friendly DIP switch for effortless VLAN configuration. A pre-defined setting logically isolates the network by grouping TP1 and SFP1 into VLAN1 and TP2 and SFP2 into VLAN2, enhancing security and traffic management without the need for complex software. This combination of versatile power delivery, fiber optic capability, and simplified VLAN management makes it an all-in-one solution for secure and resilient industrial networks.
| Hardware Specifications | |||

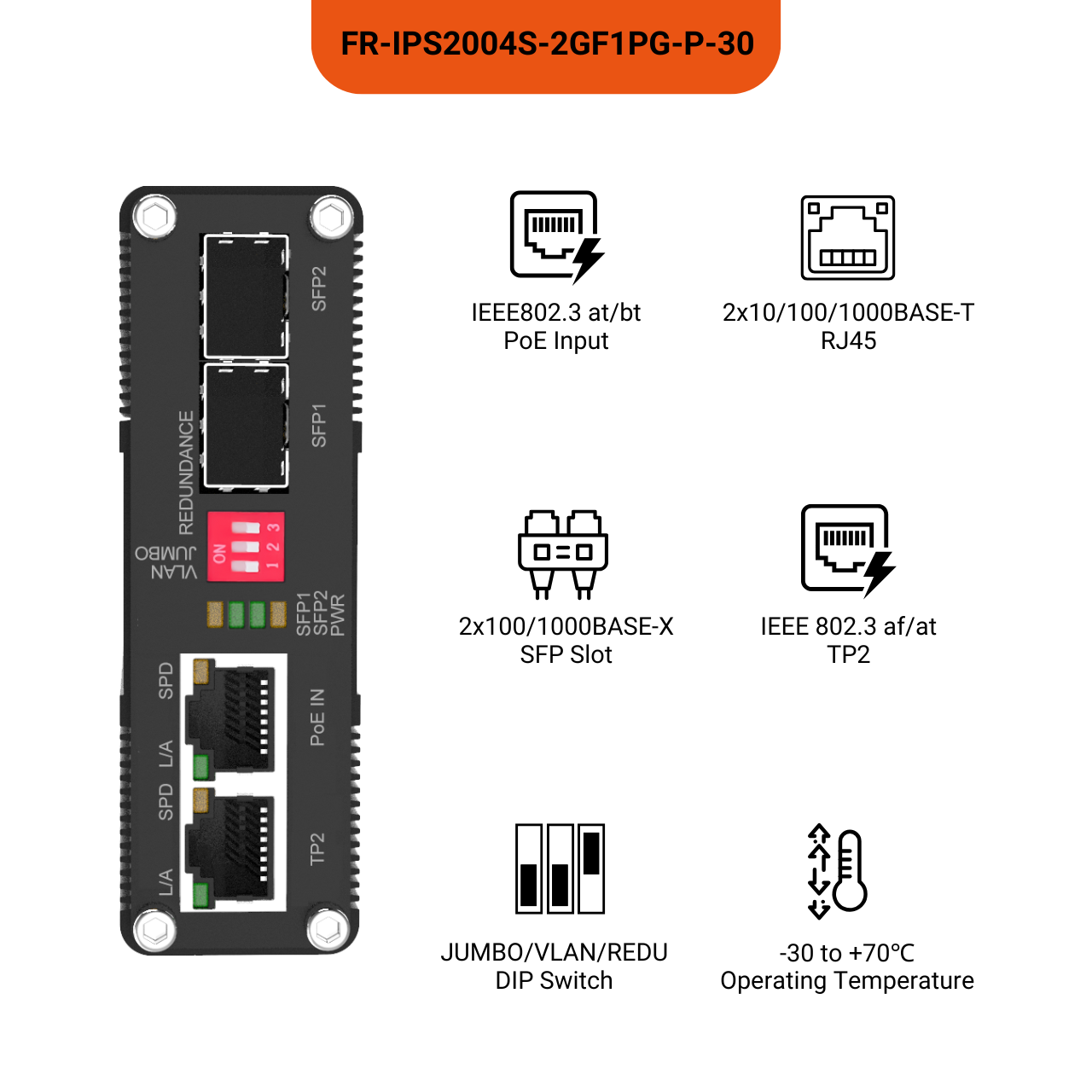

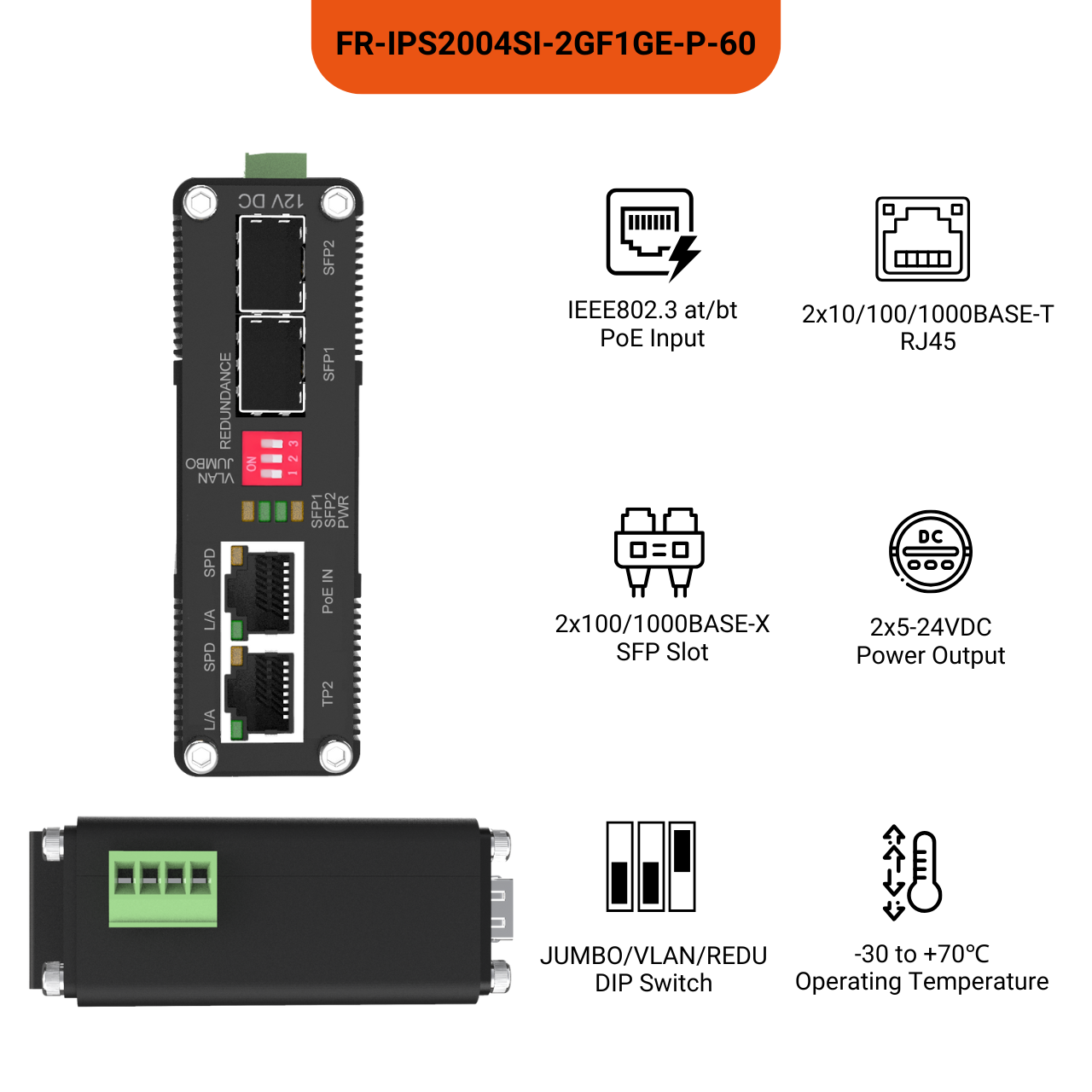

| Product | FR-IPS2004S-2GF1PG-P-30 | FR-IPS2004SI-2GF1GE-P-60 | |
| Copper Ports | 2×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (TP2 and PoE IN), Auto-Negotiation | ||
| Fiber Ports | 2×100/1000BASE-X SFP Slots (SFP1 and SFP2) | ||
| Enclosure | IP40 aluminum case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 95mm x 70mm x 30mm (L x W x H) | ||
| Weight | 250g(Bare weight) | ||
| Network Cable | 10/100/1000BASE-T:
2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA/ TIA-568 100-ohm STP (maximum 100 meters) 100BASE-FX/1000BASE-SX/LX Multi-mode: 50/125um or 62.5/125um optical fiber Single-mode: 9/125um optical fiber |
||
| Power Supply and PoE | |||
| Power Input | PD Port | PoE Input(TP2), IEEE802.3 at/bt | |
| Input Voltage | DC48-57V | ||
| DC Power Output | Connector | / | 1 removable 4-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2 |
| Output Voltage | / | 5-24VDC (Shared 60W power) | |
| Power Consumption | 6 Watts Max (without PoE load) | ||
| PoE Ports | TP2 IEEE802.3 af/at | / | |
| PoE Power Supply Type | End-span | / | |
| Power Supply Pin | 1/2(+), 3/6(-) | / | |
| Max Power Per Port | 30W | / | |
| Total Power Budget | 30W Maximum
(Depending on power input) |
60W Maximum
(Depending on power input) |
|
| Environmental | |
| Operating Temperature | -30℃ to +70℃ (-22 to 158 ℉) |
| Storage Temperature | -40℃ to +85℃ (-40 to 185 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Cooling | Passive Cooling |
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ |
| LED Indicators | |
| PWR | ON: Power is being supplied ,OFF: Power is not being supplied |
| RJ45 Port Green LEDs(L/A) | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active |
| RJ45 Port Amber LEDs(SPD) | ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s |
| P2 (Model Dependent) | ON: Connected PD load |
| FX L/A | ON: Opti fiber cable is connected well, but no data transmission. Blinking: Receiving data |
| FX SPD | ON: FX 1000M running, OFF: FX 100M running |
| DIP Switch | |
| VLAN | ON: VLAN is enabled |
| JUMBO | ON:10K Jumbo Frame is enabled |

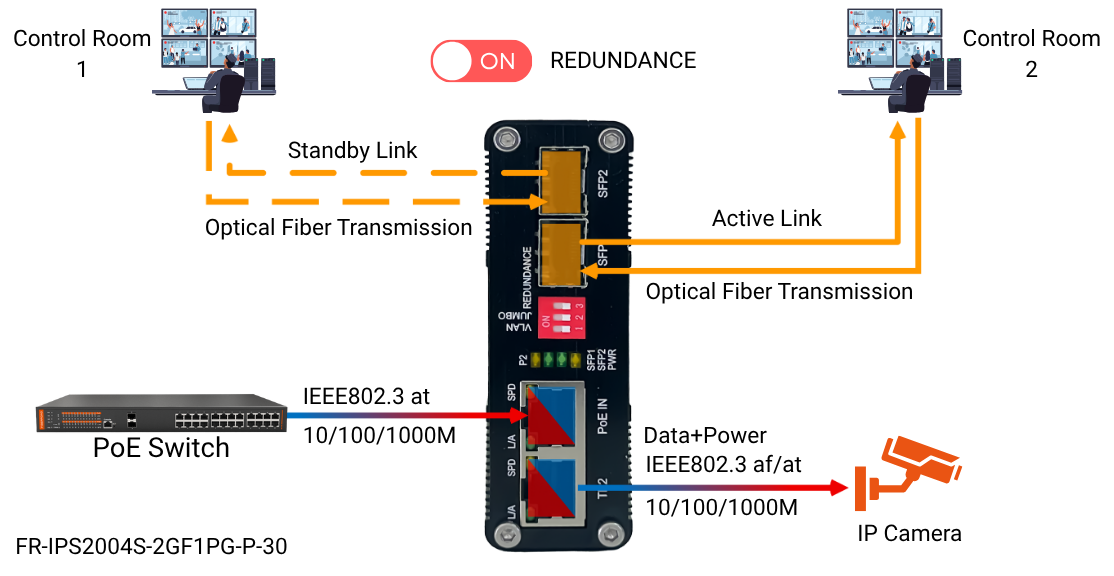

| Redundance | ON: SFP 1 and SFP 2 set as redundant relationship
SFP1 Active (Default) SFP2 Standby |
