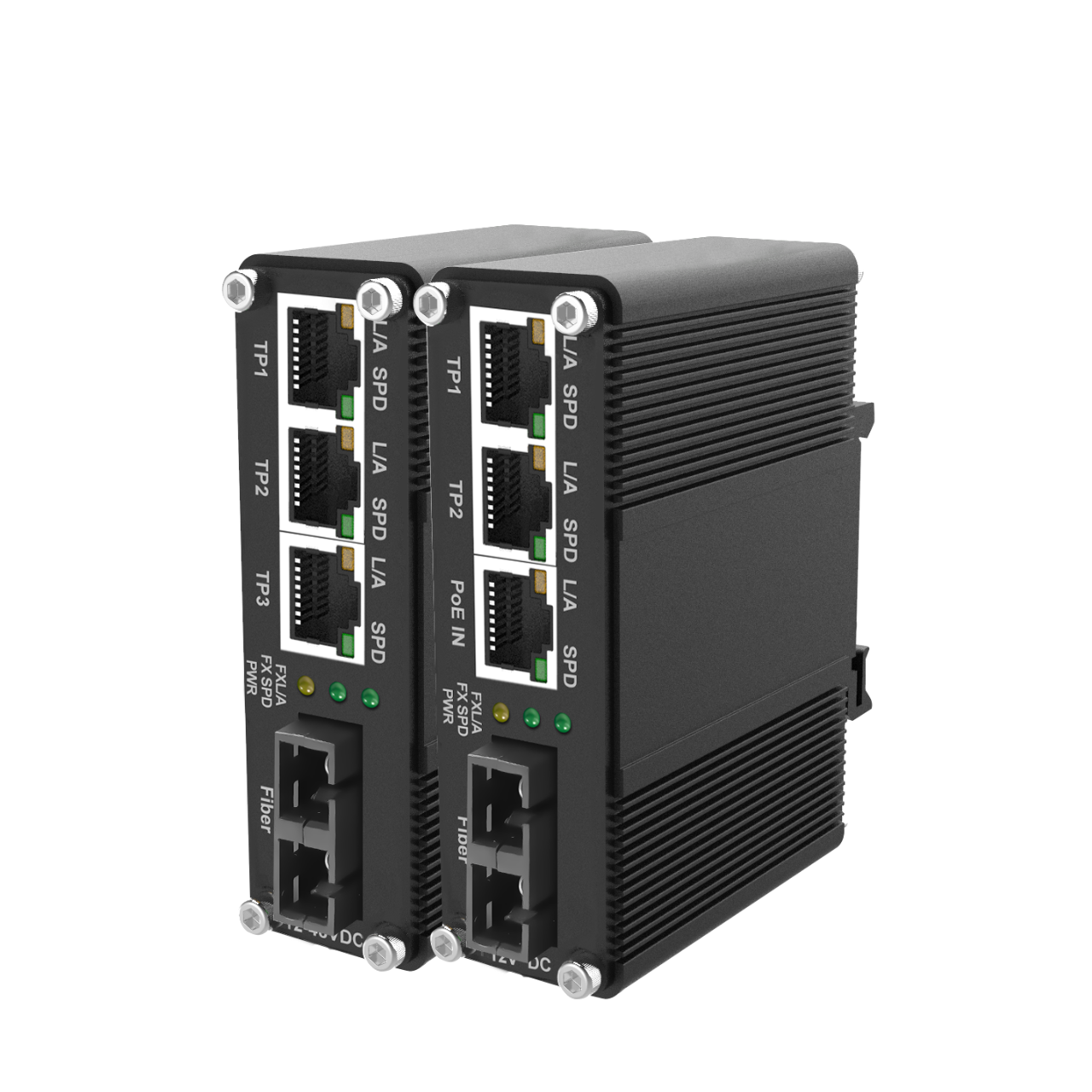

Industrial 4-Port Gigabit Ethernet Switch with 20km Fiber Uplink

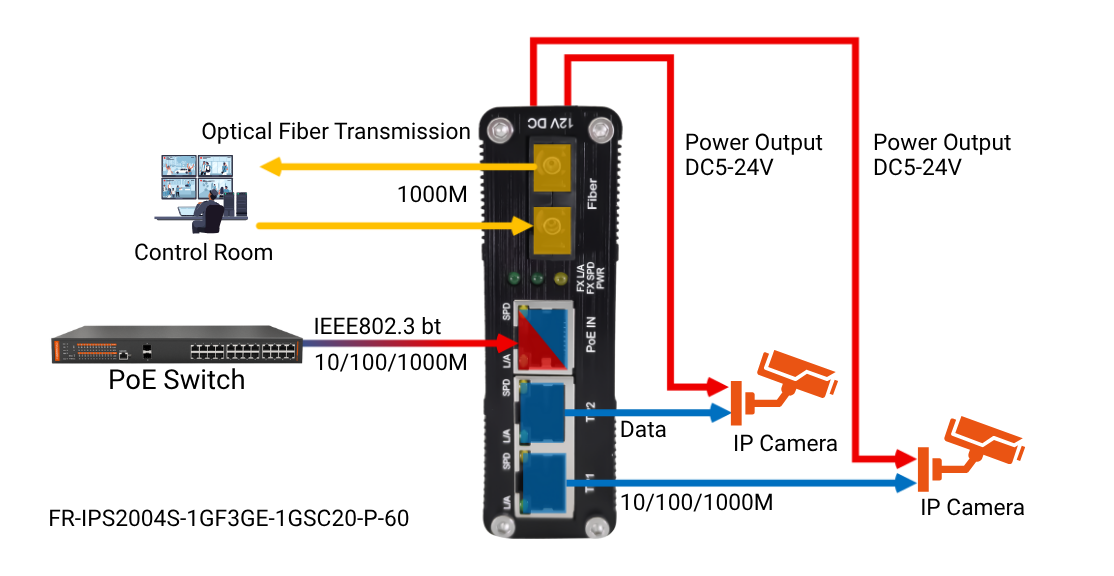

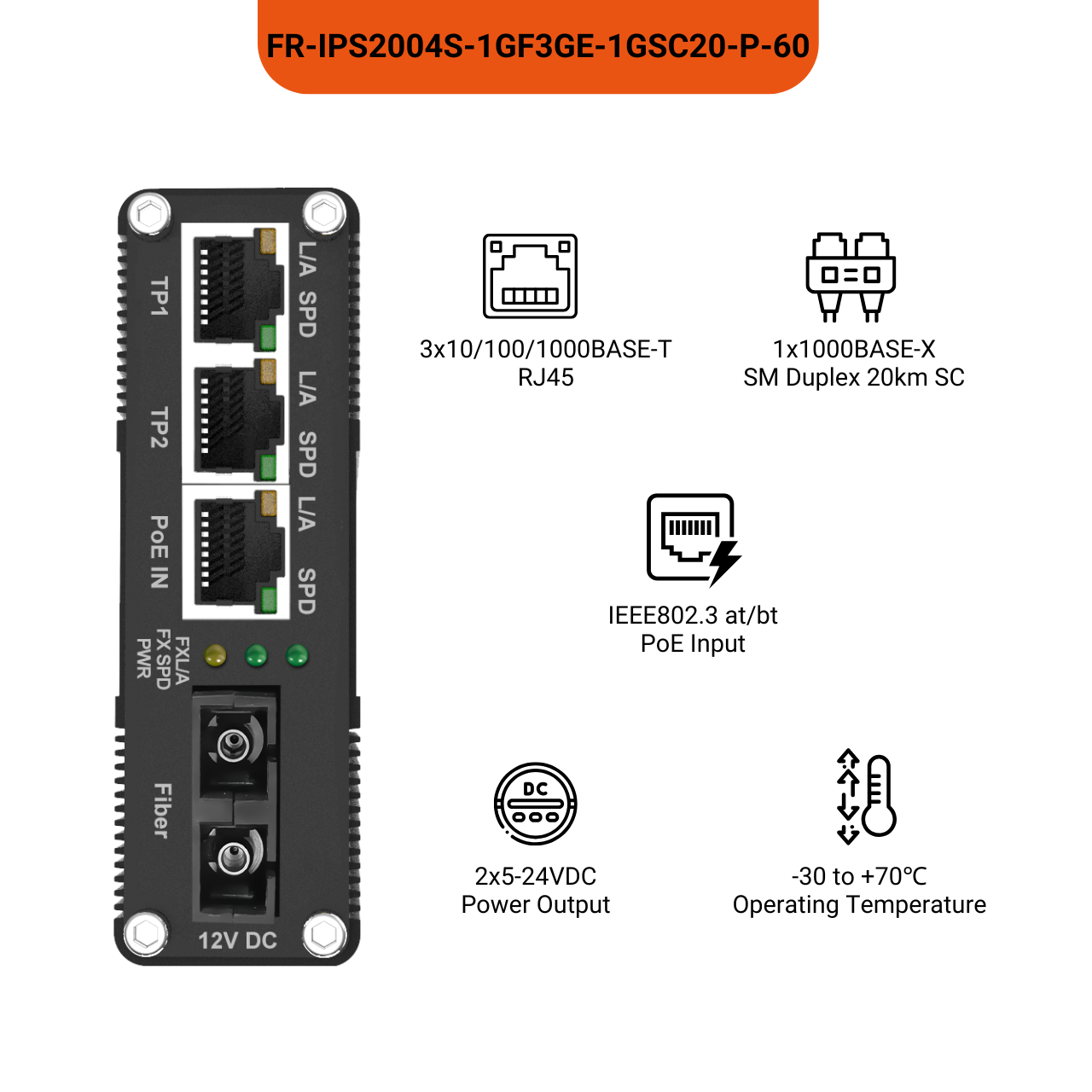

This pocket-sized industrial Ethernet switch delivers robust connectivity and remarkable power flexibility in a compact, hardened design. It features a Gigabit port that can receive IEEE 802.3at/bt PoE for its primary power, alongside two 10/100/1000BASE-T RJ45 ports with DC 5-24V power output to connected devices. The switch is engineered for long-distance network extension with a built-in 1000BASE-X 20km single-mode SC fiber optic uplink, enabling reliable data transmission over vast distances. Its combination of a small footprint, wide-range power options, and industrial-grade durability makes it the ideal all-in-one solution for space-constrained and remote applications, from factory automation to outdoor telecommunications.

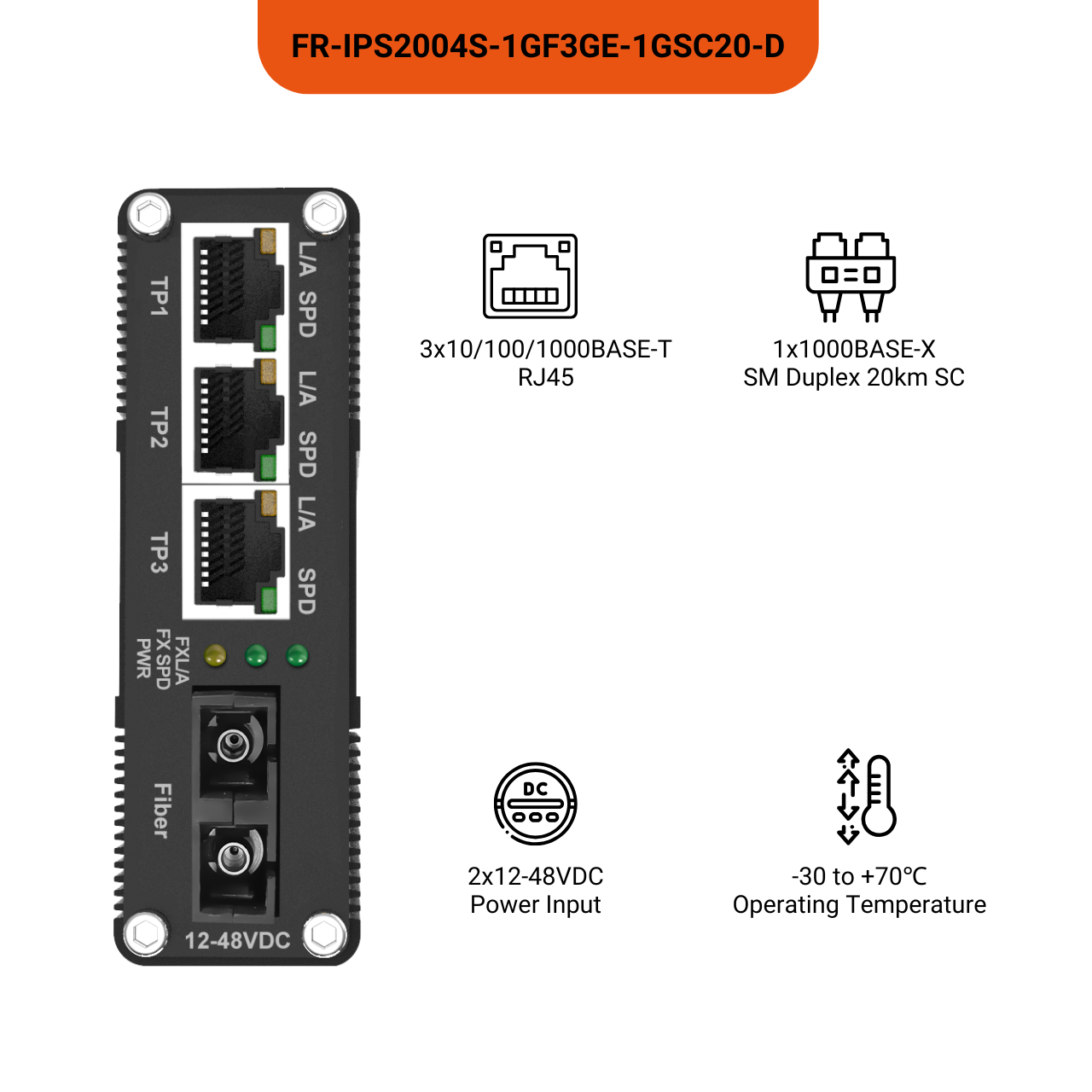

Industrial-Grade 4-Port Switch: 3x 10/100/1000T RJ45 & 1x Gigabit 20km SC Fiber

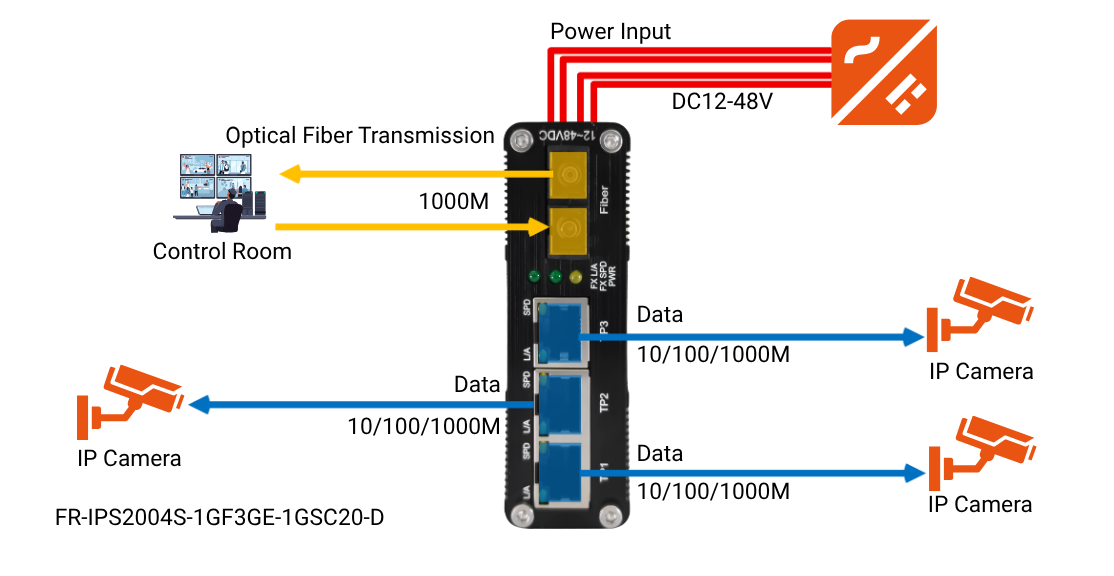

This industrial-grade 4-port switch is engineered for mission-critical connectivity in harsh environments, reliably operating in temperatures from -30 to +70°C. It consolidates local device networking and long-distance backbone links into a single, robust unit, featuring three 10/100/1000BASE-T RJ45 ports for connecting field devices and one Gigabit 20km SC fiber port for a stable, high-bandwidth uplink over extended distances. With a wide-range 2x DC 12-48V power input for redundancy and flexibility, this compact yet powerful switch delivers the resilience and performance required for industrial automation, traffic control, and outdoor network applications.
| Hardware Specifications | |||
| Product | FR-IPS2004S-1GF3GE-1GSC20-P-60 | FR-IPS2004S-1GF3GE-1GSC20-D | |
| Copper Ports | 3×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (TP1-2 and PoE IN), Auto-Negotiation | 3×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (TP1-3), Auto-Negotiation | |
| Fiber Ports | 1x1000BASE-X Single-mode Duplex 20km SC Optical Module | ||
| Enclosure | IP40 aluminium case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 95mm x 70mm x 30mm (L x W x H) | ||
| Weight | 250g(Bare weight) | ||
| Switching | |||
| Switch Architecture | Store-and-Forward | ||
| Switch Fabric | 10Gbps/non-blocking | ||
| Forwarding Rate | 7.44 Mpps(64-byte packet size) | ||
| Packet Buffer Size | 512 Kbits | ||
| MAX. Packet Length | 9K bytes | ||
| MAC AddressTable | 2K entries, automatic source address learning and aging | ||
| Power Supply and PoE | |||
| Power Input | Port | PoE Input(TP3), IEEE802.3 at/bt | 1 removable 4-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2 |
| Input Voltage | DC48-57V | DC12-48V | |
| DC Power Output | Connector | 1 removable 4-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2 |
/ |
| Output Voltage | 5-24VDC | / | |
| Power Consumption | 5 Watts Max (without PoE load) | ||
| Max Power Per Port | 30W(DC power output) | / | |
| Total Power Budget | 65W Maximum
(Depending on power input) |
/ | |
| Environmental | |
| Operating Temperature | -30℃ to +70℃ (-22 to 158 ℉) |
| Storage Temperature | -40℃ to +85℃ (-40 to 185 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Cooling | Passive Cooling |
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ |
| LED Indicators | |
| PWR | ON: Power is being supplied ,OFF: Power is not being supplied |
| RJ45 Port Green LEDs(L/A) | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active |
| RJ45 Port Amber LEDs(SPD) | ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s |
| FX L/A | ON: Opti fiber cable is connected well, but no data transmission. Blinking: Receiving data |
| FX SPD | ON: FX 1000M running, OFF: FX 100M running |
