Fiber to PoE Media Converter: The Ultimate Solution for IoT Connectivity
Fiber to PoE Media Converter enables enterprises to provide power to network devices over the existing data connection. This PoE Ethernet to Fiber Converter provides an economical path to extend the distance of an existing network with fibre cabling. Fiberroad’s original internal power adapter design provides users easy-to-install and troubleshooting.
| Product Attributes | |||
|---|---|---|---|
| Ports | 1×10/100Base-Tx RJ45 1x 100Base-X SFP/1×9 Port |
Port Mode(Tx) | Auto Negotiation Full/Half Duplex Auto MDI/MDIX |
| PoE Power Capacity | IEEE802.3 af:15.4W IEEE802.3 at: 30W |
Frame Size | 9K |
| DIP Switch | FX Reset / FX100M / POE Shutdown / LFP / ALS / AI POE | ||
| Input Power | AC 100~240V, 47 to 63Hz or DC9-56V | Power Consumption | af mode: 20W / at mode: 35W |
| Housing | Metal | Installation Mode | Desktop or Wall Mount |
| Operating Temperature | Operating: 0 to 50℃ （32 to 122℉） | Storage Temperature | Storage: -20 to +70℃ （-4 to +158℉） |

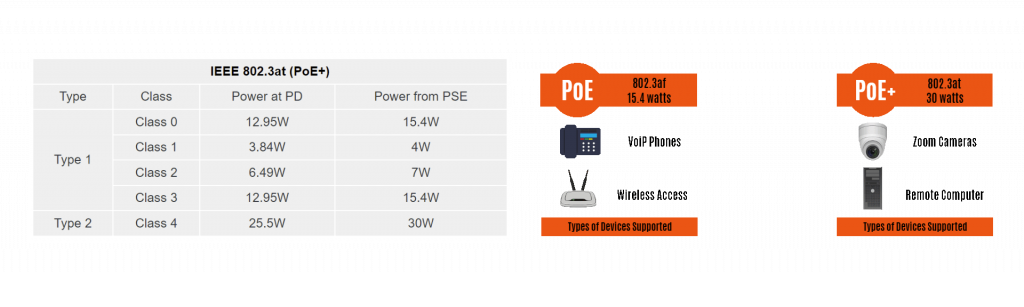

Improving Network Performance with Fiber to PoE Media Converter and Standard PoE Negotiation
The Fiber to PoE Media Converter includes a PSE controller, which offers PD signature sensing and PoE negotiation features. Which designs specifically to satisfy the growing demand for higher power required network equipment such as network cameras, VoIP telephones, multi-channel IEEE 802.11a/b/g/n wireless LAN access points and other network devices that need the power to function normally.
PoE Media Converter With AI Operation
Upgrade your network with Fiber to PoE Media Converter today! Our converters feature built-in DIP switch technology, allowing you to easily enable or disable LFPT, AI PoE function and other features with just one click. With enhanced application abilities, our media converters offer versatility and usefulness for a variety of applications. Trust in the power of Fiber to PoE Media Converters for all your networking needs!
| No. | Name | Status | Function |
|---|---|---|---|
| SW1 | ENROM | OFF | FX Reset Disable |
| ON | FX Reset Enable | ||
| SW3 | POE Shutdown | OFF | POE Shutdown Disable |
| ON | POE Shutdown Enable | ||
| SW4 | LFP | OFF | LFP Disable |
| ON | LFP Enable | ||
| SW5 | ALS | OFF | ALS Disable |
| ON | ALS Enable | ||
| SW6 | AI POE | OFF | AI POE Disable |
| ON | AI POE Enable |
| Physical Port | |
| Copper Port | 1x 10/100Base-TX RJ45 |
| SFP Slot | 1x 100Base-X SFP（or 1×9, SC,ST,FC connector） |
| LED Indicators | Power
SFP Link/Activity RJ45 Link/Activity RJ45 Speed RJ45 Duplex PoE |
| Cables | |
| UTP | UTP Cables: CAT5 or above
UTP Cable Limitations: Max. length up to 330 ft. (100 m) |
| Fiber Optic | 100BASE-SX: 50/125, 62.5/125, or 100/140-µm Multimode 550m 100BASE-LX: 8.3/125, 8.7/125, 9/125, or 10/125-µm Single-mode 10km |
| Ethernet Standards | |
| Standards | IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX & 100Base-FX IEEE802.3x Flow Control IEEE802.3af 15W PoE IEEE802.3at 30W PoE+ |
| Switching Capacity | 200 Mbps |
| Jumbo Frames | 9K |
| Power | |
| Power Supply | AC 100~240V, 47 to 63Hz or DC9-56V |
| PoE Power Capacity | IEEE802.3 af : 15.4W
IEEE802.3 at : 30W |
| Power Consumption | af mode: 20W
at mode: 35W |
| Protection | Over Currency |
| Mechanical | |
| Housing | Metal |
| Dimensions | 140mm×110mm×40mm(W x D x H) |
| Weight | 500g(Bare Hardware) |
| Installation | Desktop or Wall Mount |
| Environmental | |
| Temperature | Operating: 0 to 50℃ （32 to 122℉）
Storage: -20 to +70℃ （-4 to +158℉） |
| Humidity | 5 to 95% noncondensing |
| Altitude | ＜3000m(＜10000 ft.) |
