5-Port Industrial Gigabit Switch

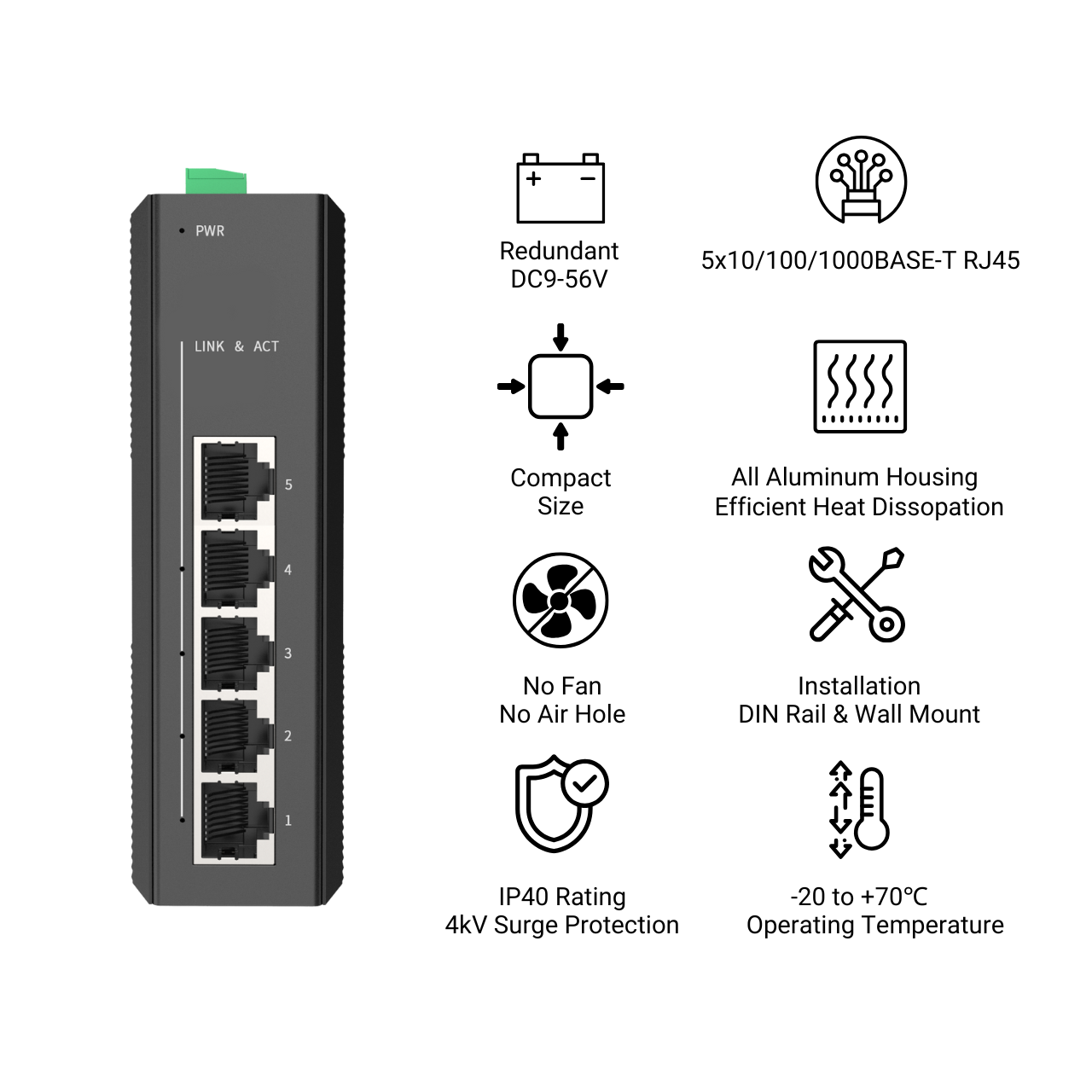

FR-6N3005 is a 5×10/100/1000Mbps DIN Rail Industrial Ethernet Switch, which is designed for small business network applications. Provides you with an easy way to make the access point to Gigabit Ethernet. This DIN Rail Industrial Ethernet Switch features a robust design making it ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. In addition, the switch is Plug-and-Play, allowing for effortless and swift deployment. FR-6N3005 can optionally support DIN-Rail mounting or Wall mounting, thus suitable for various installation methods. LEDs provide visual monitoring of Ethernet-connected devices such as IP cameras, wireless access points, or PC/laptop via 10/100/1000Base-T twisted-pair RJ45 ports on FR-6N3005.


Video Gallery

5-ports Industrial Gigabit Ethernet Switch
5-ports Industrial Gigabit Ethernet Switch
Quality Certifications
Share This Product

Industrial Standard For Harsh Environment

The 5-ports Industrial Gigabit Ethernet Switch is equipped with an IP40 metal enclosure, certainly for operating in extremely low or high temperatures. Such as city surveillance systems, smart manufacturing, etc. In short, the industrial gigabit ethernet switch is ideal for miniaturization and rapid deployment

Product Attributes
Ports 5×10/100/1000Base-TX RJ45 Port Mode(TX) Auto Negotiation
Full/Half Duplex
Frame Size Up to 10K Transmission Mode Store and Forward
Input Power 9-56V DC Power Consumption 3W MAX
Housing Aluminum Case IP Rating IP40
-20℃ to 70℃ Storage
-40℃ to 85℃
Wall Mount & DIN Rail Mount Weight 320g

Not Only Industrial Grade

The 5-ports Industrial Gigabit Ethernet Switch complies with various characteristics such as no fan, low power consumption, surge protection, etc. Meanwhile, equipped with a redundant power supply, which can offer protection mechanisms for critical applications.

Industrial Gigabit Switch Meet The Needs Of IIoT

The Industrial Gigabit Switch realizes Ethernet data exchange and convergence with efficient bandwidth. On the other hand, The 5-ports Industrial Gigabit Ethernet Switch Supports up to eight Smart Access Terminals.

5-ports Industrial Gigabit Ethernet Switch

Industrial Gigabit Ethernet Switch Satisfy Multiple Applications

Above all, one device supports multiple applications. In addition, the Industrial Ethernet switches can operate at a standard industrial temperature range. Meanwhile, FR-6N3005 supports DIN rail or wall mount installation.

industrial ethernet switch
Ethernet Interface
Ports 5×10/100/1000Base-TX Ports(RJ45 connector)
Pors Mode(Tx) Auto Negotiation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE802.3az for Energy Efficient Ethernet

IEEE802.1q for VLAN

IEEE802.1x for Port-Based Network Access Control

Packet Buffer Size 1M
Maximum Packet Length 10K
MAC Address Table 4K
Transmission Mode Store and Forward (full/half-duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 12Gbps

Physical Characteristics
Housing Aluminium case
IP Rating IP40
Dimensions 120mm x 90mm x35mm (L x W x H)
Installation Mode DIN Rail/Wall Mount
Weight 320g
Working Environment
Operating Temperature -20℃~70℃ (-40 to 167 ℉)
Operating Humidity 5%~90% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
LED Indicator
Power Connect-always
RJ45 Link/Act: connect-always; data exchange-twinkle
Fiber Link/Act: connect-always; data exchange-twinkle
Power Information
Redundant Power Input DC 9-56V
Connector 5 PIN Phoenix Terminal
Overload Protection Yes
Power Reverse Support
Power Consumption Full Load<3W
