Why the L3 10G Industrial Switch is a Game-Changer for Your Network Infrastructure

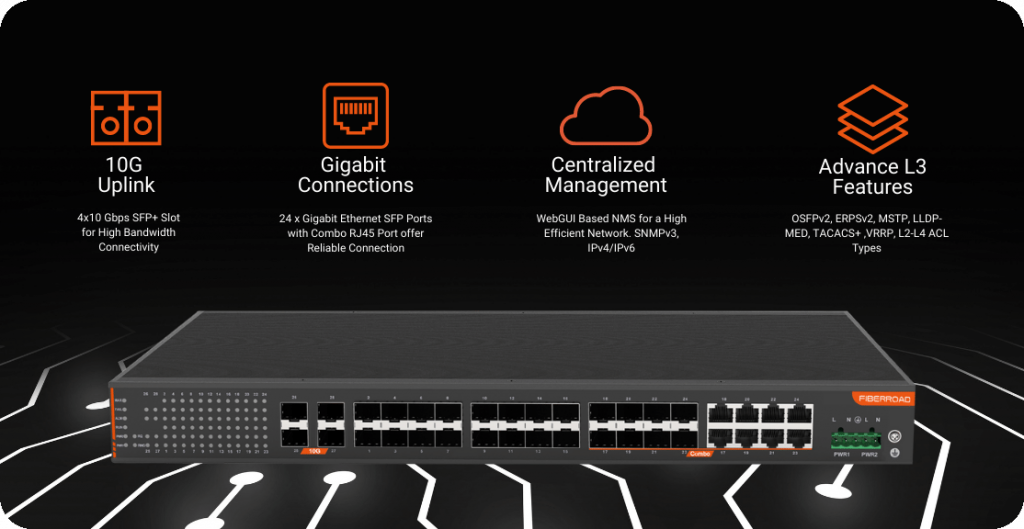

Fiberroad FR-9T44F8 is an L3(Layer 3) Industrial Network Switch that features 24×100/1000M SFP, 8 Gigage 10/100/100MBase-T Combo ports and 4 10G SFP+ ports, and supports Layer 3 IP routing in a 1U case. With a 4 x 10Gbps uplink, the FR-9T44F8 allows operators to deal with thousands of data in a secure topology connected to industrial backbones or high-capacity servers. Modernizing the industrial LAN dramatically will enable it to meet ever-increasing bandwidth demands. Additionally, it adopts a user-friendly “Front Access” design for easy wiring and maintenance of the FR-9T44F8 when placed inside the cabinet.

High Reliable and Multi-Service Support

1.Support the Spanning Tree Protocols (IEEE802.1d STP, IEEE802.1w RSTP, standard 802.1s MSTP)

2.Support the IPv4 and IPv6 multicast functions

3.Voice VLAN, Surveillance VLAN

4.Support traffic classification of each field of L2/L3/L4 protocol headers

5.Support IGMP v1/v2/v3, IGMP snooping, MLD

Advance Network Configuration

1.Support OSPFv2, RIPv2

2.Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

3.Support LACP, ERPSv2

4.Class of Service(Port-based, 802.1p, IP TOS Precedence, IP DSCP), Trusted QoS, Rate Limitation

Secure and Simplified Access

1.CLI(Console/Telnet(RFC854)), WebUI(HTTPS), SNMPv3

2.HTTPS/SSLv2v3,TLSv1 RADIUS, TACACS+,AAA SSHv1/v2

3.Support DHCP Snooping, Option 43/82, 802.1X security access

4.Support user hierarchical management

5.Support DOS, port-based MAC filtering/binding, MAC whitelist

6.Support IPv4/IPv6 ACL

SMART POE FEATURES

1.Support IEEE802.3af/at/bt standard automatically identifies PoE devices for power supply without damaging non-PoE devices.

2. Support up to 30W per port.

3. Priority mechanism for PoE+ Switch port will supply power to the high priority level port first when the power budget is insufficient.

4. PoE output power allocation, Scheduling of PoE operation.

From Extreme Temperatures to High-Speed Data Transfer

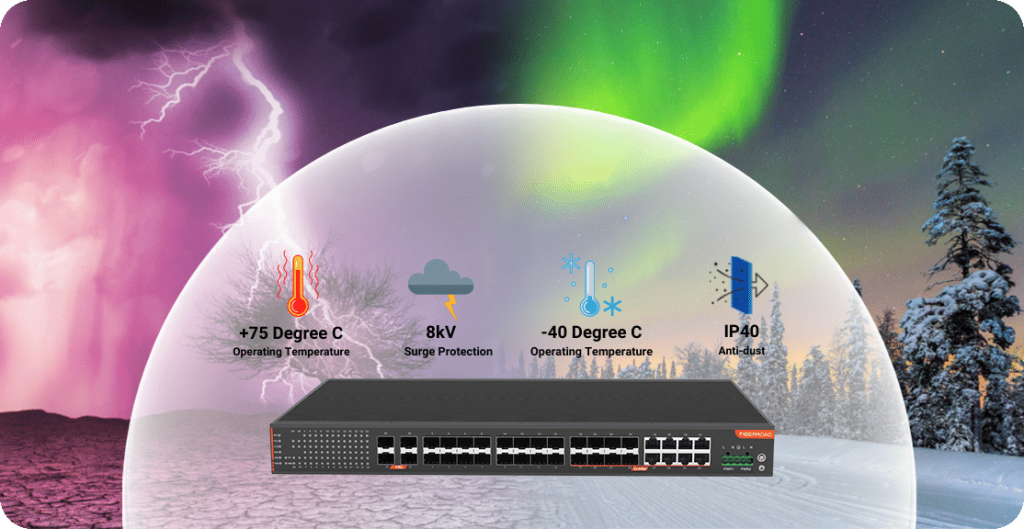

The L3 Industrial Ethernet Switch can provide non-blocking switch fabric and wire-speed throughput in the temperature range from -40 to 75 degrees C without any packet loss and CRC error. With IP40 Durable Aluminum housing and fanless design also provide efficient heat dissipation. The FR-9T44F8 provides a high level of immunity against electromagnetic interference and heavy electrical surges.

The FR-9T44F8 has a dual 100-240V AC power supply or a double 9-56V DC power supply used as a redundant power supply to ensure continuous operation. As such, its redundant power system is designed to meet the demands of high-tech facilities requiring absolute power integrity.

Streamlining Your Industrial Network

Using the L3 10G Industrial Ethernet Switch, an administrator can conveniently boost network efficiency by configuring Layer 3 static routing, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. Using the OSPF, autonomous systems are based on link-state dynamic routing. As a result of the exchange of link states among Layer 3 switches, a protocol creates a link-status database. The Shortest Path First algorithm then generates based on that database’s routing table.

Revolutionize Your Industrial Processes with 10G L3 Industrial Switches

IP-based IoT and IIoT networks require a voice VLAN and Surveillance to ensure quality voice and video data transmission. VoIP and IPcam interface-equipped devices can use Voice VLAN and Surveillance, a new addition to VLAN, to create a voice-only or Surveillance VLAN exclusive to digital devices. This is a potentially disruptive feature, especially to industrial network (IIoT) devices where digital industrial controllers are connected to analogue devices.

With LLDP-MED, that enhances the automation/management of certain types of network devices like IP Phones, etc. In LLDP-MED, the capabilities of a connected device are determined and whether those capabilities are enabled. It will then keep sending out LLDP-MED packets until the remote device to which it is connected ceases to be LLDP-MED capable.

Voice VLAN

Surveillance VLAN

LLDP-MED

Efficient and Secure Network Management

In order to manage efficiently, the 10G L3 Industrial Network Switch includes console, web, and SNMP management. With its built-in Web-based management interface, the FR-9T44F8 offers easy-to-use, platform-independent management and configuration. As well as supporting Simple Network Management Protocol (SNMP), the 10G L3 Industrial Ethernet Switch can be managed with any standard management software. FR-9T44F8 provides Cisco-like commands via Telnet or console for reducing product learning time. Additionally, the FR-9T44F8 offers secure remote management through SSH connection, which allows for secure packet content at each session.
