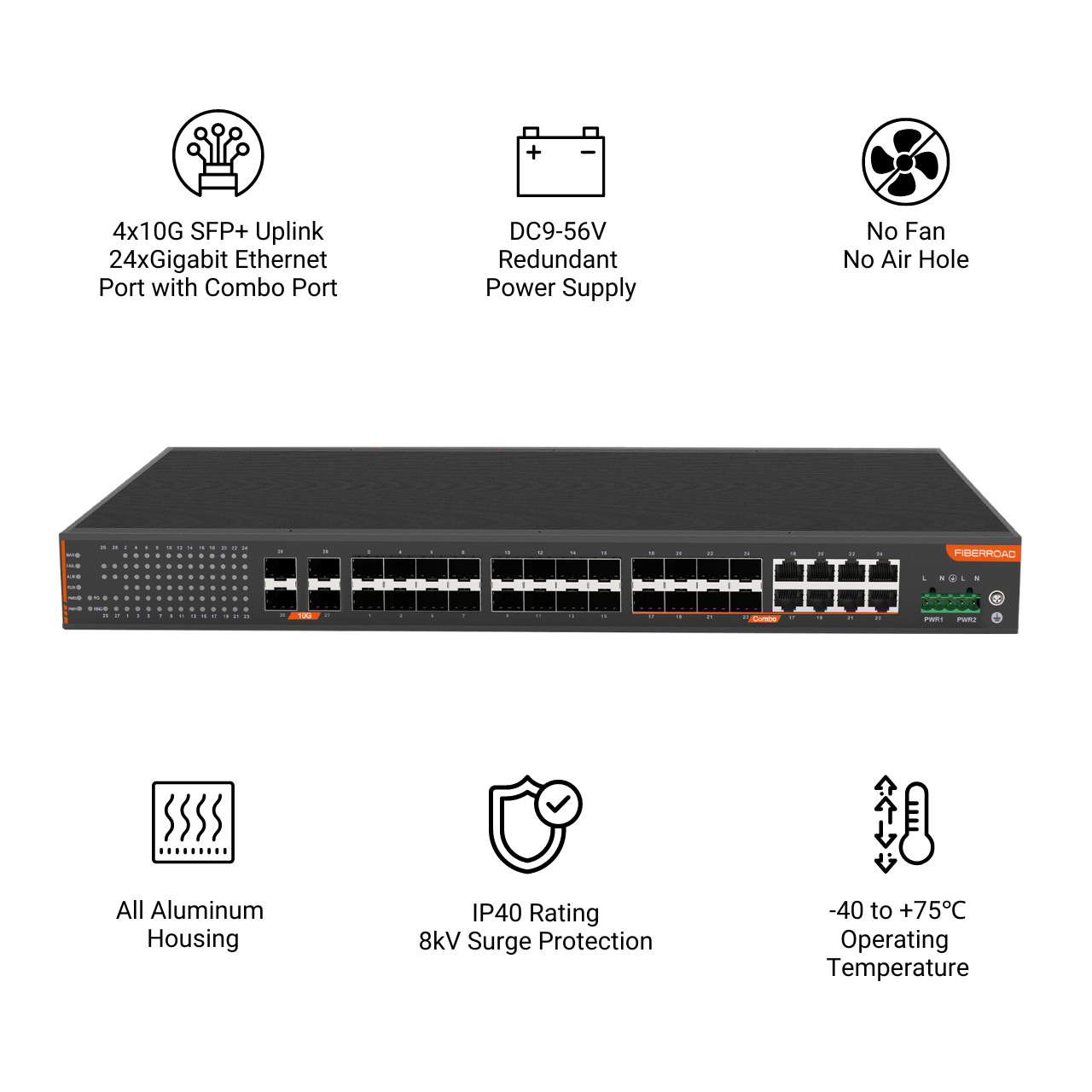

L3 24G+4x10G SFP+ Managed Industrial Network Switch

FR-9T44F8 is a multi-port, Layer 3 Industrial Managed Ethernet Switch, independently developed by Fiberroad for industrial ethernet applications. This product is equipped with 24*Gigabit Ethernet ports and 4*10Gigabit Ethernet Ports, supports Layer 3 routing functionality to facilitate the deployment of applications across networks, adopts industry-leading technical standards and can provide stable and reliable Ethernet transmission with high-quality design and reliability.


Product Features

  • Layer 3 Model support OSPFv2, RIPv2, Static Route
  • Support both IPv4/IPv6 applications
  • LLDP, LLDP-MED protocol suitable for IIoT Applications
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS and SSH to enhance network security
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • Support Voice VLAN and Surveillance VLAN
  • Link Aggregation, STP/RSTP/MSTP/ERPS for network redundancy
  • ROMON for proactive and efficient network monitoring
  • Fanless, IP40 Rating, -40 ° C ~ 75℃ operation temperature design to ensure that the equipment adapts to a variety of harsh environments
  • Redundant dual DC/AC power supplies are optional, anti-reverse connection, overcurrent protection

Video Gallery

Quality Certifications
Share This Product

Why the L3 10G Industrial Switch is a Game-Changer for Your Network Infrastructure

Fiberroad FR-9T44F8 is an L3(Layer 3) Industrial Network Switch that features 24×100/1000M SFP, 8 Gigage 10/100/100MBase-T Combo ports and 4 10G SFP+ ports, and supports Layer 3 IP routing in a 1U case. With a 4 x 10Gbps uplink, the FR-9T44F8 allows operators to deal with thousands of data in a secure topology connected to industrial backbones or high-capacity servers. Modernizing the industrial LAN dramatically will enable it to meet ever-increasing bandwidth demands. Additionally, it adopts a user-friendly “Front Access” design for easy wiring and maintenance of the FR-9T44F8 when placed inside the cabinet.

L3 10G Industrial Switch

High Reliable and Multi-Service Support

1.Support the Spanning Tree Protocols (IEEE802.1d STP, IEEE802.1w RSTP, standard 802.1s MSTP)
2.Support the IPv4 and IPv6 multicast functions
3.Voice VLAN, Surveillance VLAN
4.Support traffic classification of each field of L2/L3/L4 protocol headers
5.Support IGMP v1/v2/v3, IGMP snooping, MLD

Advance Network Configuration

1.Support OSPFv2, RIPv2
2.Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
3.Support LACP, ERPSv2
4.Class of Service(Port-based, 802.1p, IP TOS Precedence, IP DSCP), Trusted QoS, Rate Limitation

Secure and Simplified Access

1.CLI(Console/Telnet(RFC854)), WebUI(HTTPS), SNMPv3
3.Support DHCP Snooping, Option 43/82, 802.1X security access
4.Support user hierarchical management
5.Support DOS, port-based MAC filtering/binding, MAC whitelist
6.Support IPv4/IPv6 ACL


1.Support IEEE802.3af/at/bt standard automatically identifies PoE devices for power supply without damaging non-PoE devices.
2. Support up to 30W per port.
3. Priority mechanism for PoE+ Switch port will supply power to the high priority level port first when the power budget is insufficient.
4. PoE output power allocation, Scheduling of PoE operation.

From Extreme Temperatures to High-Speed Data Transfer

The L3 Industrial Ethernet Switch can provide non-blocking switch fabric and wire-speed throughput in the temperature range from -40 to 75 degrees C without any packet loss and CRC error. With IP40 Durable Aluminum housing and fanless design also provide efficient heat dissipation. The FR-9T44F8 provides a high level of immunity against electromagnetic interference and heavy electrical surges.

The FR-9T44F8 has a dual 100-240V AC power supply or a double 9-56V DC power supply used as a redundant power supply to ensure continuous operation. As such, its redundant power system is designed to meet the demands of high-tech facilities requiring absolute power integrity.

L3 10G Industrial Switch

Streamlining Your Industrial Network

Using the L3 10G Industrial Ethernet Switch, an administrator can conveniently boost network efficiency by configuring Layer 3 static routing, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination. Using the OSPF, autonomous systems are based on link-state dynamic routing. As a result of the exchange of link states among Layer 3 switches, a protocol creates a link-status database. The Shortest Path First algorithm then generates based on that database’s routing table.

L3 Industrial Network Switch OSPF

Revolutionize Your Industrial Processes with 10G L3 Industrial Switches

IP-based IoT and IIoT networks require a voice VLAN and Surveillance to ensure quality voice and video data transmission. VoIP and IPcam interface-equipped devices can use Voice VLAN and Surveillance, a new addition to VLAN, to create a voice-only or Surveillance VLAN exclusive to digital devices. This is a potentially disruptive feature, especially to industrial network (IIoT) devices where digital industrial controllers are connected to analogue devices.

With LLDP-MED, that enhances the automation/management of certain types of network devices like IP Phones, etc. In LLDP-MED, the capabilities of a connected device are determined and whether those capabilities are enabled. It will then keep sending out LLDP-MED packets until the remote device to which it is connected ceases to be LLDP-MED capable.

Efficient and Secure Network Management

In order to manage efficiently, the 10G L3 Industrial Network Switch includes console, web, and SNMP management. With its built-in Web-based management interface, the FR-9T44F8 offers easy-to-use, platform-independent management and configuration. As well as supporting Simple Network Management Protocol (SNMP), the 10G L3 Industrial Ethernet Switch can be managed with any standard management software. FR-9T44F8 provides Cisco-like commands via Telnet or console for reducing product learning time. Additionally, the FR-9T44F8 offers secure remote management through SSH connection, which allows for secure packet content at each session.

Ethernet Interface
Model FR-9M44F8 FR-9T448F
Ports 4×10Gigabit SFP plus +

16×1000M Base-X SFP +

8×10/100/1000M Base-TX or 8x1000M Base-X SFP Combo

4×10Gigabit SFP plus

16×10/100/1000M Base-TX RJ45

8×10/100/1000M Base-TX or 8x1000M Base-X SFP Combo

Port Mode(Tx) Auto-Negotiation

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3ae for 10 Gigabit Ethernet

IEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

IEEE 802.1X for authentication

IEEE 802.3ad for Port Trunk with LACP

Packet Buffer Size 12Mbits
Maximum Packet Length Up to 10K
MAC Address Table 16K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 128Gbps

IGMP Group 4096
Max. No. of VLAN 256
VLAN ID Range VID 1 to 4094
Physical Characteristics
Housing Aluminium case
IP Rating IP40
Dimensions 400mmx300mmx45mm
Installation Rack Mount
Weight 2800g
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~90% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
MTBF >250,000@Telcordia(Bellcore)GB
Heat Dissipation 75 BTU/h
Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
Software Features
Management Interface CLI(Console/Telnet(RFC854)), WebUI(HTTPS), SNMPv3
Management ARP, Flow Control, DDM, DHCP Server/Client, IPv4/IPv6, LLDP, LLDP-MED, UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet,
File Management Firmware Upgrade/Backup, Dual Images, Configuration Download/Backup, Multiple Configuration, TFTP(RFC783), HTTP, UART
Management Access Management VLAN, Management ACL(256)
Filter 802.1Q, GMRP, GVRP, IGMP Snooping v1/v2/v3, IGMP Querier V2/V3


Redundant Network Link Aggregation, STP/RSTP/MSTP/ERPSv2, Auto Edge Port, BPDU Filtering, Self Loop Detection
Routing Redundancy VRRP(Interface and IP Address)
VLAN Support IEEE 802.1Q 4K VLAN, QINQ, Double VLAN, Voice LAN, Surveillance VLAN(Auto/Manual), Multicast VLAN Registration(MVR)
Time Management Local, SNTP, NTP
Unicast Routing OSPFv2, RIPv1/v2, Static Route
QOS Support Queue Scheduling(WRR, WFQ, Strict Priority , Hybrid(WRR+SP or WFQ+SP); Priority Queue(8 queues/port); Class of Service(Port-based, 802.1p, IP TOS Precedence, IP DSCP), Trusted QoS, Rate Limitation
ACL Type L2/L3/L4, MAC-based, IPv4-based, IPv6-based
Diagnostic Maintenance Support port mirroring, Syslog, Ping
Security Broadcast Storm Control, HTTPS/SSLv2v3,TLSv1 RADIUS, TACACS+,AAA SSHv1/v2,Support DHCP Snooping, Option 43/82, 802.1X security access,

Support user hierarchical management, ACL access control list,

Support DOS, port-based MAC filtering/binding, MAC whitelist

MIB Ethernet-like MIB, MIB-II, MIB-I, Bridge MIB, Bridge MIB extensions, RMON MIB(1,2,3 & 9 groups, RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB
Power Supply
Power Consumption 24 Watts Max
Power Inputs 2
Input Voltage 9-56VDC/110-240VAC, Redundant dual inputs
Connector DC:1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

AC: 3 Pin AC Socket

Protection Overload Current Protection, Reverse Polarity Protection
