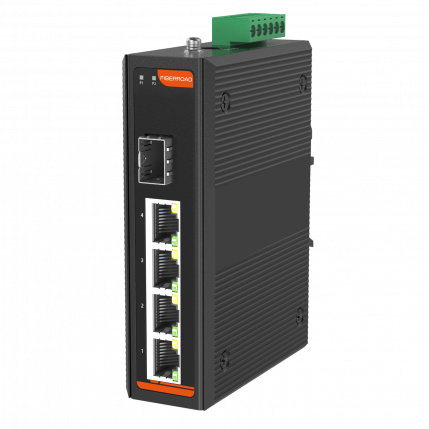

Unmanaged Industrial Gigabit Fibre Switch
The Unmanaged Industrial Ethernet Switch is designed for small business industrial network applications. It provides an easy way to make the access point to Fast or Gigabit Ethernet. With a robust design, this switch is ideal for industrial or outdoor surveillance, withstanding the harshest conditions. The Industrial switch is Plug-and-Play, allowing for easy and quick deployment. It can optionally be mounted on a DIN-Rail or Wall Mount, making it suitable for various installation methods. An LED monitor displays information from Ethernet-connected devices such as IP cameras, wireless access points, or PC/laptops.
Quality Certifications
Guarantee
Share This Product:
High Industrial Standard Fiber Ethernet Switch
To protect the industrial network switch from the harsh environment, the enclosure plays the core role in fitting the industrial grade standard. Compared to the most used material, iron, aluminium, another widely used metal material, has several advantages for shell material choice.

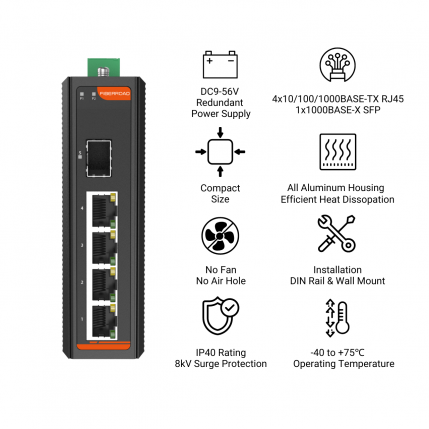

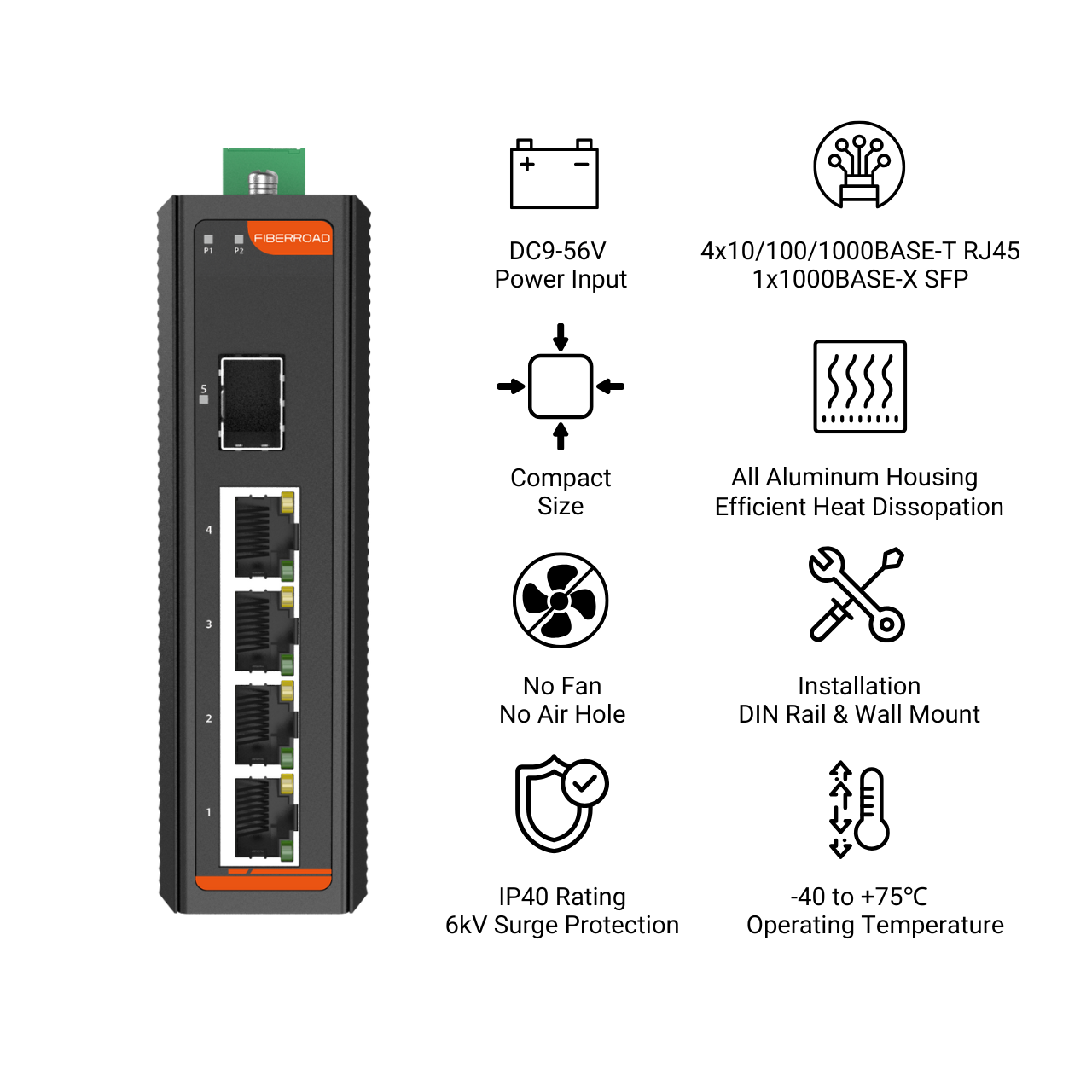

| Product Specifications | |||
|---|---|---|---|
| Ports | 4×10/100/1000Base TX RJ45 1x1000Base-X SFP/1×9 |
Port Mode(Tx) | Auto Negotiation Full/Half Duplex Auto MDI/MDIX |
| Frame Size | 10K | Transmission Mode | Store and Forward |
| Input Power | 9-56V DC | Power Consumption | 3 Watts Max |
| Housing | Aluminium Case | IP Rating | IP40 |
| Operating Temperature | -40℃ to +75℃ | Dimensions | 120x90x35mm |

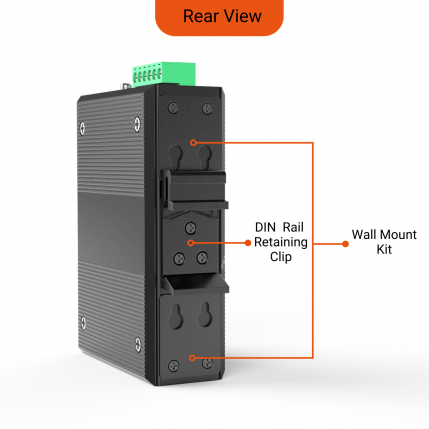

| Installation Mode | DIN Rail and Wall Mount | Weight | 350g |
Ensure Industrial Switch Runs In Harsh Environments

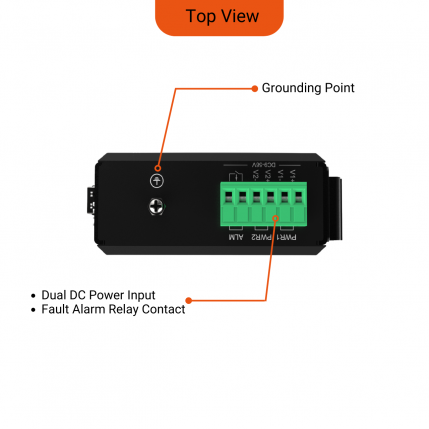

The industrial fibre switch is designed for reliability and ease of maintenance. It features such as a fanless design and low power consumption. The Industrial Ethernet Switch can operate at low and high temperatures thanks to mature technology and open network standards. It is also resistant to electric interference, salt fog, vibration, and shocks. The system also features redundant dual power supplies, allowing for additional reliability for applications that require always-on connections.
Receives Remote Video Surveillance Signals Effortlessly
The unmanaged Industrial Fiber Switch comes with high bandwidth and Jumbo Frames, ensuring connection with wireless AP, IP cameras, and VoIP phones with Gigabit Ethernet connections. Thus, a Fiber Ethernet network switch can transfer large amounts of data faster and with higher bandwidth.
Plug and Play Meets Various Application Needs
Ethernet UTP cables can transmit IP devices at a distance of 100 meters. Unmanaged industrial fibre switches that supports 1000BASE-X, SFP modules, and more can expand the range of IP devices by up to 120 kilometres.
This makes it so easy for users to build a network solution consisting of FTTH (Fiber to the Home), FTTC (Fibre to the Curb) for ISPs or FTTB (Fibe to The Building). The FR-7N3104 can handle large amounts of data in a secure topology linking to a metro switch, backbone or high-capacity server.
