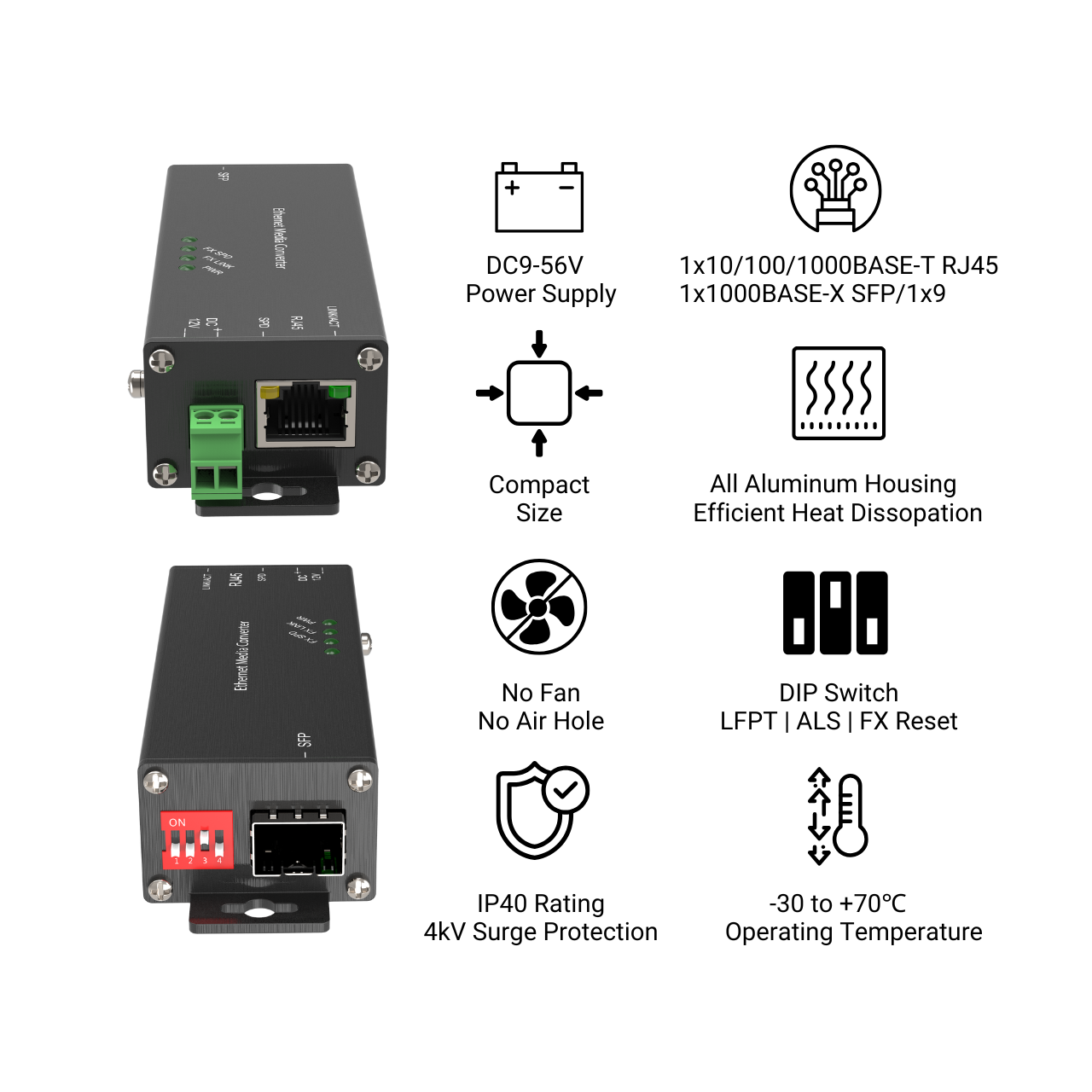

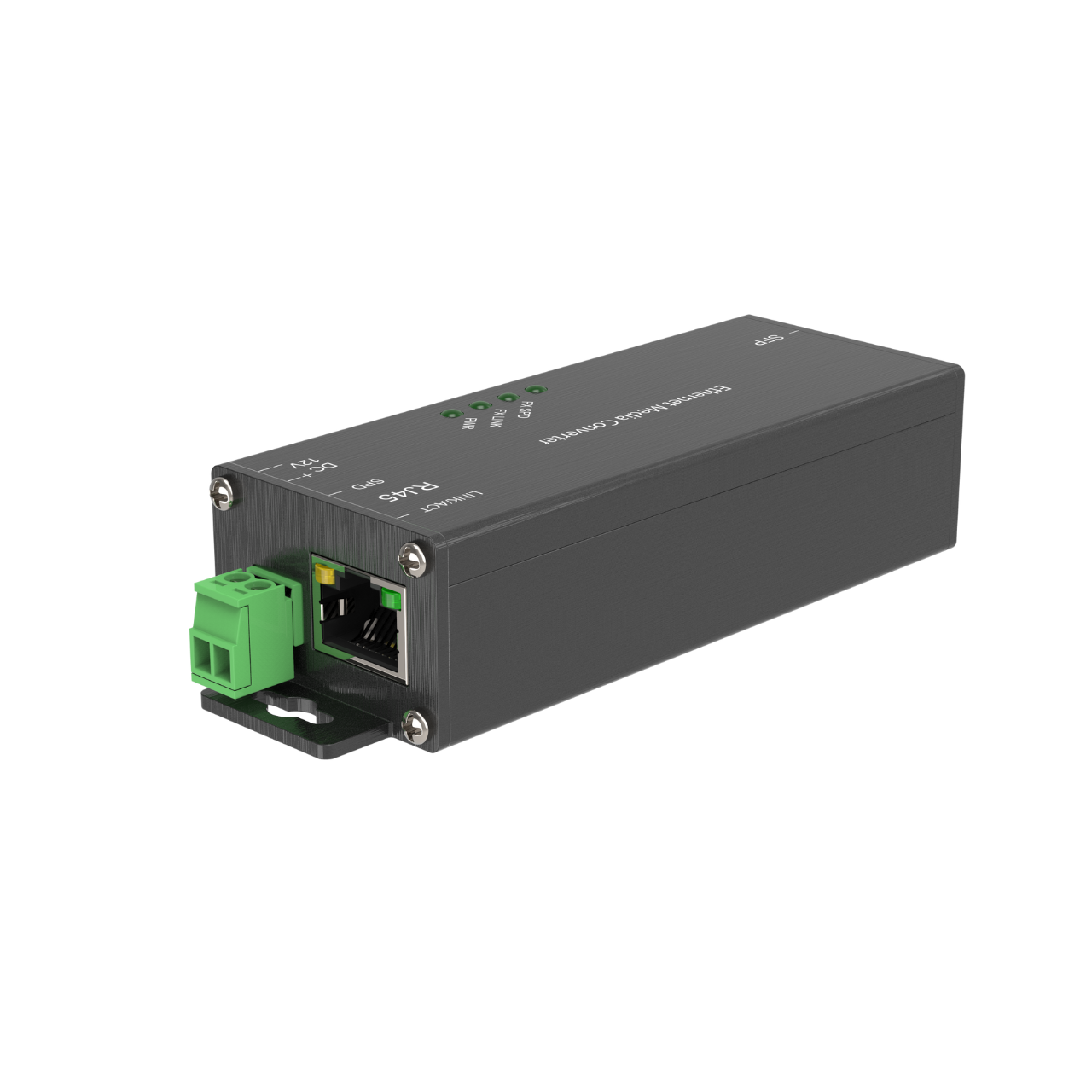

1Gb Mini Industrial Fiber Media Converter
The Mini Industrial Fiber Media Converter stands out as an exceptional solution for businesses seeking a seamless transition between Fast Ethernet and Gigabit Ethernet. It’s cost-effective, entry-level design ensures that users can effortlessly implement media conversion without the need for complex configurations. With its plug-and-play capability, setting up the converter is as simple as connecting it to your existing network infrastructure. Compact in size, this device is perfect for environments where space is at a premium, allowing you to optimize your setup without compromising on performance. Built to withstand extreme conditions, it operates efficiently within a wide temperature range of -30℃ to 75℃ and features an IP40 rugged case that protects against dust and debris. This durability makes the Mini Industrial Fiber Media Converter ideal for deployment in challenging locations like factories, transportation hubs, and outdoor settings where fluctuating temperatures are common.
Product Features
- Compliant with IEEE 802.3u/802.3z/802.3ab
- Choice of SC/ST/LC SFP connector for MM & SM
- Full/Half Duplex, Auto-Negotiation and Auto-MDI/MDIX
- All SFP ports are multi-rate 100Mb/Gigabit – support single and multimode, single or dual fibre options up to 120Km
- Robust IP40 Aluminum Metal Enclosure for Harsh Environments
- Compact size – ideal for confined spaces, including camera poles and roadside cabinets.
- Operate stably under the Temperature Range of -30 or +75℃
- DIP-switch to set different configuration, ex. LFP: Link Fault Pass Through
- Plug & Play – no need for any user configuration
- Both Desktop and Wall Mounting installation
Video Gallery
Quality Certifications
Guarantee
Share This Product
Industrial Fiber Media Converter For Harsh Environment
The industrial fibre media converter features one 100/1000BASE-X SFP fibre port and one 10/100/1000BASE-T copper port in an IP40-rated rugged, mini-size enclosure. Operating in harsh environments, especially extreme low and high temperatures(-30 to 75 degrees C). Applications such as city surveillance systems, smart manufacturing, etc. The Industrial Fiber Media Converter with SFP Port provides reliable, stable and continuous long-reach data transmission and can be installed in any harsh environment without considering space.
| Product Attributes | |||
|---|---|---|---|
| Ports | 1×10/100/1000Base-TX RJ45 1×100/1000Base-X SFP/SC port |
Port Mode(TX) | Auto Negotiation Full/Half Duplex Auto MDI/MDIX |
| Frame Size | Up to 10K | Transmission Mode | Store and Forward |

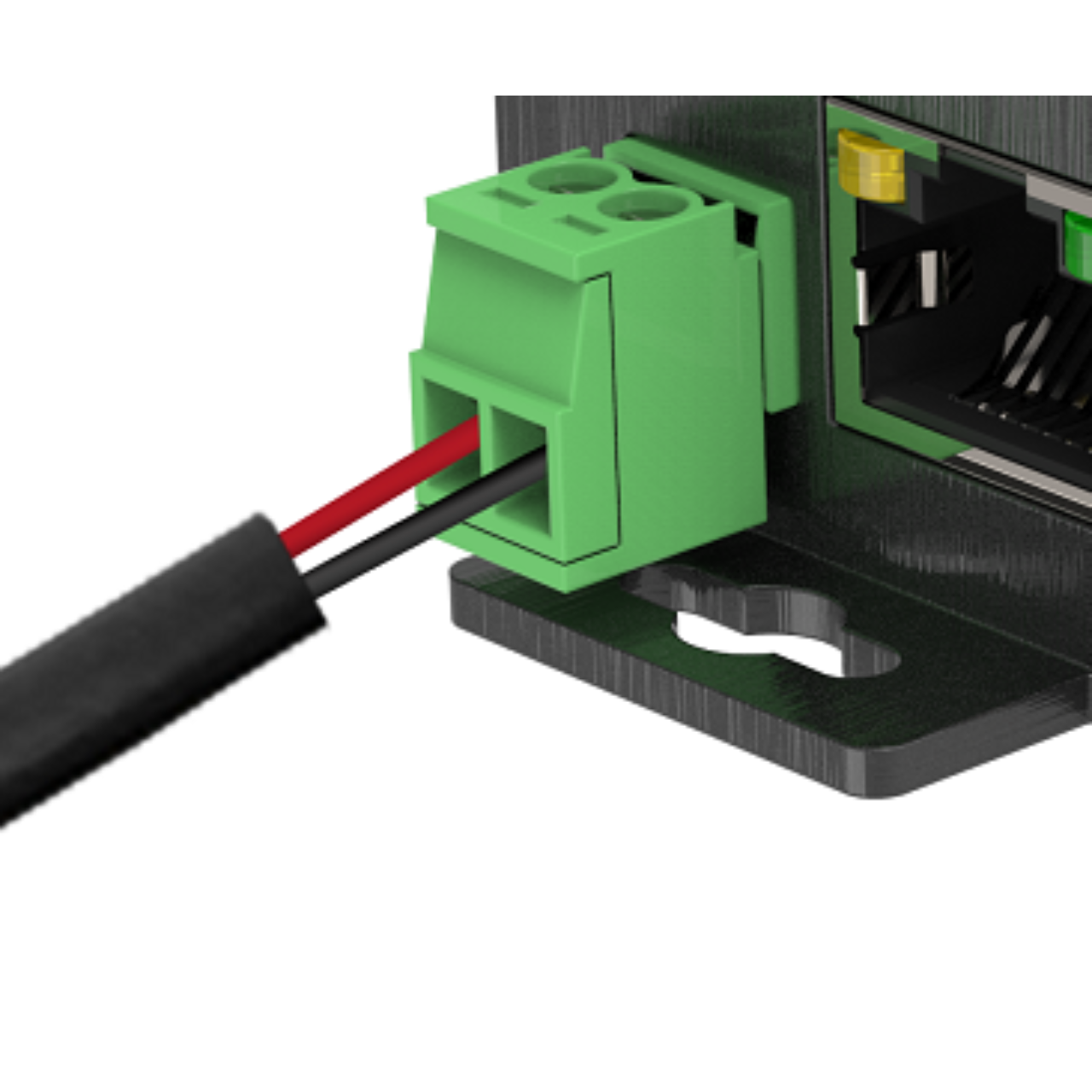

| Input Power | 12VDC | Power Consumption | 2.4W MAX |
| Housing | Aluminum Case | IP Rating | IP40 |
| Operating Temperature |
-30℃ to +75℃ | Storage Temperature |
-40℃ to 85℃ |
| Installation Mode |
Wall Mount & Desktop | Weight | 150g |
Industrial Fiber Media Converter With High-Performance
Industrial SFP Fiber Media Converter with 10K Jumbo Frame and Cut Through mode improves the conversion efficiency. In addition, FR-2703 provides the H.264 video compression with smooth and efficient transmission.
DIP Switches Explained: A Comprehensive Guide to Controlling Signal Transmission
Besides the Media Conversion functions, the Industrial SFP Fiber Media also has smart features via an embedded DIP Switch. Following with link-layer OAM feature, improving video transmission reliability. The Link Fault Pass Through can allow the far-end Industrial Fiber Media Converter to notify the link loss, providing convenient and fast operation and maintenance for the applications.
| Hardware Specifications | ||
| Model | FR-2701 | FR-2703 |
| Ports | 1×10/100Base-TX RJ45
1x100Base-X SFP |
1×10/100/1000Base-T RJ45 1x1000Base-X SFP |
| Port Mode(Tx) | Auto Negotiation Speed
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
|
| Maximum Packet Length | Up to 10K | |
| Forward Filter Rate | 14,880pps(10Mbps)
148,800pps(100Mbps) 1,488,000pps(1000Mbps) |
|
| Transmission Mode | Store and Forward (full/half duplex mode) | |
| Transmission Distance | ||
| Optical Fiber Port | Depends on optical module(0-160km) | |
| Copper RJ45 Port | 100m（using standard CAT5/CAT5e cable） | |
| Power | ||
| Input Power | DC 9-56V, 0.5/0.25A | |
| Power Consumption | 2.4W Max. 0.2A@12VDC | |
| Physical Characteristics | ||
| Housing | Aluminum case | |
| IP Rating | IP40 | |
| Dimensions | 36.2mm*117mm*24.5mm | |
| Weight | 100g(Bare weight), 250g(With package) | |
| Installation | Wall Mount and Desktop | |
| Environmental | ||
| Operating Temperature | -30℃ to +75℃ (-30 to 167 ℉) | |
| Operating Humidity | 5%~90% (non-condensing) | |
| Storage Temperature | -30℃ to +85℃ (-30 to 185 ℉) | |
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25°C | |
| Heat Dissipation | 7 BTU/h | |
| Cooling | Passive Cooling | |
| Noise Level | 0 dBA | |
| Package Contents | ||
| Device | 1x Industrial Media Converter | |
| Installation Kit | 1x Caps, plastic, for SFP Slots, 2 x Wall-Mount Kits(Fixed to the device | |
| Documentation | 1x Quick installation guide,1x Warranty card,1x Product notice | |

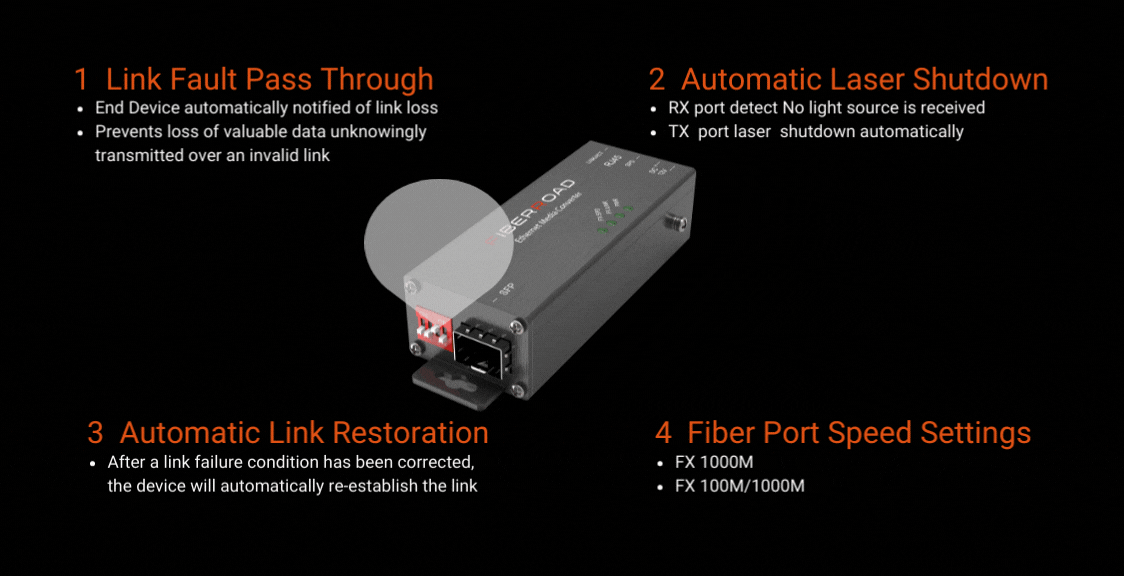

| DIP Switch | |||
| No. | Function | State | Description |
| SFP Port Configuration | |||
| 1 | LFP | OFF | Disable |
| ON | Enable | ||
| 2 | ALS | OFF | Disable |
| ON | Enable | ||
| 3 | FX Reset | OFF | Disable |
| ON | Enable | ||
| 4 | FX Speed(Effect on FR-2703) | OFF | FX Speed 1000M |
| ON | FX Speed 100M/1000M | ||
| 1×9 Module Configuration | |||
| 1 | LFP | OFF | Disable |
| ON | Enable | ||
