Small Business Ethernet Switch

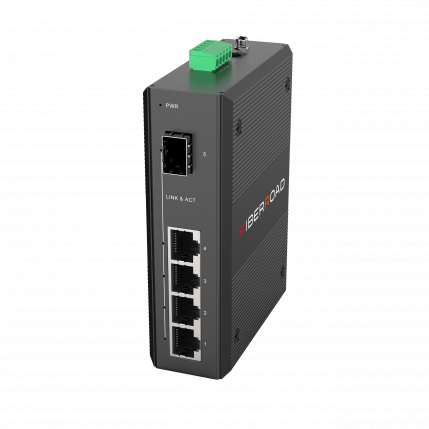

FR-6N3104 is an Industrial Gigabit Ethernet Switch, which is designed for Small Business network applications. Supports 4-Ports 10/100/1000Base-T RJ45 and 1 port 1000Base-X SFP(Optional 1X9 module) based fibre optics. The traditional transmission distance of Fast Ethernet over RJ45 copper can be extended up to 100km+ over a fibre optics interface. FR-6N3104 can optionally support DIN-Rail mounting or Wall mounting, thus suitable for various installation methods. LEDs provide visual monitoring of Ethernet-connected devices such as IP cameras, wireless access points, or PC/laptop via 10/100/1000Base-T twisted-pair RJ45 ports on FR-6N3104. FR-6N3104 is particularly suitable for deploying and provisioning active Ethernet FTTX service of multi-service operators (MSO).
Quality Certifications
Guarantee
Share This Product:
Industrial Standard For Harsh Environment

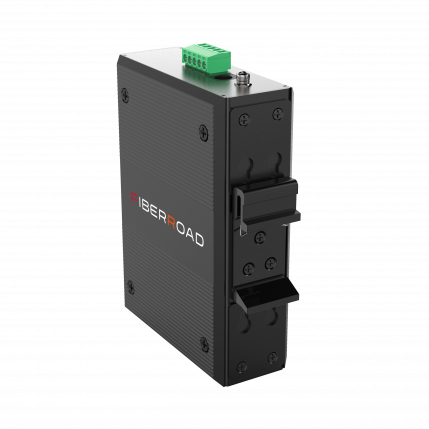

Small Business Ethernet Switch is equipped with a rugged IP40 metal enclosure to ensure operation in harsh environments. Specially designed for outdoor and industrial applications, such as Smart city surveillance systems, Smart bus stations, etc. Certainly ideal for miniaturization and rapid deployment.
| Product Attributes | |||
|---|---|---|---|
| Ports | 5×10/100/1000Base-TX RJ45 | Port Mode(TX) | Auto Negotiation Full/Half Duplex Auto MDI/MDIX |
| Frame Size | Up to 10K | Transmission Mode | Store and Forward |
| Input Power | 9-56V DC | Power Consumption | 3W MAX |
| Housing | Aluminum Case | IP Rating | IP40 |
| Operating Temperature |
-20℃ to 70℃ | Storage Temperature |
-40℃ to 85℃ |
| Installation Mode |
Wall Mount & DIN Rail Mount | Weight | 350g |
Optical Fibre To The IoT Terminals
Small Business Industrial Gigabit Ethernet Switch realizes Ethernet data exchange, convergence and long-distance transmission. And Offer efficient bandwidth and reliable solutions for users.
Small Business Ethernet Switch Not Only Industrial Grade
Small Business Industrial Gigabit Ethernet Switch complies with various characteristics, such as fanless, anti-electromagnetic interference, etc. In addition, A redundant dual power supply can offer critical applications that need always-on connections.
Industrial Ethernet switch Satisfy Multiple Applications
Small Business Ethernet Switch can operate at a standard industrial range of -40 to 75°C. Providing DIN rail or wall mounting installation.
