10G SFP+ to RJ45 Managed Media Converter
- Supporting 10G full duplex autosensing
- Supporting auto-MDI/MDIX
- Supporting 10Gbase-T to 10Gbase-SR/LR/ER/ZR
- 3R function, stable data transmission
- Short delay time when transparent transmission
- Supporting Jumbo frame
- Supporting transmission length of RJ45 network cable
- Supporting DMI(Diagnostic Monitoring Interface) function of optical transceivers
- Supporting 850nm, 1310nm, 1550nm and DWDM/CWDM wavelength ruled by ITUT
- Supporting Loopback, precisely locating the failure, convenient for link test
- Economical management function within bandwidth
- With powerful network management function(Web,SNMP,Console), supporting WEB and SNMP
- Supporting hot plug
- Easy installation with complete LED indicators for working situation
- Supporting 2U chassis (16 slots) and standalone use
10G SFP+ to RJ45 Managed Media Converter+ is a copper to fiber 10G Ethernet media converter based on IEEE 802.3an and IEEE 802.3ae. With SNMP and Web-based management in the 2U 16 Slot Managed Media Converter Chassis, the administrator can monitor, configure and control the activity of each card in the chassis. This converter uses Cat.6a/Cat 7 twisted pair cable as copper transmission media with RJ-45 and 10G optical solution with SFP+ modules. The data stream can be converted bi-directionally from 10G Base-T to 10G Base-R and vice versa. With full duplex wire speed forwarding capability between these two media, it brings you the best and simplest solution for the 10G Ethernet conversion between copper wire and fiber.
More Details of 10G Media Converter SFP+

10 0G SFP+ to RJ45 Managed Media Converter+ enhance an organization’s current enterprise network by facilitating fiber-optic links from 10GBase-T switches or extending a 10 Gig Ethernet fibre optic link. By leveraging10G Media Converter SFP+, Ethernet-trained network technicians need minimal training to support 10 Gigabit Ethernet networks. The use of a single protocol throughout the network makes connecting from access to the backbone to the metropolitan network seamless, resulting in low-latency switching without the need for packet fragmentation, reassembling, or address translation when reformatting a data stream to another network protocol. Fiberroad’s 10G Media Converter SFP+ allows the network’s backbone to be flexible and easier to manage and maintain. Our converters are available in two form factors, chassis-based slide-in cards and stand-alone converters, allowing you the most flexibility for your network. Our converters also utilize fixed optics and Small Form-Factor Pluggable (SFP) transceivers allowing you to customize each converter for the cable type you are using. View the two different form factors below:
![]() | ![]() | ![]() |

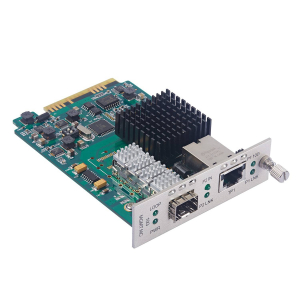

Chassis-based slide-in 10G Managed Media Converter Cards(Local Side) | Remote Standalone10G Managed Media Converter (Remote Side) |

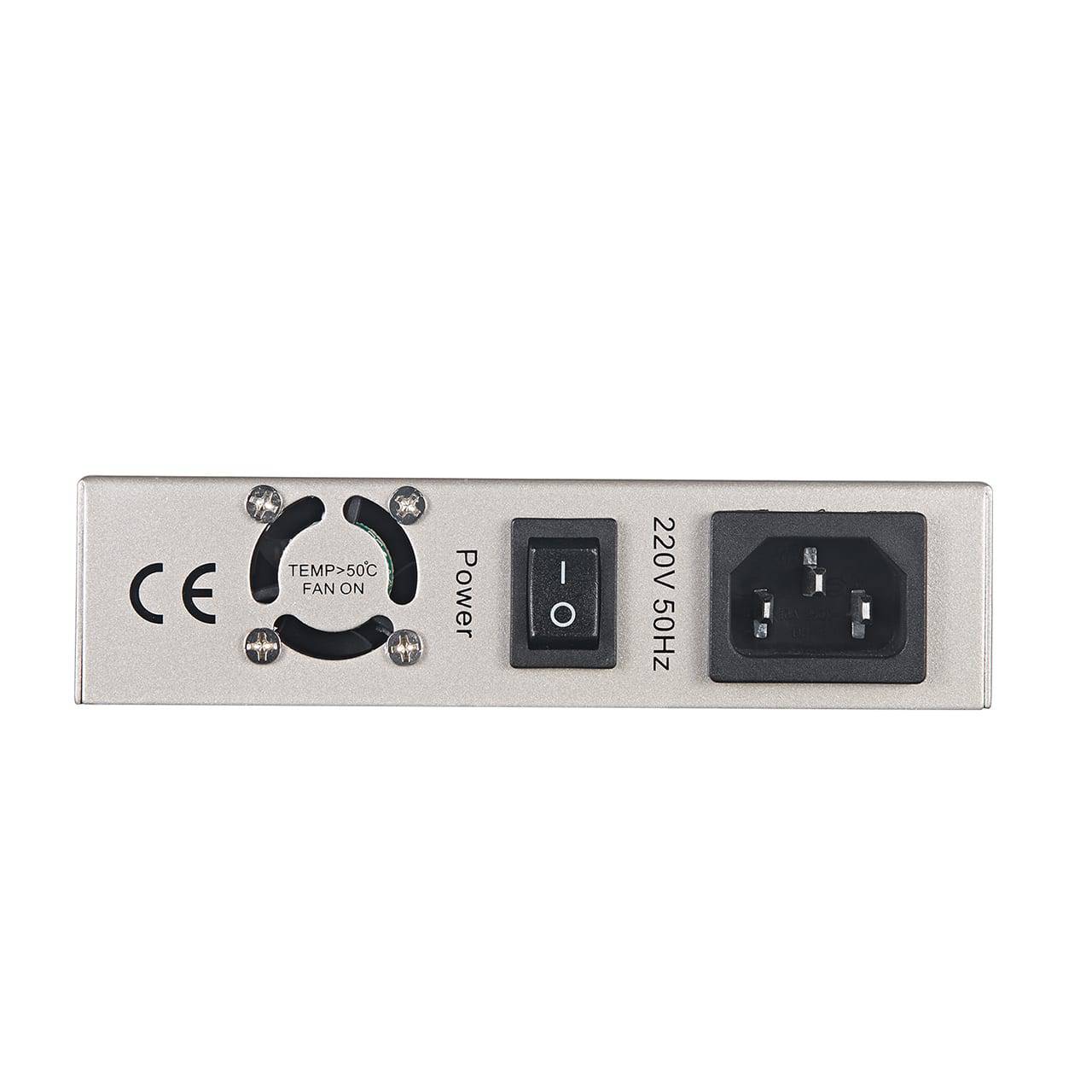

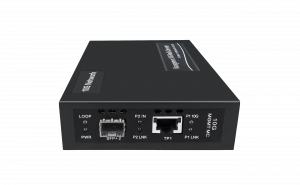

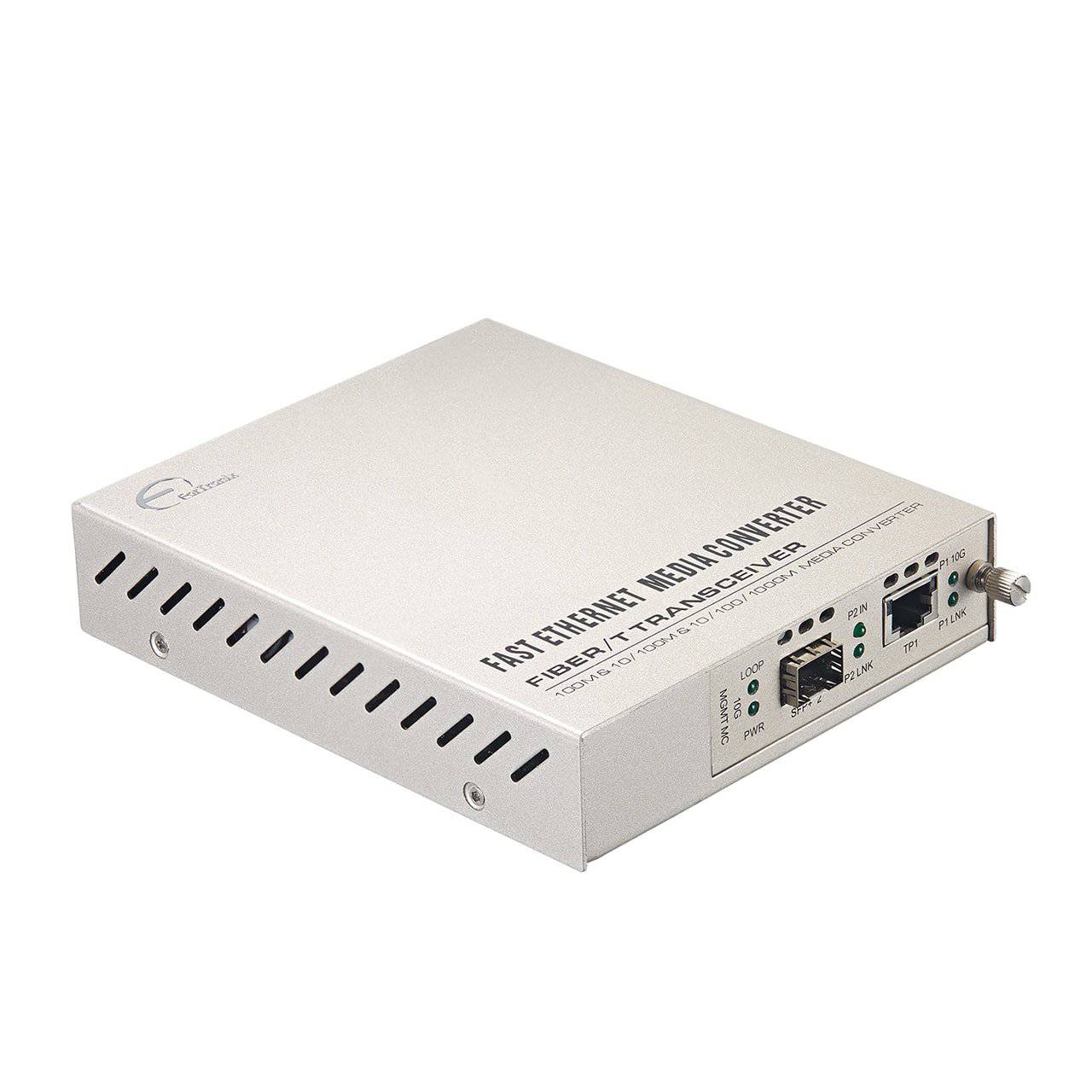

Standalone 10G Managed Media Converter |
Management access can be achieved locally or remotely via Web, SNMP, Telnet or Console network. FR6000 series and the MUX and DEMUX can offer a space-efficient and cost-effective solution for WDM transmission. Complete system information can be set up and displayed, including the name of chassis, terrain and related information of IP, constant operating time and the hardware and software versions.
SNMP Management
Web Management
Physical Port | |
Copper Port | 10GBASE-T RJ45(85m,Cat7) |
SFP Port | 10GBASE-X R SFP+ interface |
Parameters | |
Ethernet Standards | IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet |
Packet Length | 16Kbytes |
Transmission Mode | Store and Forward |
Exchange Property | Delay time: < 7ps
Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps |
LED Indicator | Power, FX-Link, FX Duplex, TX-SPD, TX-Duplex, TX-Link |
Power Information | |
Power Input | Card: DC 5V
Standalone: AC 220V/DC -48V |
Power Consumption | Full-load<12W |
Physical Property | |
Dimensions | Card:120mm×90mm×22mm
Standalone:160mm×130mm×32mm |
Installation Mode | wall-mountable |
Weight | Card:100g
Standalone:800g |
Working Environment | |
Operating Temperature | 0°C~50°C |
Operating Humidity | 10%~90% non-condensing |
Storage Temperature | -10°C~70°C |
Warranty | |
MTBF | 50,000 hours |
Defects Liability Period | 1 year warranty, lifetime technical support |
Certification Standard | |
EMC | FCC Part15 Class A
CE-EMC/LVD RoHS EN61000-4-2 (ESD), EN61000-4-3 (RS) EN6100044 (EFT), EN6100045 (Surge) EN61000^1-6 (CS), EN61000-4-8 EN61000-4-11 |
