Managed Gigabit Fiber Media Converter

Managed Gigabit Media Converter is an IEEE 802.3ah OAM compliant copper to fiber Gigabit Ethernet solution designed to make conversion between 10/100/1000Base-TX and 1000Base-FX with SFP modules and fixed type 1×9 modules. With SNMP and Web-based management in the 2U 16 Slots Managed Media Converter Chassis, the administrator can monitor, configure and control the activity of each 802.3ah series card and remotely connected OAM compliant converter. Converter settings include bandwidth control, duplex, and speed configuration, VLAN tagging, limited Q-in-Q support and SFP DDMI. When used as stand-alone converters, it can be managed by a friendly Web Smart user interface via any web browser.


Product Features

  • Supporting 10/100/1000M, full/half duplex autosensing
  • Supporting auto-MDI/MDIX
  • Supporting 1*9 transceiver and SFP transceiver
  • Support SFP DMI (Diagnostic Monitoring Interface) function
  • Supporting 850nm, 1310nm, 1550nm and DWDM/CWDM wavelength ruled by ITUT
  • 2046 bytes’ packet at store-and-forward mode; Max. 9K bytes’ packet at cut-through
  • Rate Limit function, 64Kbps
  • Supporting Loopback, precisely locating the failure, convenient for link test
  • Supporting LFP quickly locates the failure
  • Supporting remote power off alarming
  • Economical management function within the bandwidth, supporting 802.3ah and TS 1000
  • With powerful network management function, supporting WEB and SNMP
  • Supporting hot plug
  • Supporting Remote management
  • Easy installation with complete LED indicators for working situation

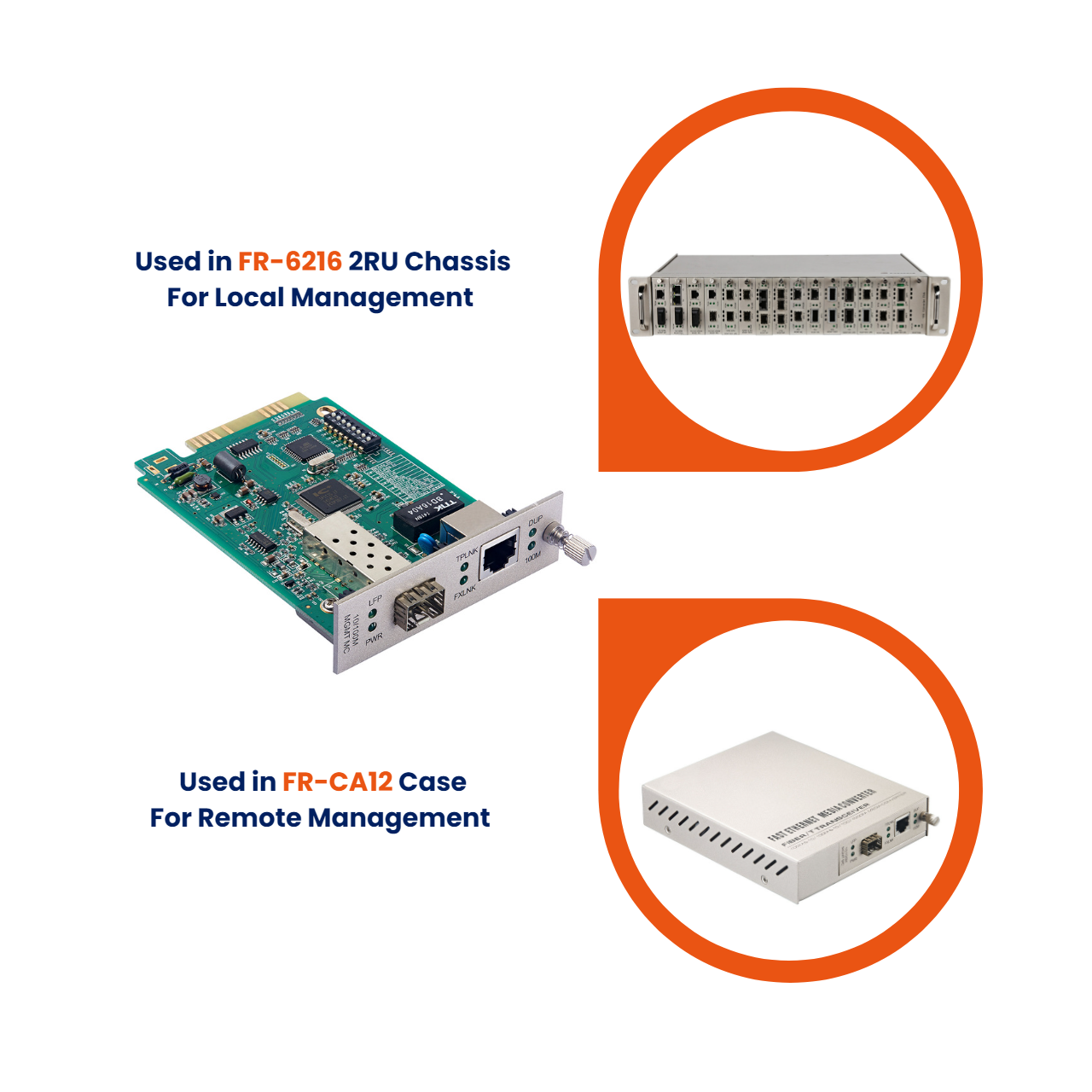

  • Supporting 2U chassis (16 slots) and standalone use

Video Gallery

10/100/1000Base-TX to 1000Base-FX Managed GbE Media Converter Card
10/100/1000Base-TX to 1000Base-FX Managed GbE Media Converter Card
10/100/1000Base-TX to 1000Base-FX Managed GbE Media Converter Card
10/100/1000Base-TX to 1000Base-FX Managed GbE Media Converter Card
Quality Certifications
Share This Product

How a Managed Gigabit Fiber Media Converter Can Improve Your Network Infrastructure

A Managed Gigabit Fiber Media Converter is a powerful tool that can significantly improve your network infrastructure. With its ability to convert fiber-optic signals into Ethernet signals, it enhances the efficiency and speed of data transmission across the network. The converter also comes with advanced management features such as SNMP, VLANs, and QoS protocols which allow for easier monitoring and configuration of your network. Additionally, this device ensures that all traffic on the network is secure by providing encryption services that protect sensitive data from unauthorized access. This makes it an ideal solution for businesses or organizations that require high-performance networking capabilities while maintaining optimal security measures. As a result, investing in a Managed Gigabit Fiber Media Converter will not only optimize your network but also improve the overall productivity of your operations allowing you to stay ahead of the competition in today’s fast-paced business environment.

Managed Gigabit Media Converter


Maximizing Network Performance with a Managed Gigabit Fiber Media Converter

A Managed Gigabit Fiber Media Converter is a powerful tool for maximizing network performance. This device allows you to extend the range of your network by converting signals from copper Ethernet to fiber optic cables, which offer faster speeds and longer distances. The managed aspect of this converter means that it can be programmed to optimize performance based on specific needs and requirements. It also provides advanced features such as VLAN tagging, QoS prioritization, and link fault pass-through capabilities. With its ability to connect multiple devices over long distances, this media converter is an ideal solution for businesses looking to improve their network’s efficiency and reliability. By using a Managed Gigabit Fiber Media Converter, organizations can ensure that they are getting the most out of their network infrastructure while minimizing downtime and maintenance costs.

Managed Gigabit Media Converter

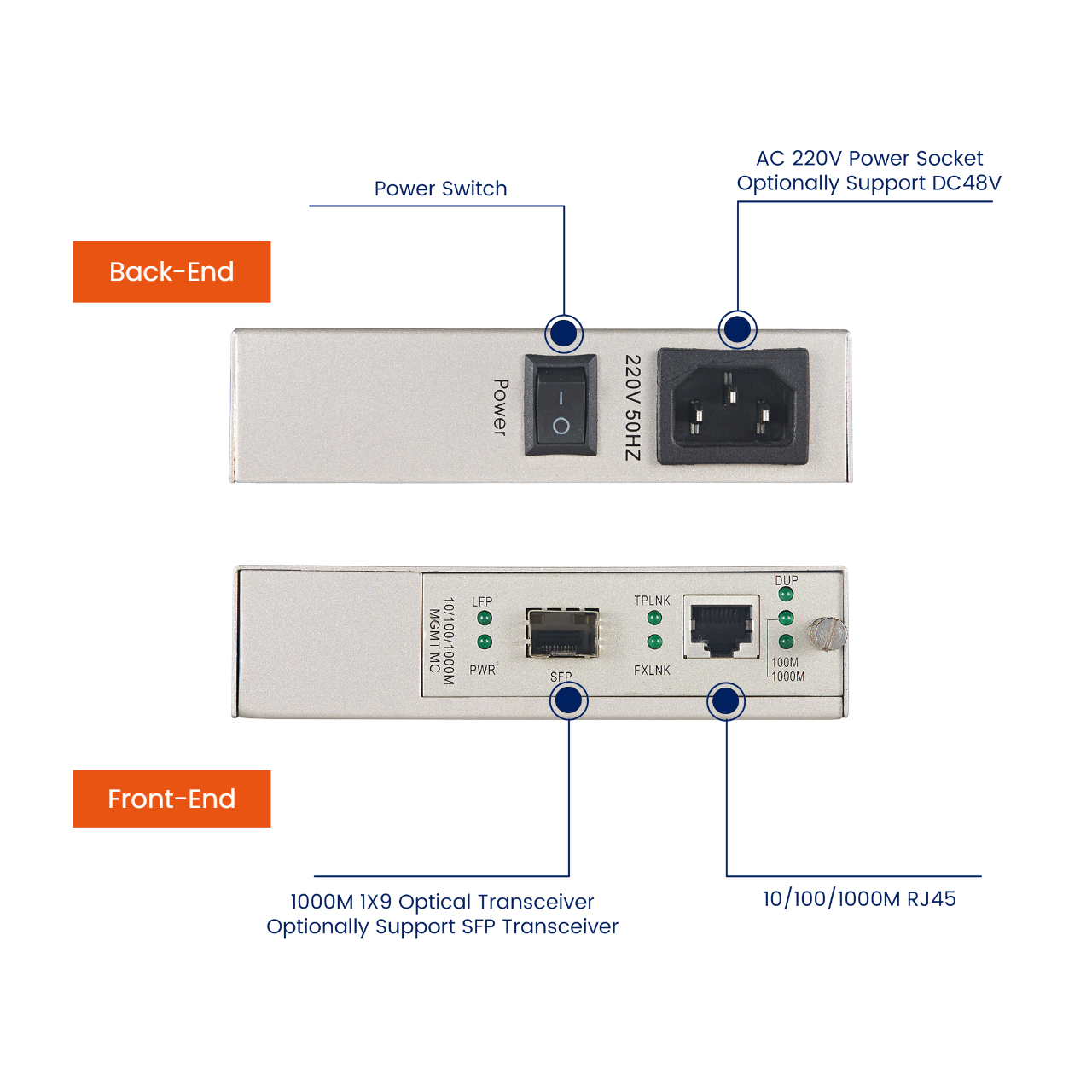

Physical Port
Copper Port 10/100/1000Base-T RJ45
SFP Port 100/1000BASE-X SFP interfaces
Fiber Mode 1000BASE-X, 550m-120km, SC/ST/FC
Ethernet Standards IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic

IEEE 802.3x flow control and back pressure


IEEE 802.3ah terminal

Packet Length 2046bytes
Transmission Mode Store and Forward/Cut through
Exchange Property Delay time: < 7ps

Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps

DIP Switches LFP function:Disable/Enable



Managed Features Supports LFT (Link Fault Pass Through)

Supports Digital Diagnostic Monitor Interface (DDM) for SFP

Supports OAM/IP in-band management

Ingress/Egress Bandwidth control per port

Supports 16 IEEE 802.1Q Tag VLAN Group

SNMP alarm trap for power loss and port link down

Remote loop back test

Dying gasp (remote power failure detection)

LED Indicator Power, FEF, FX-Link, TX-SPD, TX-Duplex, TX-Link, LFP
Power Information
Power Input DC 5V
Power Consumption Full-load<4W
Physical Property
Dimensions 120mm×90mm×22mm
Installation Mode wall-mountable
Weight 100g
Working Environment
Operating Temperature 0°C~50°C
Operating Humidity 10%~90% non-condensing
Storage Temperature -10°C~70°C
MTBF 50,000 hours
Defects Liability Period 1 year warranty, lifetime technical support
Certification Standard
EMC FCC Part15 Class A



EN61000-4-2 (ESD), EN61000-4-3 (RS)

EN6100044 (EFT), EN6100045 (Surge)

EN61000^1-6 (CS), EN61000-4-8
