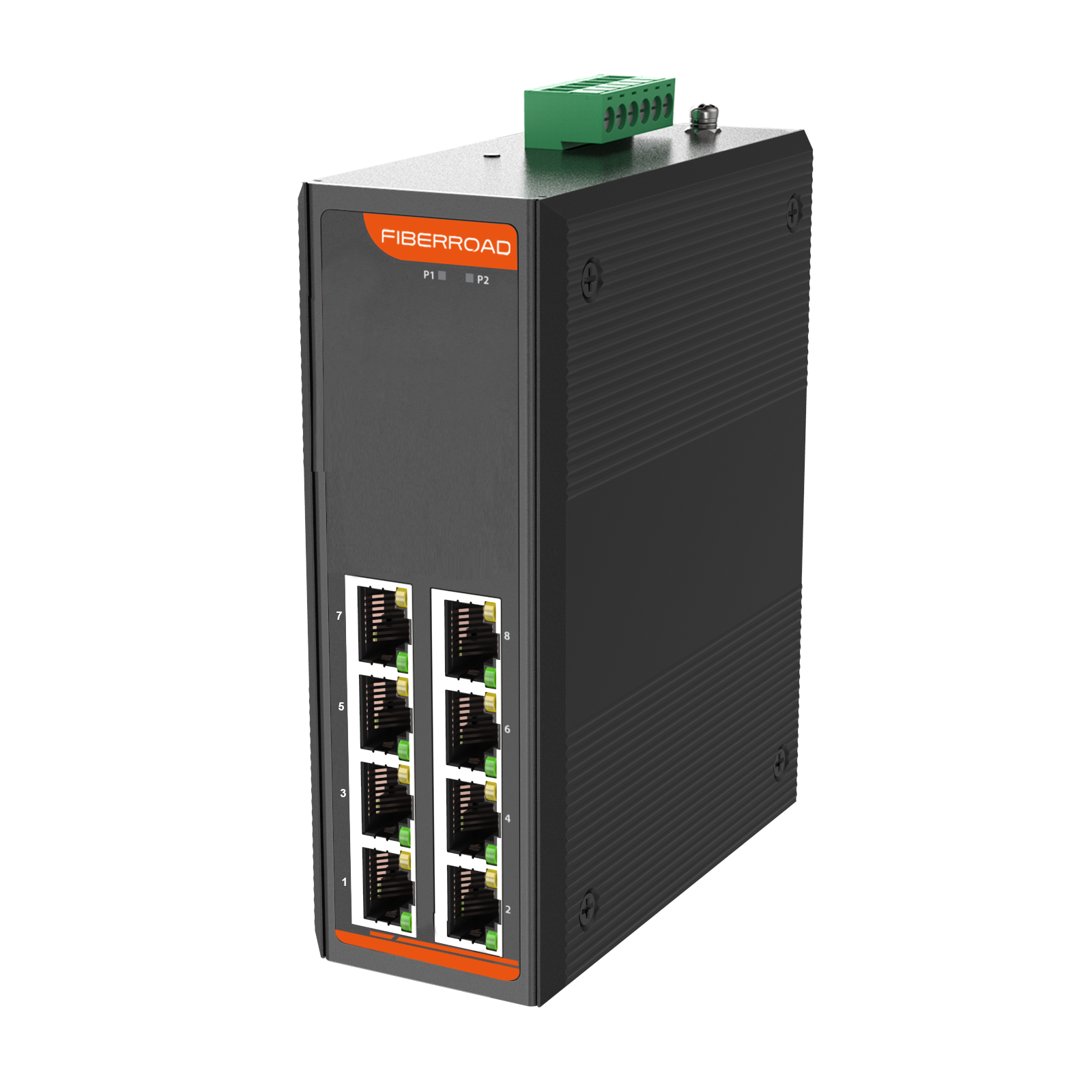

8 Port Unmanaged Industrial PoE Switch

The Unmanaged Industrial PoE Switch is designed for small and medium industrial network applications. It provides an easy way to access Gigabit Ethernet. This switch’s robust design makes it ideal for deployment in industrial and outdoor surveillance settings. It can optionally support DIN-Rail mounting or Wall mounting. LEDs provide visual monitoring of Ethernet-connected devices via twisted-pair RJ45 ports. The models are available in both non-PoE and PoE versions and can power the latest high-powered PoE devices over a wide industrial operating temperature range.

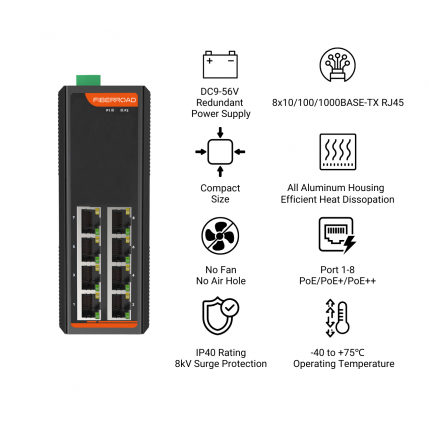

Product Features

  • Support up to 8 ports x 10/100Base-T or 10/100/1000Base-T
  • Support IEEE 802.3af/at/bt PoE Standard, without damaging not-PoE devices.
  • Full/Half-duplex self-adaptation
  • MDI/MDIX automatic recognition
  • Jumbo Frame up to 10K, 20G backplane bandwidth
  • Operating temperature -40 to 75℃
  • Wide-range DC9~56V power input
  • Support power input polarity protection; no worries about the reverse connection
  • All-Aluminium shell, fanless design
  • Free fall, shock-proof and vibration-proof for industries
  • Plug and play; no software configuration.

Video Gallery

Quality Certifications
Guarantee
Share This Product

Enhance Your Network Efficiency with the Best 8 Port Industrial PoE Switch

If you are seeking to enhance the efficiency of your network, look no further than the remarkable 8 Port Industrial PoE Switch. This technologically advanced switch is designed specifically for industrial applications, ensuring reliability and durability even in harsh environments. With its eight ports, it allows for seamless connectivity of multiple devices simultaneously, effortlessly meeting the demands of modern networks. The Power over Ethernet (PoE) feature eliminates the need for separate power cables or adapters by delivering both data and power through a single Ethernet cable, simplifying installation and reducing clutter. This incredible switch also boasts high-speed data transfer rates, enabling uninterrupted transmission of large amounts of data across your network. Its intelligent design ensures efficient power usage by automatically detecting connected devices’ power requirements and supplying only what is necessary—this not only reduces energy consumption but also extends device’s lifespan.

8 Port Industrial PoE Switch
Product Specifications
Ports 8×10/100/1000Base TX RJ45
Port Mode(Tx) Auto Negotiation
Full/Half Duplex
Auto MDI/MDIX
Frame Size 9K Transmission Mode Store and Forward
PoE Ports Port 1-8 Max Power Per Port 90W
Input Power 9-56VDC Power Connector 1 Removable 6-contact Terminal Block
Housing Aluminium Case IP Rating IP40
Operating Temperature -40℃ to +75℃ Dimensions 138x108x49mm
Installation Mode DIN Rail and Wall Mount Weight 680g

Ensure Industrial Networks are Operating in Hazardous Environments

In order to ensure industrial networks are operating efficiently and reliably in hazardous environments, the use of advanced technological solutions is paramount. One such solution that stands out is the 8 Port Industrial PoE Switch. Explicitly designed for challenging industrial settings, this switch combines cutting-edge features with robust construction to provide unparalleled performance and safety. With its ability to transmit power and data simultaneously through a single Ethernet cable, it simplifies network deployment while minimizing cluttered wiring infrastructure. The switch’s rugged design is built to withstand extreme temperatures, vibrations, and electrical interference commonly found in hazardous environments. Additionally, its multiple port configuration allows for seamless integration of various devices such as IP cameras, access points, or sensors throughout the facility while ensuring stable connectivity and uninterrupted data transmission. This innovative technology not only enhances operational efficiency but also prioritizes workplace safety by reducing potential hazards associated with complex cabling systems or unreliable network connections.

8 Port Industrial PoE Switch

Simplify and Streamline Your Network Infrastructure with an 8 Port Industrial PoE Switch

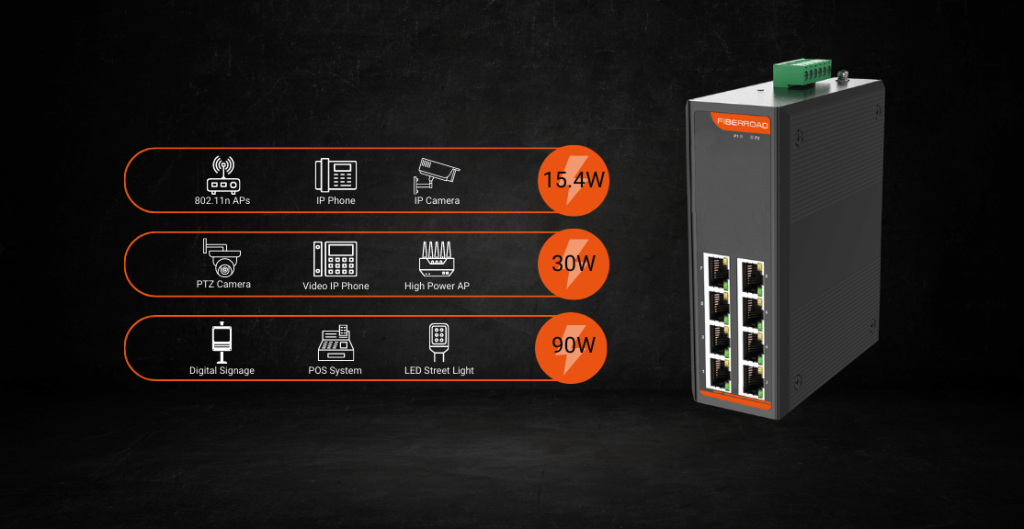

The 8 Port Industrial PoE Switch is a cutting-edge networking device that incorporates the latest advancements in Power over Ethernet technology. With its adherence to the 802.3af/at/bt PoE++ standard, this switch empowers each of its ports with the ability to deliver an impressive power output of up to 90W. This means that not only can it efficiently transfer data between devices, but it also provides substantial electrical power simultaneously, eliminating the need for separate power sources or adapters for connected devices. Whether you are connecting surveillance cameras, wireless access points, or other network-enabled devices in an industrial setting, this robust switch ensures seamless and uninterrupted performance while simplifying installation and reducing clutter caused by excessive cables and wires. The 8 Port Industrial PoE Switch is truly a game-changer in terms of efficiency and convenience within any network infrastructure.

8 Port Industrial PoE Switch

Exploring the Benefits and Applications of 8 Port Industrial PoE Switch

The 8 Port Industrial PoE Switch is a powerful and versatile networking device that offers an array of benefits and applications. With its eight ports, this switch provides seamless connectivity for various industrial devices, making it ideal for settings such as factories, warehouses, or outdoor installations. The Power over Ethernet (PoE) feature allows the switch to simultaneously transmit data and power to compatible devices through a single Ethernet cable, eliminating the need for additional power sources or individual power adapters. This not only simplifies installation but also reduces maintenance costs by minimizing cable clutter. Moreover, the sturdy construction of the switch ensures reliable performance in harsh environments with extreme temperatures, vibrations, or electromagnetic interference commonly encountered in industrial settings. Its compact design further enhances flexibility during deployment while ensuring efficient use of space. Whether connecting surveillance cameras for enhanced security measures or enabling communication between sensors and control systems in smart factories, the 8 Port Industrial PoE Switch proves to be an indispensable tool that seamlessly integrates diverse devices into a robust network infrastructure.

8 Port Unmanaged Industrial PoE Switch
8 Port Unmanaged Industrial PoE Switch
8 Port Unmanaged Industrial PoE Switch
Ethernet Interface
FR-7N1008P/FR-7N1008BT FR-7N3008P/FR-7N3008BT
Ports 8×10/100Base-TX Port(RJ45) 8×10/100/1000Base-TX Port(RJ45)
Port Mode(Tx) Auto-Negotiation

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3x for flow control and back pressure

IEEE 802.3 for 10BaseT

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x for flow control and back pressure

Packet Buffer Size 1M 2M
Maximum Packet Length 10K 9K
MAC Address Table 4K 4K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 2G

Delay time: < 7μs

Backplane bandwidth: 20G

Physical Characteristics
Housing Aluminum case
IP Rating IP40
Dimensions 138mm x 108mm x 49mm (L x W x H)

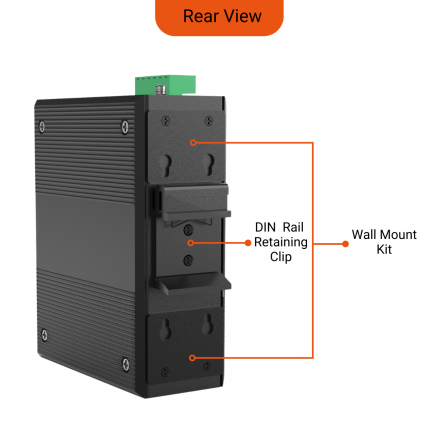

Installation DIN Rail/Wall Mount
Weight 680g
Environmental
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~95% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
MTBF 907,476 hours @ Telcordia SR-332 Standard
Heat Dissipation 34 BTU/h (non-PoE mode)

853 BTU/h (with 240W PoE load)

Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
PoE & Power Supply
Model FR-7N1008P/FR-7N3008P FR-7N1008BT/FR-7N3008BT
PoE Ports Port 1 to 8 IEEE802.3af/at @PoE+ Port 1 to 8 IEEE802.3af/at/bt @PoE++
Power Supply Pin Default: 1/2(+), 3/6(-) Default: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Max Power Per Port 30W 90W
Total PWR /Input Voltage 240W(DC48-56V) (Model dependent) 480W(DC52-56V) (Model dependent)
Power Consumption 10 Watts Max(without PoE load)
Power Inputs 2
Input Voltage 9-56VDC, Redundant dual inputs
Operating Voltage Non-PoE Mode: 9-56VDC

30W PoE Mode: 48-56VDC

90W PoE Mode: 52-56VDC(IEEE802.3bt model)

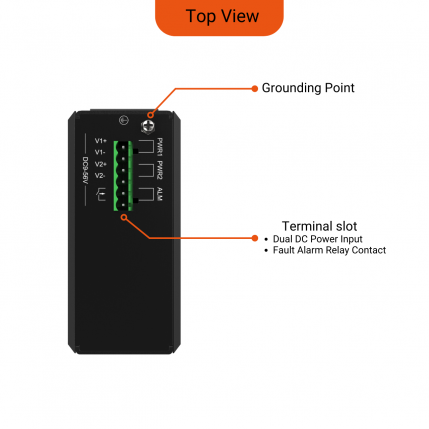

Connector 1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection Overload Current Protection, Reverse Polarity Protection
