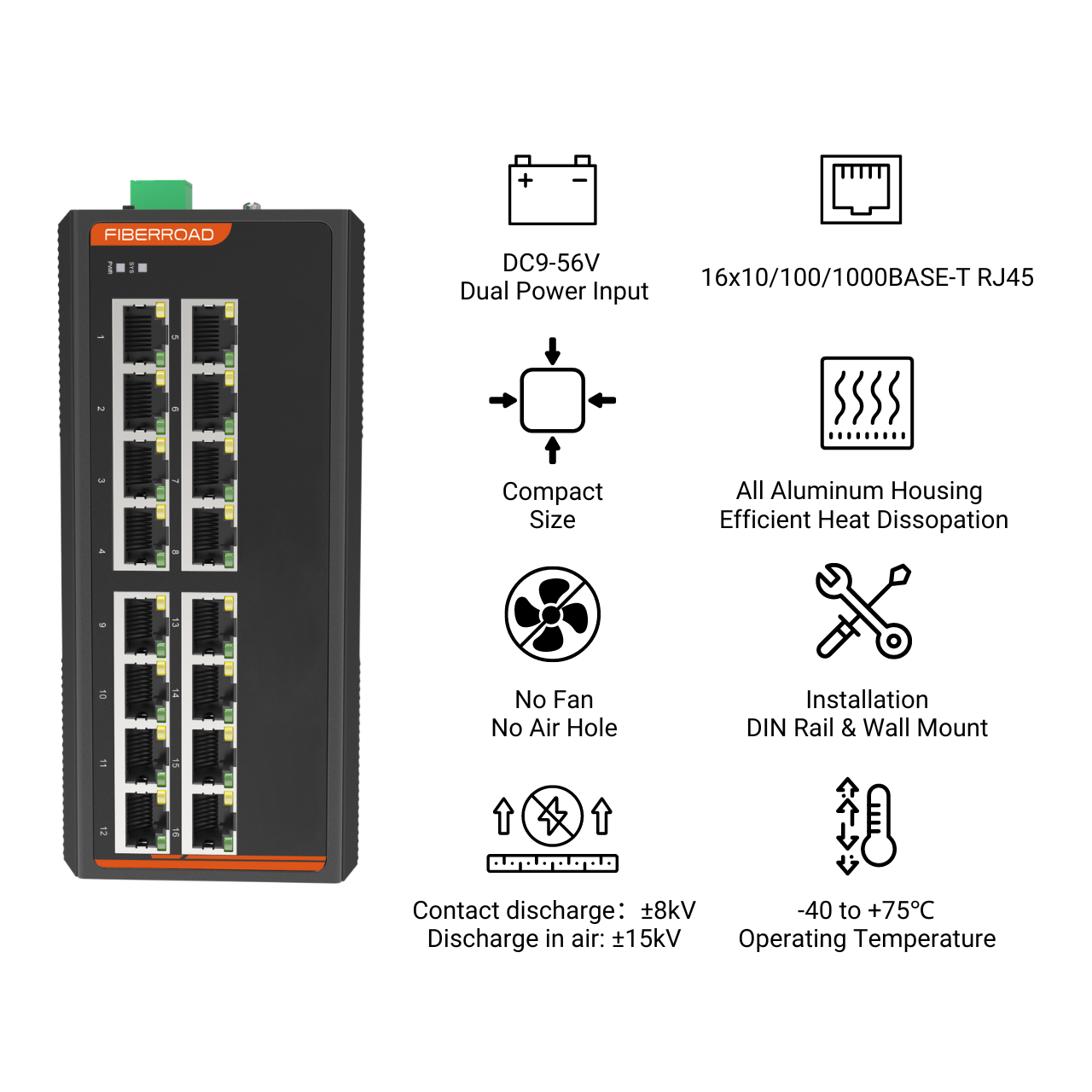

16-Port 10/100/1000BASE-T Layer 2+ Managed Industrial Ethernet Switch

Take your industrial network to the next level with this rugged, full-featured Layer 2+ managed Ethernet switch. Built to withstand extreme temperatures from -40 to 75 degrees Celsius, this 16-port switch delivers reliable Gigabit performance with 16 RJ45 ports. Manage your network easily using the CLI, WebGUI or NMS software, while advanced features like STP/RSTP, ERPSv2 and VLANs ensure a robust, high-availability network. Optionally choose PoE/PoE+/PoE++ models to power devices over Ethernet. Tight security features include IEEE 802. X, RADIUS, HTTPS, SSH and SNMPv3 to safeguard your data. With its combination of extreme temperature tolerance, full manageability, advanced network tools and strong security, this Fiberroad switch provides the connectivity and control you need to build a high-performance industrial network that just keeps running.



Main Features

  • 16×10/100/1000BASE-T Gigabit Ethernet RJ45 Ports
  • Full gigabit L2+ management, easy to manage the industrial network by CLI/WebGUI/NMS.
  • Optionally support PoE/PoE+/PoE++ Standard from Port 1-16
  • All-aluminum Case, Compact and Fanless Design
  • -40 to 75℃ temperature maintains performance in extreme conditions
  • DIN Rail and wall-mountable – quick to install and remove for maintenance
  • Build up a redundant network with STP/RSTP/MSTP/ERPSv2.
  • RADIUS, IEEE 802.1X, SNMPv3, HTTPs and SSH to enhance network security.
  • Bandwidth management prevents unpredictable network status with a” Lock Port” to restrict access to authorized MAC addresses.
  • QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including SP, WRR&SP+WRR

Video Gallery

Share This Product

Enhancing Network Efficiency with Layer 2+ Managed Industrial Switches

Layer 2+ Managed Industrial Switches are a game-changer when it comes to enhancing network efficiency in industrial settings. These advanced switches offer a multitude of benefits that make them ideal for demanding environments. With features like VLAN support, QoS prioritization, and IGMP snooping, these switches ensure seamless communication within the network while minimizing latency and packet loss.

layer 2 managed industrial switch

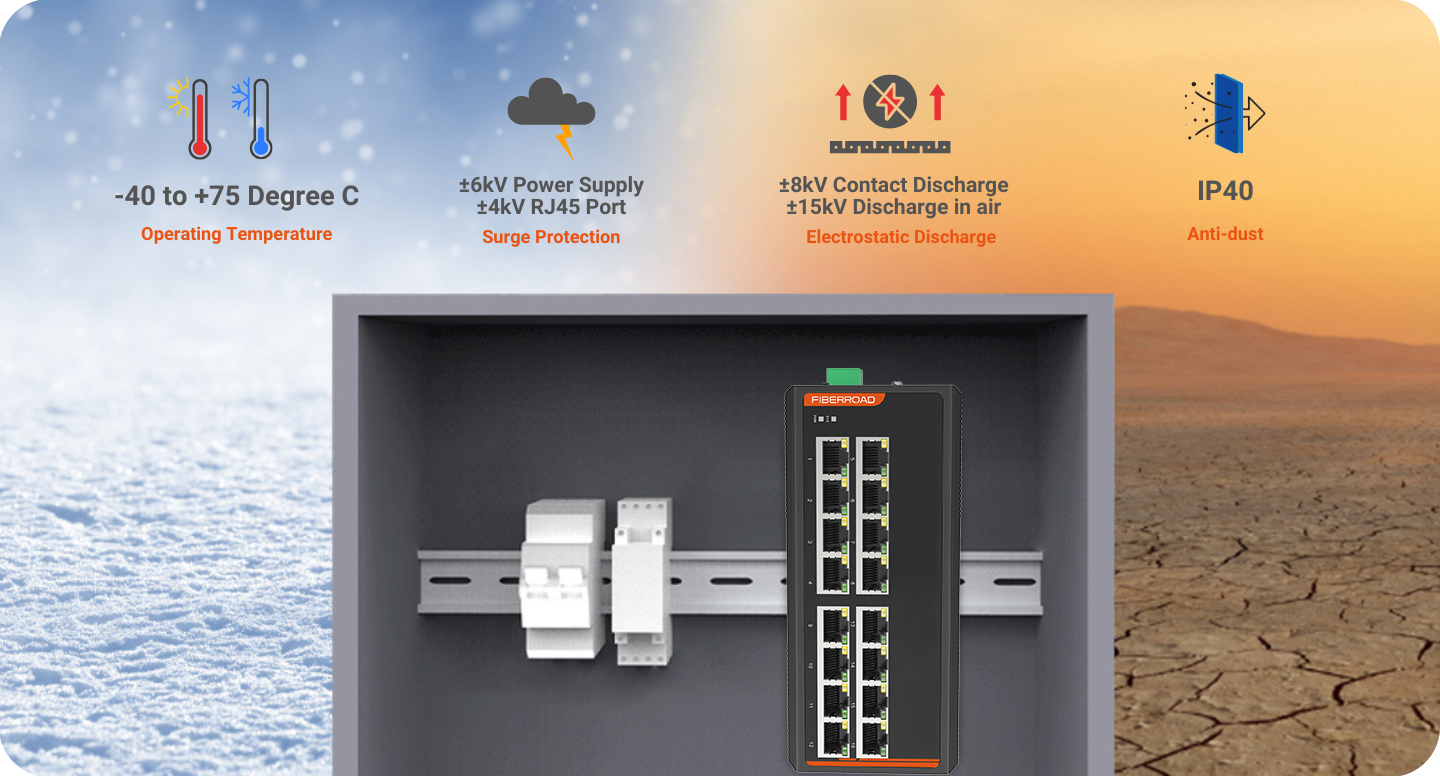

The Benefits of Layer 2+ Managed Industrial Switches in Harsh Environments

When it comes to operating in harsh environments, layer 2+ managed industrial switches offer a wide range of benefits that can greatly improve the efficiency and reliability of industrial networks. These switches are specifically designed to withstand extreme temperatures, moisture, dust, vibrations, and electromagnetic interference commonly found in industrial settings.

layer 2 managed industrial switch

Maximizing Efficiency and Productivity with Secure Industrial Network Connectivity

Maximizing Efficiency and Productivity with Secure Industrial Network Connectivity is crucial in today’s fast-paced industrial environment. By utilizing technologies such as MSTP and ERPSv2, businesses can ensure seamless communication between devices while maintaining a high level of security. MSTP (Multiple Spanning Tree Protocol) allows for redundant paths in the network, ensuring that if one path fails, data can still be transmitted through an alternate route without any disruptions. This redundancy not only enhances reliability but also maximizes efficiency by minimizing downtime. On the other hand, ERPSv2 (Ethernet Ring Protection Switching Version 2) provides rapid fault detection and recovery times in ring topologies, further increasing network resilience and productivity. With these advanced technologies at their disposal, businesses can optimize their operations and stay ahead of the competition in today’s rapidly evolving industrial landscape.

MSTP layer 2 managed industrial switch

MSTP

ERPS layer 2 managed industrial switch

ERPSv2

Harnessing the Power of Console, Web, and SNMP Interfaces

Network management is made easy and efficient with the Layer 2+ Managed Industrial Ethernet Switch. This innovative device harnesses the power of console, web, and SNMP interfaces to provide users with a comprehensive solution for monitoring and controlling their network infrastructure. Through the intuitive web interface, administrators can easily configure settings, monitor traffic, and troubleshoot issues in real-time. The SNMP interface allows for seamless integration with existing network management systems, providing centralized control over all connected devices. And for those who prefer a more hands-on approach, the console interface offers direct access to advanced configuration options for maximum flexibility. With these powerful tools at your disposal, managing your industrial Ethernet network has never been easier or more effective.

layer 2 managed industrial switch management
Ethernet Interface
Ports 16×10/100/1000Base-T Ports(RJ45 connector)
Port Mode(Tx) Auto Negotioation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

IEEE 802.1X for authentication

IEEE 802.3ad for Port Trunk with LACP

Packet Buffer Size 4Mbits
Maximum Packet Length Up to 10k
MAC Address Table 8k
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 52Gbps

IGMP GroupS 2048
Max. No. of VLAN 64
VLAN ID Range VID 1 to 4094
Physical Characteristics
Housing Aluminum case
IP Rating IP40
Dimensions 160mmx132mmx70mm(L x W x H)
Installation DIN Rail/Wall Mount
Weight 1200g
Environmental
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~90% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
MTBF 907,476 hours @ Telcordia SR-332 Standard
Heat Dissipation 65 BTU/h (non-PoE mode)
Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
Ethernet Software Features
Redundancy Protocols Support STP/RSTP/ERPSv2, Link Aggregation
Multicast Support Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
VLAN Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
Time Management SNTP
QOS Flow-based redirection

Flow-based rate limiting

Flow-based packet filtering

8*Output queues of each port 802.1p/DSCP priority mapping

Diff-Serv QoS, Priority Mark/Remark

Queue Scheduling Algorithm (SP, WRR, SP+WRR)

ACL Port-based Issuing ACL

ACL based on port and VLAN

L2 to L4 packet filtering, matching first 80 bytes message.

Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc

POE Management (Depending on model) Total power limit of PoE power supply

PoE output power allocation

PoE output priority configuration

PoE working status

Scheduling of PoE operation

Diagnostic Maintenance Support port mirroring, Syslog, Ping
Management Function Support CLI、WEB、SNMPv1/v2/v3,Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT
Alarm Management Support 1 way relay alarm output, RMON, TRAP
Security Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0

Support DHCP Snooping, Option 82,802.1X security access,

Support user hierarchical management, ACL access control list,

Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advance Layer 2+ Features IPv4/IPv6 Management

Static Route
