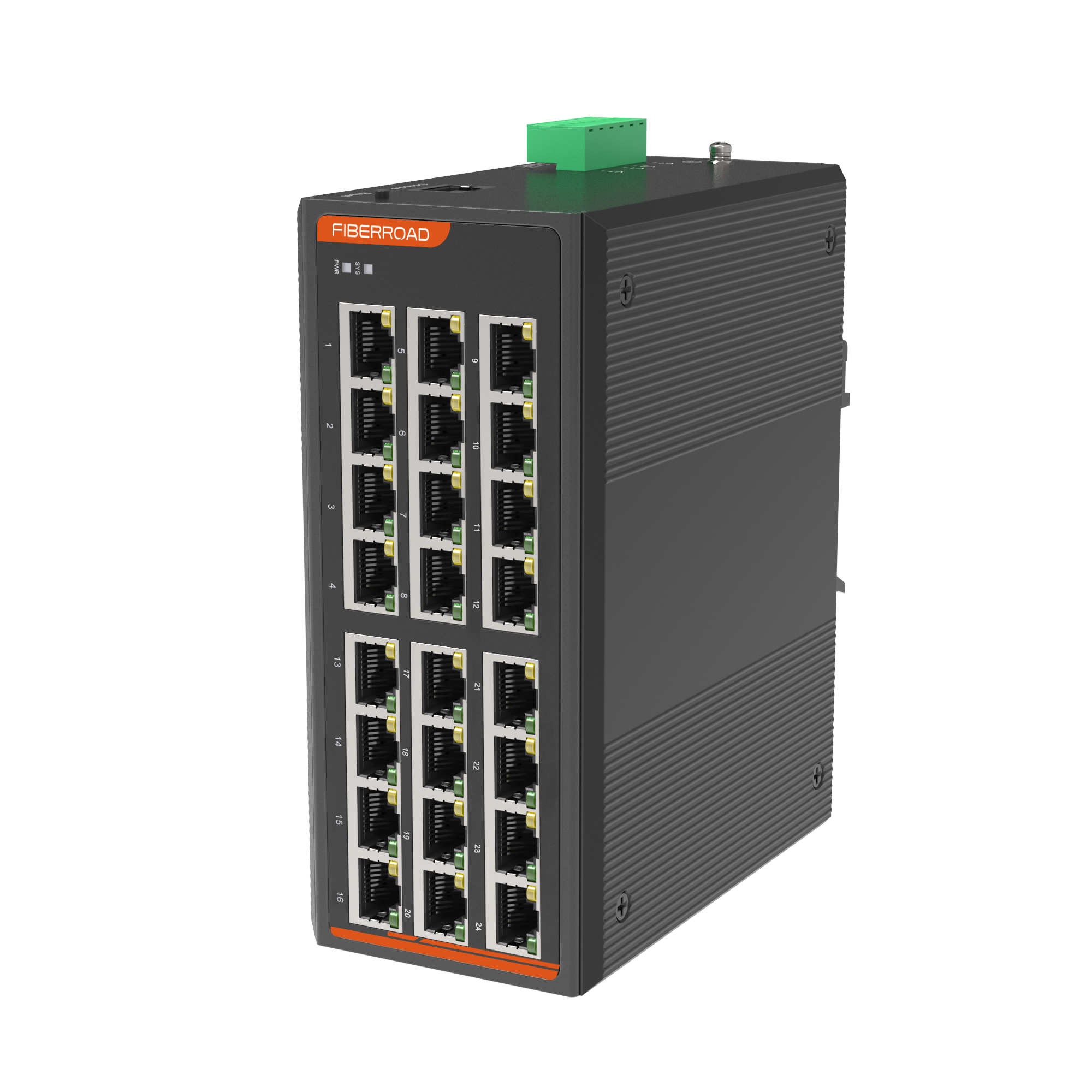

Maximize Industrial Network Efficiency with 24-Port L2 Managed Industrial Switch

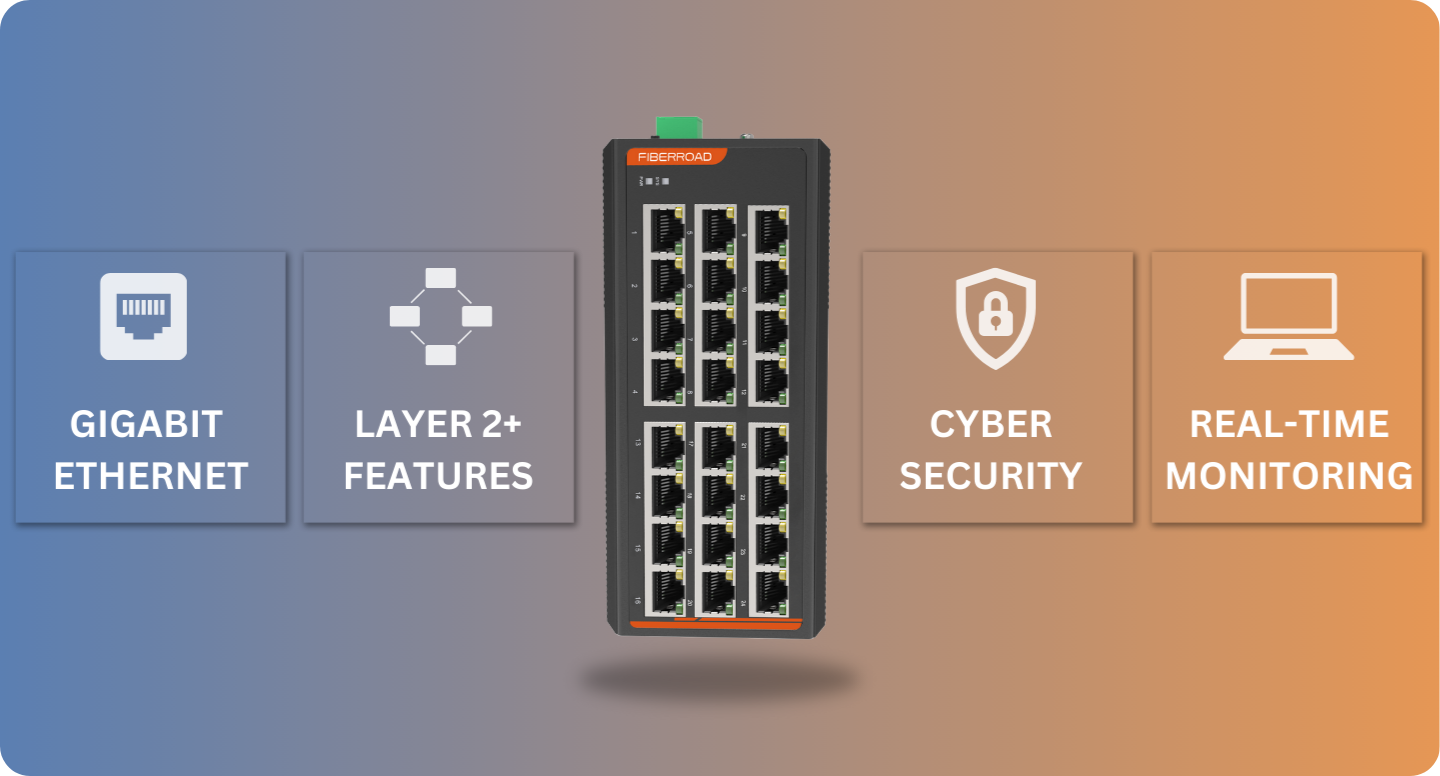

Introducing Fiberroad 24-Port L2 Managed Industrial Switch: the robust solution for your industrial networking needs! With 24 Gigabit Ethernet RJ45 ports, this DIN Rail switch delivers high-speed connectivity and unparalleled reliability in demanding environments. Optimize your network performance with advanced Layer 2 management features while ensuring seamless integration into your existing infrastructure. Built to withstand the toughest conditions, it’s the ultimate choice for powering your industrial applications confidently. Elevate your network—experience unparalleled efficiency today!
Industrial Network Reliability and Resilience: Introducing 24 Port L2 Managed Industrial Switch

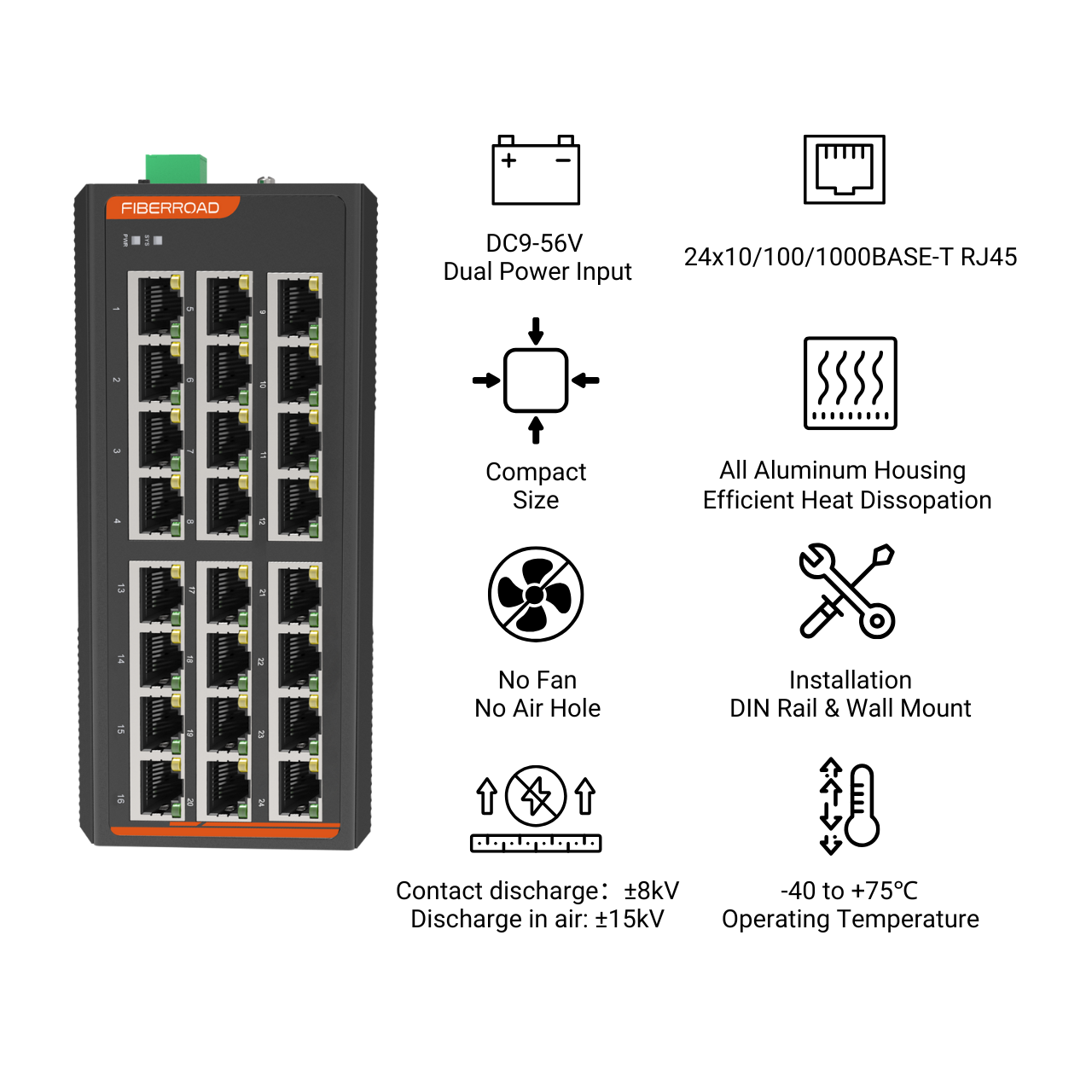

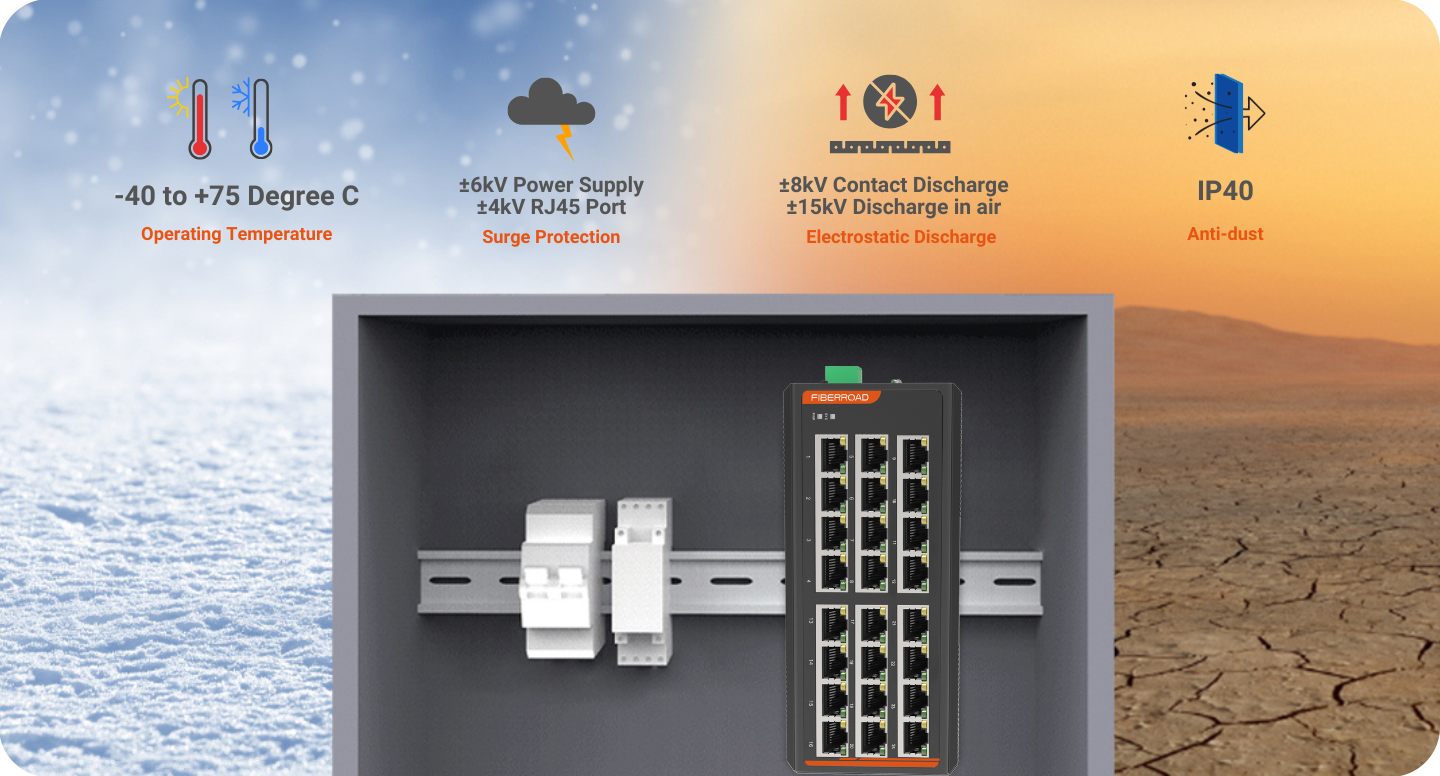

Introducing Fiberroad 24-Port L2 Managed Industrial Switch—engineered for excellence in extreme conditions. With a robust operating temperature range of -40 to 75℃ (-40 to 167℉) and dual power inputs (9-56V), this switch ensures reliable performance when it matters most. Encased in an all-aluminum compact design with a fanless configuration, it’s built for durability while maintaining efficiency. Plus, its IP 40 rating guarantees protection from dust and debris, making it the ideal choice for demanding industrial networks. Elevate your connectivity with confidence!
Achieve Unparalleled Network Reliability with L2 Managed Industrial switch
Introducing our 24-Port L2 Managed Industrial Switch, engineered for unparalleled reliability in demanding industrial environments. With robust redundant ring technology and rapid self-recovery capabilities, this switch ensures uninterrupted connectivity while safeguarding against external threats. Featuring cutting-edge ITU-T G.8032 ERPS and Spanning Tree Protocol (802.1s MSTP), it seamlessly integrates into your automation network to elevate performance and resilience. Enhance your industrial operations with a solution designed for excellence—trust in our advanced networking technology to keep you connected!

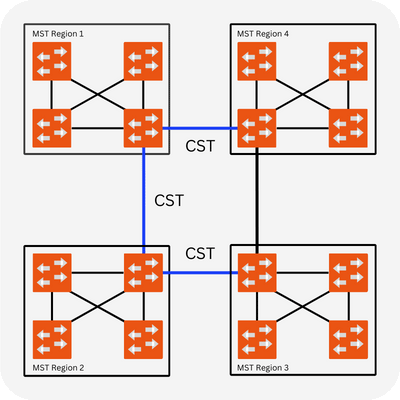

MSTP

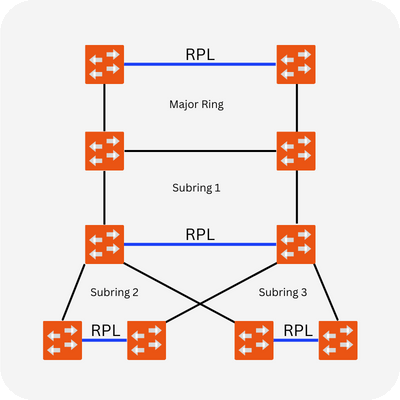

ERPSv2
Harnessing the Power of Console, Web, and SNMP Interfaces
Network management is made easy and efficient with the Layer 2+ Managed Industrial Ethernet Switch. This innovative device harnesses the power of the console, web, and SNMP interfaces to provide users with a comprehensive solution for monitoring and controlling their network infrastructure. Through the intuitive web interface, administrators can easily configure settings, monitor traffic, and troubleshoot issues in real time. The SNMP interface allows for seamless integration with existing network management systems, providing centralized control over all connected devices. And for those who prefer a more hands-on approach, the console interface offers direct access to advanced configuration options for maximum flexibility. With these powerful tools at your disposal, managing your industrial Ethernet network has never been easier or more effective.
| Hardware Specifications | |||
| Product | FR-7M3024/A | FR-7M3024P | FR-7M3024BT |
| Copper Ports | 24×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (Port 1-24) | ||
| Fiber Ports | \ | ||
| Console | 1x RJ45-to-RS232 Serial Port(115200) | ||

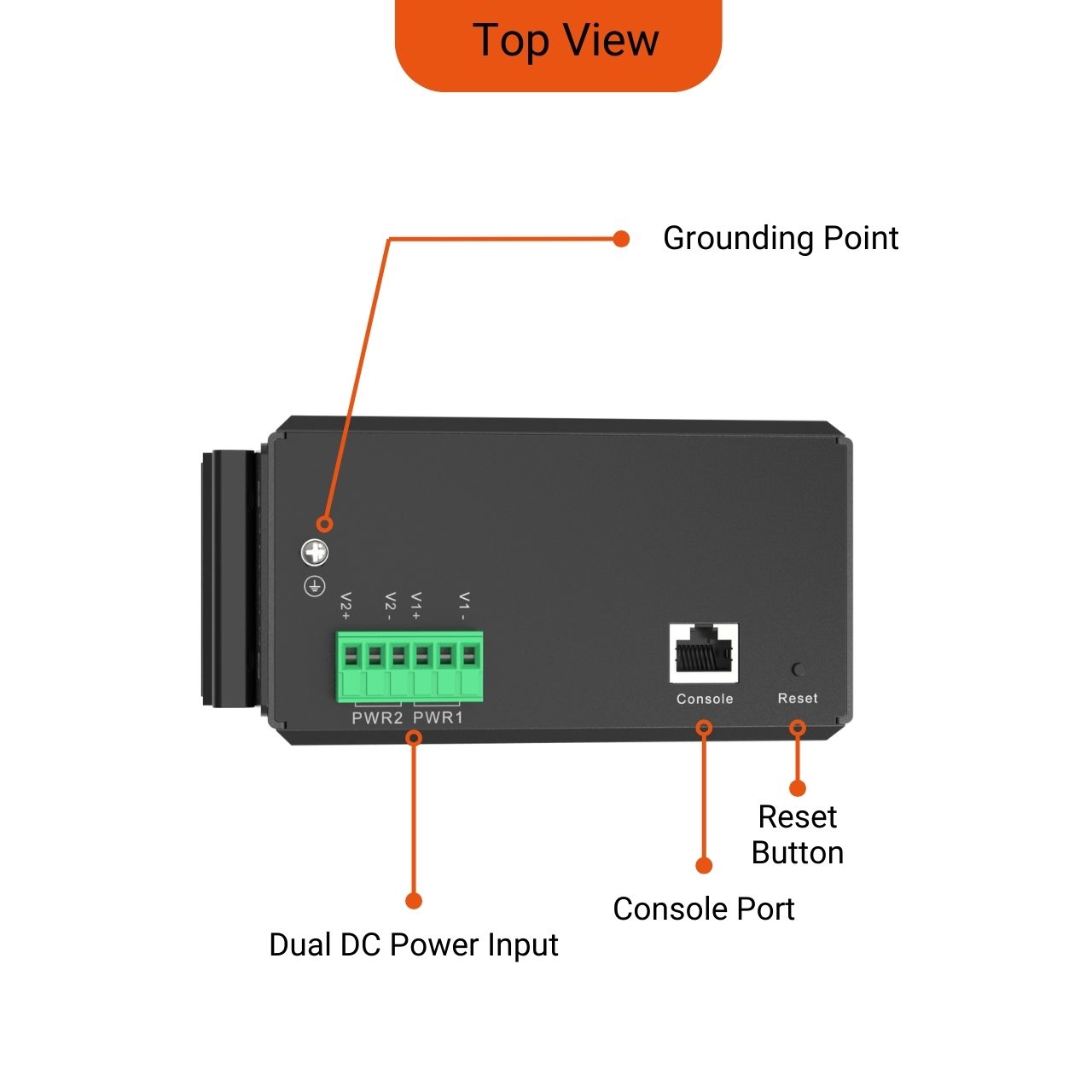

| Connector | 1 removable 6-contact terminal block
Pin 1/3 for Power 1, Pin 4/6 for Power 2 |
||
| Alarm | One relay output for power failure, Alarm relay current carry ability: 1A@24V DC | ||
| RAM | 128Mbyte | ||
| FLASH | 32MByte | ||
| Reset Button | ＜5 sec: System Reboot; ＞10 sec: Factory Default | ||
| Surge Protection | ±6kV DC, ±4kV RJ45 | ±6kV DC, ±6kV RJ45 | |
| Enclosure | IP40 aluminum case | ||

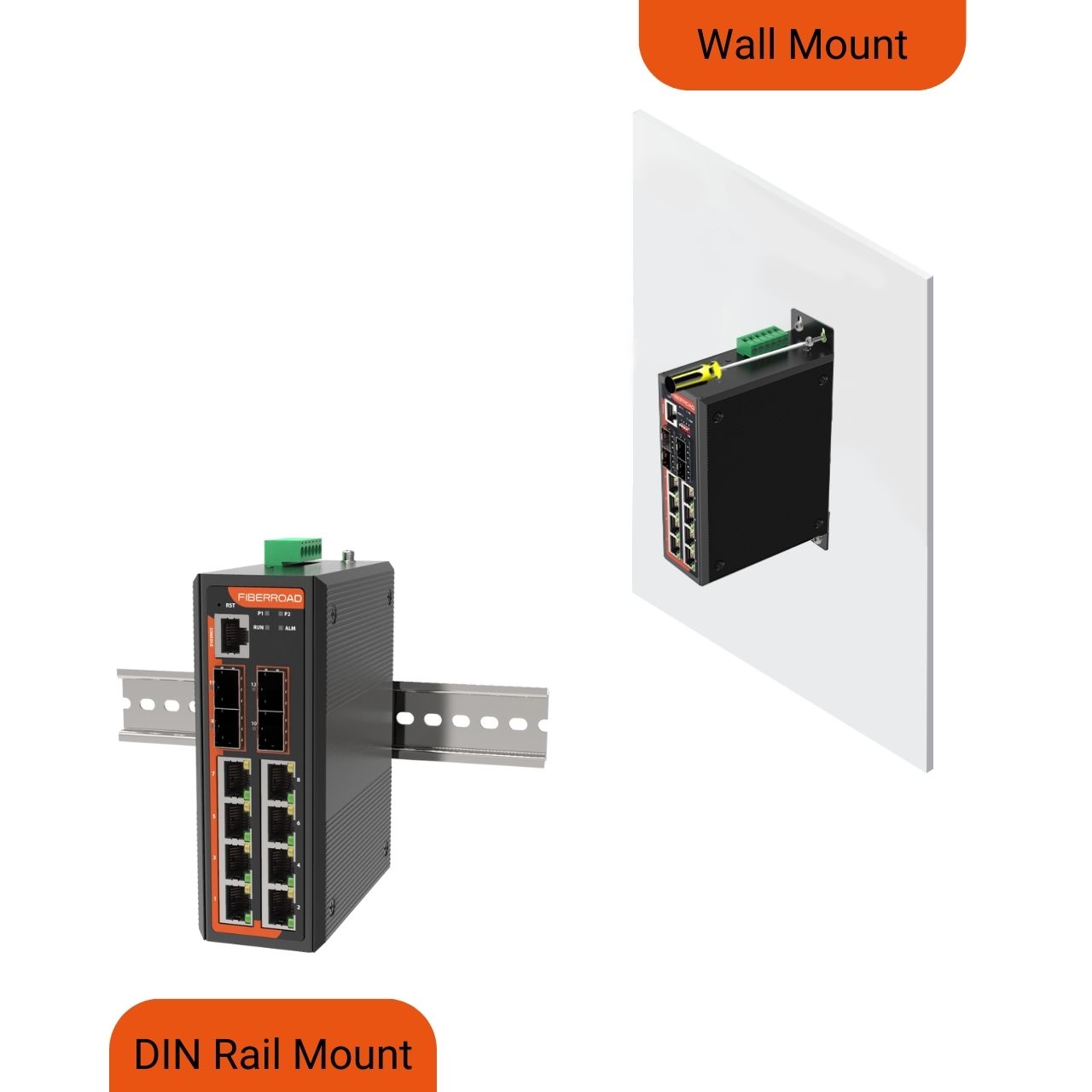

| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 160 x 132 x 70mm | ||
| Weight | 1090g(Bare weight), 1350g(With package) | ||
| Switching | |||
| Switch Architecture | Store-and-Forward | ||
| Switch Fabric | 56Gbps/non-blocking | ||
| Forwarding Rate | 35.71Mpps(64-byte packet size) | ||
| Packet Buffer Size | 4 Mbits | ||
| Maximum Packet Length | 10K bytes | ||
| MAC Address Table | 8K entries, automatic source address learning and aging | ||
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex | ||
| PoE & Power Supply | |||
| PoE Ports | \ | Port 1 to 24 IEEE802.3 af/at | Port 1 to 24 IEEE802.3af/at/bt |
| PoE Power Supply Type | \ | End-span | End-span |
| Power Supply Pin | \ | 1/2(+), 3/6(-) | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Max Power Per Port | \ | 30W | 90W |
| Input Voltage | DC9-56V | DC48-56V | DC52-56V |
| PoE Power Budget | \ | 240W maximum
(Depending on power input) |
240W maximum
(Depending on power input) |
| Environmental | |||
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) | ||
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) | ||
| Operating Humidity | 5%~95% (non-condensing) | ||
| MTBF | 907,476 hours @ Telcordia SR-332 Standard | ||
| Heat Dissipation | 65 BTU/h (non-PoE mode)
1054 BTU/h (with 240W PoE load) |
||
| Cooling | Passive Cooling, Fanless Design | ||
| Noise Level | 0 dBA | ||
