Hybrid Copper-Fiber Connectivity

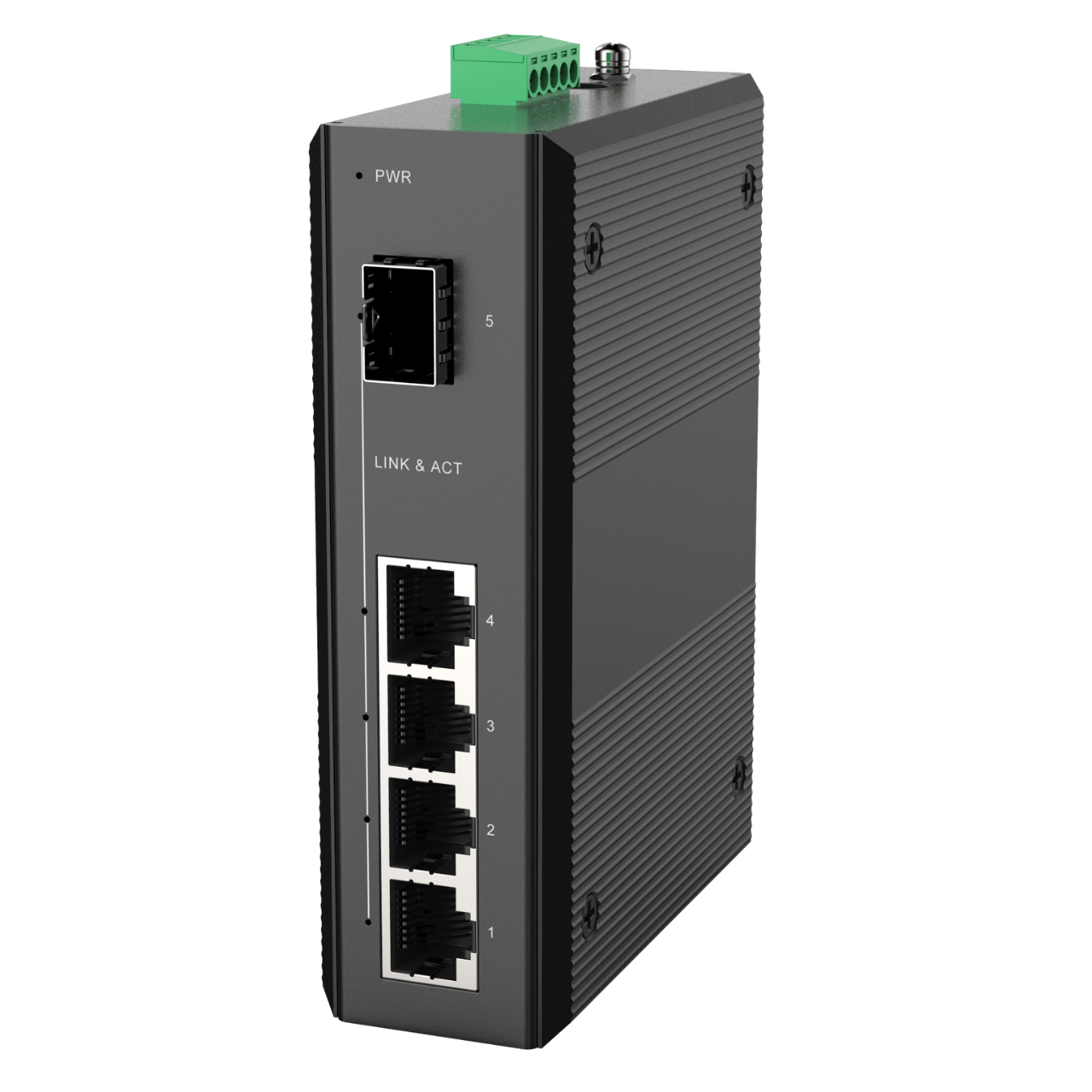

This industrial Ethernet switch combines four 10/100Base-TX copper ports with one 100Base-FX fiber optic port, enabling seamless integration of mixed-media networks. The copper ports connect local devices like PLCs, sensors, and HMIs, while the fiber port ensures noise-immune, long-distance communication. Ideal for bridging copper-based equipment with fiber backbones in factories, smart grids, or remote monitoring systems, this hybrid design simplifies network expansion and enhances reliability.
Advanced Flow Control for Optimized Traffic Management
Supporting IEEE 802.3x flow control in Full Duplex mode and backpressure in Half Duplex mode, this switch prevents data loss during network congestion. Regulating traffic between connected devices, it ensures stable performance for real-time industrial applications such as process automation, SCADA systems, or video surveillance, where latency and packet loss are critical concerns.
Auto-Negotiation for Seamless Hardware Integration
Equipped with auto-negotiation on all copper ports, the switch automatically detects and configures optimal speeds (10Mbps or 100Mbps) for connected devices. This feature simplifies deployment by eliminating manual configuration, ensuring backward compatibility with legacy hardware, and enabling plug-and-play integration in mixed-speed industrial networks.
Rugged Industrial Design with Flexible Installation
Built to endure harsh environments, the switch operates reliably in temperatures from -20°C to +70°C and supports DIN-rail or wall-mount installation. Its robust metal housing resists vibration, dust, and electromagnetic interference, making it suitable for challenging settings like manufacturing floors, transportation systems, or outdoor renewable energy installations.
Extended Fiber Optic Reach (Up to 120km)
The 100Base-FX fiber port delivers secure, high-speed data transmission over distances up to 120km, eliminating signal degradation and electromagnetic interference inherent in copper cabling. This capability is essential for connecting remote substations, cross-facility networks, or sprawling industrial campuses, ensuring reliable communication even in geographically dispersed operations.

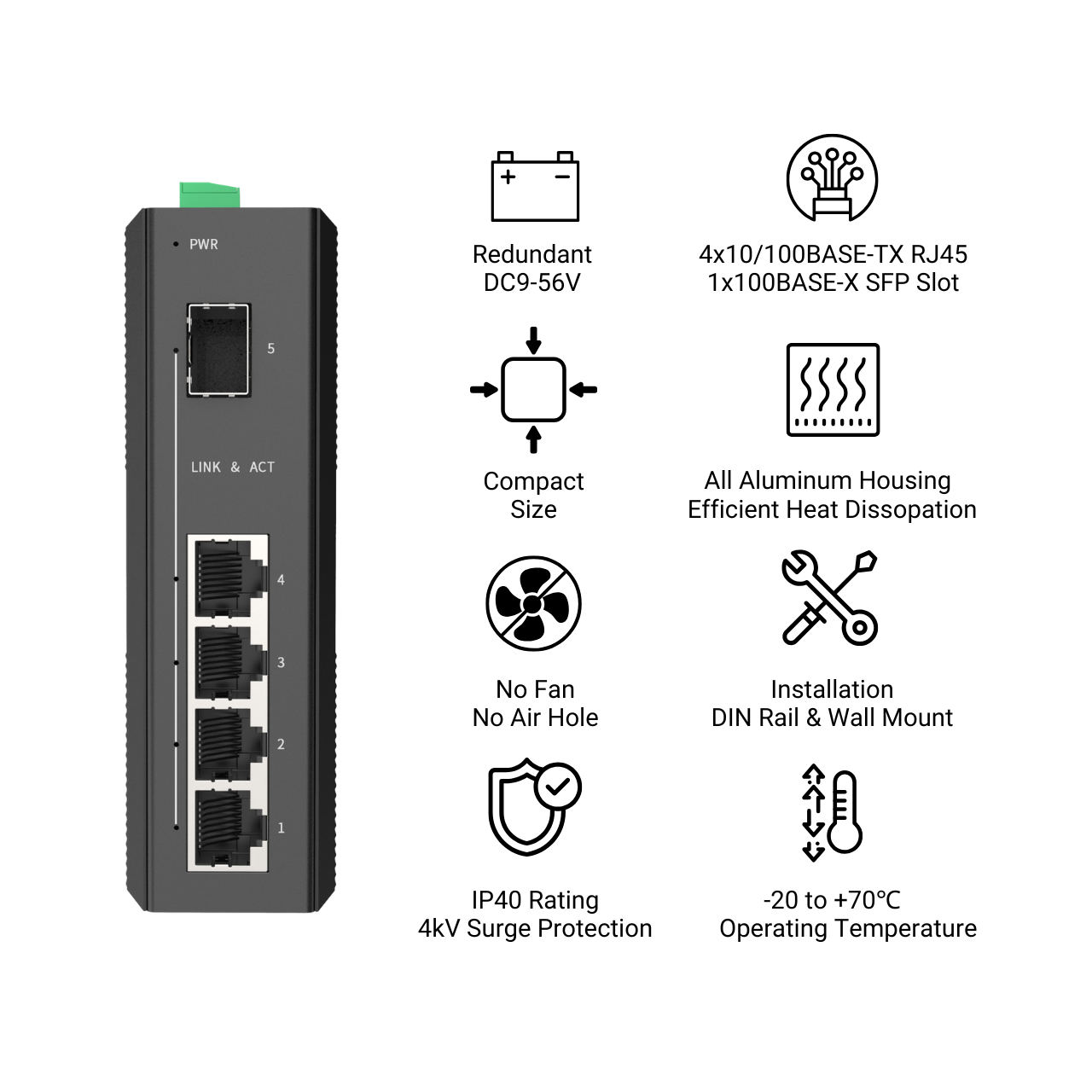

| Hardware Specifications | |
| Product | FR-6N1104 |
| Copper Ports | 4×10/100BASE-TX RJ45 Auto-MDI/MDI-X (Port 1-4) |
| Fiber Ports | 1x100BASE-X SFP Slot (Port 5) |
| Enclosure | IP40 aluminum case |
| Installation | DIN-Rail and Wall-mount |
| Dimension | 120 x 90 x 35 mm |
| Weight | 350g(Bare weight), 400g(With package) |
| Surge Protection | ±4kV DC, ±2kV RJ45 |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 1.8Gbps/non-blocking |
| Forwarding Rate | 0.74 Mpps(64-byte packet size) |
| Packet Buffer Size | 1 Mbits |
| Maximum Packet Length | 1536 bytes |
| MAC Address Table | 2K entries, automatic source address learning and aging |
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Power | |
| Power Input | 2 |
| Power Connector | 1 removable 5-contact terminal blocks
Pin 1/2 for Power 1, Pin 4/5 for Power 2 |
| Operating Voltage | 9-56V DC |
| Power Consumption | 5 Watts Max |
| Protection | Reverse Polarity
Overload Current |
| Environmental | |
| Operating Temperature | -20℃~70℃ (-4 to 158 ℉) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Heat Dissipation | 10 BTU/h |
| Cooling | Passive Cooling |
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ |
| LED Indicators | |
| PWR | ON: Power is being supplied
OFF: Power is not being supplied |
| LINK & ACT (Port 1-5) | ON: Port connection is active
OFF: Port connection is not active |
