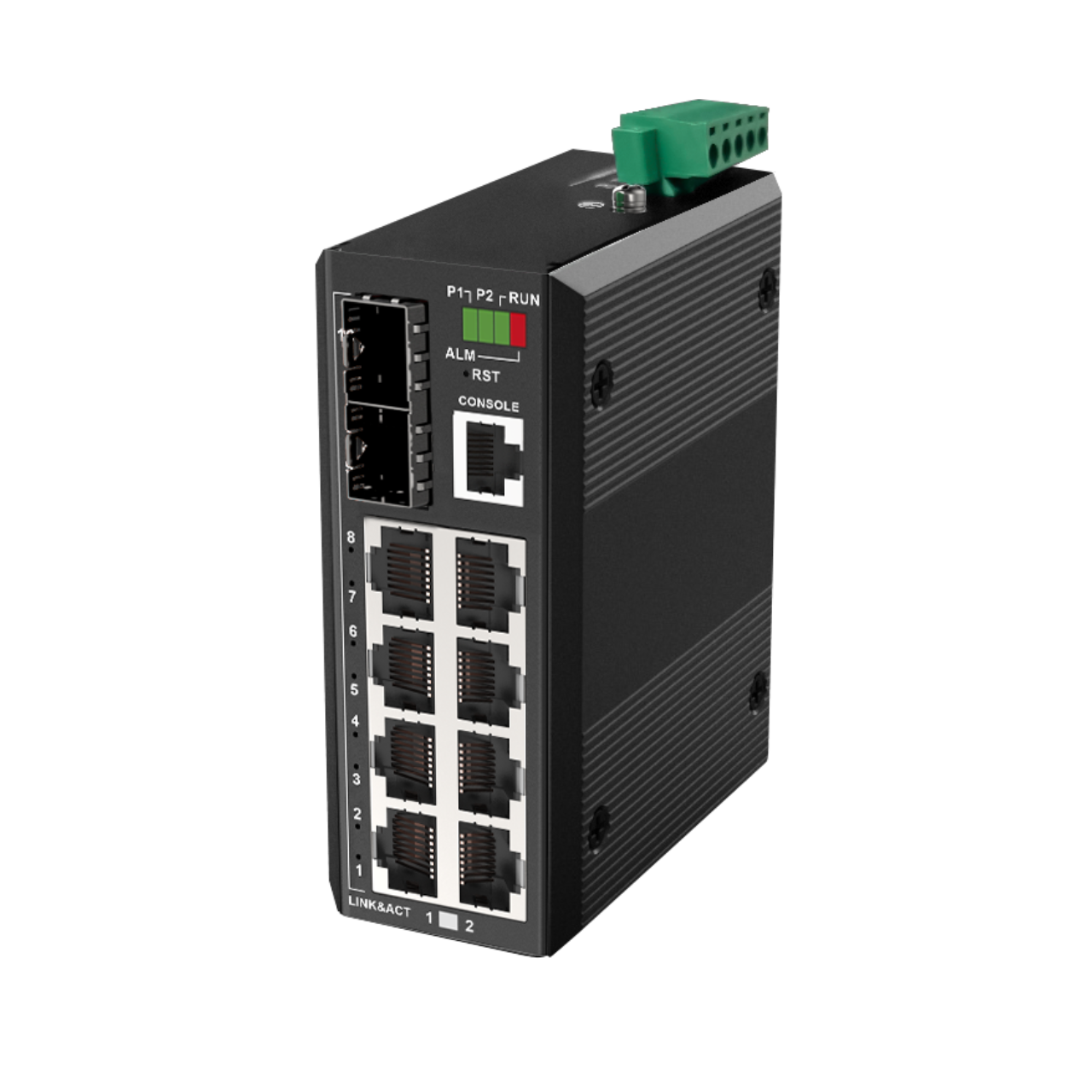

8-Port 10/100/1000T + 2-Port 1G SFP Web Smart Semi-Industrial Ethernet Switch

Introducing Fiberroad’s game-changing Web Smart Industrial Ethernet Switch FR-6S3208, an innovation set to revolutionize industrial networking as we know it! This cutting-edge product, aptly referred to as the LITE model, has been meticulously designed to cater specifically to small industrial networks while ensuring utmost cost-effectiveness. With its unparalleled adoption of industry-leading technical standards, this incredible switch guarantees reliable and exceptionally high-performing Ethernet transmissions. Say goodbye to network bottlenecks and connectivity hiccups because, with Fiberroad’s Web Smart Industrial Ethernet Switch FR-6S3208, you can confidently embrace seamless and uninterrupted communication like never before.

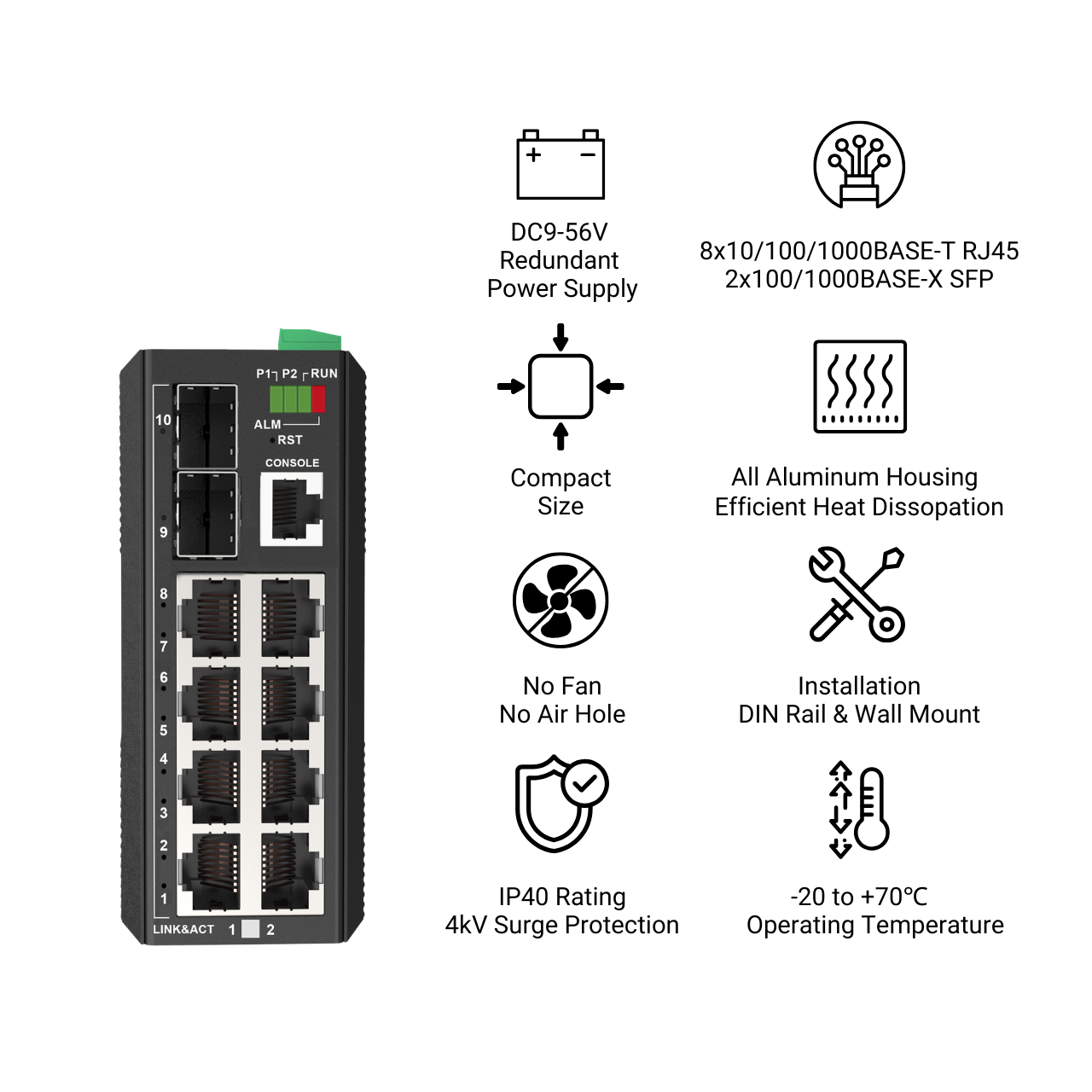

Product Features

  • A compact, all-aluminium case with a fanless design.
  • The temperature from -20 to 70°C maintains performance in extreme conditions
  • Provide 9K bytes Jumbo frame that is compatible with multiple extension protocols
  • Facility IEEE802.3az energy-efficient Ethernet
  • Complete with electricity surge protection, easy to use in an outdoor environment
  • Detailed status indicator, working state at a glance
  • Design for power input polarity protection

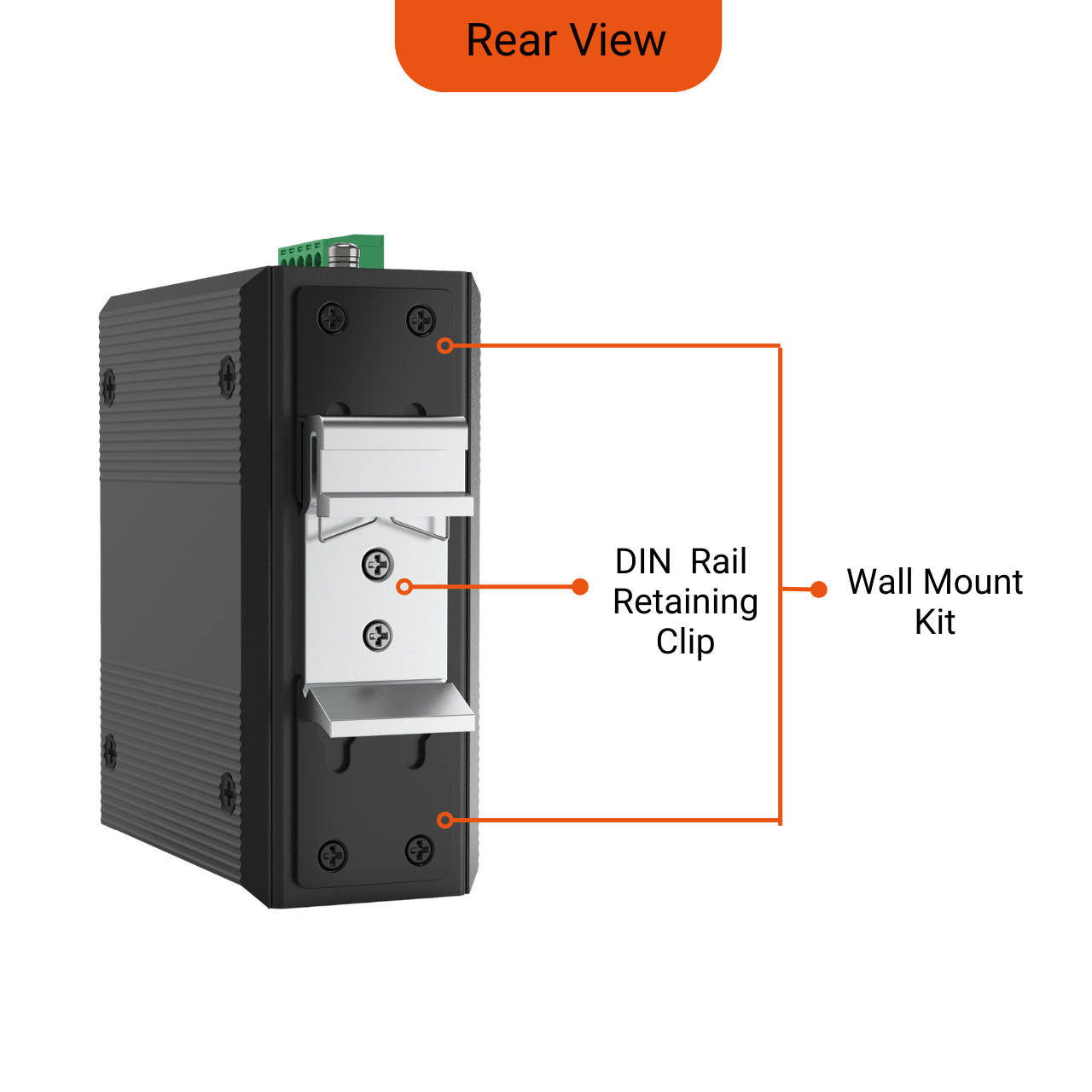

  • Either DIN rail or Wall Mount Installation

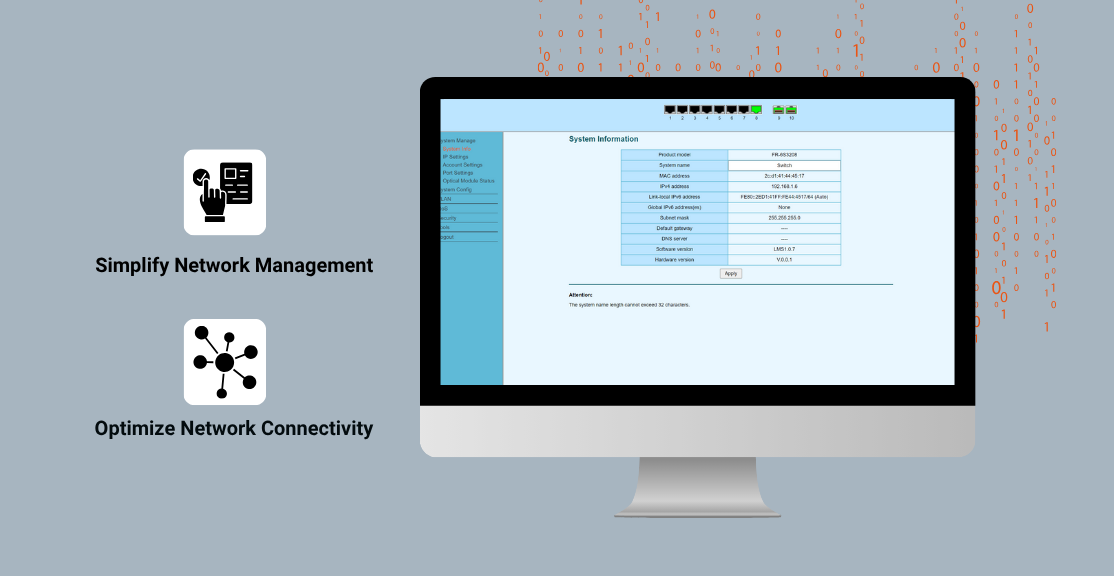

  • An easy-to-use WebGUI interface



Video Gallery

Web Smart Semi Industrial Switch
Web Smart Semi Industrial Switch
Quality Certifications
Guarantee
Share This Product

Exploring the Benefits of a Web Smart Semi-industrial Ethernet Switch

The Web Smart Semi-industrial Ethernet Switch is a revolutionary networking device that offers numerous benefits for businesses in various industries. This advanced switch combines the flexibility of web management with the ruggedness of an industrial-grade design, making it ideal for environments that require reliable and efficient network connections. With its intelligent features, this switch allows for easy configuration and monitoring through a user-friendly web interface. It provides seamless integration into existing networks, enabling smooth communication between different devices and systems.

8 Port Web Smart Switch

Maximizing Efficiency with Web Smart Semi-Industrial Ethernet Switches

Web Smart Semi-industrial Ethernet Switch offers unparalleled convenience by allowing effortless customization according to unique requirements. Businesses can easily tailor their network configurations by leveraging comprehensive Layer 2 management functionalities like VLANs (Virtual Local Area Networks), QoS (Quality of Service), and Spanning Tree Protocol (STP). These essential features empower organizations to effectively prioritize critical traffic flows while ensuring superior network performance and stability. The Web Smart Semi-industrial Ethernet Switch truly proves itself as a reliable and efficient tool for enhancing business connectivity.

8 Port Web Smart Switch

Enhanced Efficiency and Connectivity in IoT Networks

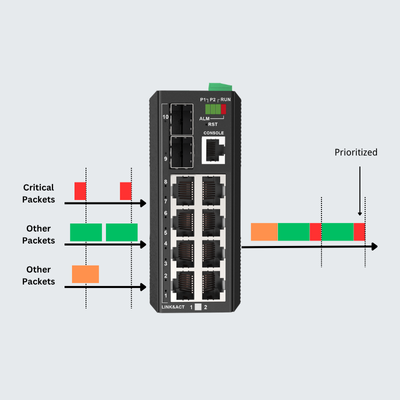

QoS Function

8 Port Web Smart Switch QoS

With QoS enabled, this switch can intelligently identify and prioritize important data packets over less time-sensitive ones, ensuring smooth communication between devices in an industrial environment.

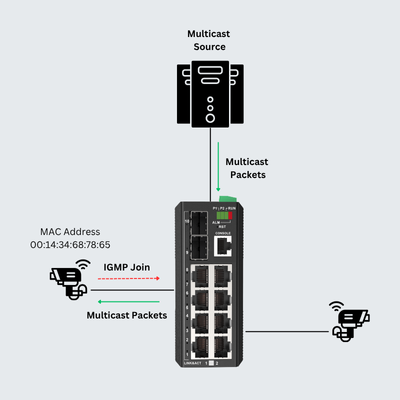

Multicast Support

8 Port Web Smart Switch IGMP

By using multicast transmission, IP cameras can effectively deliver high-quality video feeds to multiple monitoring stations or recording devices while conserving precious network resources.

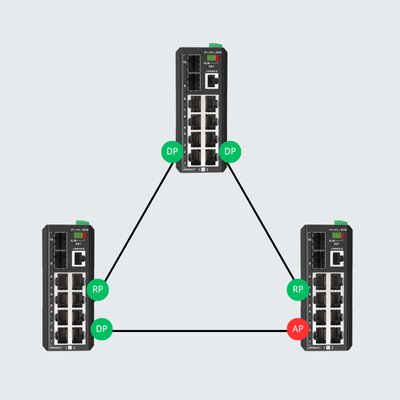

RSTP Function

8 Port Web Smart Switch rstp

With the Web Smart Industrial Switch’s support for RSTP, businesses can ensure seamless data transmission without any disruptions or bottlenecks caused by looped connections.

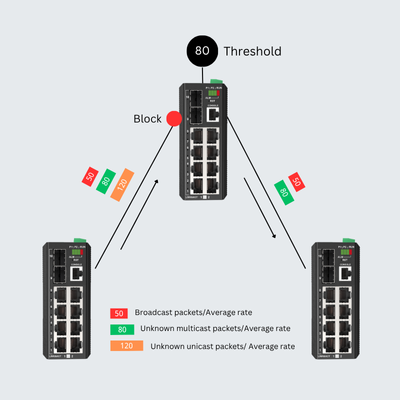

Broadcast Storm Control

8 Port Web Smart Switch Broadcast Storm Control

This remarkable attribute ensures uninterrupted operations within industrial environments where reliable and seamless connectivity is paramount for optimal productivity.

Ethernet Interface
Mode FR-6S3208
Ports 8×10/100/1000Base-T RJ45 ports+2×100/1000Base-X SFP ports
Port Mode(Tx) Auto-Negotiation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

Packet Buffer Size 2M
Maximum Packet Length Up to 9K
MAC Address Table 4K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 20Gbps

IGMP Group 256
VLAN ID Range VID 1 to 4094

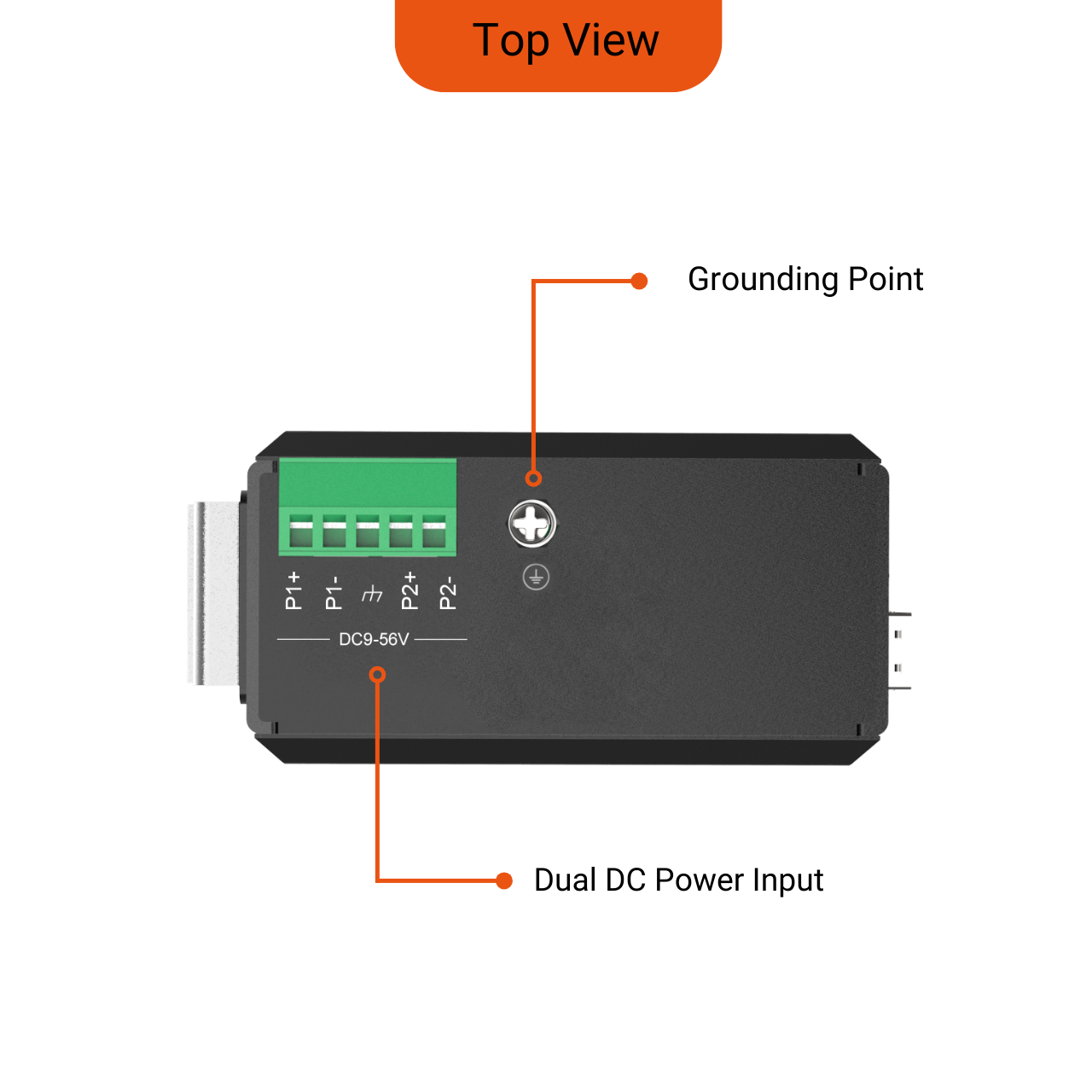

Power Supply
Input Voltage 9-56VDC, Redundant dual inputs
Power Consumption 5 Watts Max(Full Load)
Power Inputs 2
Connector 1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection Overload Current Protection, Reverse Polarity Protection
Software Features
Redundancy Protocol Support STP/RSTP
Multicast Support Support IGMP Snooping V1
VLAN Support IEEE 802.1Q 4K VLAN, Port Isolation, Trunk Group Setting
QOS Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight
Diagnostic Maintenance Support port mirroring, Port Statistics, Cable Diagnostic
Management Function WEB、SNMPv1, EEE, Green Ethernet
Security Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint
Advance Functions Bandwidth Control(Ingress and Egress Rate), Jumbo Frame, Firmware Online Upgrade, Configuration Backup
Physical Characteristics
Housing Aluminium case
IP Rating IP40
Dimensions 100mm x 78mm x 40mm (L x W x H)
Installation DIN Rail/Wall Mount
Weight 350g
Environmental
Operating Temperature -20 to 70℃
Operating Humidity 5%~95% (non-condensing)
Storage Temperature -40℃~85℃
MTBF 500,000 hours
Heat Dissipation 34 BTU/h
Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
