9-Port 10/100M Industrial Switch – Rugged, Fanless, and Versatile for Harsh Environments

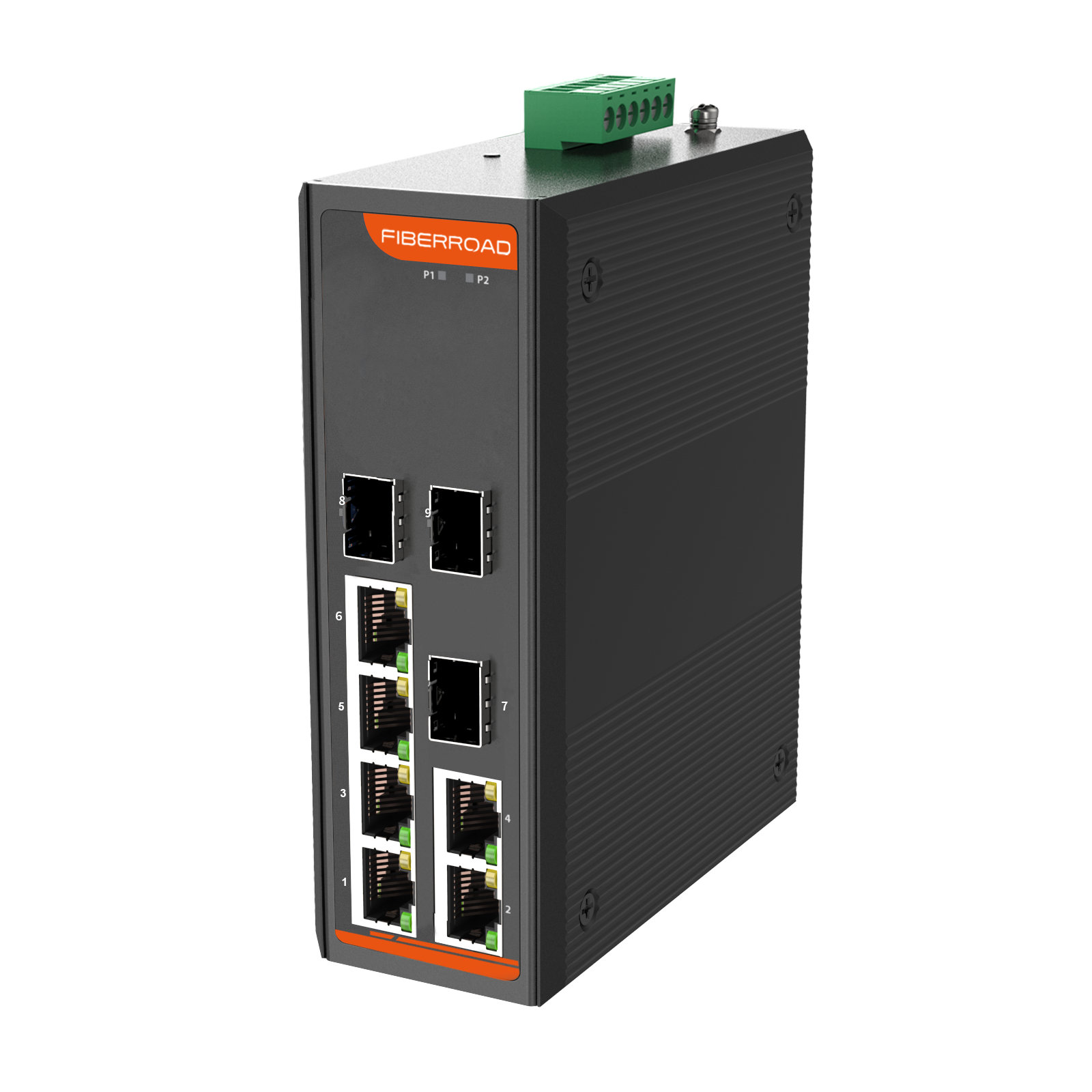

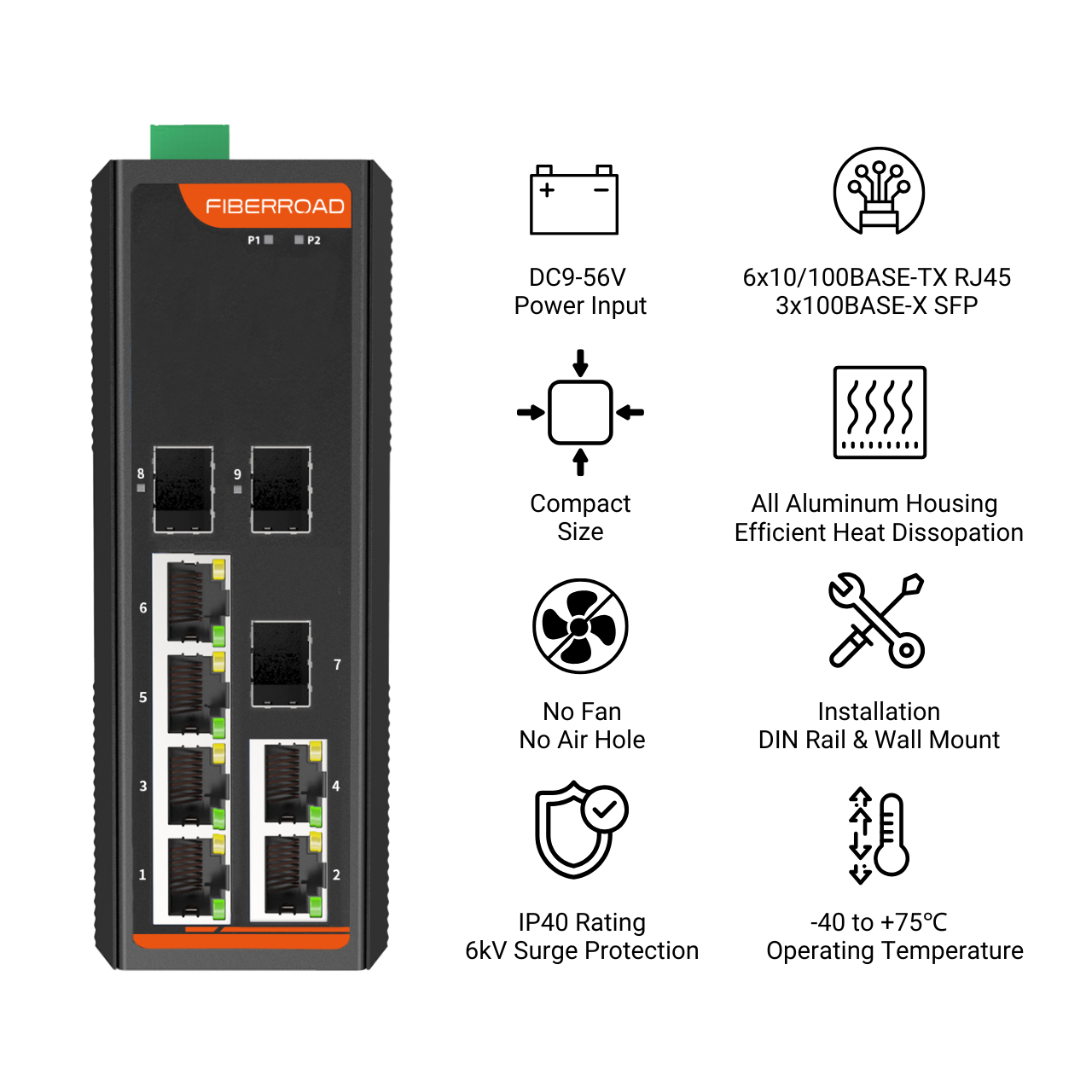

The 9-Port 10/100M Industrial Switch is built to withstand demanding conditions with its robust IP40-rated aluminium case and fanless design, ensuring silent and reliable operation. Engineered for flexibility, it supports both DIN-rail and wall-mount installation, making it ideal for industrial automation, transportation, and outdoor applications. With an extended operating temperature range of -40 to +75°C, this switch delivers consistent performance in extreme environments. The 9-56V DC redundant power input with reverse polarity protection enhances durability, while the plug-and-play design simplifies setup, reducing installation time. Whether in factories, warehouses, or remote sites, this industrial switch provides a dependable networking solution.
Flexible Topologies, Extended Reach for Industrial Networking
The 6-Port 10/100TX + 3-Port 100FX Industrial Ethernet Switch combines copper and fiber connectivity to deliver versatile networking solutions for demanding industrial environments. Featuring three 100M fiber optic ports, it enables long-distance, noise-immune data transmission, while the six auto-negotiating 10/100Mbps copper ports ensure seamless integration with existing hardware. Advanced features like MAC address auto-learning and auto-aging optimize network efficiency, making it ideal for factory automation, surveillance, and transportation systems. Its rugged design withstands harsh conditions, providing reliable performance where standard switches fail. Whether extending networks or isolating critical connections, this switch offers robust, high-speed communication for industrial applications.
| Hardware Specifications | |||
| Product | FR-7N1306 | FR-7N1306P | FR-7N1306BT |
| Copper Ports | 6×10/100BASE-TX RJ45 Auto-MDI/MDI-X (Port 1-6) | ||

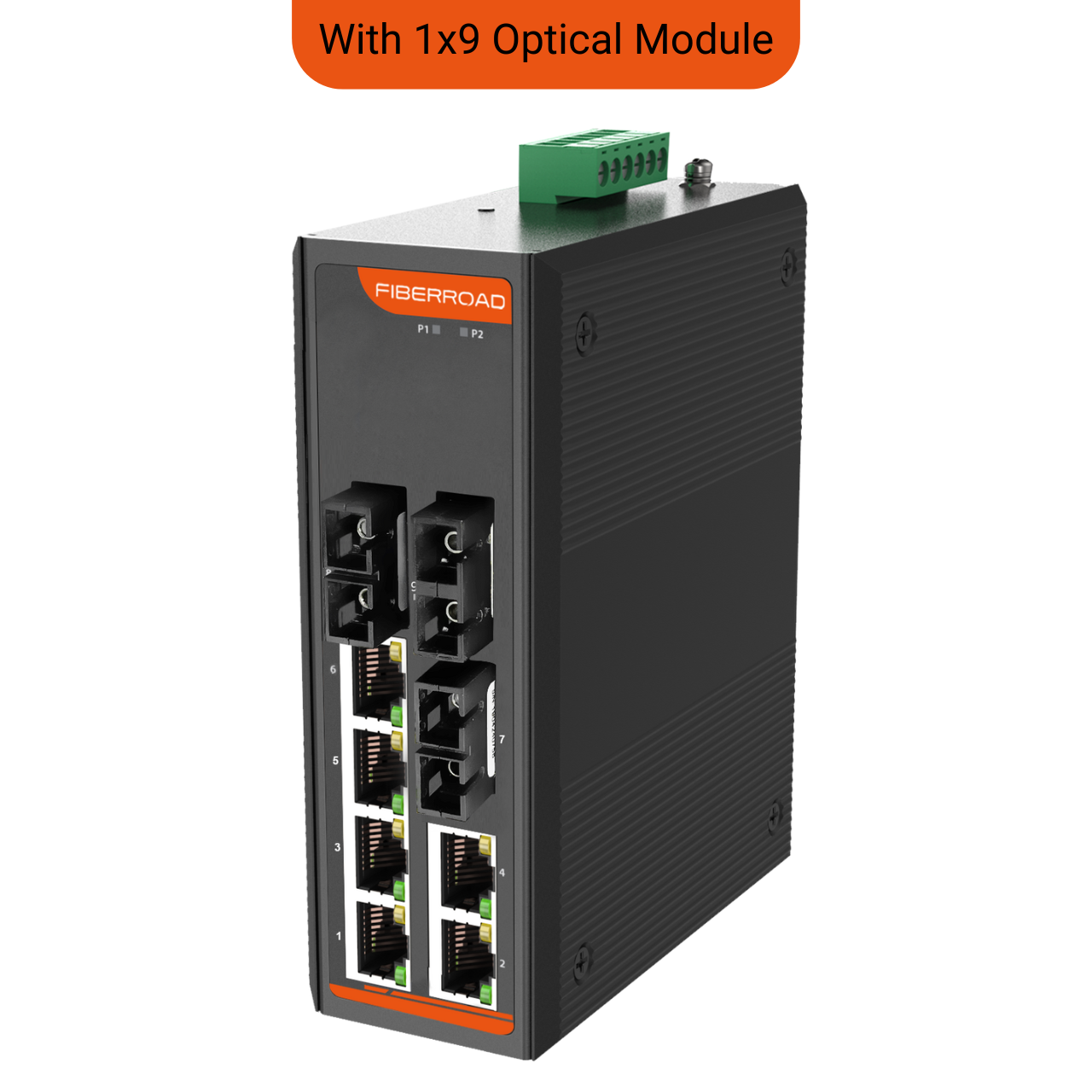

| Fiber Ports | Default: 3x100BASE-X SFP Slot (Port 7 -9), Optional:1×9 Optical Module | ||
| Enclosure | IP40 aluminum case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 138 x 108 x 49mm | ||
| Weight | 620g(Bare weight), 720g(With package) | ||

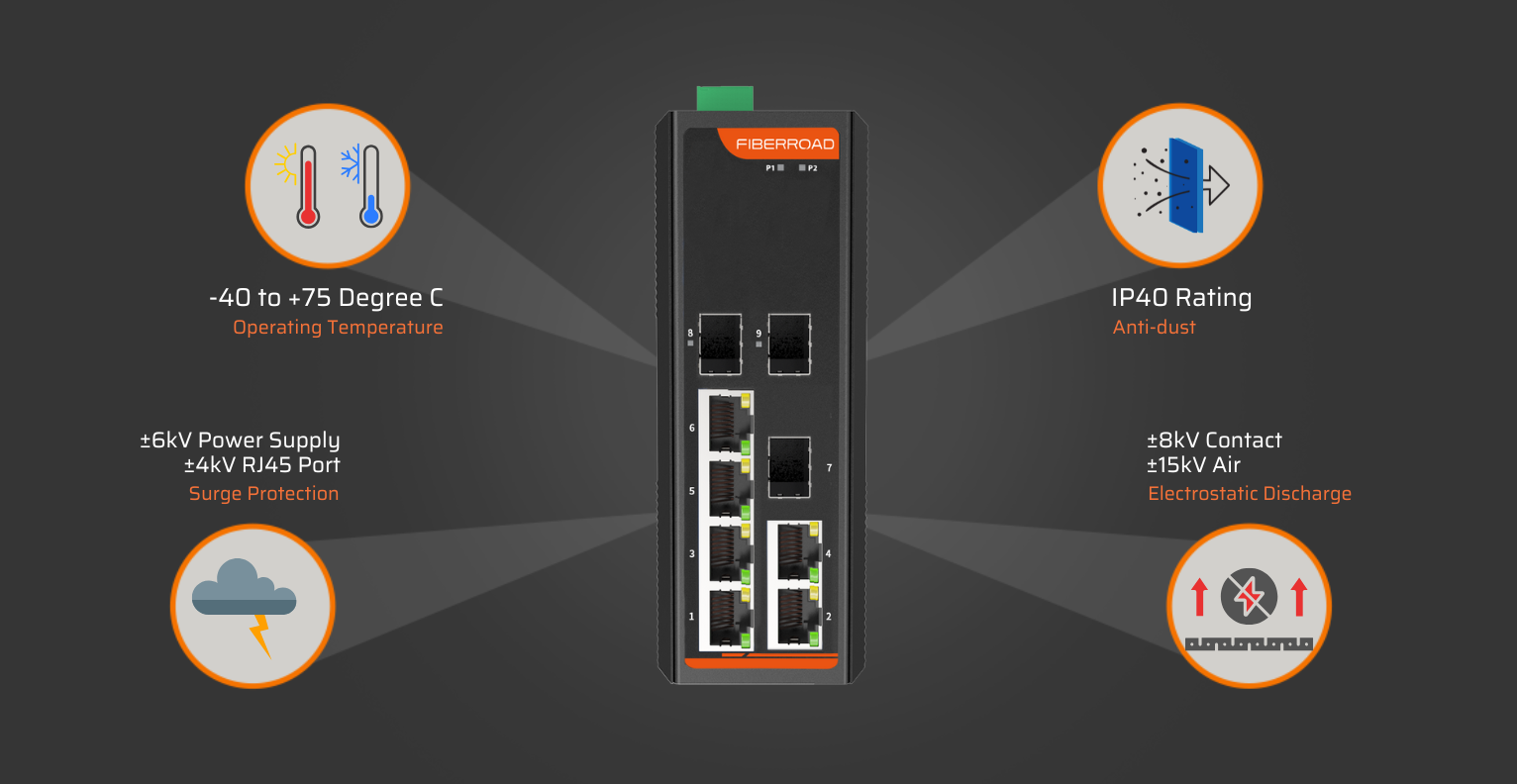

| Surge Protection | ±6kV DC, ±4kV RJ45 | ±6kV DC, ±6kV RJ45 | |
| Switching | |||
| Switch Architecture | Store-and-Forward | ||
| Switch Fabric | 1.8Gbps/non-blocking | ||
| Forward Filter Rate | 14,880pps(10Mbps),148,800pps(100Mbps) | ||
| Packet Buffer Size | 1Mbits | ||
| MAX. Packet Length | 1536 bytes | ||
| MAC Address Table | 2K entries, automatic source address learning and aging | ||
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex | ||
| Power Supply and PoE | |||
| Power Input | 2 | ||

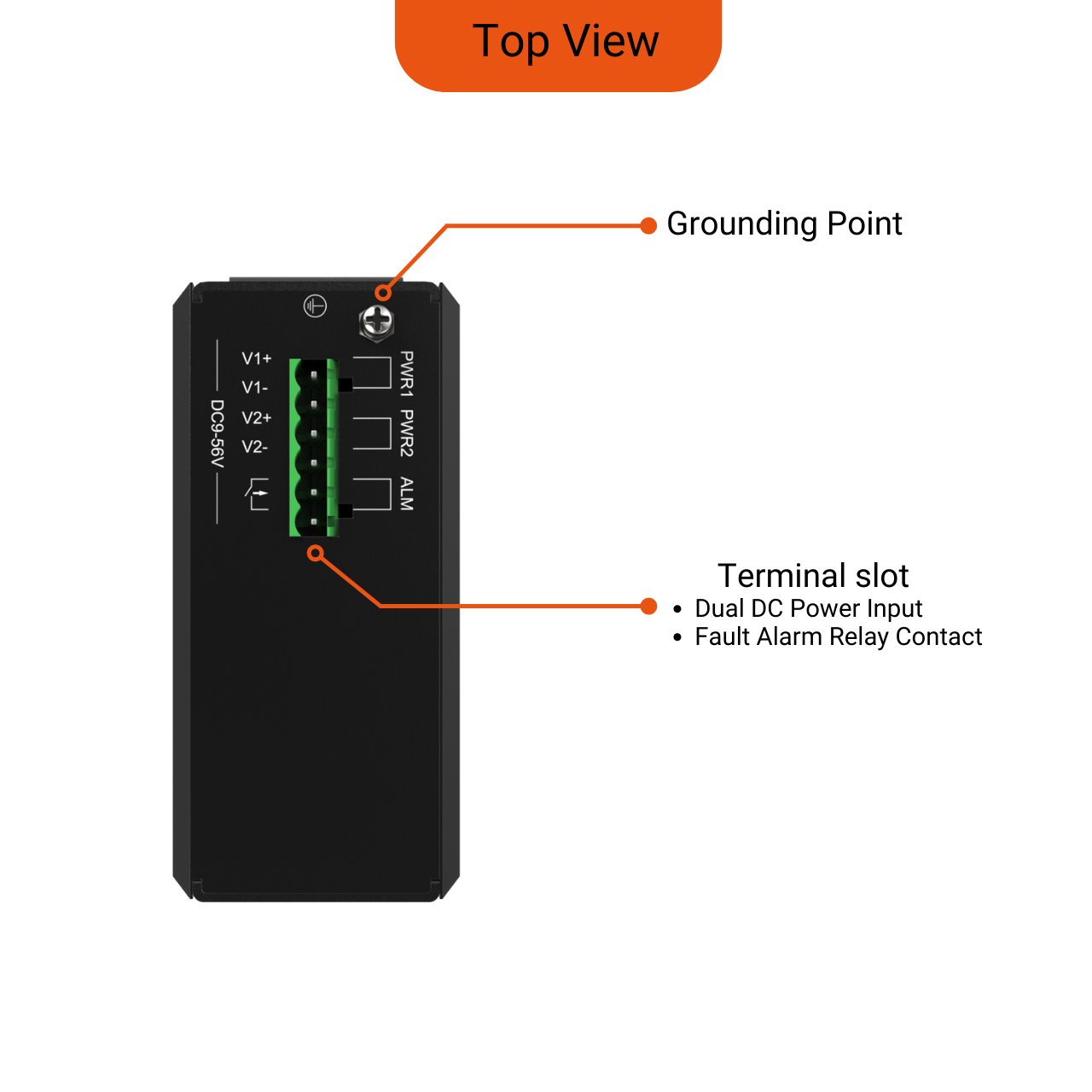

| Power Connector | 1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm(As required) |
||
| Operating Voltage | DC9-56V | DC48-56V | DC52-56V |
| Power Consumption | 5 Watts Max (without PoE load) | ||
| Protection | Reverse Polarity, Overload Current | ||
| PoE Ports | \ | Port 1 to 6 IEEE802.3 af/at | Port 1 to 6 IEEE802.3 af/at/bt |
| PoE Power Supply Type | \ | End-span | End-span |
| Power Supply Pin | \ | 1/2(+), 3/6(-) | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Max Power Per Port | \ | 30W | 90W |
| PoE Power Budget | \ | 120W
(Depending on power input) |
120W
(Depending on power input) |
| Environmental | |||
| Operating Temperature | -40℃ to +75℃ (-40 to 167 ℉) | ||
| Storage Temperature | -40℃ to +85℃ (-40 to 185 ℉) | ||
| Operating Humidity | 5%~95% (non-condensing) | ||
| Heat Dissipation | 17 BTU/h (Non-PoE), 430BTU/h (with 120W PoE load) | ||
| Cooling | Passive Cooling | ||
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ | ||
| LED Indicators | |||
| P1 & P2 | ON: Power is being supplied ,OFF: Power is not being supplied | ||
| RJ45 Port Amber LEDs | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Green LEDs | ON: Port is operating at 100 Mb/s, OFF: Port is operating at 10 Mb/s | ||
