12G+4x10G Industrial L3 Managed TSN Ethernet Switch

Introducing the Fiberroad FR-TSN4412, a groundbreaking TSN Industrial Ethernet Switch that is set to revolutionize the world of industrial automation. With its cutting-edge features and advanced capabilities, this switch is truly a game-changer. Boasting an impressive 12×10/100/1000BASE-T RJ45 ports, it provides lightning-fast connectivity for all your network needs. But that’s not all – there are also four additional 1G/2.5G/5G/10G BASE-X SFP ports which further enhance its versatility and adaptability. Encased in a rugged IP40 metal case, this beast of a switch guarantees stable operation even in the harshest environments imaginable. It effortlessly addresses every level of the industrial automation network – from the field bus to the factory backbone – ensuring seamless communication throughout your entire system.



Main Features

  • 12 x Gigabit Ports + 4 x 1.25/2.5/5/10G SFP ports.
  • Fully Layer 3 Managed switch function, unicast and multicast routing
  • IPv4 dynamic routing protocol supports RIPv2 and OSPFv2, IPv6 dynamic routing protocol supports OSPFv3
  • IEEE 1588v2 PTP Precision Time Protocol and SyncE
  • Features IEEE 802.1AS Time Synchronization, IEEE802.1Qbu Frame Preemption, IEEE 802.1Qbv Time Aware Shaper and IEEE 802.1CB Seamless Redundancy
  • Supports RSTP/MSTP/ERPSv2/APS/MRP
  • RADIUS/TACACS+ users access authentication
  • -40 ℃ to +75℃ operating temperature
  • DC9-56V input, active to active redundant power failure on one supply
  • DIN-rail and wall-mountable designs

Video Gallery

WebGUI Network Management

Time Sensitive Networking

Share This Product

Elevate Your Industrial Network with L3 Managed TSN Ethernet Switches

Experience the future of industrial networking with Fiberroad FR-TSN4412, the game-changing L3 Managed TSN Ethernet Switch. This revolutionary switch is set to revolutionize industrial automation by boasting lightning-fast connectivity and advanced features. Say goodbye to network bottlenecks and hello to seamless productivity. Trust in Fiberroad’s cutting-edge technology for all your industrial networking needs.

Managed TSN Ethernet Switch utilizes Time-sensitive Networking (TSN) technology and IEEE 1588 Precision Time Protocol (PTPv2) for impeccable time synchronization on all ports – ensuring every operation runs seamlessly in harmony. The FR-TSN4412 effortlessly supports TSN IEEE standards essential for a complete real-time communication solution that exceeds expectations at every turn. From utilizing the incredible IEEE 802.1AS-REV profile for unmatched time synchronization to harnessing the power of IEEE 802.1Qbv Enhancements for Scheduled Traffic and IEEE 802.1Qbu Frame Preemption to optimize data transmission efficiency; this switch has got it all covered!

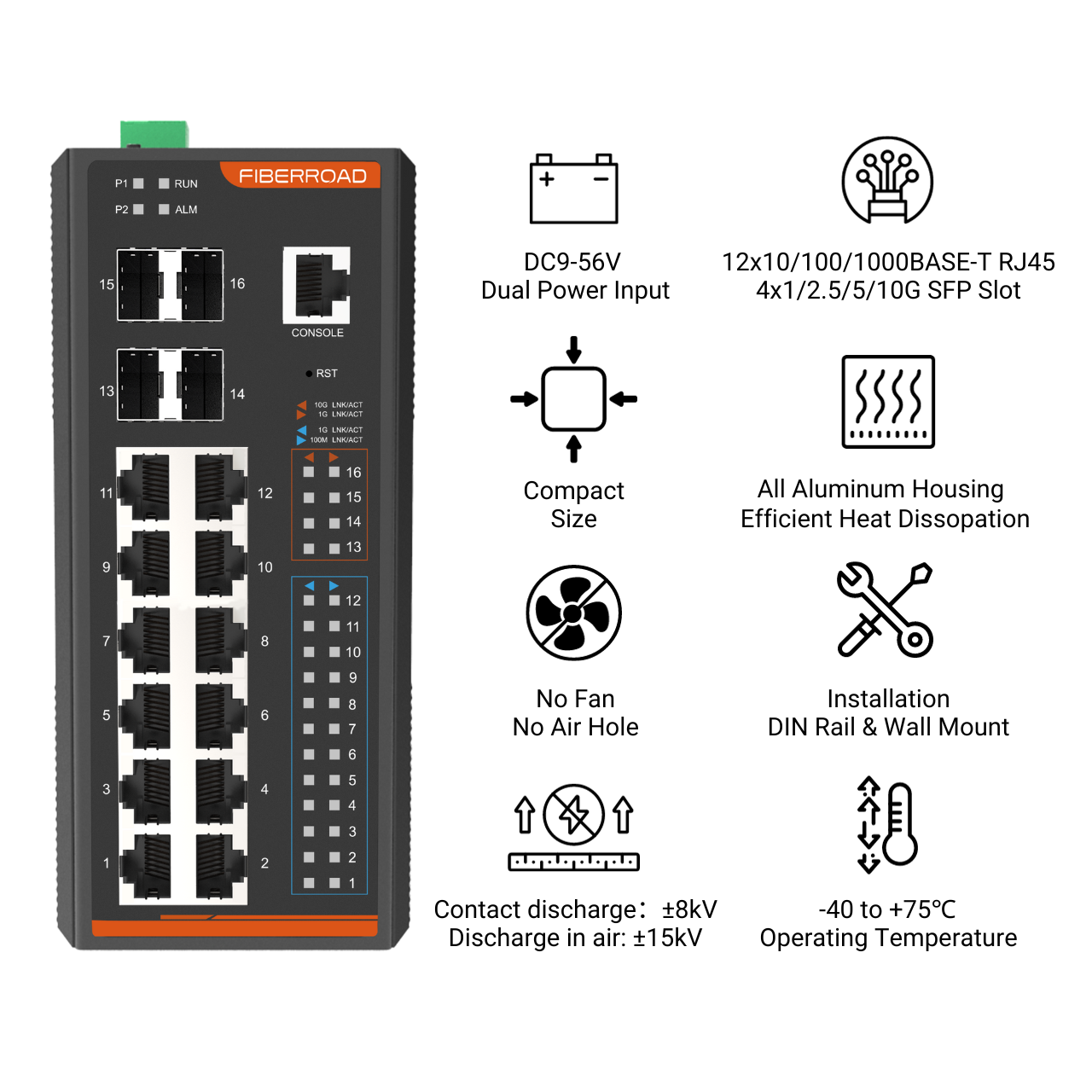

Upgrade Your Industrial Network with Our Durable and Reliable TSN Ethernet Switch

Get ready to revolutionize your industrial network with the Managed Industrial TSN Ethernet Switch! This game-changing device boasts an impressive range of features that will leave you in awe. Picture this: a non-blocking switch fabric that ensures seamless connectivity and unparalleled wire-speed throughput, even in extreme temperatures ranging from a bone-chilling -40 degrees Celsius to a scorching 75 degrees Celsius. Say goodbye to packet loss and CRC errors – this powerful switch guarantees flawless performance every time. But wait, there’s more! With its IP40 Durable Aluminum housing and fanless design, this beauty also excels at efficient heat dissipation, ensuring optimal functionality even in the most demanding environments. And let’s not forget about its immunity against electromagnetic interference – rest assured, your data transmission is safe and secure within the protective embrace of the FR-TSN4412 Industrial TSN Ethernet Switch.

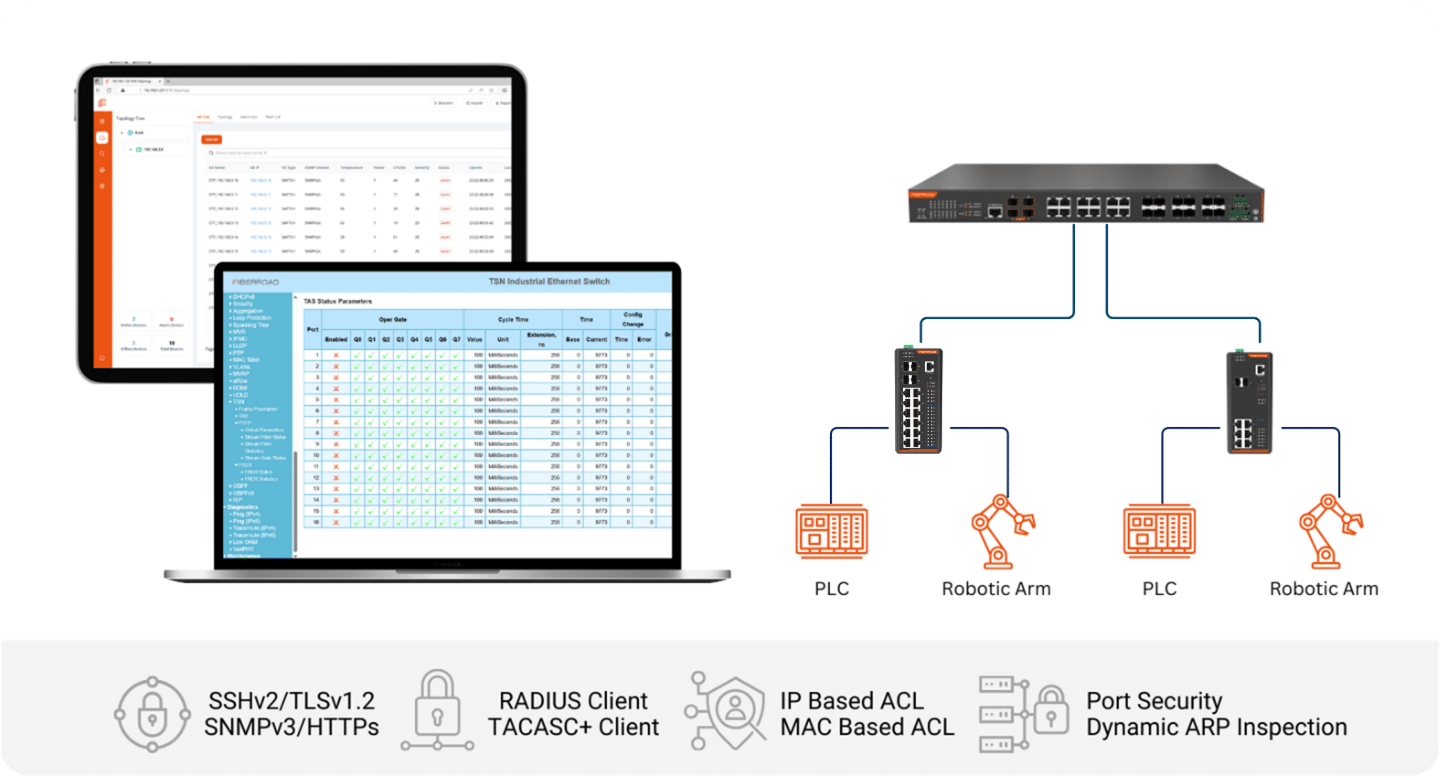

Protect Your Industrial Network with the Strongest Cybersecurity Solution

Fortify your Industrial Network with the unbeatable cybersecurity solution – FR-TSN4412, Managed Industrial TSN Ethernet Switch. Our comprehensive Layer 2 to Layer 4 Access Control List (ACL) empowers you to enforce top-notch security right at the edge, allowing you to restrict network access based on source/destination IP addresses, TCP/UDP ports, or even specific network applications. With advanced protection mechanisms like 802.1X Port-based and MAC-based user/device authentication in place, rest assured that your industrial network is safeguarded against any potential threats. Trust in our expertise for a secure future.

Hardware Specifications
Copper Port 12×10/100/1000Base-T RJ45 auto-MDI/MDI-X
SFP/SFP+ Port 4X1/2.5/5/10G SFP/SFP+ slots

Compatible with 100BASE-FX,1000BASE-SX/LX/BX,2500BASE-X,5000BASE-X SFP and 10GBASE-SR/LR SFP+ optical transceiver

Console 1xRJ45-to-RS232 serial port(115200,8,N,1)
Reset Button <5 sec: System Reboot

> 5 sec: Factory Default

Connector 6-pin removable terminal block for power input

Pin 1-2 for Power 1, Pin 3-4 for Power 2, Pin 5-6 for fault alarm

Alarm One relay output for power failure. Alarm relay current carry ability:2A @ 24VDC
Enclosure IP40 aluminium case
Installation DIN-rail or wall mounting
Dimension(WxDxH) 160mm x 132mm x 70mm
Weight 1100g
Power Consumption Max. 16.8 watts/57.3BTU(System on)

MAX. 38.2 watts/10.3BTU(Full loading)

Electrostatic Discharge Contact discharge:±8kV

Discharge in air: ±15kV

Surge Protection Power Supply: ±4kV

RJ45 Port: ±2kV

LED Indicators P1(Green), P2(Green), ALM(Red). RUN(Green)

SFP: 1/2.5/5G(Green), 10G(Green)

RJ45: 10/100M(Green), 1000M(Green)

Switching Specifications
Switch Architecture Store-and-forward
Switch Fabric 64 Gbps/non-blocking
Address Table 32K entries, automatic sources address learning and aging
Data Buffer 32Mbits
Jumbo Frame 10K bytes
Flow Control IEEE 802.3x pause frame for full duplex

Back pressure for half duplex

Layer 3 Function
IP Interfaces Max. 128 VLAN interface
Routing Table Max. 512 static route entries

Max. 3072 routing table entries

Routing Protocol IPv4 RIPv2

IPv4 OSPFv2

IPv6 OSPFv3

IPv4 Hardware Static Routing
IPv6 Hardware Static Routing

Layer 2 Functions
Port Configuration Port Disable/Enable

Auto-negotiation 10/100/1000Mbps full and half duplex mode selection

Flow control disable/enable

Port link capability control

Port Status Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status
Port Mirroring TX/RX/Both

Many-to-1 monitor

Mirror – Remote Switched Port Analyzer(Cisco RSPAN)

Supports up to 5 sessions

VLAN IEEE 802.1Q tagged VLAN

IEEE 802.1ad Q-in-Q tunneling

Private VLAN

MAC-based VLAN

VLAN Translation

VCL Protocol-based VLAN

Voice VLAN

MVR(Multicast VLAN registration), MVRP(Multiple VLAN Registration Protocol

GVRP

Up to 4K VLAN groups, out of 4095 VLAN IDs

Link Aggregation IEEE 802.3ad LACP/static trunk

8 trunk groups with 16 ports per trunk group

Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid  Spanning Tree Protocol

IEEE 802.1s Multiple Spanning Tree Protocol

Supports 7 MSTP instance

BPDU Guard, BPDU filtering and BPDU transparent

Root Guard

IGMP Snooping IPv4 IGMP(v1/v2/v3) snooping

IPv4 IGMP querier mode support

Supports 255 IGMP groups

MLD Snooping IPv6 MLD(v1/v2) snooping

IPv6  querier mode support

Support 255 MLD groups

Bandwidth Control Per port bandwidth control

Ingress: 10Kbps ~ 13128Mbps

Egress: 10Kbps ~ 13128Mbps

Ring, Redundancy, Protection APS Protocol (1+1 , 1:1 Mode)

MRP(Media Redundancy Protocol)

ITU-T G.8032 ERPSv2

Recovery time<10ms @ 3 nodes

Recovery time<50ms @ 16 node

Supports Major and sub-ring

Discovery and Monitoring UPnP(Universal Plug and Play)

LLDP

LLDP-MED

UDLD(Unidirectional Link Detection)

sFLOW

OAM IEEE 802.3ah OAM,

IEEE 802.1ag Connectivity Fault Management(CFM)

Synchronization IEEE 1588v2 PTP(Precision Time Protocol)

PTP Master

PTP Slave

Boundary Clock

Peer-to-peer transparent clock

End-to-end transparent clock

Profile:1588/G.8265.1/G.8275.1/802.1AS

SyncE

QoS Traffic classification based, strict priority and WRR

8-level priority for switching

-Port number

-802.1p priority

-802.1Q VLAN tag

-DSCP/ToS field in IP packet

Time-Sensitive Networking Protocols High Precision Time Synchronization

-IEEE1588(Time Stamping)

-802.1AS-Rev gPTP default profile
