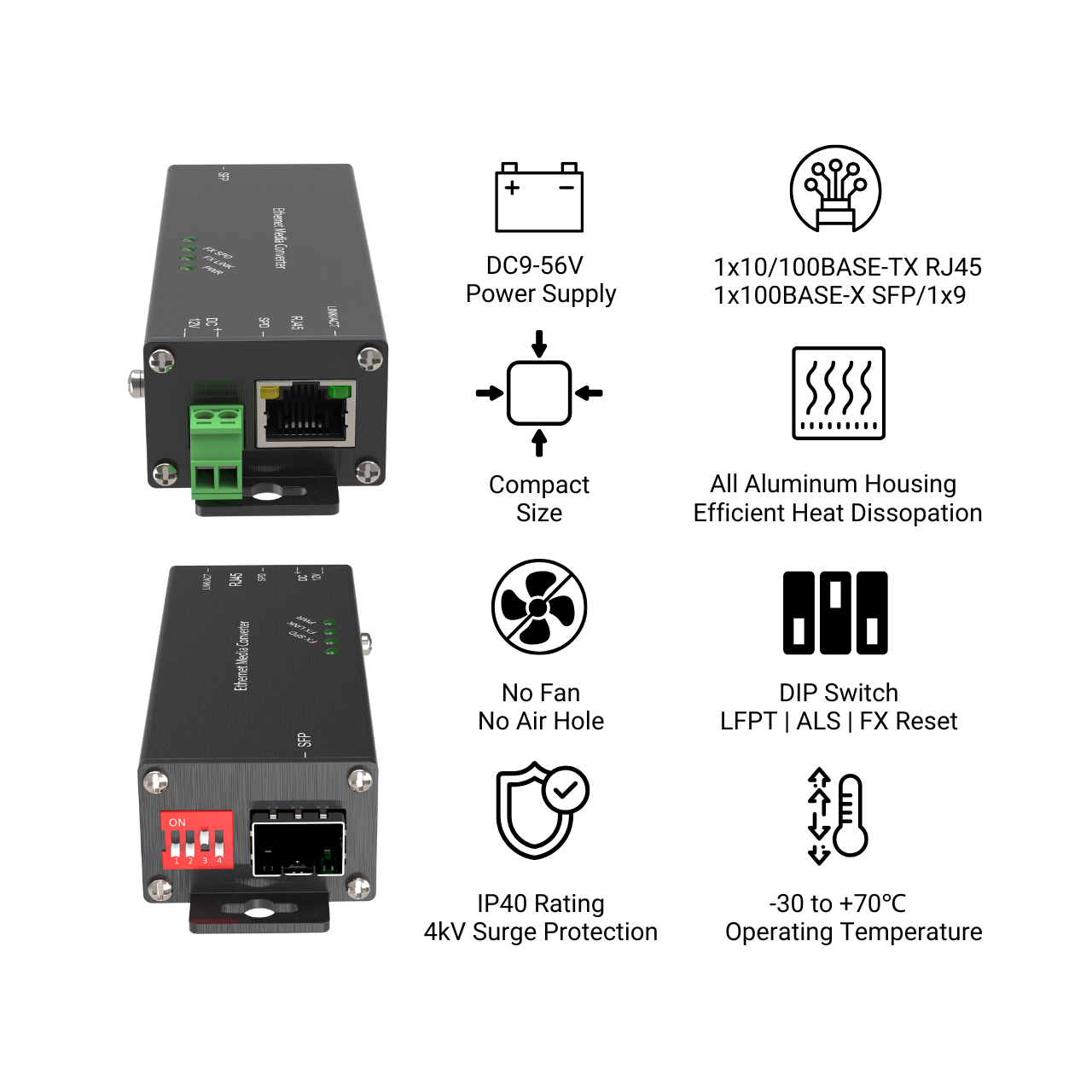

Industrial-Grade Temperature Resilience
Designed for harsh environments, this fiber media converter operates reliably in extreme temperatures ranging from -30°C to +70°C. Its rugged construction ensures uninterrupted performance in industrial settings, outdoor installations, or climate-controlled data centers, making it ideal for demanding applications.

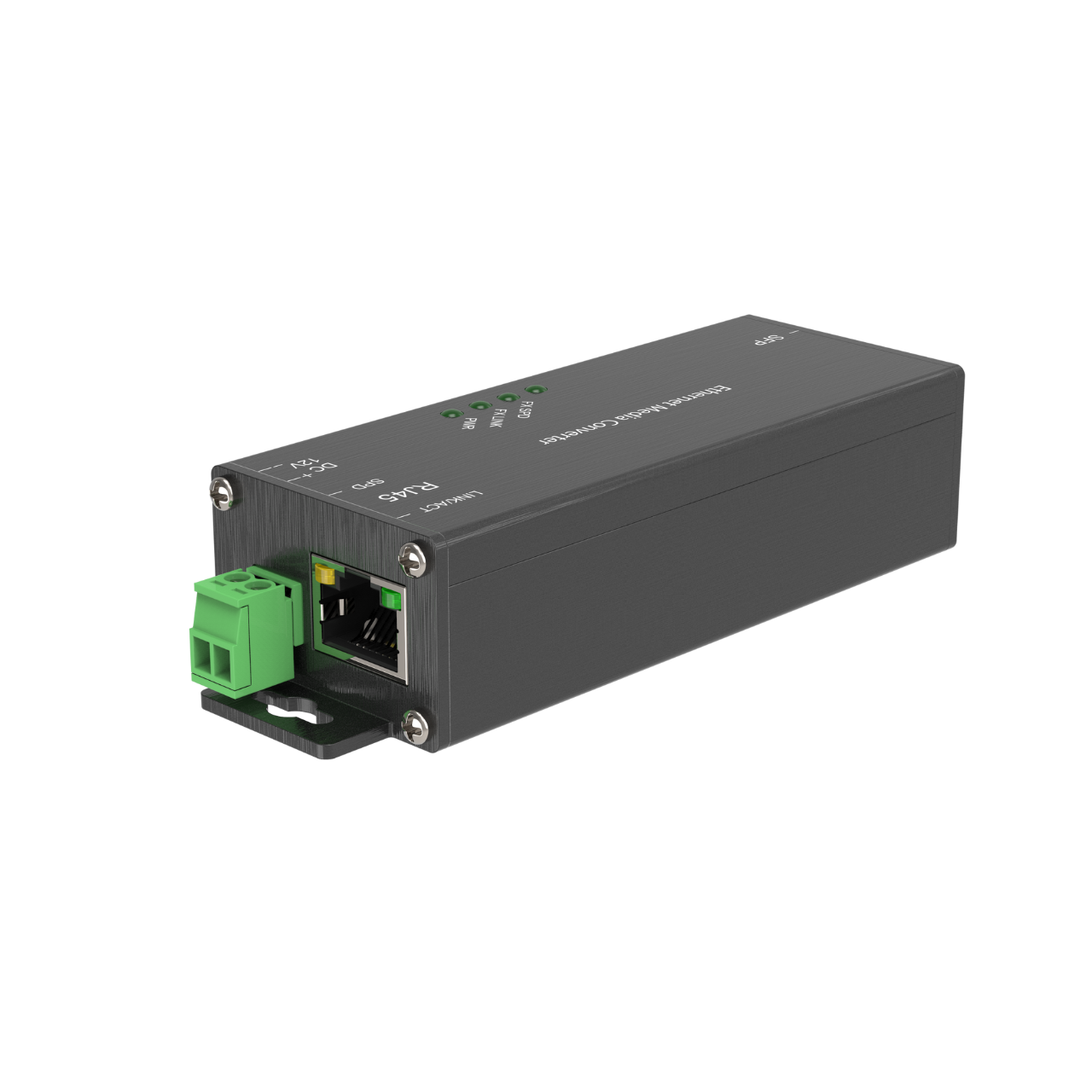

Compact and Robust Design
Featuring a mini industrial form factor, this media converter combines space-saving efficiency with durable metal housing. Its compact design is optimized for tight spaces in control cabinets, network racks, or field deployments and resists vibration, dust, and moisture.
Link Fault Pass Through (LFPT) Functionality
Equipped with a user-friendly DIP switch, the converter supports Link Fault Pass Through (LFPT) to enhance network diagnostics. When enabled, LFPT synchronizes link status between fiber and copper ports, ensuring immediate fault detection and streamlined troubleshooting in critical infrastructure setups.
Plug-and-Play Simplicity
As an unmanaged device, this media converter offers effortless deployment with zero configuration required. Simply connect fiber and copper cables for instant 100Mbps data conversion, making it a cost-effective, user-friendly solution for expanding network reach without complex setup or maintenance.
| Hardware Specifications | ||
| Model | FR-2701 | FR-2703 |
| Ports | 1×10/100Base-TX RJ45
1x100Base-X SFP |
1×10/100/1000Base-T RJ45 1x1000Base-X SFP |
| Port Mode(Tx) | Auto Negotiation Speed
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
|
| Maximum Packet Length | Up to 10K | |
| Forward Filter Rate | 14,880pps(10Mbps)
148,800pps(100Mbps) 1,488,000pps(1000Mbps) |
|
| Transmission Mode | Store and Forward (full/half duplex mode) | |
| Transmission Distance | ||
| Optical Fiber Port | Depends on optical module(0-160km) | |
| Copper RJ45 Port | 100m（using standard CAT5/CAT5e cable） | |
| Power | ||

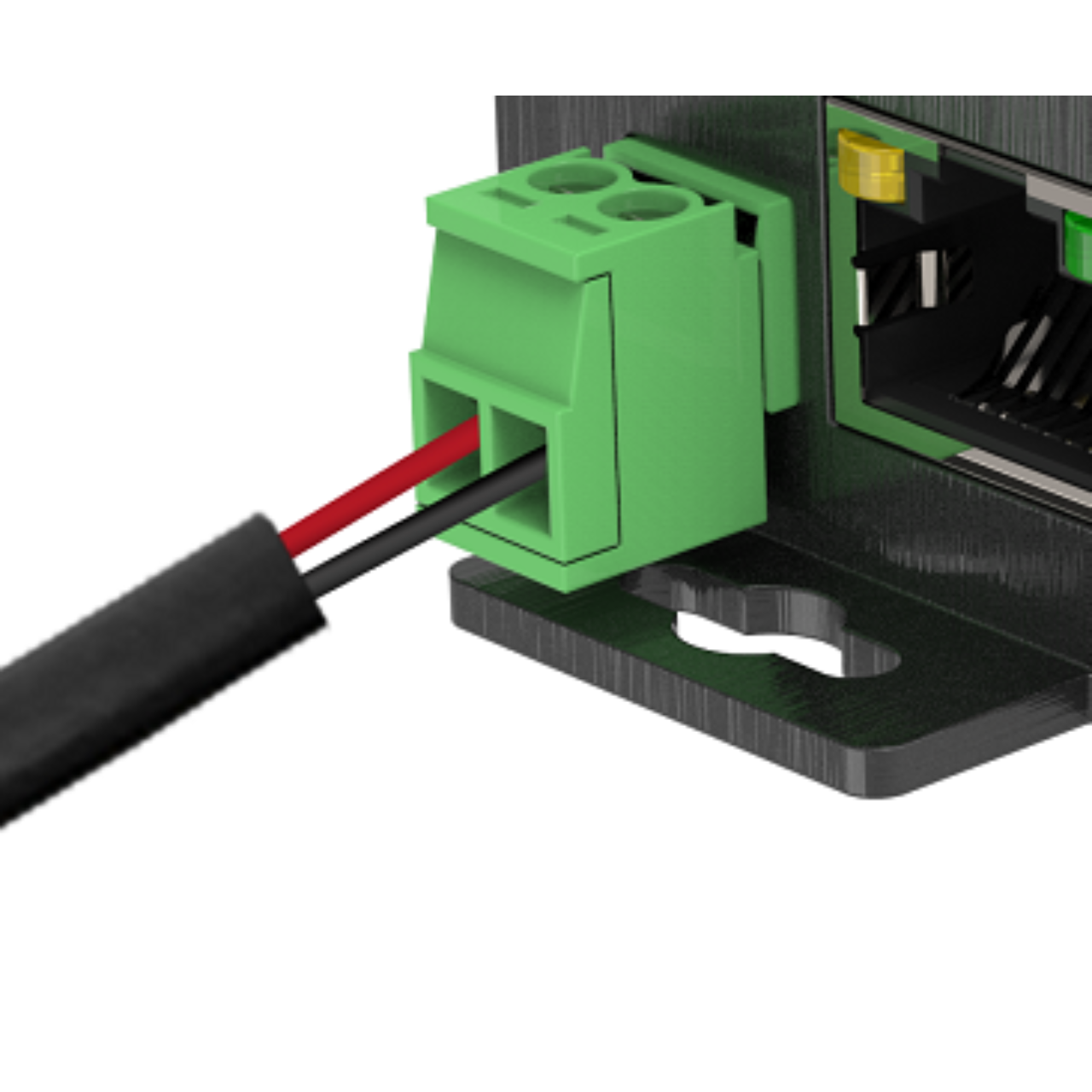

| Input Power | DC 9-56V, 0.5/0.25A | |
| Power Consumption | 2.4W Max. 0.2A@12VDC | |
| Physical Characteristics | ||
| Housing | Aluminum case | |
| IP Rating | IP40 | |
| Dimensions | 36.2mm*117mm*24.5mm | |
| Weight | 100g(Bare weight), 250g(With package) | |
| Installation | Wall Mount and Desktop | |
| Environmental | ||
| Operating Temperature | -30℃ to +75℃ (-30 to 167 ℉) | |
| Operating Humidity | 5%~90% (non-condensing) | |
| Storage Temperature | -30℃ to +85℃ (-30 to 185 ℉) | |
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25°C | |
| Heat Dissipation | 7 BTU/h | |
| Cooling | Passive Cooling | |
| Noise Level | 0 dBA | |
| Package Contents | ||
| Device | 1x Industrial Media Converter | |
| Installation Kit | 1x Caps, plastic, for SFP Slots, 2 x Wall-Mount Kits(Fixed to the device | |
| Documentation | 1x Quick installation guide,1x Warranty card,1x Product notice | |
| DIP Switch | |||
| No. | Function | State | Description |
| SFP Port Configuration | |||
| 1 | LFP | OFF | Disable |
| ON | Enable | ||
| 2 | ALS | OFF | Disable |
| ON | Enable | ||
| 3 | FX Reset | OFF | Disable |
| ON | Enable | ||
| 4 | FX Speed(Effect on FR-2703) | OFF | FX Speed 1000M |
| ON | FX Speed 100M/1000M | ||
| 1×9 Module Configuration | |||
| 1 | LFP | OFF | Disable |
| ON | Enable | ||
