Mini Industrial Fiber Media Converter
The Industrial Fiber Media Converter provides cost-effective, entry-level media conversion between 1×10/100/1000Base-T RJ45 and 1000Base-X ports. With its fixed configuration, deployments are just plug-and-play, and with it is small size, it is ideal for locations where space is limited. It is able to operate under temperatures ranging from -30°C to +75 °C and is with IP40 rugged case to make sure continuous operation in harsh environments such as transportation, factories, outdoors, and places where extremely low or high temperatures can be experienced.
Video Gallery
Quality Certifications
Guarantee
Share This Product
Industrial Fiber Media Converter For Harsh Environment

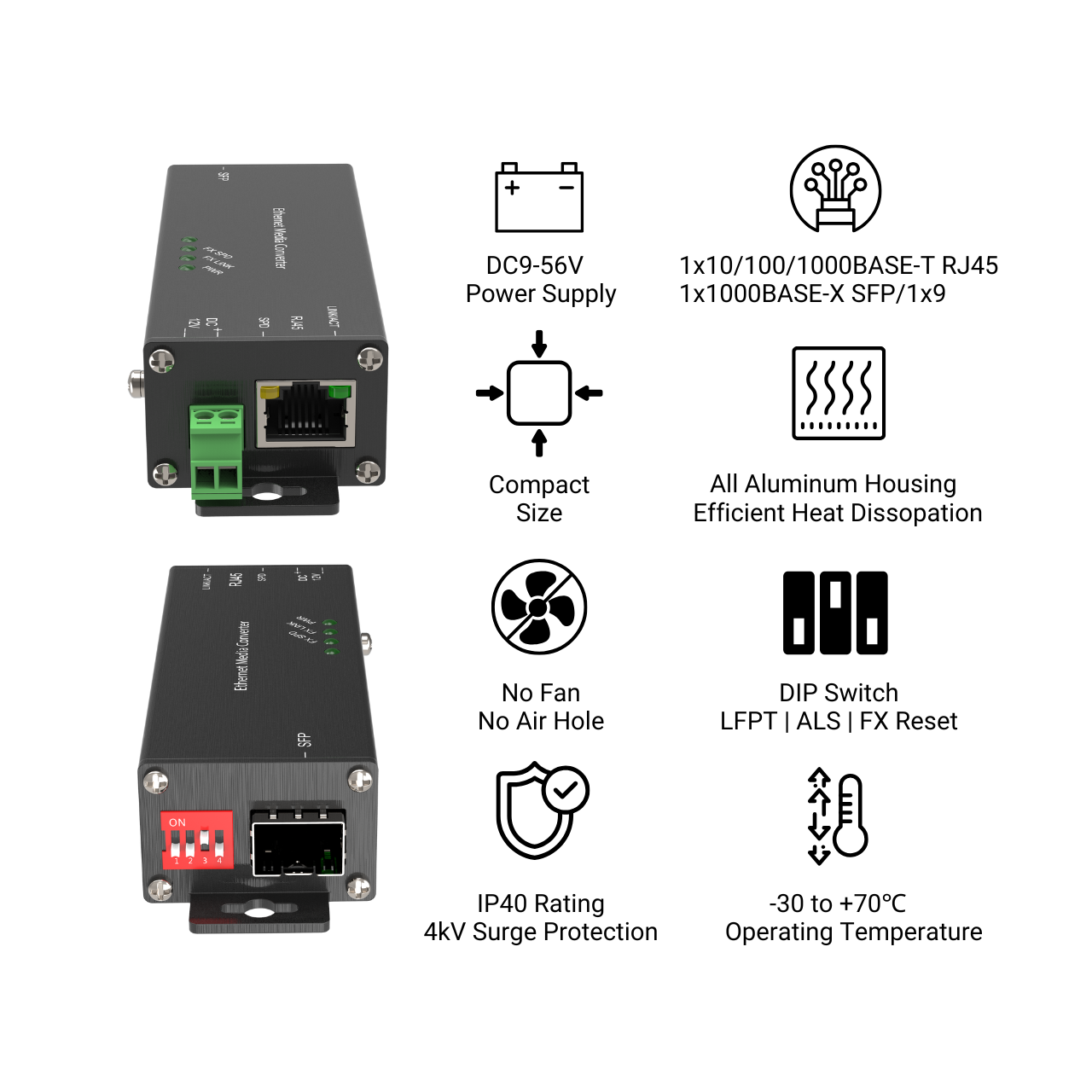

The industrial fibre media converter features one 100/1000BASE-X SFP fibre port and one 10/100/1000BASE-T copper port in an IP40-rated rugged, mini-size enclosure. Operating in harsh environments, especially extreme low and high temperatures(-30 to 75 degrees C). Applications such as city surveillance systems, smart manufacturing, etc. The Industrial Fiber Media Converter with SFP Port provides reliable, stable and continuous long-reach data transmission and can be installed in any harsh environment without considering space.
| Product Attributes | |||
|---|---|---|---|
| Ports | 1×10/100/1000Base-TX RJ45 1×100/1000Base-X SFP/SC port |
Port Mode(TX) | Auto Negotiation Full/Half Duplex Auto MDI/MDIX |
| Frame Size | Up to 10K | Transmission Mode | Store and Forward |
| Input Power | 12VDC | Power Consumption | 2.4W MAX |
| Housing | Aluminum Case | IP Rating | IP40 |
| Operating Temperature |
-30℃ to +75℃ | Storage Temperature |
-40℃ to 85℃ |
| Installation Mode |
Wall Mount & Desktop | Weight | 150g |
Industrial Fiber Media Converter With High-Performance
Industrial SFP Fiber Media Converter with 10K Jumbo Frame and Cut Through mode improves the conversion efficiency. In addition, FR-2703 provides the H.264 video compression with smooth and efficient transmission.
Ethernet OAM For Industrial Network
Besides the Media Conversion functions, The Industrial SFP Fiber Media also has smart features via an embedded DIP Switch. Following with link-layer OAM feature, improving video transmission reliability. The Link Fault Pass Through can allow the far-end Industrial Fiber Media Converter to notify the link loss, providing convenient and fast operation and maintenance for the applications.
| Ethernet Interface | |
| Ports | 1×10/100/1000Base-TX RJ45 ports, 1×100/1000Base-FX SFP/SC ports |
| Pors Mode(Tx) | Auto Negotiation Speed
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control |
| Maximum Packet Length | Up to 10K |
| Forward Filter Rate | 14,880pps(10Mbps)
148,800pps(100Mbps) 1,488,000pps(1000Mbps) |
| Transmission Mode | Store and Forward (full/half duplex mode) |
| Transmission Distance | |
| SFP Port | Depends on optical module(0-160km) |
| RJ45 Port Transmission Distance | 100m（using standard CAT5/CAT5e cable） |
| Power Information | |
| Input Power | 12VDC |
| Power Consumption | 2.4W Max. 0.2A@12VDC |
| Physical Characteristics | |
| Housing | Aluminum case |
| IP Rating | IP40 |
| Dimensions | 36.2mm*117mm*24.5mm |
| Installation Mode | Wall Mounting |
| Weight | 0.15Kg |
| Working Environment | |
| Operating Temperature | -30℃~+75℃ (-40 to 167 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| DIP Switch | |
| #1 | LFP(Link Fault Pass Through) ON/OFF |
| #2 | ALS(Only for SFP) ON/OFF |
| #3 | FX Rest ON/OFF |
| #4 | FX Speed Setting
OFF: Fixed 1000M ON: 100M/1000M |
