Revolutionize Your Network Infrastructure with Layer 2+ Industrial PoE Switches
Layer 2+ Managed Industrial PoE Ethernet Switches are the game-changer in the realm of network infrastructure management for businesses. With their intelligent features such as VLAN support, Quality of Service (QoS) prioritization, and bandwidth management, these advanced switches are paving the way for enhanced network efficiency. The incorporation of Power over Ethernet (PoE) technology further simplifies the deployment of IP cameras, wireless access points, and other PoE devices in industrial settings. This revolutionary technology not only streamlines operations but also ensures a seamless and reliable connectivity experience for businesses across various industries. Say goodbye to traditional networking challenges with Layer 2+ Managed Industrial PoE Ethernet Switches leading the charge towards a more efficient future.

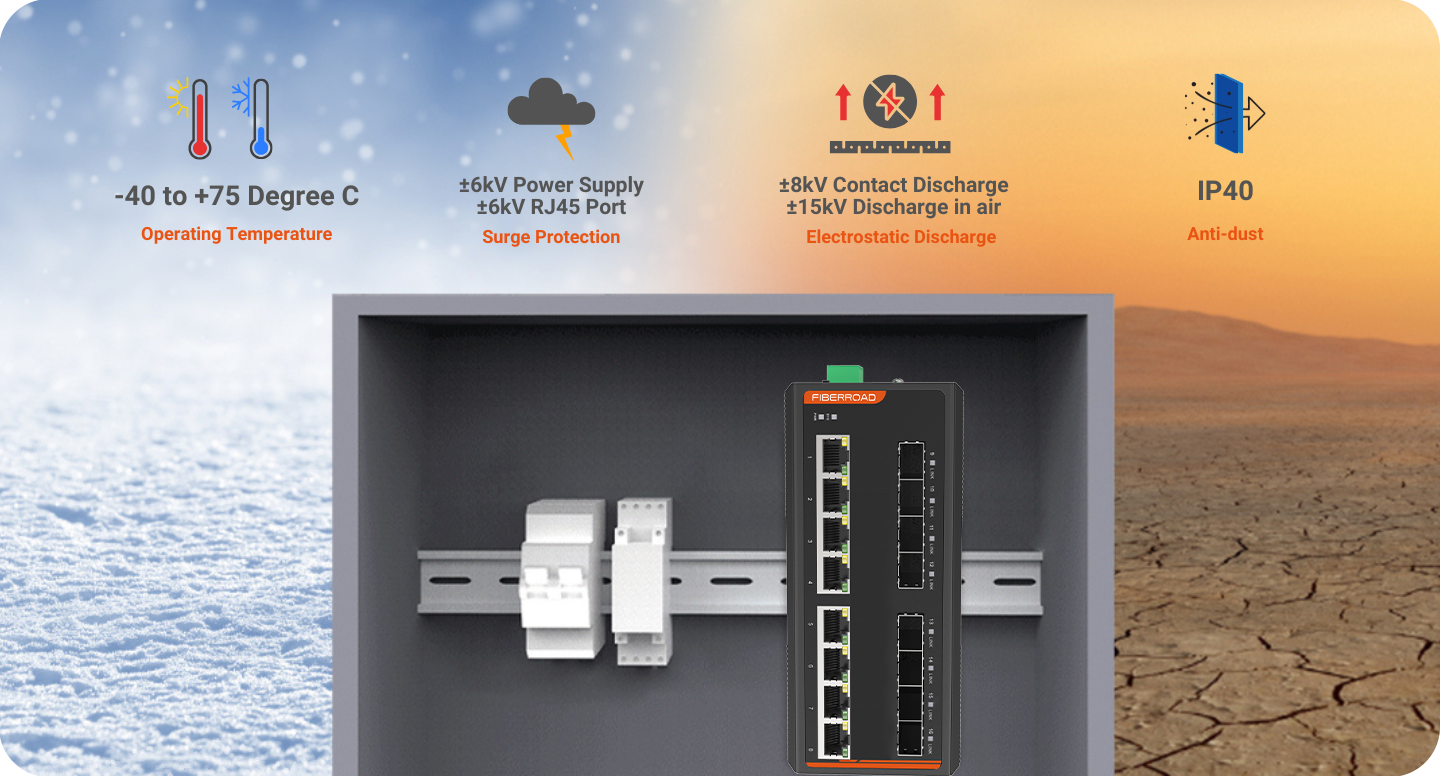

Withstanding Extreme Conditions for Optimal Performance
Layer 2+ Managed Industrial PoE Ethernet Switches are a game-changer when it comes to operating in challenging industrial environments. These switches offer a multitude of benefits that greatly enhance the efficiency and reliability of industrial networks. With their robust design, they can withstand extreme temperatures, high humidity levels, dust particles, vibrations, and electromagnetic interference that are commonly encountered in industrial settings. This resilience ensures uninterrupted network connectivity and prevents costly downtime due to equipment failures.
The Benefits of MSTP and ERPSv2 Technology for Seamless Device Communication
In today’s fast-paced industrial environment, it is crucial to optimize efficiency and productivity through secure network connectivity. By utilizing cutting-edge technologies like Layer 2+ Managed Industrial PoE Ethernet Switches such as MSTP and ERPSv2, businesses can ensure seamless communication between devices while maintaining a high level of security. MSTP allows for redundant paths in the network, ensuring continuous transmission of data even if one path fails. This not only enhances reliability but also minimizes downtime, thereby maximizing efficiency. Additionally, ERPSv2 offers rapid fault detection and recovery times in ring topologies, further increasing network resilience and productivity. With such advanced technologies at their disposal, businesses can effectively streamline their operations and stay competitive in the rapidly evolving industrial landscape.
MSTP
ERPSv2

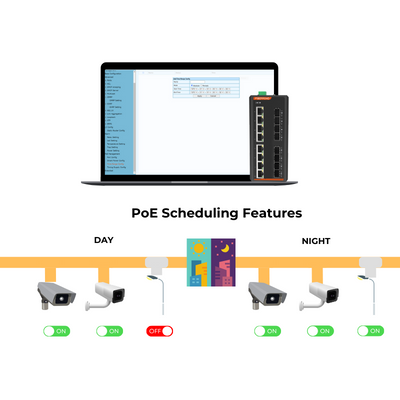

PoE Schedule for Energy Savings
To contribute to energy conservation worldwide and environmental protection, the FR-7M3808P is capable of effectively controlling the power supply in addition to providing high power levels. It is a powerful tool for small and medium-sized businesses to save power and money by using the built-in “PoE schedule” function to enable or disable PoE power feeding for each PoE port at specified intervals.

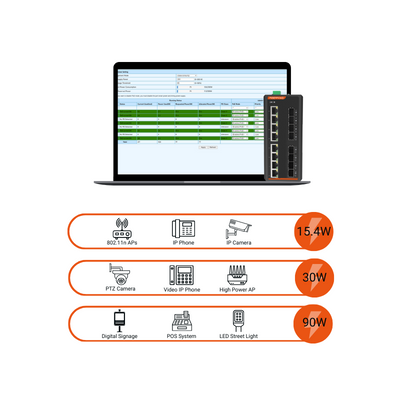

PoE Power Management
You can configure the maximum power, percentage of PoE power to be reserved, PoE power alarm threshold, and maximum power on each interface depending on the quantity, type, and input voltage of the PoE-capable module. Power parameters can be set based on the requirements of PDs connected to a device to use PoE power effectively and ensure device stability.
Harnessing the Power of Console, Web, and SNMP Interfaces
Take control of your network like never before with Layer 2+ Managed Industrial PoE Ethernet Switches. This cutting-edge device offers a complete solution for overseeing and regulating your network infrastructure through console, web, and SNMP interfaces. The user-friendly web interface allows for simple configuration of settings, traffic monitoring, and real-time issue resolution. By seamlessly integrating with existing network management systems using the SNMP interface, you can have centralized control over all connected devices. For those who prefer a more hands-on approach, the console interface provides direct access to advanced configuration options for maximum flexibility. Harness the power of these tools to effortlessly manage your industrial Ethernet network with unmatched ease and effectiveness.
| Ethernet Interface | |

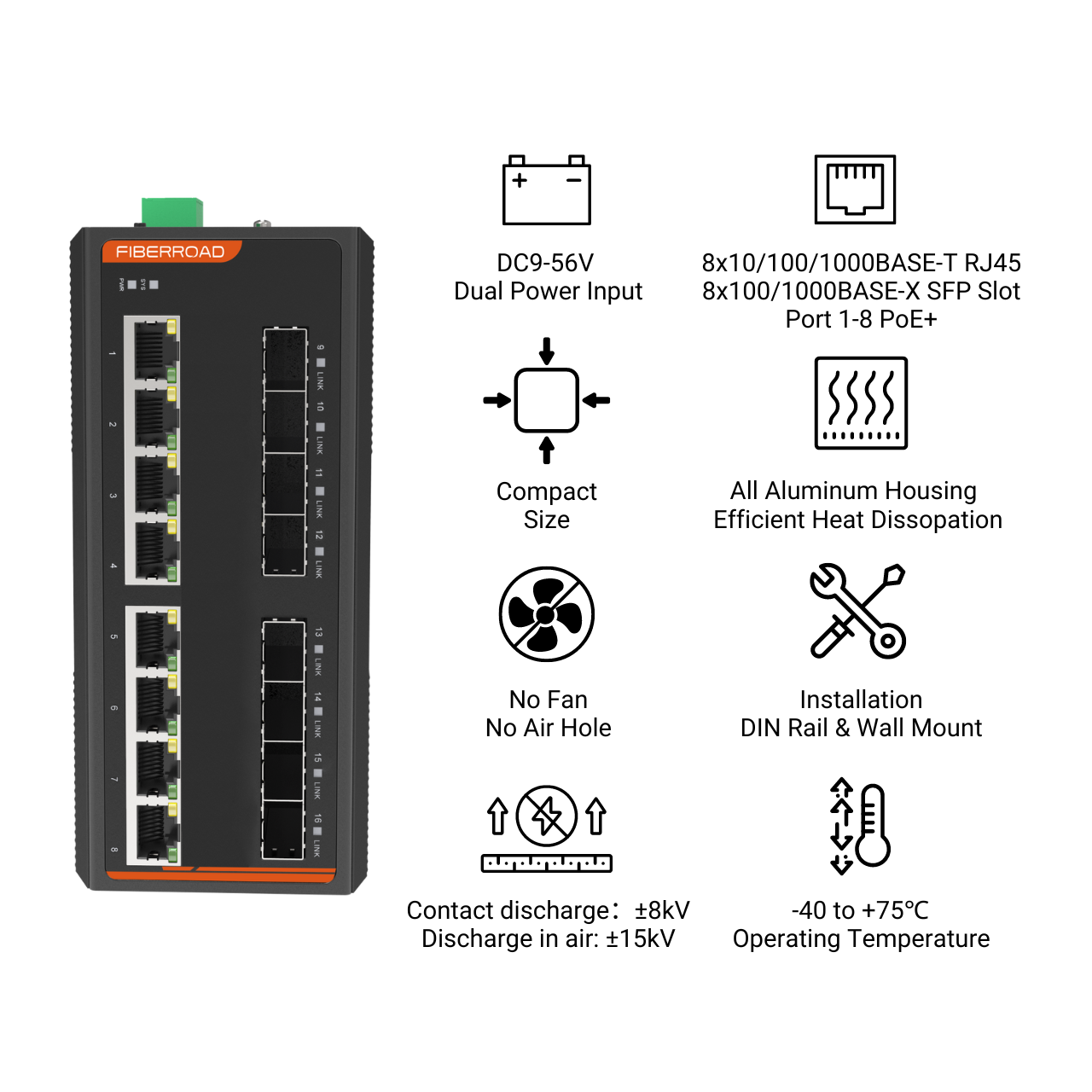

| Ports | 8×10/100/1000Base-T Ports(RJ45 connector)
8×100/1000BASE-X SFP slots for SFP type auto detection |
| Port Mode(Tx) | Auto Negotiation Speed
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP |
| Packet Buffer Size | 4Mbits |
| Maximum Packet Length | Up to 10k |
| MAC Address Table | 8k |
| Transmission Mode | Store and Forward (full/half duplex mode) |
| Exchange Property | Delay time: < 7μs
Backplane bandwidth: 52Gbps |
| IGMP GroupS | 2048 |
| Max. No. of VLAN | 64 |
| VLAN ID Range | VID 1 to 4094 |
| Physical Characteristics | |
| Housing | Aluminum case |
| IP Rating | IP40 |
| Dimensions | 160mmx132mmx70mm(L x W x H) |
| Installation | DIN Rail/Wall Mount |
| Weight | 1200g |
| Environmental | |
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| MTBF | 907,476 hours @ Telcordia SR-332 Standard |
| Heat Dissipation | 65 BTU/h (non-PoE mode) |
| Cooling | Passive Cooling, Fanless Design |
| Noise Level | 0 dBA |
| PoE & Power Supply | |||
| Model | FR-7M3808P | FR-7M3808BT | |
| PoE Ports | Port 1 to 8 IEEE802.3af/at @PoE+ | Port 1 to 8 IEEE802.3af/at/bt @PoE++ | |
| Power Supply Pin | Default: 1/2(+), 3/6(-) | Default: 1/2(+), 3/6(-) or 4/5(+), 7/8(-) | |
| Max Power Per Port | 30W | 90W | |
| Total PWR /Input Voltage | 240W(DC48-56V) (Model dependent) | 480W(DC48-56V) (Model dependent) | |
| Power Consumption | 10 Watts Max(without PoE load) | ||
| Power Inputs | 2 | ||
| Input Voltage |
Non-PoE Mode: 9-56VDC 30W PoE Mode: 48-56VDC 90W PoE Mode: 52-56VDC(IEEE802.3bt model) |
||
| Connector |
1 removable 6-contact terminal blocks Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm |
||
| Protection | Overload Current Protection, Reverse Polarity Protection | ||
| Ethernet Software Features | |
| Redundancy Protocols | Support STP/RSTP/ERPSv2, Link Aggregation |
| Multicast Support | Support IGMP Snooping V1/V2/V3，support GMRP, GVMP,802.1Q |
| VLAN | Support IEEE 802.1Q 4K VLAN，support QINQ, Double VLAN, |
| Time Management | SNTP |
| QOS | Flow-based redirection
Flow-based rate limiting Flow-based packet filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) |
| ACL | Port-based Issuing ACL
ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc |
| POE Management (Depending on model) | Total power limit of PoE power supply
PoE output power allocation PoE output priority configuration PoE working status Scheduling of PoE operation |
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping |
| Management Function | Support CLI、WEB、SNMPv1/v2/v3，Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT |
| Alarm Management | Support 1 way relay alarm output, RMON, TRAP |
| Security | Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82，802.1X security access, Support user hierarchical management, ACL access control list, Support DDOS，port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit |
| Advance Layer 2+ Features | IPv4/IPv6 Management
Static Route |
