Exploring the Key Features of the Layer 3 Industrial PoE Switch for Demanding Environments
Layer 3 Industrial PoE Switch is a multi-port, high-standard Industrial Managed PoE Ethernet Switch independently developed by Fiberroad for industrial ethernet networks. This product adopts industry-leading technical standards and can provide stable and reliable Ethernet transmission with high-quality design and reliability. They are designed in a rack to mount aluminium housing and have 8*Gigabit Ethernet ports,2*1.25G/10G and 2×1.25G/2.5G/10G SFP/SFP+ Ports, support Layer 3 routing functionality to facilitate the deployment of applications across networks. As a result, it can supply power to PD terminal equipment like wireless AP, webcam, VoIP, and IIoT Devices intercom through network cable and meet the infrastructure requirements of a high-density PoE/PoE+/PoE++ supply.
High Reliable and Multi-Service Support
1.Support the Spanning Tree Protocols (IEEE802.1d STP, IEEE802.1w RSTP, standard 802.1s MSTP)
2.Support the IPv4 and IPv6 multicast functions
3.Voice VLAN, Surveillance VLAN
4.Support traffic classification of each field of L2/L3/L4 protocol headers
5.Support IGMP v1/v2/v3, IGMP snooping, MLD
Advance Network Configuration
1.Support OSPFv2, RIPv2
2.Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
3.Support LACP, ERPSv2
4.Class of Service(Port-based, 802.1p, IP TOS Precedence, IP DSCP), Trusted QoS, Rate Limitation
Secure and Simplified Access
1.CLI(Console/Telnet(RFC854)), WebUI(HTTPS), SNMPv3
2.HTTPS/SSLv2v3,TLSv1 RADIUS, TACACS+,AAA SSHv1/v2
3.Support DHCP Snooping, Option 43/82, 802.1X security access
4.Support user hierarchical management
5.Support DOS, port-based MAC filtering/binding, MAC whitelist
6.Support IPv4/IPv6 ACL
SMART POE FEATURES
1.Support IEEE802.3af/at/bt standard automatically identifies PoE devices for power supply without damaging non-PoE devices.
2. Support up to 30W per port.
3. Priority mechanism for PoE+ Switch port will supply power to the high priority level port first when the power budget is insufficient.
4. PoE output power allocation, Scheduling of PoE operation.
How the Layer 3 Industrial PoE Switch Enables Efficient and Reliable Network Connectivity
This Layer 3 Industrial PoE Switch can provide non-blocking communications and wire-speed throughput in temperatures ranging from -40 to 75 degrees Celsius. It features a polycarbonate exterior casing and is designed for outdoor use, so it’s durable and its fanless design provides efficient heat dissipation. It’s equally capable of withstanding electromagnetic interference.
Secure and Simplified Industrial PoE Network Applications
The Layer 3 10G DIN Rail Industrial PoE Switch supports two routing protocols: RIP and OSPF. RIP can use hop count as a metric for routes, preventing routing loops by limiting the number of hops in any path from source to destination. OSPF, on the other hand, is a link-state dynamic routing protocol (as opposed to RIP’s distance-vector routing). When enabled, this means that when networks send link state updates to peers, each layer 3 PoE switch will collect information about its network links and build a Link State Database. The Shortest Path First algorithm will then calculate the fastest route available based on that database.
10G Industrial PoE Switch Benefits to the IIoT Network
IoT and IIoT networks often require a voice VLAN. VoIP devices with an IPcam interface are able to use Voice VLANs and Surveillance, which is a new type of VLAN. They use this feature to create either a voice-only or Surveillance VLAN that’s exclusive to digital devices. This offers the possibility for disruption in industrial networks by providing an alternate voice solution for digital controllers that are connected to analogue devices.

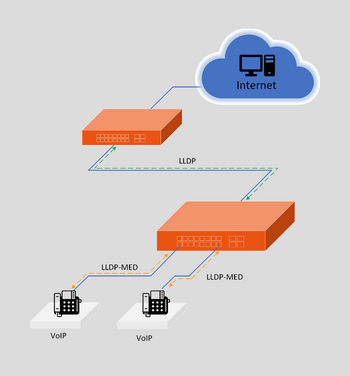

With LLDP-MED, that enhances the automation/management of certain types of network devices like IP Phones, etc. In LLDP-MED, the capabilities of a connected device are determined and whether those capabilities are enabled. It will then keep sending out LLDP-MED packets until the remote device to which it is connected ceases to be LLDP-MED capable.
Easily managed the PoE Switch at any time and anywhere
The L3 DIN Rail Industrial PoE Switch comes equipped with console, web, and SNMP management to allow for easy-to-use, platform-independent management. Web-based management allows for a simple, customizable configuration of the FR-7T4408P poe switch. The L3 Industrial Ethernet Switch also provides a complete suite of SNMP capabilities and can be centrally managed with any standard management software. With the built-in Cisco-like command line via Telnet or console, product learning time is reduced while improving remote management capabilities through SSH connections.
| Ethernet Interface | |
| Model | FR-7T4408P/FR-7T4408BT |
| Ports | 2×1G/2.5G/10 Gigabit SFP (Port 9 and Port 11）
2x1G/10 Gigabit SFP+ (Port 10 and Port 12） 8×10/100/1000M Base-TX |
| Port Mode(Tx) | Auto-Negotiation
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3bz for 2.5G Ethernet IEEE 802.3ae for 10 Gigabit Ethernet IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP |
| Packet Buffer Size | 12Mbits |
| Maximum Packet Length | Up to 10K |
| MAC Address Table | 16K |
| Transmission Mode | Store and Forward (full/half duplex mode) |
| Exchange Property | Delay time: < 7μs
Backplane bandwidth: 128Gbps |
| IGMP Group | 4096 |
| Max. No. of VLAN | 256 |
| VLAN ID Range | VID 1 to 4094 |
| PoE & Power Supply | ||
| Model | FR-7T4408P | FR-7T4408BT |
| PoE Ports | Port 1-8 | Port 1-8 |
| Power Supply Pin | Default: 1/2(+), 3/6(-) | Default: 1/2(+), 3/6(-) ,4/5(+), 7/8(-) |
| Max Power Per Port | IEEE802.3 af/at 30W | IEEE802.3 af/at/bt 90W |
| Total PWR /
Input Voltage |
240W(DC48-56V) (Model dependent) | 360W(DC48-56V) (Model dependent) |
| Power Consumption | 24 Watts Max(without PoE load) | |
| Power Inputs | 2 | |
| Input Voltage | 9-56VDC, Redundant dual inputs | |
| Operating Voltage | Non-PoE Mode: 9-56VDC
30W PoE Mode: 48-56VDC 90W PoE Mode: 52-56VDC |
|
| Connector | Removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm |
|
| Protection | Overload Current Protection, Reverse Polarity Protection | |
| Software Features | |
| Management Interface | CLI(Console/Telnet(RFC854)), WebUI(HTTPS), SNMPv3 |
| Management | ARP, Flow Control, DDM, DHCP Server/Client, IPv4/IPv6, LLDP, LLDP-MED, UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet, |
| File Management | Firmware Upgrade/Backup, Dual Images, Configuration Download/Backup, Multiple Configuration, TFTP(RFC783), HTTP, UART |
| Management Access | Management VLAN, Management ACL(256) |
| Filter | 802.1Q, GMRP, GVRP, IGMP Snooping v1/v2/v3, IGMP Querier V2/V3
QinQ VLAN |
| Redundant Network | Link Aggregation, STP/RSTP/MSTP/ERPSv2, Auto Edge Port, BPDU Filtering, Self Loop Detection |
| VLAN | Support IEEE 802.1Q 4K VLAN, QINQ, Double VLAN, Voice LAN, Surveillance VLAN(Auto/Manual), Multicast VLAN Registration(MVR) |
| Time Management | Local, SNTP, NTP |
| Unicast Routing | OSPFv2, RIPv1/v2, Static Route |
| QOS | Support Queue Scheduling(WRR, WFQ, Strict Priority , Hybrid(WRR+SP or WFQ+SP); Priority Queue(8 queues/port); Class of Service(Port-based, 802.1p, IP TOS Precedence, IP DSCP), Trusted QoS, Rate Limitation |
| ACL Type | L2/L3/L4, MAC-based, IPv4-based, IPv6-based |
| POE Management | PoE working status
Scheduling of PoE operation |
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping |
| Security | Broadcast Storm Control, HTTPS/SSLv2v3,TLSv1 RADIUS, TACACS+,AAA SSHv1/v2,Support DHCP Snooping, Option 43/82, 802.1X security access,
Support user hierarchical management, ACL access control list, Support DOS, port-based MAC filtering/binding, MAC whitelist |
| MIB | Ethernet-like MIB, MIB-II, MIB-I, Bridge MIB, Bridge MIB extensions, RMON MIB(1,2,3 & 9 groups, RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB |
