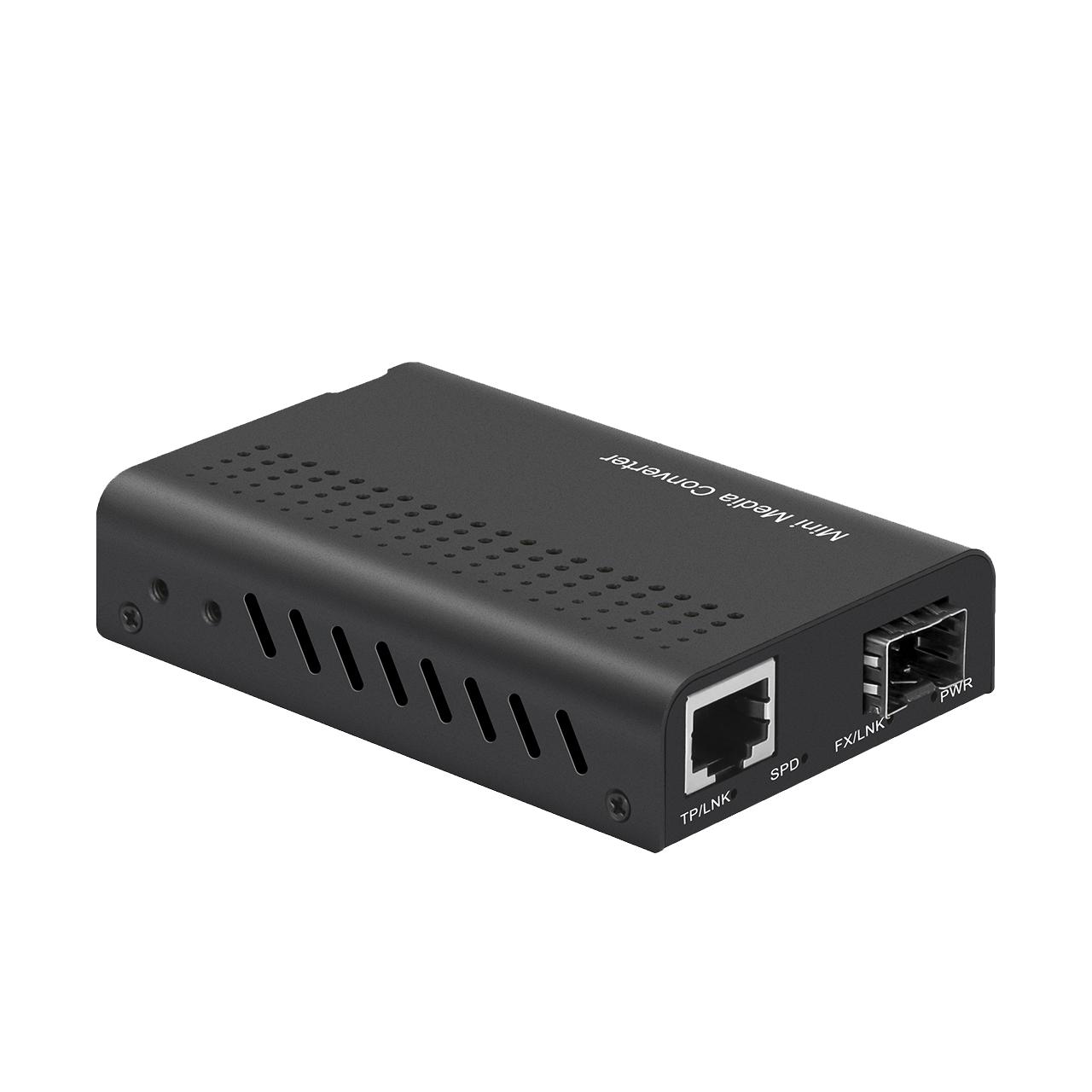

High-Performance Web Smart Gigabit Fiber Media Converter

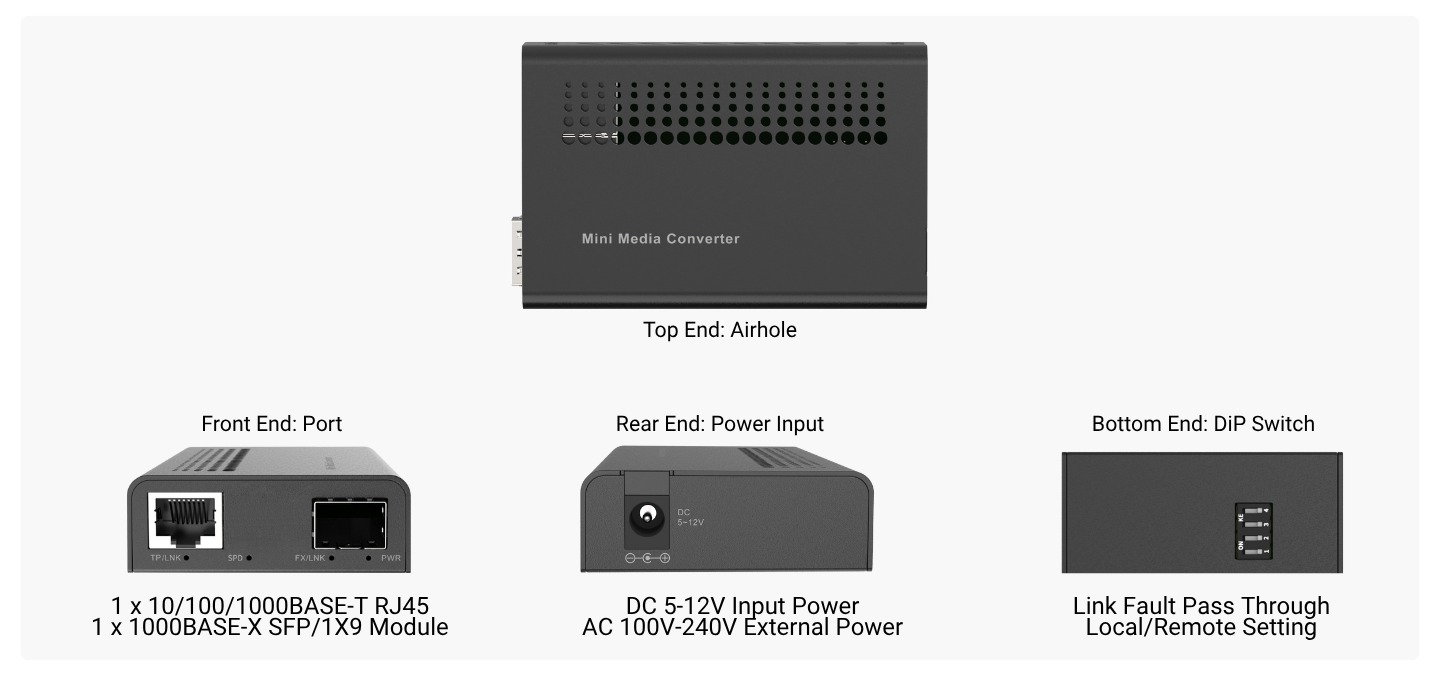

This Web Smart Gigabit Fiber Media Converter seamlessly bridges copper and fiber networks, enabling reliable high-speed data transmission. It supports 1×10/100/1000Base-T (RJ45) to 100/1000Base-X SFP (fiber) conversion, ideal for upgrading legacy networks or expanding bandwidth in enterprise, ISP, and industrial environments. The integrated Link Fault Pass-Through (LFPT) function detects and propagates link failures in real-time, enhancing network stability and troubleshooting efficiency. With a flexible DC5-12V power input, it adapts to diverse power supply setups, ensuring continuous operation. Compact and intelligent, this converter combines plug-and-play simplicity with robust performance, making it a cost-effective solution for seamless Ethernet-to-fiber integration while maintaining high-speed connectivity and fault management capabilities.
IEEE802.3ah-Compliant Web Smart Gigabit Fiber Media Converter

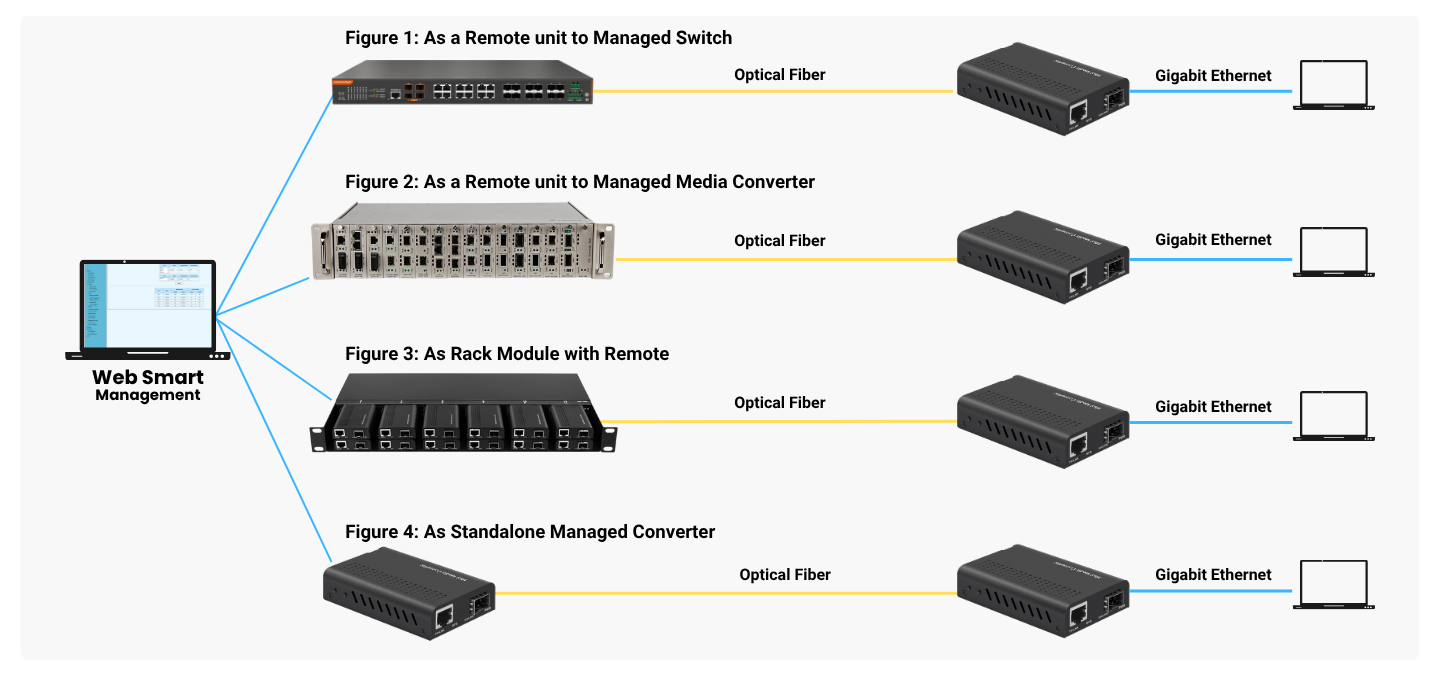

Elevate your network management with our Web Smart Gigabit Fiber Media Converter, designed to adhere to the IEEE802.3ah standard. This advanced compliance enables in – band management, allowing seamless monitoring and configuration of the converter directly over the data path, eliminating the need for separate out – of – band management channels. With this feature, network administrators can effortlessly control and optimize the converter’s performance, ensuring efficient data transmission and quick identification of potential issues. The gigabit – class conversion capabilities further guarantee high – speed, reliable connections between different network segments, making it an essential tool for modern, streamlined, and intelligent network operations.
Rich Web Smart Gigabit Fiber Media Converter for Advanced Network Control

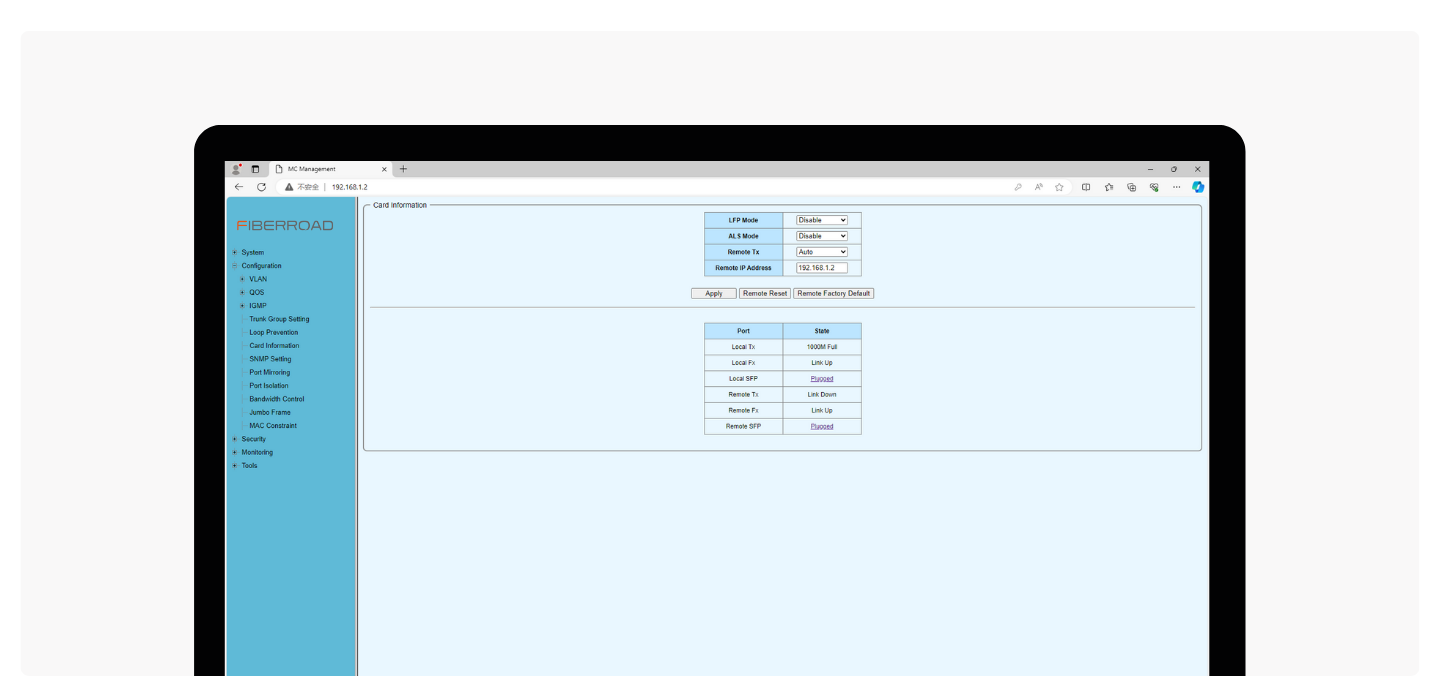

Our Media Converter offering unparalleled flexibility, it enables remote configuration and monitoring, allowing network administrators to manage the device from anywhere, at any time, enhancing operational efficiency. The Ingress/Egress bandwidth control feature ensures optimal data flow, preventing congestion and guaranteeing a smooth user experience across the network. Additionally, its Broadcast/Multicast/Unicast storm control capabilities safeguard network stability by suppressing excessive traffic, reducing latency, and improving overall performance. Moreover, the convenience of firmware upgrades via Web Management ensures the converter stays up – to – date with the latest features and security patches, future – proofing your network infrastructure. This converter is a comprehensive solution for building a robust, efficient, and easily – manageable network environment.
| Hardware Specifications | |
| Product | FR-2205 |
| Copper Ports | 1×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X |
| Fiber Ports | 1x1000BASE-X Optical Fiber Port (SFP or 1×9 Optical Module) |
| Copper Maximum Distance | 100m |
| Fiber Distance and Wavelength | 550m(850nm)
20/40/60km(1310nm) 20/40/60km(1310nm/1550nm) 80/100/120km(1550nm) |
| Enclosure | Meta Case |
| Installation | Desktop and Wall-mount(with additional Wall Mounting Bracket) |
| Dimension | 90mm(D)×60mm(W)×20mm(H) |
| Weight | 120g |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Maximum Packet Length | 9K bytes |
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Power Supply | |
| Number of inputs | 1 |
| Input Voltage | DC5-12V |
| Power Consumption | 5 Watts Max (Depend on Optical Module) |
| Environmental | |
| Operating Temperature | 0℃ to +50℃ (32 to +122 ℉) |
| Storage Temperature | -20℃ to +70℃ (-4 to 158 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| MTBF | 100,819 hours @ Telcordia SR-332 Standard 25℃ |
| Heat Dissipation | 10 BTU/h (No SFP) |
| Cooling | Passive Cooling, Fanless Design |
| Noise Level | 0 dBA |

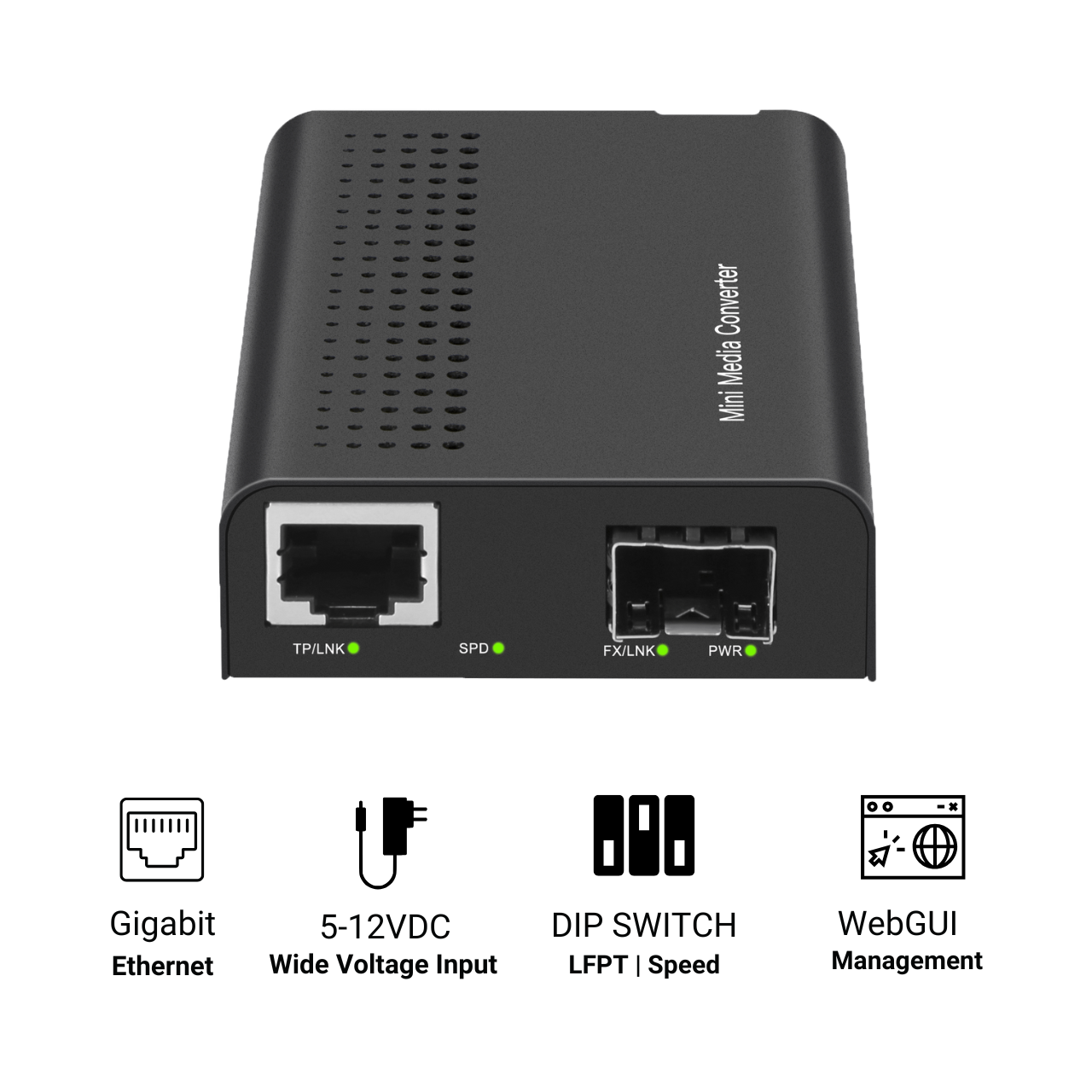

| LED Indicators | |
| PWR | ON: Power is being supplied ; OFF: Power is not being supplied |
| FX/LNK | ON: Port connection is active; Blinking: Data Transmitted; OFF: Port connection is not active |
| TP/LNK | ON: Port connection is active; Blinking: Data Transmitted; OFF: Port connection is not active |
| SPD | ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s |
| DIP Switch | |
| #1 LFP | ON: LFP enable, OFF: LFP disable |
| #2 Remote | ON: Local side, OFF: Remote Side |
| #3 RJ45 Speed | ON:10/100M, OFF:10/100/1000M |
| #4 Reset | ON: Factory Reset |
