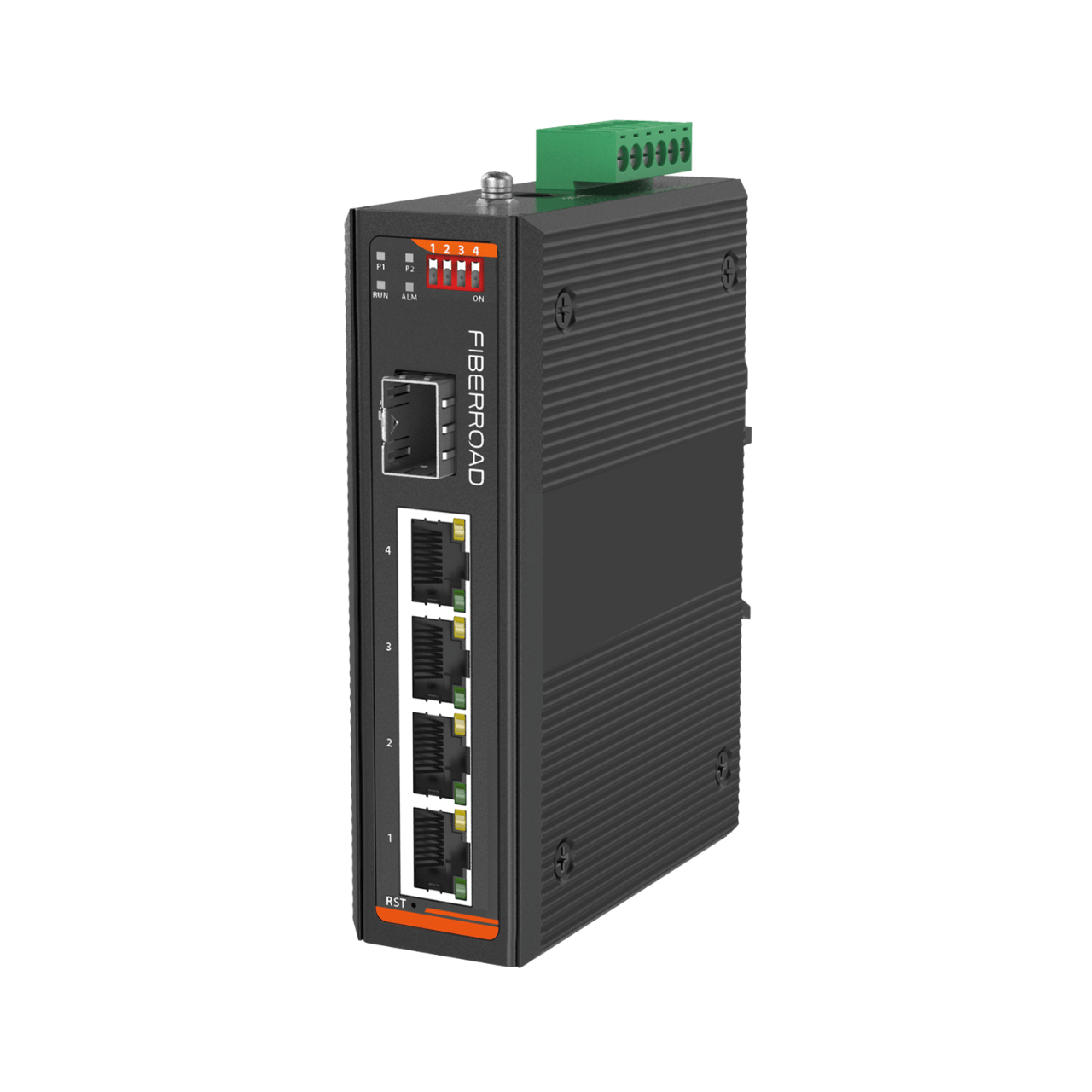

5 Port Web Smart Industrial PoE Switch

The Web Smart Industrial Ethernet Switch is an IEEE 802.3ah compliant copper to Fiber Gigabit Ethernet solution designed to make conversion between 4 Port 10/100/1000Base-T and 100/1000Base-X with SFP modules. With SNMP and Web-based management in the standalone type or play as remote unit communicate with FR6016 Platform to realize centralized management. The administrator can monitor, configure and control the activity of each unit and remotely connect the OAM-compliant converter. Converter settings include bandwidth control, duplex, and speed configuration, VLAN tagging, limited Q-in-Q support and SFP DDMI. When used as a stand-alone type, the FR-6104I can be managed by a friendly Web Smart user interface via any web browser.


Product Features

  • 1×10/100/1000Base-T to 100/1000Base-X SFP/1×9 Converter
  • Port 1-4 support IEEE802.3 af/at PoE+ Standard
  • Auto-Cross over for MDI/MDIX in TP port
  • Auto-negotiation or manual mode in TP port
  • Industrial Grade Standard, -40 to +75℃ operating temperature, IP40 Rating
  • Supports flow control Enable or Disable
  • Supports Jumbo Frame 9.6K Packet
  • Ingress/Egress bandwidth control
  • Supports in-band IEEE802.3ah management
  • Firmware upgrade via Web (Centralized Management Only)
  • Dying gasp(Remote power failure detection on standalone)
  • Supports Link Fault Pass-Through(LFPT)Function
  • Support Auto Laser Shutdown(ALS) Function(Centralized Management Only)
  • Support SNMP, Web Management

Video Gallery

Share This Product

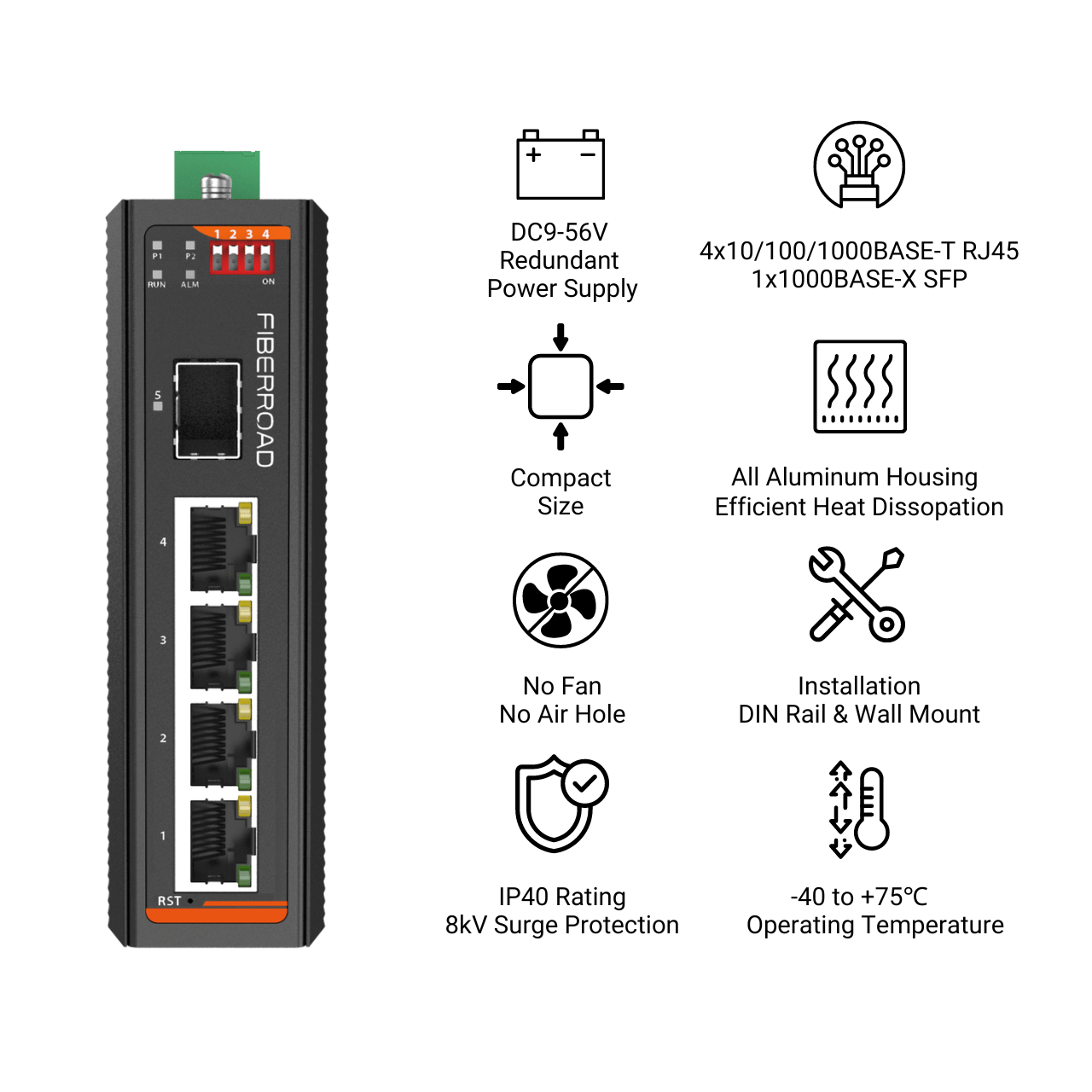

Experience Unmatched Performance with Our 5 Port Web Smart Industrial PoE Switch

Upgrade your industrial network with our cutting-edge 5 Port Web Smart Industrial PoE Switch, designed to deliver unmatched performance in even the harshest environments. With an industrial grade standard and operating temperature range of -40 to +75℃, this switch is built to withstand extreme conditions without compromising on functionality. The IP40 rating ensures protection against dust and debris, while the 8kV power supply surge protection safeguards your equipment from unexpected electrical surges. Experience seamless connectivity and reliable power delivery with our advanced PoE switch, setting a new standard for efficiency and durability in industrial networking solutions.

Web Smart Industrial PoE Switch

Enhance Connectivity and Monitoring Capabilities with a 5-Port Web Smart Industrial PoE Switch

The 5-port Web Smart Industrial PoE Switch is a game-changer for enhancing connectivity and monitoring capabilities in industrial settings. With its support for in-band IEEE802.3ah management, this switch allows for seamless network management and troubleshooting, ensuring optimal performance at all times. In addition, the dying gasp feature enables remote power failure detection on standalone devices, providing peace of mind knowing that critical equipment will remain operational even in the event of a power outage. The inclusion of Link Fault Pass-Through (LFPT) function further enhances reliability by quickly identifying and isolating any issues within the network, minimizing downtime and maximizing productivity. Whether you’re looking to streamline operations or improve efficiency, the 5-port Web Smart Industrial PoE Switch is a versatile solution designed to meet your needs with ease.

Web Smart Industrial PoE Switch

How to Enhance Security in Your Surveillance Network with a Web Smart Industrial Switch

The Web Smart 5 Port Industrial PoE Switch is a powerhouse when it comes to managing data, voice, and video applications for businesses. Equipped with robust QoS features and powerful traffic management capabilities, this managed industrial-grade network switch ensures optimal performance for all types of communication within an organization. With broadcast/multicast/unicast storm control, per port bandwidth control, and 802.1p/CoS/IP DSCP QoS priority and remarking features, this switch guarantees that critical data packets are prioritized and delivered efficiently. Its ability to provide the best VoIP and video stream performance makes it the go-to choice for enterprises looking to maximize their network resources effectively.

Web Smart Industrial PoE Switch
Ethernet Interface
Ports 4×10/100/1000Base-T RJ45 ports, 1x1000Base-X SFP/1×9
Port Mode(Tx) Auto-Negotiation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

Maximum Packet Length Up to 9.6K
Exchange Property Delay time: < 7μs

Switching Capacity: 12Gbps

Forward Rate 8.928Mbps
Transmission Mode Store and Forward (full/half duplex mode)
Transmission Distance
SFP Port Depends on optical module(0-160km)
RJ45 Port Transmission Distance 100m(using standard CAT5/CAT5e cable)


PoE & Power Supply
Model FR-6104IP FR-6104IBT
PoE Ports Port 1 to 4 IEEE802.3af/at @PoE+ Port 1 to 4 IEEE802.3af/at/bt @PoE++
Power Supply Pin Default: 1/2(+), 3/6(-) Default: 1/2(+), 3/6(-) ,4/5(+), 7/8(-)
Max Power Per Port 30W 90W
Total PWR /Input Voltage 120W(DC48-56V) (Model dependent) 200W(DC52-56V) (Model dependent)
Power Consumption 3 Watts Max(without PoE load)
Power Inputs 2
Input Voltage 9-56VDC, Redundant dual inputs
Operating Voltage Non-PoE Mode: 9-56VDC

30W PoE Mode: 48-56VDC

90W PoE Mode: 52-56VDC(IEEE802.3bt model)

Connector 1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection Overload Current Protection, Reverse Polarity Protection
Physical Characteristics
Housing Aluminum case
IP Rating IP40
Dimensions 120mm x 90mm x 35mm (L x W x H)

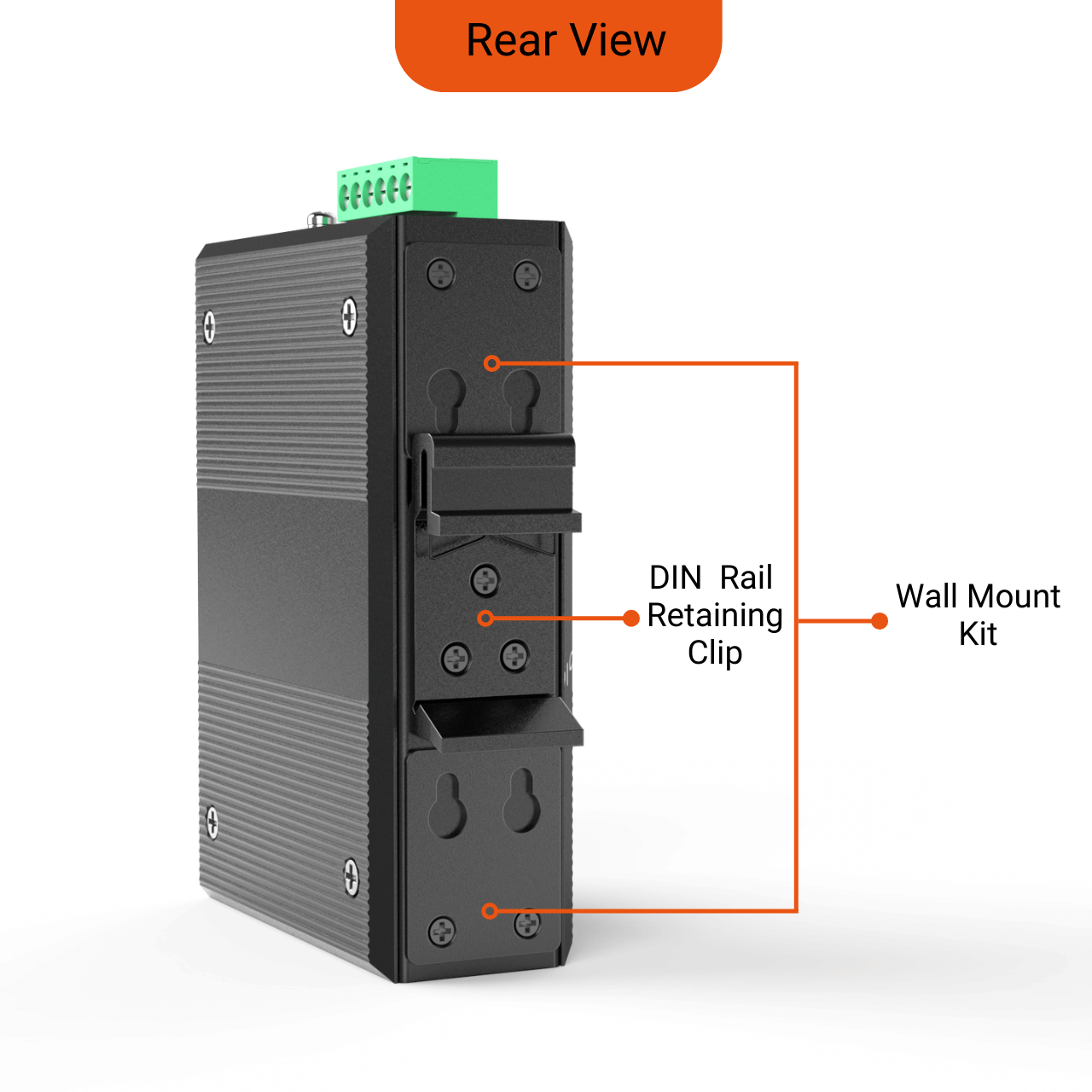

Installation DIN Rail/Wall Mount
Weight 350g
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~90% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
MTBF 500,000 hours
Heat Dissipation 34 BTU/h (non-PoE mode)
Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
