5 Port Industrial PoE Switch

The Unmanaged Industrial PoE++ Switch is designed for small industrial network applications. It provides an easy way to make the access point to Fast or Gigabit Ethernet. With a robust design, this switch is ideal for industrial or outdoor surveillance, withstanding the harshest conditions. The Industrial switch is Plug-and-Play, allowing for easy and quick deployment. It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the network environment that needs a high-density PoE/PoE+/PoE++ power supply.

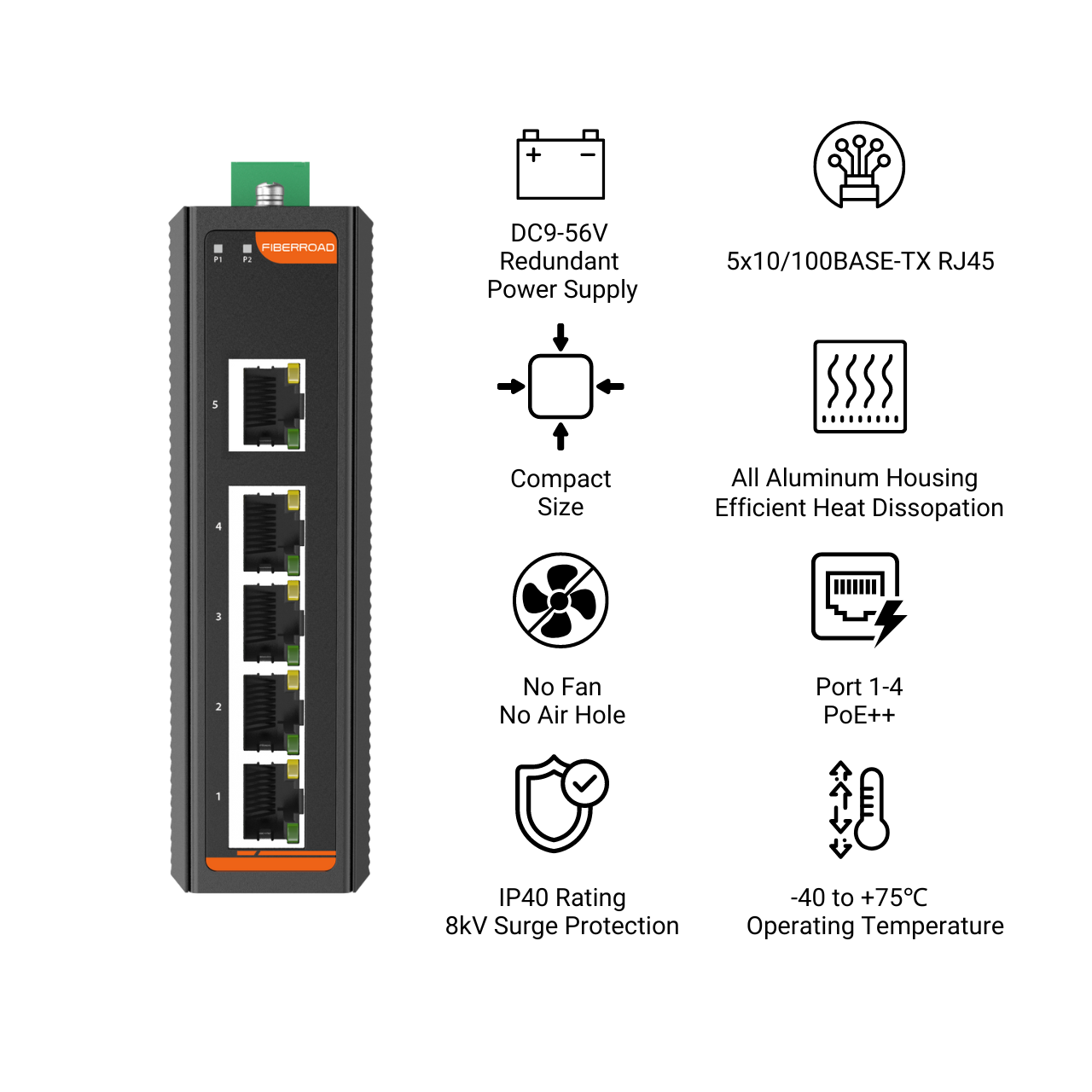

Product Features

  • All-aluminum Case, Compact and Fanless Design
  • Support up to 5 ports x 10/100Base-T or 10/100/1000Base-T
  • Full/Half-duplex self-adaptation
  • MDI/MDIX automatic recognition
  • Support IEEE 802.3af/at/bt PoE Standard, without damaging not-PoE devices.
  • Operating Temperature from -40 to 75℃
  • Dual Redundant DC9~56V power input
  • Support power input polarity protection; no worries about the reverse connection
  • Aluminium shell, fanless design
  • Free fall, shock-proof and vibration-proof for industries
  • Plug and play; no software configuration is needed
  • Either DIN rail or Wall Mount Installation

Video Gallery

Quality Certifications
Guarantee
Share This Product

Exploring the Benefits of a 5 Port Industrial PoE Switch for Enhanced Connectivity and Efficiency

The 5 Port Industrial PoE Switch is a revolutionary networking solution that offers enhanced connectivity and efficiency for various industrial applications. With its five ports, this advanced switch provides seamless integration of multiple devices within an industrial setting, allowing for streamlined data transmission and improved productivity. One of the key benefits of this technology is its Power over Ethernet (PoE) capability, which eliminates the need for separate power cables by delivering both data and power through a single Ethernet cable. This not only reduces clutter but also simplifies installation and maintenance processes, resulting in cost savings and increased flexibility. Moreover, the 5 Port Industrial PoE Switch supports high-speed data transfer rates, enabling rapid communication between connected devices without any interruptions or lag time. Whether used in manufacturing plants or warehouse environments, this cutting-edge switch ensures reliable network performance while optimizing energy consumption through intelligent power management features. Overall, the versatile functionalities offered by the 5 Port Industrial PoE Switch make it an indispensable tool for industries seeking to enhance their connectivity infrastructure while maximizing operational efficiency.

5 Port Industrial PoE Switch
Product Specifications
Ports 5×10/100/1000Base TX RJ45 Port Mode(Tx) Auto Negotiation
Full/Half Duplex
Auto MDI/MDIX
Frame Size 10K PoE Ports Port 1-4
Input Power 9-56V DC Max Power Per Port 90W
Housing Aluminium Case IP Rating IP40
Operating Temperature -40℃ to +75℃ Dimensions 120x90x35mm
Installation Mode DIN Rail and Wall Mount Weight 350g

Maximizing the Lifespan of Industrial PoE++ Switch in Challenging Conditions

The 5 Port Industrial PoE++ Switch is an outstanding solution that combines reliability and ease of maintenance. With its fanless design, this switch ensures quiet operation while preventing any dust or debris accumulation that could potentially affect its performance. Moreover, the low power consumption features not only promote energy efficiency but also reduce operating costs in industrial settings. This versatile switch can effortlessly function in extreme temperatures due to its employment of mature technology and adherence to open network standards. Its ability to withstand electric interference, salt fog, vibrations, and shocks guarantees uninterrupted connectivity even in challenging environments. Additionally, the redundant dual power supplies further enhance dependability for applications requiring continuous connections without any downtime risks.

5 Port Industrial PoE Switch

Boosting Network Performance and Simplifying Installation with a 5 Port Industrial PoE Switch

The 5 Port Industrial PoE Switch offers an impressive range of features that make it a reliable and efficient solution for powering Ethernet-enabled devices. With prowess of up to 90W of power, this switch adheres to the industry-standard 802.3af/at/bt PoE++ protocol, ensuring compatibility with a wide range of devices. The true beauty lies in its Gigabit Ethernet port, which guarantees faster and more dependable connections for all connected devices. Setting up this switch is hassle-free; merely follow a few simple steps, and you’re good to go – no tedious software setups or configurations required. Whether it’s powering security cameras, wireless access points, or other network equipment, the 5 Port Industrial PoE Switch delivers seamless performance while providing peace of mind knowing that your devices are powered reliably and efficiently.

5 Port Industrial PoE Switch

Maximize Power and Data Transmission with a 5 Port Industrial PoE Switch: A Game-Changer for Industrial Applications

The 5 Port Industrial PoE Switch is a true game-changer for industrial applications, offering an unparalleled combination of power and data transmission capabilities. This innovative device allows for the seamless integration of multiple devices within a network, enabling efficient communication and control in demanding industrial environments. With its five ports, this switch provides ample connectivity options, ensuring that all critical components can be effortlessly linked together.

5 Port Industrial PoE++ Switch
IP Surveillance System

An IP surveillance camera is now ubiquitous PoE supported with only one LAN cable, enabling fast deployment and easy repositioning for business, office, and residential environments.

5 Port Industrial PoE++ Switch
Digital Signage

A digital signage can quickly transmit information in schools, hospitals, department stores, stations, airports, and subways, where content can be updated quickly to enhance users’ real-time information.

 Industrial PoE++ Switch
Other PoE Devices

Other PoE-enabled devices, such as POS systems, Information Kiosks, RFID readers, access controls, thin clients, alarms or sensors, are easy and cost-saving, even when they are away from

Ethernet Interface
Model FR-7N1005/FR-7N1005P/1005BT FR-7N3005/FR-7N3005P/3005BT
Ports 5×10/100Base-TX Port(RJ45) 5×10/100/1000Base-TX Port(RJ45)
Port Mode(Tx) Auto Negotiation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3x for flow control and back pressure

IEEE802.3az for Energy Efficient Ethernet(EEE)

IEEE 802.3 for 10BaseT

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x for flow control and back pressure

IEEE802.3az for Energy Efficient Ethernet(EEE)

Packet Buffer Size 512K 1M
Maximum Packet Length 9K 10K
MAC Address Table 4K 4K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 1.25G

Delay time: < 7μs

Backplane bandwidth: 12G

Physical Characteristics
Housing Aluminium case
IP Rating IP40
ESD Protection 6kV
EFT Protection 6kV
Dimensions 120mm x 90mm x35mm (L x W x H)
Installation Mode DIN Rail/Wall Mount
Weight 400g(without PoE)
Working Environment
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Operating Humidity 5%~95% (non-condensing)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
Heat Dissipation 10 BTU/h (Non-PoE)

420 BTU/h (30W PoE)

1260 BTU/h (90W PoE)

Cooling Passive Cooling
Noise Level 0 dBA
PoE & Power Supply
Model FR-7N1104P/3104P FR-7N1104BT/3104BT
PoE Ports Port 1 to 4 IEEE802.3af/at @PoE+ Port 1 to 4 IEEE802.3af/at/bt @PoE++
Power Supply Pin Default: 1/2(+), 3/6(-) Default: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Max Power Per Port 30W 90W
Total PWR /Input Voltage 120W(DC48-56V) (Model dependent) 360W(DC52-56V) (Model dependent)
Power Consumption 3 Watts Max(without PoE load)
Power Inputs 2
Input Voltage 9-56VDC, Redundant dual inputs
Operating Voltage Non-PoE Mode: 9-56VDC

30W PoE Mode: 48-56VDC

90W PoE Mode: 52-56VDC(IEEE802.3bt model)

Connector 1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Protection Overload Current Protection, Reverse Polarity Protection
