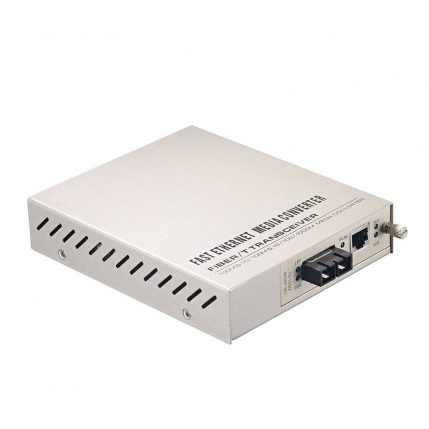

100M Managed Fiber Media Converter

In-band management Fast Ethernet Media Converter is an IEEE 802.3ah OAM compliant copper to fiber Fast Ethernet solution designed to make conversion between 10/100Base-TX and 100Base-FX with SFP modules and fixed type 1×9 modules. With SNMP and Web-based management in the 2U 16 Slots Managed Media Converter Chassis, the administrator can monitor, configure and control the activity of each 802.3ah series card and remotely connected OAM compliant converter. Converter settings include bandwidth control, duplex, and speed configuration, VLAN tagging, limited Q-in-Q support, and SFP DDMI. When used as stand-alone converters, they can be managed by a friendly Web Smart user interface via any web browser.

Inquiry Now

Share This Product:

Key Features

-1-Port 10/100Base-TX to 100Base-FX Converter -Auto-Negotiation or forced mode -Supports remote CPE power fail detect (dying gasp) -Supports Far End Fault Indication (FEFI) -Supports Link Fault Pass-Through (LFPT) -Supports Loop Back Test -Supports RMON counter -Auto Laser Shutdown (ALS) -Auto MDI/MDIX -Forward 2046 bytes (max.) packets in switch mode -Forward 9K jumbo packets in converter mode -Supports transparent Q in Q double tagged frame -Supports IEEE 802.1q Tag VLAN pass-through -Supports local/remote In-band management (Monitor and Configure) by the SNMP manager. (NMC) -Bandwidth control (Nx32Kbps or Nx512Kbps) -Supports IEEE 802.3x flow control (Pause) -Fiber Hardware Reset (FHR) -Online local / remote f/w upgrade

Network Management Preview

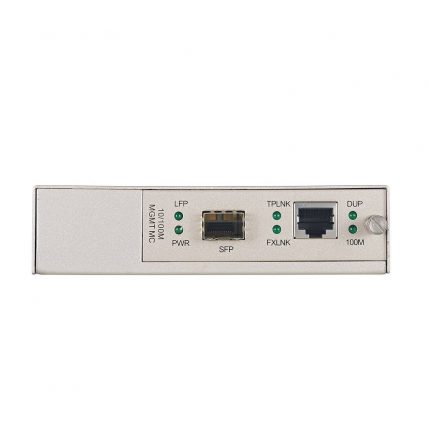

Physical Port
Copper Port	10/100Base-T RJ45
SFP Port	100BASE-X SFP interfaces
Fiber Mode	100BASE-X, 2km-160km, SC/ST/FC
Parameters
Ethernet Standards	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3x flow control and back pressure TS-1000
Packet Length	1600bytes
Transmission Mode	Store and Forward/Cut through
Exchange Property	Delay time: < 7ps Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps
DIP Switches	LFP function:Disable/Enable Fowrward mode:Store and forward/Cut through Copper Forced mode:10Mbps/100Mbps
Managed Features	Supports LFT (Link Fault Pass Through) Supports Digital Diagnostic Monitor Interface (DDM) for SFP Supports OAM/IP in-band management Ingress/Egress Bandwidth control per port Supports 16 IEEE 802.1Q Tag VLAN Group SNMP alarm trap for power loss and port link down Remote loop back test Dying gasp (remote power failure detection)
LED Indicator	Power, FEF, FX-Link, TX-SPD, TX-Duplex, TX-Link, LFP
Power Information
Power Input	DC 5V
Power Consumption	Full-load<4W
Physical Property
Dimensions	120mm×90mm×22mm
Installation Mode	wall-mountable
Weight	100g
Working Environment
Operating Temperature	0°C~50°C
Operating Humidity	10%~90% non-condensing
Storage Temperature	-10°C~70°C
Warranty
MTBF	50,000 hours
Defects Liability Period	1 year warranty, lifetime technical support
Certification Standard
EMC	FCC Part15 Class A CE-EMC/LVD RoHS EN61000-4-2 (ESD), EN61000-4-3 (RS) EN6100044 (EFT), EN6100045 (Surge) EN61000^1-6 (CS), EN61000-4-8 EN61000-4-11

Download for more details

FR-6101_Product Data Sheet
