2 Port Managed 10/100M Media Converter

2 RJ45 Managed Fast Media Converter is an IEEE 802.3ah OAM-compliant copper-to-fiber Fast Ethernet solution designed to make conversion between 10/100Base-TX and 100Base-FX with SFP modules and fixed type 1×9 modules. With SNMP and Web-based management in the 2U 16 Slots Managed Media Converter Chassis, the administrator can monitor, configure and control the activity of each 802.3ah series card and remotely connected OAM-compliant converter. Converter settings include bandwidth control, duplex, and speed configuration, VLAN tagging, limited Q-in-Q support and SFP DDMI. When used as stand-alone converters, it can be managed by a friendly Web Smart user interface via any web browser.


Product Features

  • Supporting Dual RJ45 ports
  • Supporting 10/100M, full/half duplex autosensing
  • Supporting auto-MDI/MDIX
  • Rate Limit function, 32Kbps
  • Supporting 1600byte super data packet transmission
  • Supporting remote power off alarming
  • Economical management function within the bandwidth
  • Supporting hot plug
  • Supporting Remote management
  • Easy installation with complete LED indicators for working situation
  • With powerful network management function, supporting WEB and SNMP

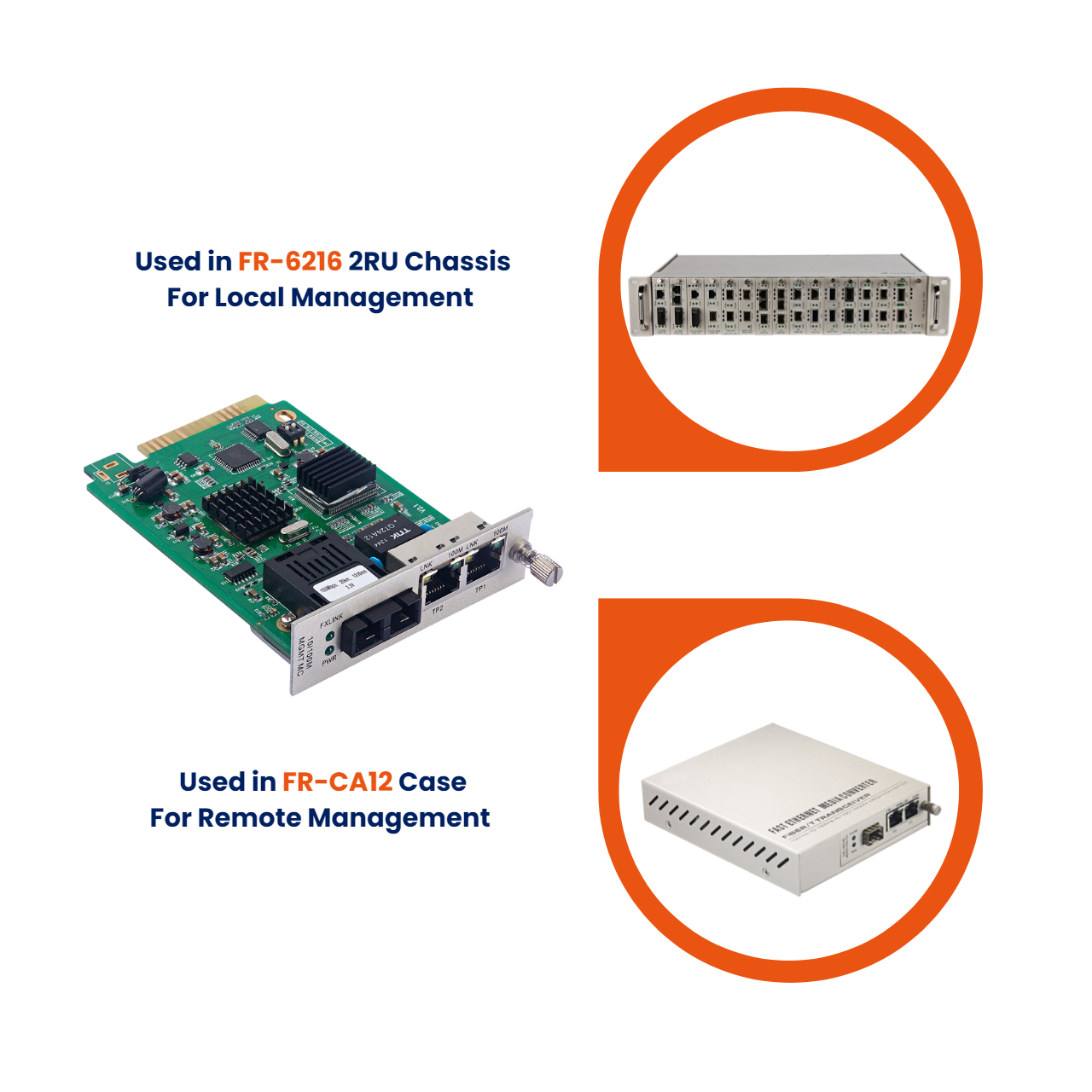

  • Supporting 2U chassis (16 slots) and standalone use

Video Gallery

2-Port 10/100Base-TX to 100Base-FX Managed FE Media Converter Card
2-Port 10/100Base-TX to 100Base-FX Managed FE Media Converter Card
2-Port 10/100Base-TX to 100Base-FX Managed FE Media Converter Card
2-Port 10/100Base-TX to 100Base-FX Managed FE Media Converter Card
Quality Certifications
Share This Product

Maximizing Your Bandwidth: How 2 Port Managed 100M Media Converter Can Help

Maximizing Your Bandwidth: How a 2 Port Managed 10/100M Media Converter Can Help is an informative article highlighting the importance of a managed media converter when optimizing bandwidth usage. The author explains how this device can help businesses increase their network efficiency by converting signals from one type of cable to another, allowing for more excellent compatibility with various devices. With two ports available, users can connect multiple devices and ensure they are all communicating effectively with one another. The managed aspect of this media converter allows for advanced monitoring and control capabilities, enabling administrators to quickly identify and troubleshoot any issues that may arise within their network infrastructure. Overall, utilizing a 2-Port Managed 10/100M Media Converter can greatly improve network performance and provide businesses with the necessary tools to maximize their bandwidth potential.

2 Port 100M Managed Media Converter

Streamline Your Network with the Versatile 2 Port Managed 10/100M Media Converter

The Fast Ethernet Managed Media Converter is an innovative solution to maximize performance and efficiency in your network. With its support for IEEE802.3 ah in-band management, this converter enables you to easily monitor and manage the network traffic in real time, ensuring that your infrastructure runs optimally at all times. The inclusion of Dying Gasp ensures that you are notified immediately when a link failure occurs, allowing for swift resolution of any issues that may arise. Additionally, LFPT (Link Fault Pass Through) allows the converter to detect faults on both sides of the link and inform management software accordingly. Finally, with its ability to handle high bandwidths over long distances without degrading signal quality or speed, this media converter is essential for businesses seeking reliable networking solutions that won’t let them down when they need it most.

2 Port 100M Managed Media Converter




Physical Port
Copper Port 10/100Base-T RJ45×2
SFP Port 100BASE-X SFP interfaces
Fiber Mode 100BASE-X, 2km-160km, SC/ST/FC
Ethernet Standards IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3x flow control and back pressure



Packet Length 1536bytes
Transmission Mode Store and Forward
Exchange Property Delay time: < 7ps

Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps

DIP Switches


Managed Features Supports LFT (Link Fault Pass Through)

Supports Digital Diagnostic Monitor Interface (DDM) for SFP

Supports OAM/IP in-band management

Ingress/Egress Bandwidth control per port

Supports 16 IEEE 802.1Q Tag VLAN Group

SNMP alarm trap for power loss and port link down

Remote loop-back test

Dying gasp (remote power failure detection)

LED Indicator Power, FEF, FX-Link, TX-SPD, TX-Duplex, TX-Link, LFP
Power Information
Power Input DC 5V
Power Consumption Full-load<4W
Physical Property
Dimensions 120mm×90mm×22mm
Installation Mode wall-mountable
Weight 100g
Working Environment
Operating Temperature 0°C~50°C
Operating Humidity 10%~90% non-condensing
Storage Temperature -10°C~70°C
MTBF 50,000 hours
Defects Liability Period 3 year warranty, lifetime technical support
Certification Standard
EMC FCC Part15 Class A



EN61000-4-2 (ESD), EN61000-4-3 (RS)

EN6100044 (EFT), EN6100045 (Surge)

EN61000^1-6 (CS), EN61000-4-8
