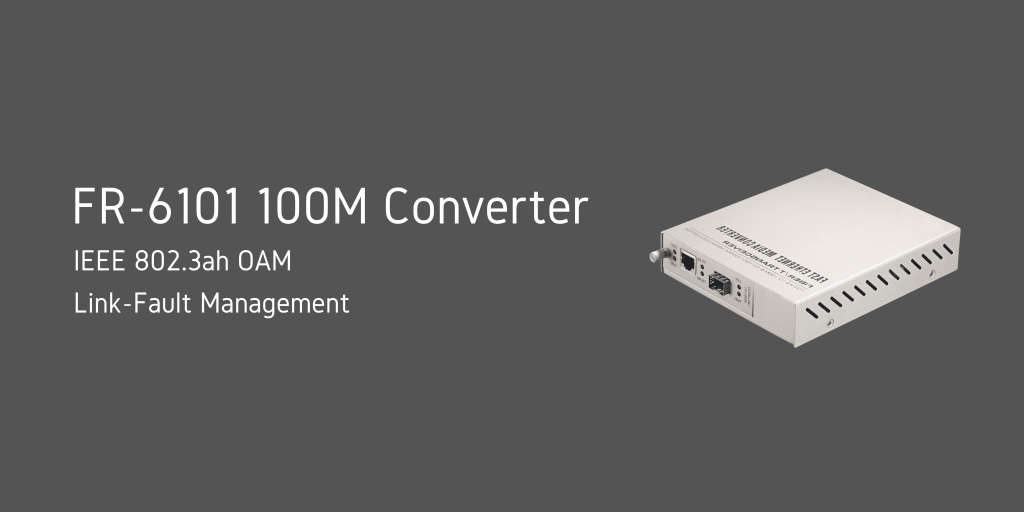

100M Managed Fiber Media Converter

In-band management Fast Ethernet Media Converter is an IEEE 802.3ah OAM compliant copper to fiber Fast Ethernet solution designed to make conversion between 10/100Base-TX and 100Base-FX with SFP modules and fixed type 1×9 modules. With SNMP and Web-based management in the 2U 16 Slots Managed Media Converter Chassis, the administrator can monitor, configure and control the activity of each 802.3ah series card and remotely connected OAM compliant converter. Converter settings include bandwidth control, duplex, and speed configuration, VLAN tagging, limited Q-in-Q support, and SFP DDMI. When used as stand-alone converters, they can be managed by a friendly Web Smart user interface via any web browser.

Managed Fast Ethernet Media Converter
Managed Fast Ethernet Media Converter
Managed Fast Ethernet Media Converter
Managed Fast Ethernet Media Converter
Quality Certifications
Share This Product

Managed Fast Fiber Media Converter

Key Features

1-Port 10/100Base-TX to 100Base-FX Converter -Auto-Negotiation or forced mode -Supports remote CPE power fail detect (dying gasp) -Supports Far End Fault Indication (FEFI) -Supports Link Fault Pass-Through (LFPT) -Supports Loop Back Test -Supports RMON counter -Auto Laser Shutdown (ALS) -Auto MDI/MDIX -Forward 2046 bytes (max.) packets in switch mode -Forward 9K jumbo packets in converter mode -Supports transparent Q in Q double tagged frame -Supports IEEE 802.1q Tag VLAN pass-through -Supports local/remote In-band management (Monitor and Configure) by the SNMP manager. (NMC) -Bandwidth control (Nx32Kbps or Nx512Kbps) -Supports IEEE 802.3x flow control (Pause) -Fiber Hardware Reset (FHR) -Online local / remote f/w upgrade

Network Management Preview



Physical Port
Copper Port 10/100Base-T RJ45
SFP Port 100BASE-X SFP interfaces
Fiber Mode 100BASE-X, 2km-160km, SC/ST/FC
Ethernet Standards IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3x flow control and back pressure



Packet Length 1600bytes
Transmission Mode Store and Forward/Cut through
Exchange Property Delay time: < 7ps

Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps

DIP Switches LFP function:Disable/Enable

Fowrward mode:Store and forward/Cut through

Copper Forced mode:10Mbps/100Mbps



Managed Features Supports LFT (Link Fault Pass Through)

Supports Digital Diagnostic Monitor Interface (DDM) for SFP

Supports OAM/IP in-band management

Ingress/Egress Bandwidth control per port

Supports 16 IEEE 802.1Q Tag VLAN Group

SNMP alarm trap for power loss and port link down

Remote loop back test

Dying gasp (remote power failure detection)

LED Indicator Power, FEF, FX-Link, TX-SPD, TX-Duplex, TX-Link, LFP
Power Information
Power Input DC 5V
Power Consumption Full-load<4W
Physical Property
Dimensions 120mm×90mm×22mm
Installation Mode wall-mountable
Weight 100g
Working Environment
Operating Temperature 0°C~50°C
Operating Humidity 10%~90% non-condensing
Storage Temperature -10°C~70°C
MTBF 50,000 hours
Defects Liability Period 1 year warranty, lifetime technical support
Certification Standard
EMC FCC Part15 Class A



EN61000-4-2 (ESD), EN61000-4-3 (RS)

EN6100044 (EFT), EN6100045 (Surge)

EN61000^1-6 (CS), EN61000-4-8
