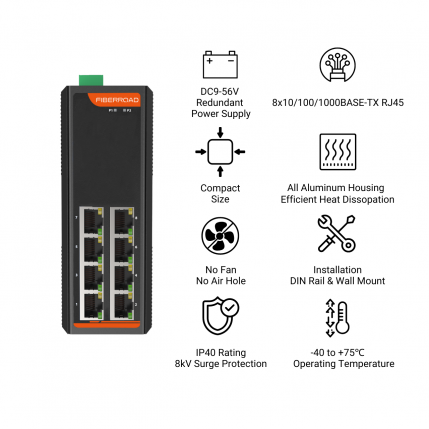

High Industrial Standard Gigabit Ethernet Switch
The unmanaged Industrial Switch comes with high bandwidth and Jumbo Frames, ensuring connection with wireless AP, IP cameras, and VoIP phones with Gigabit Ethernet connections. Thus, an 8-port Industrial Gigabit Switch can transfer large amounts of data faster and with higher bandwidth.
| Product Specifications | |||
|---|---|---|---|
| Ports | 8×10/100/1000Base TX RJ45 | Port Mode(Tx) | Auto Negotiation Full/Half Duplex Auto MDI/MDIX |
| Frame Size | 9K | Transmission Mode | Store and Forward |
| Input Power | 9-56VDC | Power Connector | 1 Removable 6-contact Terminal Block |
| Housing | Aluminium Case | IP Rating | IP40 |
| Operating Temperature | -40℃ to +75℃ | Dimensions | 138x108x49mm |
| Installation Mode | DIN Rail and Wall Mount | Weight | 680g |
Ensure Industrial Network Switch Operates In Harsh Environments
The Unmanaged Industrial Network switch is designed for reliability and ease of maintenance. It features such as a fanless design and low power consumption. The Industrial Network Switch can operate at low and high temperatures thanks to mature technology. It is also resistant to electric interference, salt fog, vibration, and shocks. The system also features redundant dual power supplies, allowing for additional reliability for applications that require always-on connections.
Plug and Play Meets a Variety of Application Needs
| Ethernet Interface | ||
| FR-7N1008 | FR-7N3008 | |
| Ports | 8×10/100Base-TX Port(RJ45) | 8×10/100/1000Base-TX Port(RJ45) |
| Port Mode(Tx) | Auto-Negotiation
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
|
| Standards | IEEE 802.3 for Ethernet
IEEE 802.3u for Fast Ethernet IEEE 802.3x for flow control and back pressure |
IEEE 802.3 for 10BaseT
IEEE 802.3u for Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x for flow control and back pressure |
| Packet Buffer Size | 1M | 2M |
| Maximum Packet Length | 10K | 9K |
| MAC Address Table | 4K | 4K |
| Transmission Mode | Store and Forward (full/half duplex mode) | |
| Exchange Property | Delay time: < 7μs
Backplane bandwidth: 2G |
Delay time: < 7μs
Backplane bandwidth: 20G |
| Physical Characteristics | |
| Housing | Aluminum case |
| IP Rating | IP40 |
| Dimensions | 138mm x 108mm x 49mm (L x W x H) |
| Installation | DIN Rail/Wall Mount |
| Weight | 680g |
| Environmental | |
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) |
| Operating Humidity | 5%~95% (non-condensing) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| MTBF | 907,476 hours @ Telcordia SR-332 Standard |
| Heat Dissipation | 34 BTU/h (non-PoE mode)
853 BTU/h (with 240W PoE load) |
| Cooling | Passive Cooling, Fanless Design |
| Noise Level | 0 dBA |
| PoE & Power Supply | ||
| Model | FR-7N1008P/FR-7N3008P | FR-7N1008BT/FR-7N3008BT |
| PoE Ports | Port 1 to 8 IEEE802.3af/at @PoE+ | Port 1 to 8 IEEE802.3af/at/bt @PoE++ |
| Power Supply Pin | Default: 1/2(+), 3/6(-) | Default: 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Max Power Per Port | 30W | 90W |
| Total PWR /Input Voltage | 240W(DC48-56V) (Model dependent) | 480W(DC52-56V) (Model dependent) |
| Power Consumption | 10 Watts Max(without PoE load) | |
| Power Inputs | 2 | |
| Input Voltage | 9-56VDC,Redundant dual inputs | |
| Operating Voltage | Non-PoE Mode: 9-56VDC
30W PoE Mode: 48-56VDC 90W PoE Mode: 52-56VDC(IEEE802.3bt model) |
|
| Connector | 1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm |
|
| Protection | Overload Current Protection, Reverse Polarity Protection | |
