The Benefits of Applying Web Smart Industrial Ethernet Technology to IP Surveillance

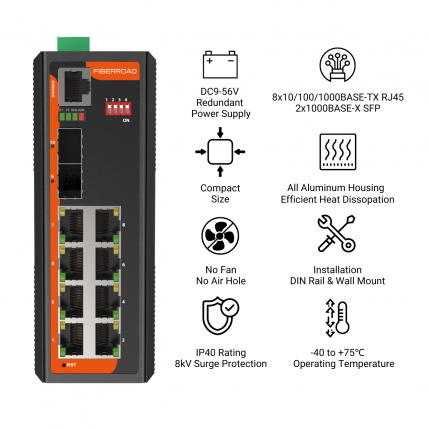

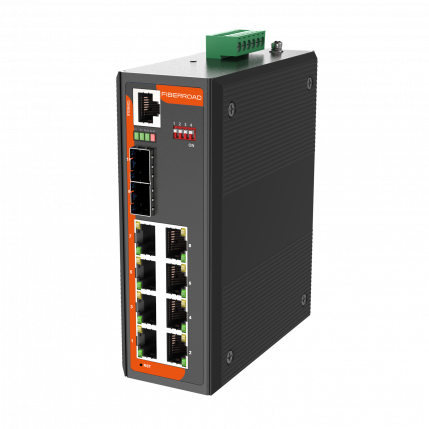

Upgrade your system with the Web Smart Industrial Ethernet Switch by Fiberroad. Experience unparalleled user-friendly web management and unlock more advanced capabilities compared to Unmanaged Industrial Ethernet Switches. Trust in our expertise to enhance network efficiency confidently as a Network Engineer.
| Product Specifications | |||
|---|---|---|---|
| Ports | 8×10/100/1000Base TX RJ45 2×100/1000Base-X SFP |
Port Mode(Tx) | Auto Negotiation Full/Half Duplex Auto MDI/MDIX |
| Frame Size | 9K | Transmission Mode | Store and Forward |
| Input Power | 9-56V DC | DIP Switch | RSTP/VLAN/SPEED |
| Housing | Aluminium Case | IP Rating | IP40 |
| Operating Temperature | -40℃ to +75℃ | Dimensions | 138x108x49mm |
| Installation Mode | DIN Rail and Wall Mount | Weight | 680g |
The Versatility of Web Smart Industrial Ethernet Switches Across Temperature Extremes
Industrial Managed Ethernet Switches are capable of operating reliably, stably, and quietly in any hardened environment without affecting its performance. It comes with operating temperatures ranging from -40 to 75 degrees C in a rugged IP40 Aluminium housing. Additionally, 8KV surge protection increases product stability and protects users’ networks from devastating attacks, ensuring that the flow of operations does not fluctuate.
Optimizing Data, Voice, and Video Applications: Exploring the Benefits of Web Smart Industrial Ethernet Switch
Powered by robust QoS features and powerful traffic management, this Web Smart Industrial Ethernet Switch is optimized for business-class data, voice, and video applications. The feature includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. This Web Smart Industrial Ethernet Switch provides the best VoIP and video stream performance and empowers enterprises to fully appreciate limited network resources.
The value-added features offer an Unexpected Experience
Introducing the Web Smart Industrial Ethernet Switch, a marvel of modern technology that breathes life into your small and medium-sized video surveillance networks! With its intelligent DIP switches tucked away within its robust frame, this ingenious creation empowers users to effortlessly deploy Rapid Spanning Tree Protocol (RSTP) and Virtual Local Area Network (VLAN) functions in the blink of an eye. Gone are the days of endless configuration headaches; now you can revel in the sheer simplicity and speed with which network reliability becomes a reality. No longer will you be confined by limitations or restricted by uncertainties – this switch is your gateway to seamless connectivity that guarantees uninterrupted surveillance operations. It’s time to embark on an exhilarating journey where innovation meets efficiency, all thanks to our game-changing Web Smart Industrial Ethernet Switch!
Ensure that audio and video applications remain clear and lag-free by setting the priority of the traffic based on QoS.
A virtual network allows device grouping in different physical LANs, improving information security and reducing traffic congestion.
Utilizing RSTP to provide redundancy in the Video Surveillance Network, as well as enhance network performance and reliability.
| Ethernet Interface | |
| Mode | FR-7S3208 |
| Ports | 8×10/100/1000Base-T RJ45 ports+2×100/1000Base-X SFP ports |
| Port Mode(Tx) | Auto-Negotiation Speed
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
| Packet Buffer Size | 2M |
| Maximum Packet Length | Up to 9K |
| MAC Address Table | 4K |
| Transmission Mode | Store and Forward (full/half duplex mode) |
| Exchange Property | Delay time: < 7μs
Backplane bandwidth: 20Gbps |
| IGMP Group | 256 |
| VLAN ID Range | VID 1 to 4094 |
| Power Supply | ||
| Input Voltage | 9-56VDC,Redundant dual inputs | |
| Power Consumption | 5 Watts Max(Full Load) | |
| Power Inputs | 2 | |
| Connector | 1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm |
|
| Protection | Overload Current Protection, Reverse Polarity Protection | |
| Software Features | |
| Redundancy Protocol | Support STP/RSTP |
| Multicast Support | Support IGMP Snooping V1 |
| VLAN | Support IEEE 802.1Q 4K VLAN, Port Isolation, Trunk Group Setting |
| QOS | Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight |
| Diagnostic Maintenance | Support port mirroring, Port Statistics, Cable Diagnostic |
| Management Function | WEB、SNMPv1, EEE, Green Ethernet |
| Security | Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint |
| Advance Functions | Bandwidth Control(Ingress and Egress Rate), Jumbo Frame, Firmware Online Upgrade, Configuration Backup |
| Physical Characteristics | |
| Housing | Aluminium case |
| IP Rating | IP40 |
| Dimensions | 138mm x 108mm x 49mm (L x W x H) |
| Installation | DIN Rail/Wall Mount |
| Weight | 680G |
| Environmental | |
| Operating Temperature | -40 to 75℃ |
| Operating Humidity | 5%~95% (non-condensing) |
| Storage Temperature | -40℃~85℃ |
| MTBF | 500,000 hours |
| Heat Dissipation | 34 BTU/h |
| Cooling | Passive Cooling, Fanless Design |
| Noise Level | 0 dBA |
