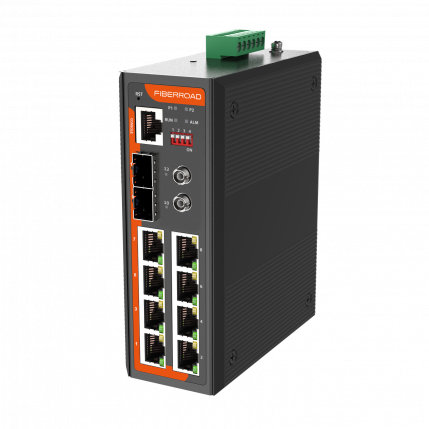

Industrial Network Switch with Optical Fiber Bypass
The New Generation Managed Industrial Switch with 8-Port 10/100/1000Base-TX, and 2xGigabit SFP ports provide reliable Ethernet transmission. To prevent fibre network communication during power loss, The Industrial Switch has built-in 2-channel SC/FC/ST connectors for optical bypass. A managed industrial network switch with optical fiber bypass supports various management functions, including Rapid Spanning Tree, Multiple Spanning Tree and Ethernet Ring Protection Switching (ERPS) protocols for network redundancy. The IGMP facility can handle the multicast traffic commonly used in Video Surveillance deployments.
Layer 2+ Industrial Network Switch With Optical Fiber Bypass
Fiberroad L2+, a managed industrial network switch, was designed for industrial Ethernet networks. In such a rugged enclosure, it provides user-friendly IPv6/IPv4 management interfaces, comprehensive layer 2 switching functions, and Layer 3 static routing support. Industrial Ethernet switches operate stably under temperature ranges between -40 and 75 degrees, allowing DIN rail mounting or wall mounting to utilise cabinet space efficiently. This allows you to extend the distance with 2 Gigabit SFP ports.
High-Performance Network Management
- Web-based CloudMQTT to monitor the Industrial Network anytime, anywhere.
- Command-line interface(CLI) and Firo WebGUI management for configuring major managed functions.
- SNMPv1/v2C/v3 for different levels of network management.
- Web-based NMS support automatically discovers and diagrams network topology
Complete Security Mechanisms
- AAA&RADIUS, IEEE 802.1X, SNMPv3, HTTPs/SSLv3,SSH2.0 to enhance network security.
- Support user hierarchical management, ACL control list
- Port isolation within the same VLAN, DHCP-Snooping
- DDOS, port-based MAC filtering/binding, MAC black holes, IP source protection
Advanced Layer 2+ Features
- Build a redundant network with STP/RSTP/MSTP/ERPSv2.
- IPv4/IPv6 Management and Static Route.
- ACL Based on MAC, IP address,MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN.
- Retagging and complicated flow classification based on VLAN, MAC/IP.
Extreme Networks Industrial Switches for Harsh Environments

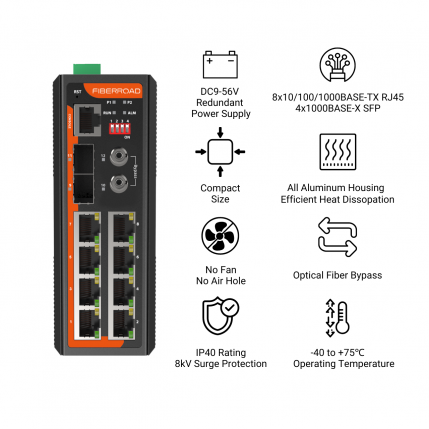

The housing has an IP40 Durable Aluminum housing and fanless design provides efficient heat dissipation. Industrial Network Switches protect against electromagnetic interference and heavy electrical surges, usually found on plant floors or curb-side traffic control cabinets. Additionally, it features an integrated power supply source (9–56V DC) for worldwide high availability applications that require dual or backup voltage inputs. Indeed, The design of the switch ensures operates in Harsh Environment.
The Fastest and Easiest Way to Maintain Fiber Networks
Industrial Network Switch built-in 2 simplex ST/SC/FC connectors featuring 2-channel optical bypass function. Fiber connections are supported in the optical fiber ports with speeds of 1Gbps. It automatically switches optic network traffic to prevent link failure during power loss. Additionally, it allows the local network switch to be replaced or removed without any downtime.
Establish a Secure Network with L2+ Industrial Network Switches
FR-7M3408F provides robust Layer 2+ Gigabit networks connectivity, including but not limited to Static route, LAN network security, ACL/QoS policy… Moreover, By configuring ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power system in industrial automation networks to enhance system reliability and uptime in harsh environments. As can be seen, the Managed Industrial Switch is easy to manage and maintain.
Keep up with the Industrial Network Anytime, Anywhere
Managed Industrial Ethernet Switch allows various network management methods, such as the WebGUI, CLI and NMS. The notion of easy to use, particularly with no additional hardware investment and installation. Industrial Network Switch can deploy centralised management, Layer 2 to Layer 4 QoS, Bandwidth allocation, real-time monitoring, etc.
Both SSH2.0 and HTTPS/TLS protocols are utilized to provide powerful protection against network threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC-based network access control, user hierarchical management, SNMPv3 authentication, and so on to complement it as an all-security solution. The Industrial Network Switch administrator can now construct highly-secure corporate networks with considerably less time and effort than before.
2x1000Base-X Optical Fiber Bypass
2x1000Base-X (SFP Slots)
2x1000Base-X Optical Fiber Bypass
|Port Mode(Tx)||Auto-Negotiation Speed
Full/Half Duplex Mode
Auto MDI/MDI-X Connection
|Bypass Interface||2 x Simplex SC/FC/ST|
|Bypass Optic Mode,
|Port 10: T1310/R1550nm 20km
Port 12: T1550/R1310nm 20km
|Bypass Return Loss||Multimode: ＞50dB;Singlemode: ＞35dB|
|Bypass Insertion Loss||Typical: 1.0dB; Max: 1.5dB|
|Bypass Switching Time||＜ 8ms|
|Standards||IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
|Console||1x RJ45-to-RS232 Serial Port(115200)|
|Packet Buffer Size||2Mbits|
|Maximum Packet Length||Up to 9K|
|MAC Address Table||4K|
|Transmission Mode||Store and Forward (full/half duplex mode)|
|Exchange Property||Delay time: < 7μs
Backplane bandwidth: 20Gbps
|Max. No. of VLAN||64|
|VLAN ID Range||VID 1 to 4094|
|Power Consumption||10 Watts Max|
|Input Voltage||9-56VDC,Redundant dual inputs|
|Connector||1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm
|Protection||Overload Current Protection, Reverse Polarity Protection|
|Redundancy Protocols||Support STP/RSTP/MSTP/ERPSv2, Link Aggregation|
|Multicast Support||Support IGMP Snooping V1/V2/V3，support GMRP, GVMP,802.1Q|
|VLAN||Support IEEE 802.1Q 4K VLAN，support QINQ, Double VLAN,|
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|ACL||Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
|Diagnostic Maintenance||Support port mirroring, Syslog, Ping|
|Management Function||Support CLI、WEB、SNMPv1/v2/v3，Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT|
|Alarm Management||Support 1 way relay alarm output, RMON, TRAP|
|Security||Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82，802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS，port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|Advance Layer 2+ Features||IPv4/IPv6 Management
