4-Port 10/100/1000T + 2-Port 1G SFP Web Smart Industrial Network Switch

Fiberroad’s Smart Industrial Ethernet Switch FR-7S3204 is an innovative and independent product for industrial networking. We define it as the LITE model, designed specifically for small industrial networks and highly cost-effective. In addition to adopting industry-leading technical standards, this product can guarantee reliable and reliable Ethernet transmissions. The models are available in both non-PoE and PoE versions and can power the latest high-powered PoE devices over a wide industrial operating temperature range.

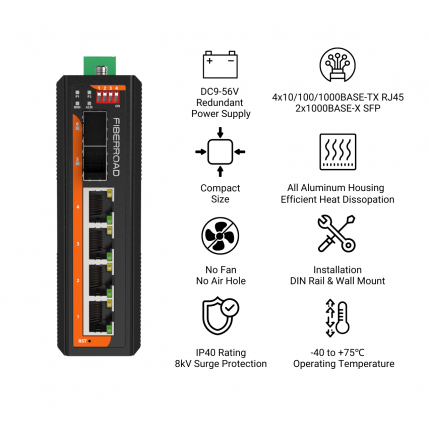

Product Features

  • A compact, all-aluminium case with a fanless design.
  • The temperature from -40 to 75°C maintains performance in extreme conditions
  • DIP Switch supports RSTP/VLAN/SPEED.
  • Provide 9K bytes Jumbo frame that is compatible with multiple extension protocols
  • Facility IEEE802.3az energy-efficient Ethernet
  • Complete with electricity surge protection, easy to use in an outdoor environment
  • Detailed status indicator, working state at a glance
  • Design for power input polarity protection
  • Either DIN rail or Wall Mount Installation

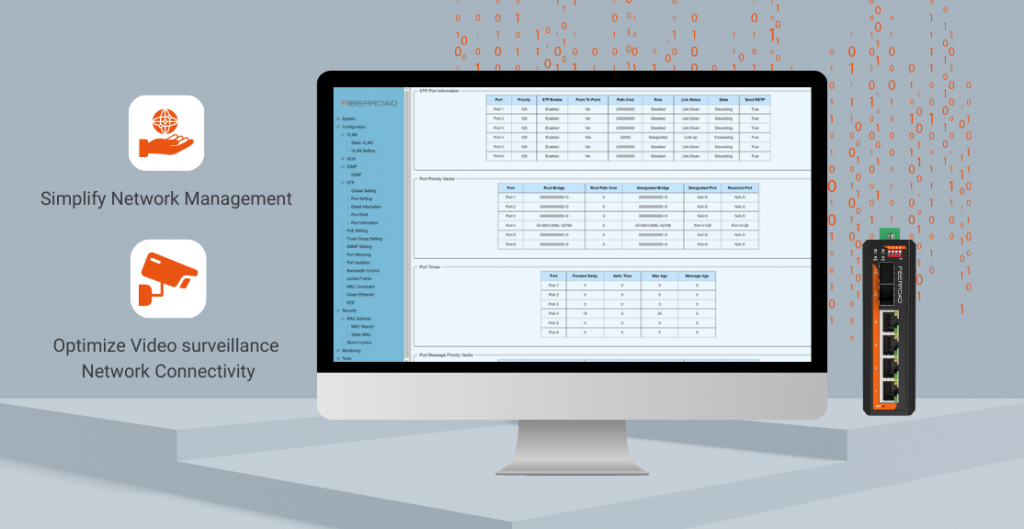

  • An easy-to-use WebGUI interface

Video Gallery

Quality Certifications
Guarantee
Share This Product

Power Your IP CCTV Network With Web Smart Industrial Network Switch

The Web Smart Industrial Network switch from Fiberroad packs serious power for your IP CCTV network. With jumbo frame support, it provides high bandwidth and low latency, ideal for real-time video streaming. The DIP switch enables features like RSTP, VLAN tagging and speed configuration, giving you total flexibility. Plus, the built-in surge protection guards against spikes and fluctuations, making it suitable for outdoor use. The easy-to-navigate web GUI interface allows for quick VLAN and QoS setup. Together, these features provide a robust, high-performance switching solution to power and manage your security camera network with ease.

web smart industrial switch
Product Specifications
Ports 4×10/100/1000Base TX RJ45
2×100/1000Base-X SFP
Port Mode(Tx) Auto Negotiation
Full/Half Duplex
Auto MDI/MDIX
Frame Size 10K Transmission Mode Store and Forward
Input Power 9-56V DC DIP Switch RSTP/VLAN/SPEED
Housing Aluminium Case IP Rating IP40
Operating Temperature -40℃ to +75℃ Dimensions 120x90x35mm
Installation Mode DIN Rail and Wall Mount Weight 350g

Rugged, Reliable and Ready for The Harshest Conditions

Ready for the harshest of conditions, this rugged web smart industrial network switch promises reliable performance even in extreme environments. Operating in a wide temperature range from -40 to 75 degrees Celsius within an IP40 aluminium housing, it provides surge protection up to 8KV to shield your network from power spikes and attacks. Designed for stability under the most demanding conditions, this switch delivers dependability when you need it most. Whether you’re networking remote rigs, industrial machinery or outdoor infrastructure, this web smart industrial switch’s tough blend of features ensures signal clarity and uptime so your operations can run smoothly no matter the weather.

web smart industrial switch

Secure Your Surveillance Network With Web Smart Industrial Switch

Powered by robust QoS features and powerful traffic management, this managed industrial-grade network switch is optimized for business-class data, voice, and video applications. The feature includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. This Industrial Ethernet Switch provides the best VoIP and video stream performance and empowers enterprises to fully appreciate limited network resources.

web smart industrial switch

The value-added features offer an Unexpected Experience

Industrial Grade Network Switches are equipped with intelligent DIP switches that enable users to deploy RSTP and VLAN functions quickly. So that small and medium-sized video surveillance networks can also have network reliability.

industrial grade network switch
QoS for Video Priority Guaranteed

Ensure that audio and video applications remain clear and lag-free by setting the priority of the traffic based on QoS.

industrial grade network switch
VLAN for Security

A virtual network allows device grouping in different physical LANs, improving information security and reducing traffic congestion.

industrial grade network switch
RSTP for Network Redundancy

Utilizing RSTP to provide redundancy in the Video Surveillance Network, as well as enhance network performance and reliability.

Ethernet Interface
Mode FR-7S3204 FR-7S3204P/BT
Ports 4×10/100/1000Base-T RJ45 ports+2×100/1000Base-X SFP ports
Port Mode(Tx) Auto-Negotiation Speed

Full/Half Duplex Mode

Auto MDI/MDI-X Connection

Standards IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

Packet Buffer Size 1M
Maximum Packet Length Up to 9K
MAC Address Table 4K
Transmission Mode Store and Forward (full/half duplex mode)
Exchange Property Delay time: < 7μs

Backplane bandwidth: 12Gbps

IGMP Group 256
VLAN ID Range VID 1 to 4094
Software Features
Redundancy Protocol Support STP/RSTP
Multicast Support Support IGMP Snooping V1
VLAN Support IEEE 802.1Q 4K VLAN, Port Isolation, Trunk Group Setting
QOS Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight
Diagnostic Maintenance Support port mirroring, Port Statistics, Cable Diagnostic
Management Function WEB、SNMPv1, EEE, Green Ethernet
Security Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint
PoE Management(PoE Model) PoE Mode, State and Power Monitoring
Advance Functions Bandwidth Control(Ingress and Egress Rate), Jumbo Frame, Firmware Online Upgrade, Configuration Backup



Support Documents

Item Type Version Release Date
Web Smart Industrial Switch_Product Data Sheet
433 KB
Datasheet
2D Drawing
110 KB
2D Drawing
Quick Start Guide
22 MB
Manual
WebGUI Network Management User Guide-Lite
2 MB
Manual
