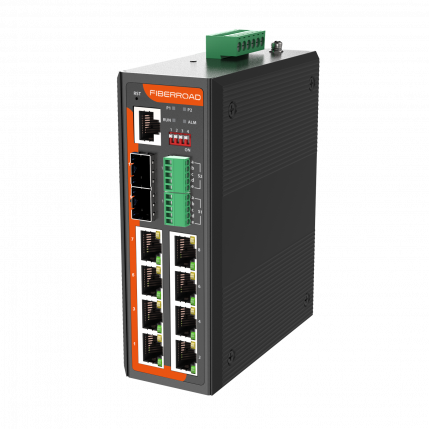

12-Port(with 8 PoE+/PoE++)Serial Over Ethernet Industrial Switch

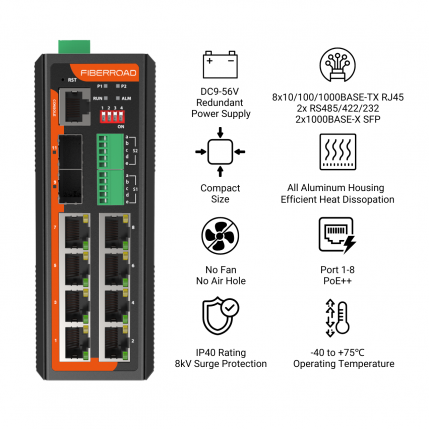

The new generation Managed PoE Industrial Switch with 8-Port 10/100/1000Base-TX + 2 x RS485/422/232 and 2xGigabit uplink ports to provide stable and reliable Ethernet transmission. It converts RS-232/422/485 connections to Ethernet connections, allowing for seamless communication between traditional serial-based devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet device. Moreover, It can supply power to PD terminal equipment such as wireless AP, webcam, VoIP, and visual intelligent building intercom through network cable and meet the network environment that needs a high-density PoE/PoE+/PoE++ power supply.
Managed Industrial Network Switch with PoE
FR-7M3408SBT L2+ Managed Industrial PoE switch has high-standard industrial grade and synchronously supplies power and data to power devices across a copper cable. Connects such as Wireless AP, IP Camera, and VoIP Phones satisfy both IEEE802.3bt PoE++ and gigabit ethernet connection. It will increase bandwidth for higher performance when transferring large amounts of services across Ethernet networks.
Smart PoE Features
- IEEE802.3af/at/bt standard automatically identifies power devices without damaging non-PoE devices.
- Up to 90W per port.
- PoE++ Switch port will supply power to the high priority level port when the power budget is insufficient.
- PoE output power allocation, Scheduling of PoE operation.
Advance Layer2+ Features
- Build a redundant network with STP/RSTRP/MSTP/ERPSv2.
- IPv4/IPv6 Management and Static Route
- ACL Based on MAC, IP address.
- Retagging and complicated flow classification based on VLAN, MAC/IP.
- Flexible bandwidth control policies.
High-Performance Network Management
- Web-based CloudMQTT to monitor the PoE Network anytime, anywhere.
- Command-line interface(CLI) and Firo WebGUI management for configuring major managed functions.
- SNMPv1/v2C/v3 for different levels of network management.
- FIRO Web-based NMS enable discovery and diagrams of PoE++ Switch network topology.
- Integration of Modbus TCP and Modbus RTU/ASCII networks.
Complete Security Mechanisms
- AAA&RADIUS, IEEE 802.1X, SNMPv3, HTTPs/SSLv3,SSH2.0 to enhance network security.
- Support user hierarchical management, ACL control list
- Port isolation within the same VLAN, DHCP-Snooping
- DDOS, port-based MAC filtering/binding, MAC black holes, IP source protection, ARP message speed limit
Industrial-grade Design for a Harsh Environment
Additionally, the aluminium housing and fanless design provide efficient heat dispersal. Moreover, the switch operates at a wide temperature range (-40 to +75°C). The industrial PoE switch also supports Energy-Efficient Ethernet(EEE) to reduce power consumption by 50% while retaining compatibility with existing equipment.
Compliance with IEEE802.3af/at/bt PoE++ Standard
IEEE802.3af/at/bt standard applies to ports 1-8. As a critical addition, it can automatically identify and recognize all power devices that meet the standard and supply power through the network cable.
Converting Between Serial and Ethernet Connectivity
Fiberroad Serial over Ethernet Industrial Switch provides an all-in-one solution. It converts RS232/422/485 connections to Ethernet connections, allowing seamless communication between traditional serial-based devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet device. More importantly, the industrial switch is fully compliant with Modbus/TCP and offers a convenient solution for connecting existing devices or controllers running the Modbus serial protocol(Modbus/ACSCII or Modbus/RTU) to an Ethernet network.
Establish a secure network with L2+ industrial switches
FR-7M3408SBT provides robust Layer 2+ Gigabit networks connectivity, including but not limited to Static route, LAN network security, ACL/QoS policy… Moreover, By configuring ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power system in industrial automation networks to enhance system reliability and uptime in harsh environments. As can be seen, the Managed Industrial Switch is easy to manage and maintain.
Manage the Industrial PoE Network Anytime, Anywhere
Managed Industrial PoE Switch allows various network management methods, such as the WebGUI, CLI and NMS. The notion of easy to use, particularly with no additional hardware investment and installation. Industrial PoE Switch can deploy centralised management, real-time monitoring, checking PoE usage and scheduling PoE operation.
Industrial and factory automation systems.
Outdoor electrical application.
Rail and intelligent transportation system(ITS).
Oil and gas platforms.
Clean Energy System
Industrial Ethernet switches have a wide operating voltage range, while regular switches require higher voltages. Regular switches are basically single power supply, while industrial switch power supplies are generally dual power supply backup. Industrial Ethernet switches can be installed in DIN rails and racks.
2×100/1000Base-FX (SFP Slots)
2x RS485/422/232(5-pin Serial Terminal)
Full/Half Duplex Mode
Auto MDI/MDI-X Connection
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
|Packet Buffer Size||2Mbits|
|Maximum Packet Length||Up to 9K|
|MAC Address Table||4K|
|Transmission Mode||Store and Forward (full/half duplex mode)|
Delay time: < 7μs
Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps
|Max. No. of VLAN||64|
|VLAN ID Range||VID 1 to 4094|
|Ports||2 x RS485/422/232|
RS-422: a:T+、 b:T-、 c:R+、d:R-、 e:GND
RS-485: ：a: Na、 b: Na、 c:D+、d:D-、 e:GND
|Load Capacity||RS-485/422 supports 128 points polling environment|
|Movement||RS-485 adopts automatic data flow control technology|
RS-232 15KV static protection
Isolation voltage 2KV, electrostatic protection 15KV
|Serial Protocol||TCP Server/Client, UDP, Modbus ASCII TCP Server/Client, Modbus RTU Server/Client|
|Interconnection||Data Bits, Parity, Stop Bits Configuration|
|Serial Statistics||Bytes and Packets Statistics|
|PoE & Power Supply|
|PoE Ports||Port 1 to 8 IEEE802.3af/at @PoE+||Port 1 to 8 IEEE802.3af/at/bt @PoE++|
|Power Supply Pin||Default: 1/2(+), 3/6(-)||Default: 1/2(+), 3/6(-) or 4/5(+), 7/8(-)|
|Max Power Per Port||30W||90W|
|Total PWR /Input Voltage||240W(DC48-56V) (Model dependent)||480W(DC48-56V) (Model dependent)|
|Power Consumption||10 Watts Max(without PoE load)|
|Input Voltage||9-56VDC, Redundant dual inputs|
Non-PoE Mode: 9-56VDC
30W PoE Mode: 48-56VDC
90W PoE Mode: 52-56VDC(IEEE802.3bt model)

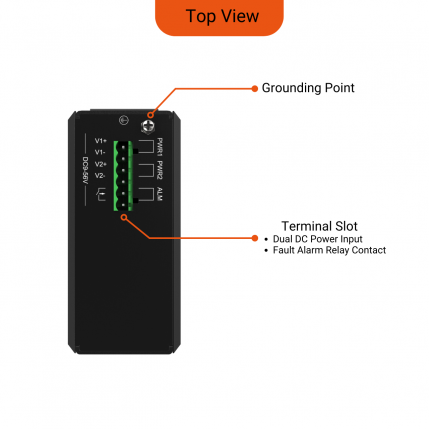

1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm
|Protection||Overload Current Protection, Reverse Polarity Protection|
