10/100M Industrial PoE Fiber Media Converter – Rugged Connectivity for Harsh Environments

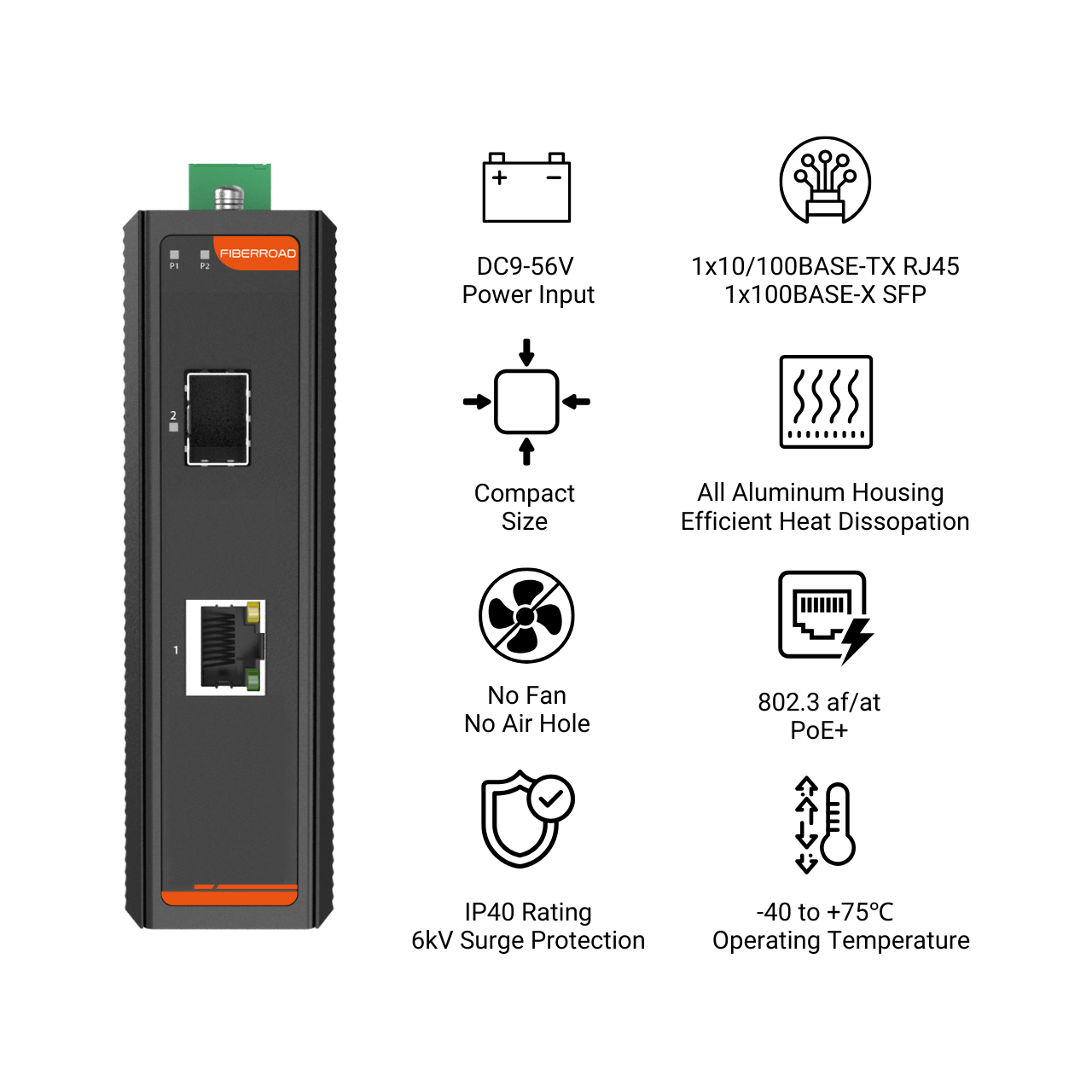

Built for demanding industrial applications, this 10/100M Industrial PoE Fiber Media Converter delivers reliable data and power transmission in extreme conditions. Operating flawlessly in temperatures ranging from -40℃ to +75℃, it ensures stable performance in freezing cold or scorching heat environments. With ±6kV surge protection on the PoE port, it safeguards connected devices against power surges and electrical interference. Its wide 5% to 95% operating humidity range makes it ideal for humid or moisture-prone installations. Supporting both Fast Ethernet (10/100M) and PoE (IEEE 802.3af/at), this rugged media converter is perfect for industrial automation, remote surveillance, and outdoor networking where durability and long-distance fiber connectivity are critical.

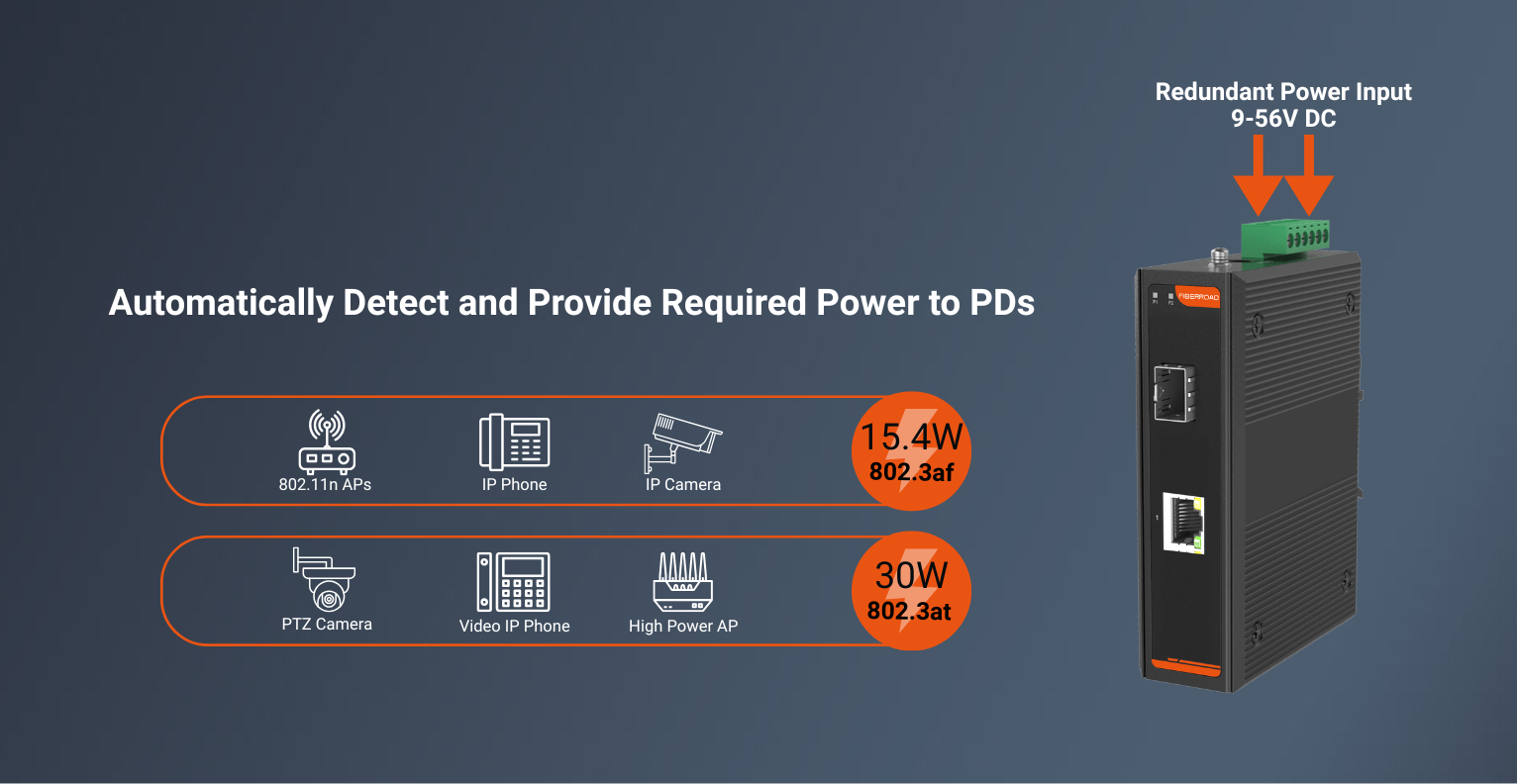

10/100M Industrial PoE+ Fiber Media Converter – Intelligent Power Delivery
Designed for industrial applications, this 10/100M PoE+ Fiber Media Converter combines reliable data transmission with intelligent power delivery, fully compliant with IEEE 802.3af/at (PoE+) standards. Featuring auto-sensing technology, it automatically detects connected Powered Devices (PDs) and delivers the precise power required—from 15.4W to 30W—ensuring safe and efficient operation for IP cameras, wireless access points, and other PoE devices. With rugged construction to withstand extreme temperatures (-40℃ to +75℃) and ±6kV surge protection on the PoE port, this converter provides robust connectivity for industrial automation, outdoor surveillance, and harsh environment deployments. Its fiber optic capability eliminates EMI interference while extending network reach far beyond copper limitations.
Extend Network Reach Up to 120km via Fiber Optic Module

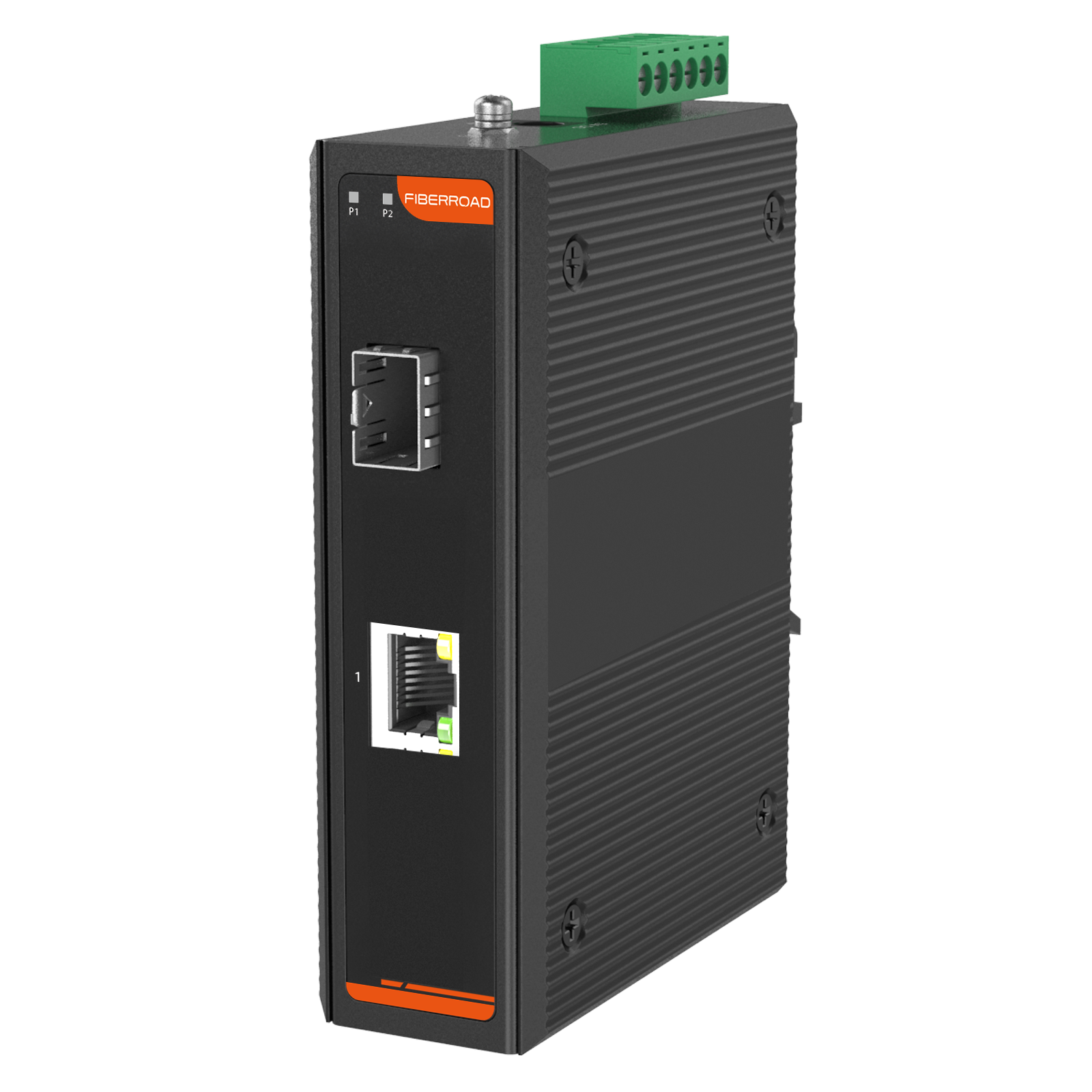

This Industrial Fast Ethernet PoE Fieber Media Converter bridges copper and fiber networks with flexible connectivity options. Featuring an SFP slot for optical modules, it enables long-distance fiber transmission up to 120km, far beyond traditional Ethernet limits. Ideal for industrial applications requiring extended reach—such as remote surveillance, smart transportation, and rugged outdoor networks—this converter maintains high-speed Fast Ethernet PoE+ power and data delivery while overcoming distance barriers. With ruggedized design and reliable fiber-optic performance, it ensures stable, interference-free connectivity across vast industrial deployments.
| Hardware Specifications | |||
| Product | FR-7N1101 | FR-7N1101P | FR-7N1101BT |
| Copper Ports | 1×10/100BASE-TX RJ45 Auto-MDI/MDI-X (Port 1) | ||
| Fiber Ports | 1x100BASE-X SFP Slot (Port 2) | ||
| Enclosure | IP40 aluminum case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 120 x 90 x 35 mm | ||
| Weight | 370g(Bare weight), 470g(With package) | ||
| Surge Protection | ±6kV DC, ±4kV RJ45 | ±6kV DC, ±6kV RJ45 | |
| Switching | |||
| Switch Architecture | Store-and-Forward | ||
| Switch Fabric | 1.8Gbps/non-blocking | ||
| Forward Filter Rate | 14,880pps(10Mbps)
148,800pps(100Mbps) |
||
| Packet Buffer Size | 1 Mbits | ||
| MAX. Packet Length | 1536 bytes | ||
| MAC Address Table | 2K entries, automatic source address learning and aging | ||
| Power Supply and PoE | |||
| Product | FR-7N1101 | FR-7N1101P | FR-7N1101BT |
| Power Input | 2 | ||
| Power Connector | 1 removable 6-contact terminal block
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm(As required) |
||
| Operating Voltage | DC9-56V | DC48-56V | DC52-56V |
| Power Consumption | 3 Watts Max (without PoE load) | ||
| Protection | Reverse Polarity, Overload Current | ||
| PoE Ports | \ | Port 1 IEEE802.3 af/at | Port 1 IEEE802.3 af/at/bt |
| PoE Power Supply Type | \ | End-span | End-span |
| Power Supply Pin | \ | 1/2(+), 3/6(-) | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Max Power Per Port | \ | 30W | 90W |
| PoE Power Budget | \ | 35W | 95W |
| Environmental | |||
| Operating Temperature | -40℃ to +75℃ (-40 to 167 ℉) | ||
| Storage Temperature | -40℃ to +85℃ (-40 to 185 ℉) | ||
| Operating Humidity | 5%~95% (non-condensing) | ||
| Heat Dissipation | 7 BTU/h (Non-PoE), 218 BTU/h (with 30W PoE load), 314 BTU/h (with 90W PoE load) | ||
| Cooling | Passive Cooling | ||
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ | ||
| LED Indicators | |||
| P1 & P2 | ON: Power is being supplied, OFF: Power is not being supplied | ||
| Fiber Port | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Amber LEDs | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Green LEDs | ON: Port is operating at 100 Mb/s, OFF: Port is operating at 10 Mb/s | ||
