12 Port Managed Industrial Ethernet Switch

Experience unparalleled performance with the Layer 2+ Plus Managed Industrial Ethernet Switch, designed specifically for demanding industrial environments. Engineered for exceptional stability and reliability, this switch ensures seamless Ethernet transmission in factories, outdoor settings, and harsh conditions. Its robust construction withstands the rigors of industrial applications while delivering advanced management features that facilitate optimal network control. Elevate your operational efficiency and safeguard your critical data communications with a solution that has consistently proven its mettle across various sectors. Invest in enduring quality—choose the Layer 2+ Plus Managed Industrial Ethernet Switch for your networking needs.



Product Features

  • 8×10/100/1000BASE-T Gigabit Ethernet RJ45
  • 4×100/1000BASE-X SFP ports for SFP Type auto detection
  • Optionally support IEEE 802.3 af/at/bt Power Over Ethernet Standard
  • Full gigabit L2+ management, easy to manage the network by CLI/WebGUI/NMS.
  • Build up a redundant industrial network with STP/RSTP/MSTP/ERPSv2
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • Traffic Classification Based on IEEE 802.1p, CoS, WRR, and Strict Mode
  • SNMPv1/v2c/v3 for different levels of network management
  • Wide operating temperature range -40 to 75℃(-40 to 167℉)

Video Gallery

Quality Certifications
Guarantee
Share This Product

Maximize Efficiency and Connectivity with 12 Port Industrial Ethernet Switch

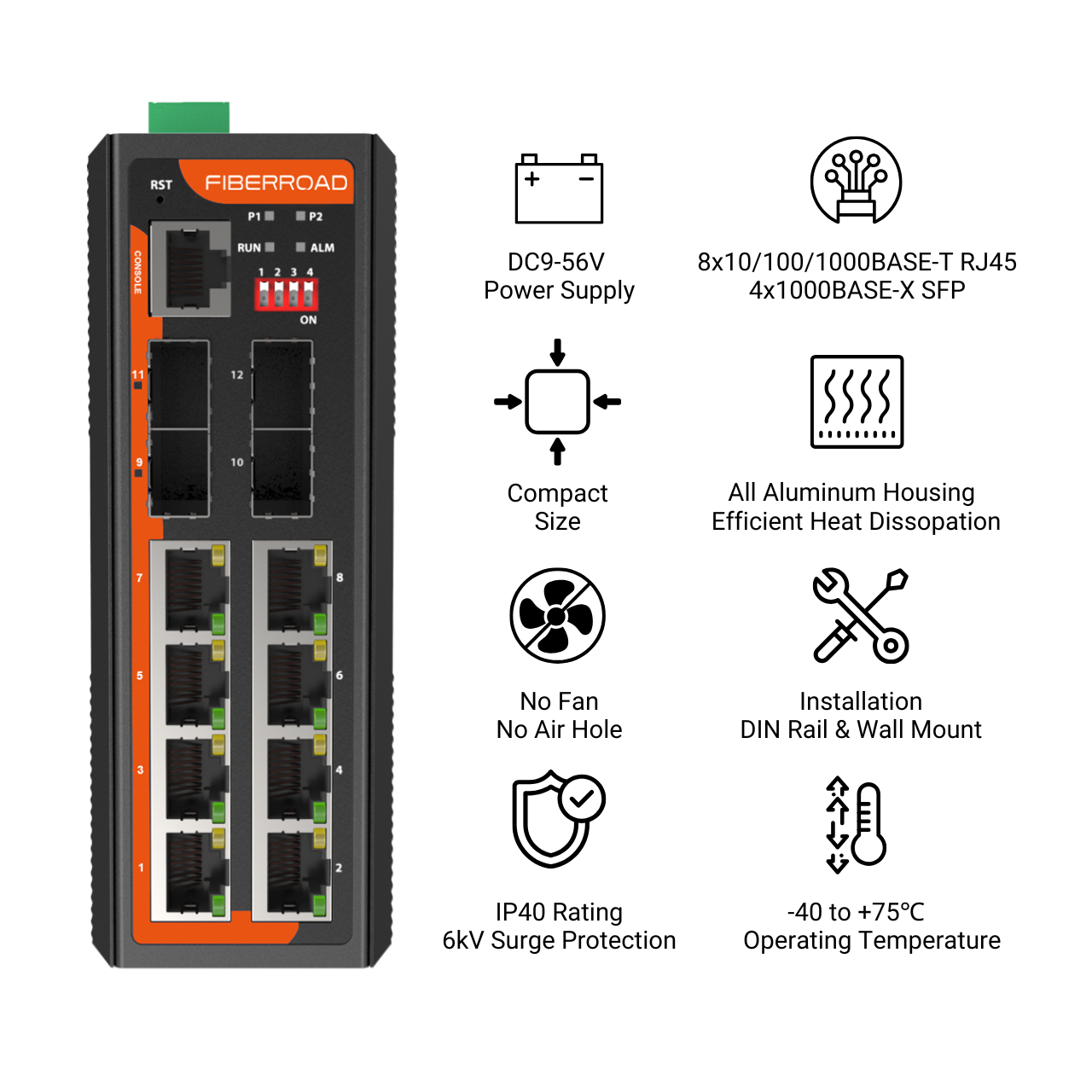

Fiberroad FR-7M3408 is a managed industrial network switch designed for the industrial ethernet network. It provides user-friendly advanced IPv6/IPv4 management interfaces, comprehensive layer 2 switching functions and Layer 3 static routing capability within such a rugged enclosure. The 12 Port industrial Ethernet switch can operate stably under the temperature range from -40 to 75 degrees and allows either DIN-rail or wall mounting for efficient use of cabinet space. It can be flexibly applied with four Gigabit SFP ports to extend the connection distance.

12 Port Industrial Ethernet Switch

Discover the Benefits of 12 Port Industrial Ethernet Switch for Harsh Environment

With IP40 Durable Aluminum housing and fanless design also provide efficient heat dissipation. The 12 Port Industrial Ethernet Switch provides a high level of immunity against electromagnetic interference and heavy electrical surges, usually found on plant floors or curb-side traffic control cabinets. It also possesses an integrated power supply source with a wide range of voltages (9 to 56V DC) for worldwide high availability applications requiring dual or backup power inputs. Indeed, The design of the switch ensures operates in Harsh Environment.

12 Port Industrial Ethernet Switch

Stay Connected Anywhere, Anytime with Our 12 Port Industrial Ethernet Switch

FR-7M3408 provides robust Layer 2+ Gigabit networks connectivity, including but not limited to Static route, LAN network security, ACL/QoS policy… Moreover, By configuring ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power system in industrial automation networks to enhance system reliability and uptime in harsh environments. As can be seen, the Managed Industrial Switch is easy to manage and maintain.

Maximizing Uptime: Ensuring Reliable Operations through Remote Network Management

Managed Industrial Ethernet Switch allows various network management methods, such as the WebGUI, CLI and NMS. The notion of easy to use, particularly with no additional hardware investment and installation. Industrial Network Switch can deploy centralised management, Layer 2 to Layer 4 QoS, Bandwidth allocation, real-time monitoring, etc.

12 Port Industrial Ethernet Switch Network Management

FAQs


What is the operating temperature range for your 12 Port Industrial Ethernet Switch?

The 12 Port Industrial Ethernet Switch is designed to operate reliably in extreme temperatures, from -40 to 75 degrees. You can also rest assured that it will stay in place with either DIN-rail or wall mounting for optimal cabinet space efficiency. Its four Gigabit SFP ports will further expand the connection distance, allowing you to customize your network solutions.

Can your industrial network switch operate on a wide range of voltages for high-availability applications requiring dual or backup power inputs?

Yes! Our Industrial Ethernet Switch is designed to operate on a wide range of voltages (9 to 56V DC) for high-availability applications requiring dual or backup power inputs. It also has IP40 Durable Aluminum housing with fanless design that provides efficient heat dissipation and enhanced immunity against electromagnetic interference and heavy electrical surges, usually found on plant floors or curb-side traffic control cabinets.

What makes the design of your 12-port industrial Ethernet switch unique compared to other switches in the market?

Our 12-Port Industrial Ethernet Switch is designed with IP40 Durable Aluminum housing, fanless design and integrated power supply source with a wide range of voltages (9 to 56V DC), making it one of the most reliable switches on the market. In addition, our industrial network switch provides a high level of immunity against electromagnetic interference and heavy electrical surges, giving you peace of mind that your network is protected.

Hardware Specifications
Product FR-7M3408 FR-7M3408P FR-7M3408BT
Copper Ports 8×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (Port 1-8)
Fiber Ports Default: 2×100/1000BASE-X SFP Slots (Port 9/10 and Port 11/12)
Console 1x RJ45-to-RS232 Serial Port(115200)
Connector 1 removable 6-contact terminal blocks

Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm

Alarm One relay output for power failure, Alarm relay current carry ability: 1A@24V DC
RAM 128Mbyte
FLASH 32MByte
Reset Button <5 sec: System Reboot; >10 sec: Factory Default
Surge Protection ±6kV DC, ±4kV RJ45 ±6kV DC, ±6kV RJ45
Enclosure IP40 aluminum case
Installation DIN-Rail and Wall-mount
Dimension 138 x 108 x 49mm
Weight 700g(Bare weight), 900g(With package)
Switching
Switch Architecture Store-and-Forward
Switch Fabric 36Gbps/non-blocking
Forwarding Rate 17.86Mpps(64-byte packet size)
Packet Buffer Size 4 Mbits
Maximum Packet Length 10K bytes
MAC Address Table 8K entries, automatic source address learning and aging
Flow Control IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
PoE & Power Supply
PoE Ports \ Port 1 to 8 IEEE802.3 af/at Port 1 to 8 IEEE802.3 af/at/bt
PoE Power Supply Type \ End-span End-span
Power Supply Pin \ 1/2(+), 3/6(-) 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Max Power Per Port \ 30W 90W
Input Voltage DC9-56V DC48-56V DC52-56V
PoE Power Budget \ 240W maximum

(Depending on power input)

240W maximum

(Depending on power input)

Environmental
Operating Temperature -40℃~75℃ (-40 to 167 ℉)
Storage Temperature -40℃~85℃ (-40 to 185 ℉)
Operating Humidity 5%~95% (non-condensing)
MTBF 907,476 hours @ Telcordia SR-332 Standard
Heat Dissipation 34 BTU/h (non-PoE mode)

853 BTU/h (with 240W PoE load)

Cooling Passive Cooling, Fanless Design
Noise Level 0 dBA
