The Power of Layer 2+ Managed Industrial Switches
Layer 2+ Managed Industrial Switches are a game-changer when it comes to enhancing network efficiency in industrial settings. These advanced switches offer a multitude of benefits that make them ideal for demanding environments. In addition to VLAN support, QoS prioritization, and packet snooping, these switches also minimize latency and packet loss during communication within the network.

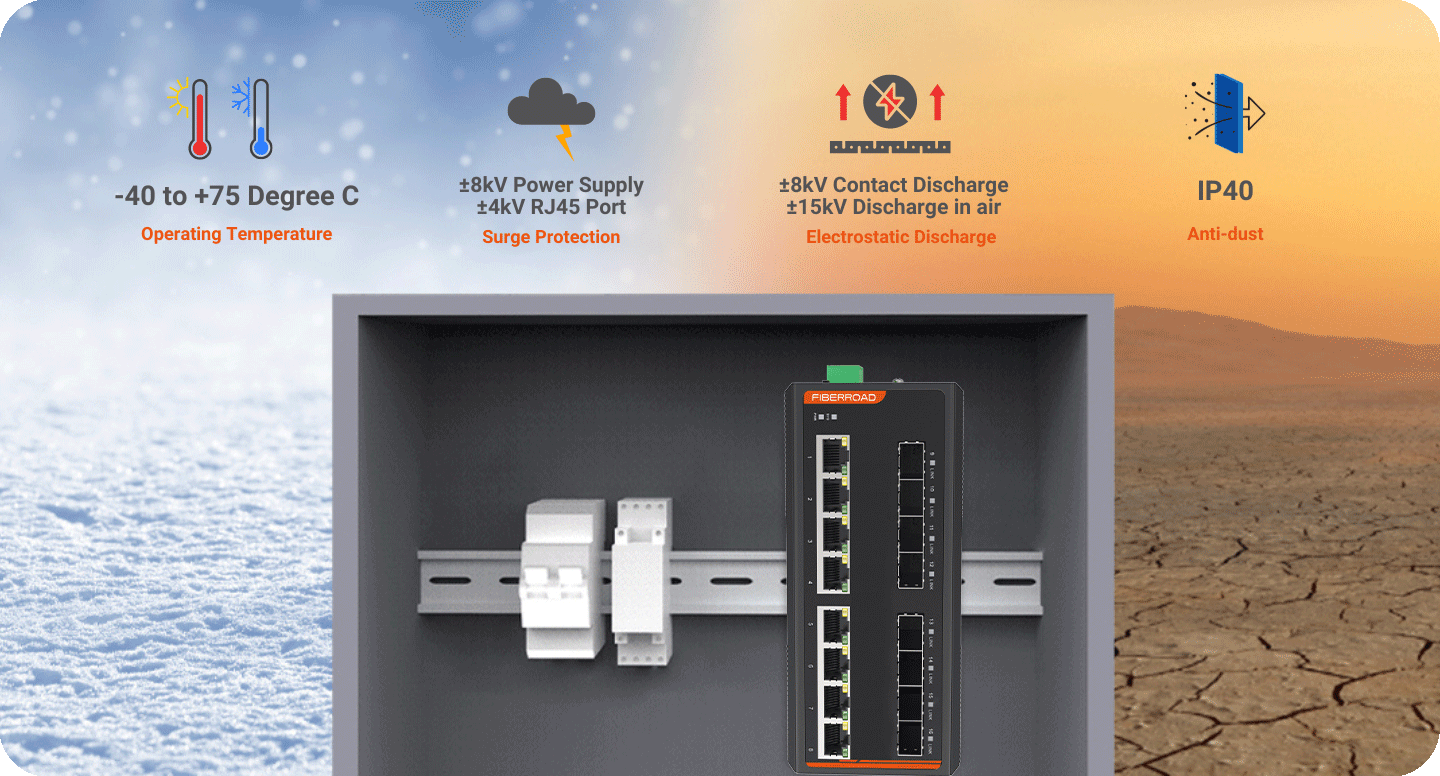

The Benefits of Operating a Layer 2+ Managed Industrial Switch in Harsh Environments
A layer 2+ managed industrial switch offers a wide range of benefits when it comes to operating in harsh environments, improving the efficiency and reliability of industrial networks in a significant way. Due to their specific design, these switches can withstand extreme temperatures, humidity, dust, vibrations, and electromagnetic interference commonly encountered in industrial environments.
Secure Industrial Network Connectivity for Enhanced Efficiency and Productivity
In today’s fast-paced industrial environment, it is crucial to optimize efficiency and productivity through secure network connectivity. By utilizing cutting-edge technologies like MSTP and ERPSv2, businesses can ensure seamless communication between devices while maintaining a high level of security. MSTP allows for redundant paths in the network, ensuring continuous transmission of data even if one path fails. This not only enhances reliability but also minimizes downtime, thereby maximizing efficiency. Additionally, ERPSv2 offers rapid fault detection and recovery times in ring topologies, further increasing network resilience and productivity. With such advanced technologies at their disposal, businesses can effectively streamline their operations and stay competitive in the rapidly evolving industrial landscape.
MSTP
ERPSv2
Harnessing the Power of Console, Web, and SNMP Interfaces
Easily and efficiently manage your network with the Layer 2+ Managed Industrial Ethernet Switch. This innovative device offers a comprehensive solution for monitoring and controlling your network infrastructure through console, web, and SNMP interfaces. The intuitive web interface allows for easy configuration of settings, traffic monitoring, and real-time troubleshooting. Seamlessly integrate with existing network management systems using the SNMP interface for centralized control over all connected devices. For a more hands-on approach, the console interface provides direct access to advanced configuration options for maximum flexibility. Embrace the power of these tools to effortlessly manage your industrial Ethernet network with unparalleled ease and effectiveness.
| Ethernet Interface | |

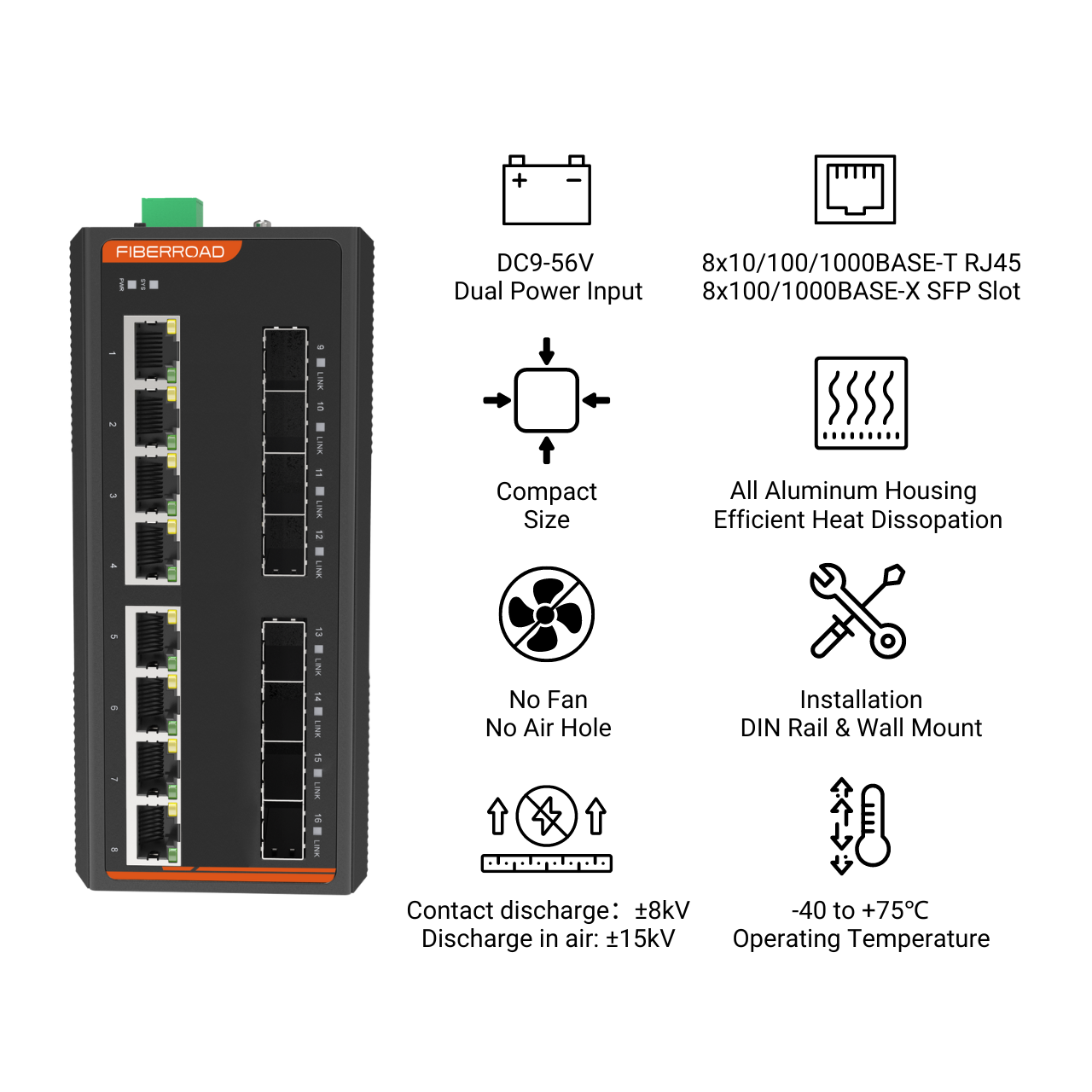

| Ports | 8×10/100/1000Base-T Ports(RJ45 connector)
8×100/1000BASE-X SFP slots for SFP type auto detection |
| Port Mode(Tx) | Auto Negotiation Speed
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP |
| Packet Buffer Size | 4Mbits |
| Maximum Packet Length | Up to 10k |
| MAC Address Table | 8k |
| Transmission Mode | Store and Forward (full/half duplex mode) |
| Exchange Property | Delay time: < 7μs
Backplane bandwidth: 52Gbps |
| IGMP GroupS | 2048 |
| Max. No. of VLAN | 64 |
| VLAN ID Range | VID 1 to 4094 |
| Physical Characteristics | |
| Housing | Aluminum case |
| IP Rating | IP40 |
| Dimensions | 160mmx132mmx70mm(L x W x H) |
| Installation | DIN Rail/Wall Mount |
| Weight | 1200g |
| Environmental | |
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| MTBF | 907,476 hours @ Telcordia SR-332 Standard |
| Heat Dissipation | 65 BTU/h (non-PoE mode) |
| Cooling | Passive Cooling, Fanless Design |
| Noise Level | 0 dBA |
| Ethernet Software Features | |
| Redundancy Protocols | Support STP/RSTP/ERPSv2, Link Aggregation |
| Multicast Support | Support IGMP Snooping V1/V2/V3，support GMRP, GVMP,802.1Q |
| VLAN | Support IEEE 802.1Q 4K VLAN，support QINQ, Double VLAN, |
| Time Management | SNTP |
| QOS | Flow-based redirection
Flow-based rate limiting Flow-based packet filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) |
| ACL | Port-based Issuing ACL
ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc |
| POE Management (Depending on model) | Total power limit of PoE power supply
PoE output power allocation PoE output priority configuration PoE working status Scheduling of PoE operation |
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping |
| Management Function | Support CLI、WEB、SNMPv1/v2/v3，Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT |
| Alarm Management | Support 1 way relay alarm output, RMON, TRAP |
| Security | Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82，802.1X security access, Support user hierarchical management, ACL access control list, Support DDOS，port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit |
| Advance Layer 2+ Features | IPv4/IPv6 Management
Static Route |
