Industrial-Grade Temperature Resilience

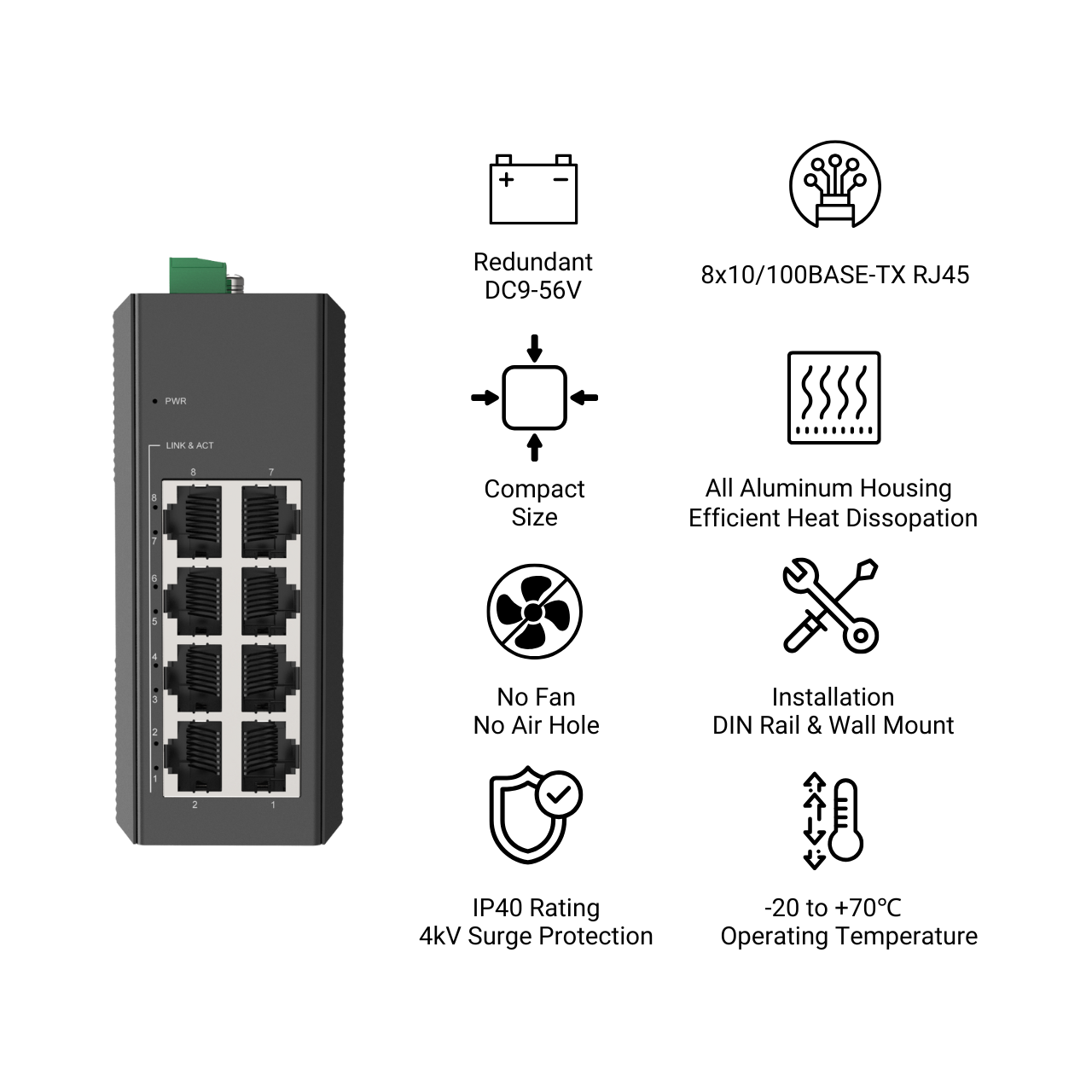

Engineered for extreme environments, this 8-port Ethernet switch delivers reliable performance in temperatures ranging from -20°C to +70°C. Its rugged construction ensures stable operation in harsh industrial settings such as manufacturing facilities, outdoor surveillance systems, or transportation networks, where resistance to thermal stress and environmental fluctuations is critical.
Enhanced 8-Port Auto-MDI/MDIX Flexibility
Featuring eight 10/100TX auto-negotiation ports with Auto-MDI/MDIX support, this switch eliminates crossover cables. It automatically detects and adjusts to connected devices, simplifying deployments in complex industrial networks. This flexibility streamlines connections between PLCs, cameras, sensors, and legacy hardware, reducing installation time and errors.
Dual DC9-56V Power Redundancy
Equipped with dual 9- 56V DC power inputs, this switch ensures uninterrupted operation in mission-critical applications. The redundant power design provides failover protection against voltage fluctuations or primary power failures, making it ideal for industrial automation, energy grids, or infrastructure projects where continuous uptime is non-negotiable.
Advanced MAC Address Auto-Learning & Aging
Supporting MAC address auto-learning and auto-aging, this switch optimizes network efficiency and security. It dynamically updates connected device information, discards outdated entries, and allocates bandwidth intelligently. This feature is essential for dynamic industrial environments with frequent device changes, ensuring robust performance and minimizing unauthorized access risks.
Cost-Effective 100Mbps Industrial Connectivity
Designed for budget-conscious scalability, this unmanaged switch offers plug-and-play 10/100Mbps speeds with industrial-grade reliability. Its backward compatibility and auto-negotiation capabilities make it ideal for upgrading legacy systems or expanding IoT/automation networks. The durable design and simplified maintenance ensure long-term value in demanding applications without compromising affordability.
| Hardware Specifications | |
| Product | FR-6N1008 |
| Copper Ports | 8×10/100BASE-TX RJ45 Auto-MDI/MDI-X (Port 1-8) |
| Fiber Ports | \ |
| Enclosure | IP40 aluminum case |
| Installation | DIN-Rail and Wall-mount |
| Dimension | 100mm x 78mm x40mm (L x W x H) |
| Weight | 250g(Bare weight), 300g(With package) |
| Surge Protection | ±4kV DC, ±2kV RJ45 |
| Switching | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 1.8Gbps/non-blocking |
| Forwarding Rate | 1.19 Mpps(64-byte packet size) |
| Packet Buffer Size | 1Mbits |
| Maximum Packet Length | 1536 bytes |
| MAC Address Table | 2K entries, automatic source address learning and aging |
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Power | |
| Power Input | 2 |
| Power Connector | 1 removable 5-contact terminal blocks
Pin 1/2 for Power 1, Pin 4/5 for Power 2 |
| Operating Voltage | 9-56V DC |
| Power Consumption | 6 Watts Max |
| Protection | Reverse Polarity
Overload Current |
| Environmental | |
| Operating Temperature | -20℃~70℃ (-4 to 158 ℉) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| Operating Humidity | 5%~90% (non-condensing) |
| Heat Dissipation | 10 BTU/h |
| Cooling | Passive Cooling |
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ |
| LED Indicators | |
| PWR | ON: Power is being supplied
OFF: Power is not being supplied |
| LINK & ACT (Port 1-8) | ON: Port connection is active
OFF: Port connection is not active |
