Industrial-Grade Fast Ethernet ConnectivityDemanding Environments

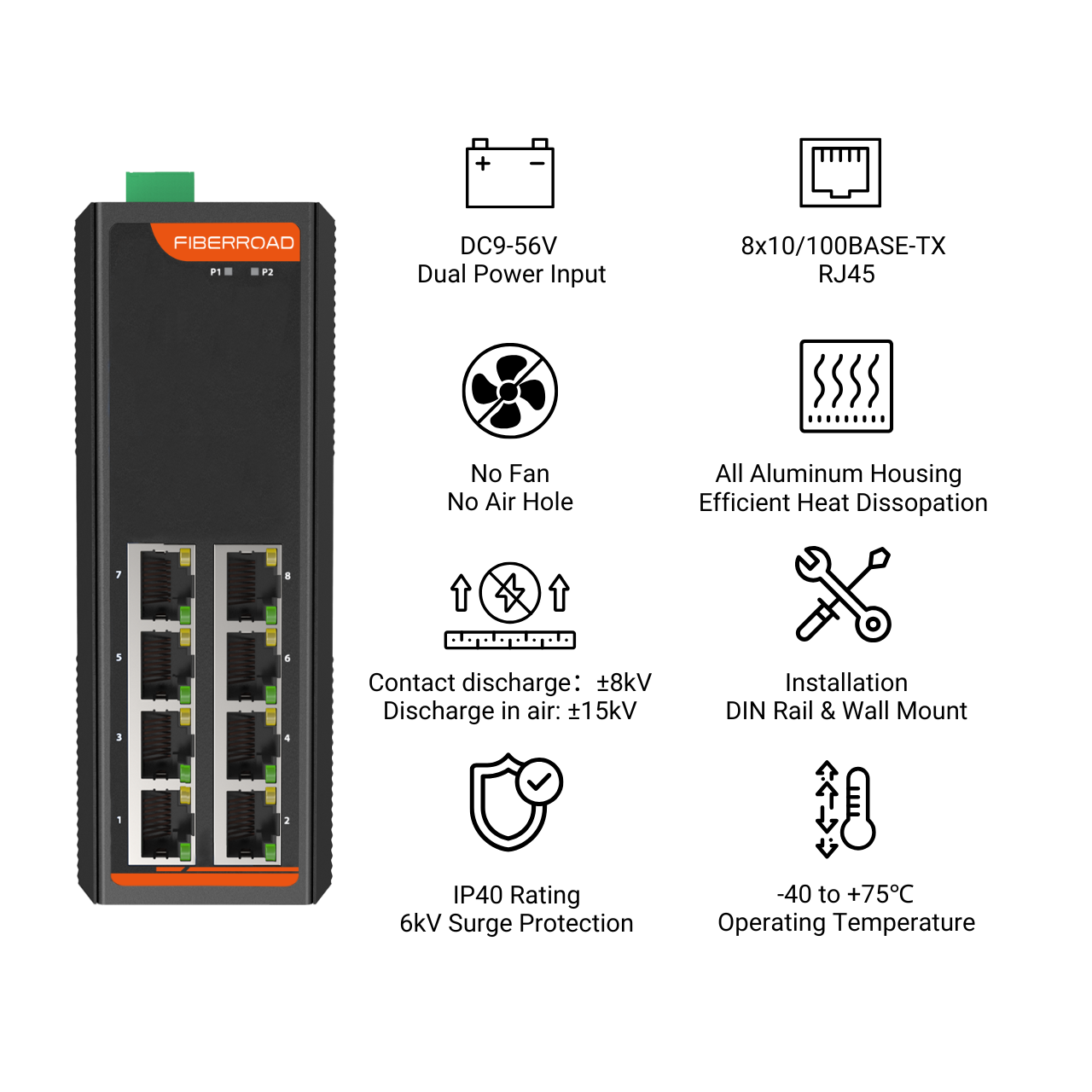

This rugged 8-port Fast Ethernet switch delivers reliable 10/100Mbps connectivity for industrial automation and control systems. Engineered to operate in extreme temperatures from -40°C to +75°C, it withstands harsh factory environments, outdoor installations, and mobile applications where standard commercial switches would fail. The industrial-grade components ensure stable performance in vibration-prone, dusty, or humid conditions common in manufacturing, transportation, and energy sectors.
Intelligent Traffic Management with IEEE 802.3x Control
Featuring IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode, the switch prevents data loss during network congestion. This advanced traffic management maintains consistent communication for time-sensitive industrial protocols like Modbus TCP, EtherNet/IP, and PROFINET, ensuring reliable operation of PLCs, HMIs, and other critical automation equipment.
Simplified Installation with Auto-MDI/MDIX
The built-in Auto-MDI/MDIX functionality eliminates the need for crossover cables by automatically detecting and adjusting to connected devices. This plug-and-play capability reduces installation time and errors when connecting various industrial equipment such as motor drives, sensors, and control panels, streamlining network deployment in both new installations and system upgrades.
Optimized Network Efficiency with MAC Address Management
Supporting MAC address auto-learning and auto-aging, the switch dynamically updates its address table while automatically removing inactive entries. This intelligent feature maintains optimal network performance in dynamic industrial environments where devices may be frequently added, removed, or replaced, preventing unnecessary broadcast traffic and conserving bandwidth for critical communications..
Reliable Power Design for Continuous Operation
The switch’s 9-56V DC redundant power inputs with reverse polarity protection ensure uninterrupted operation in mission-critical applications. This robust power design accommodates wide voltage fluctuations common in industrial settings and provides power supply redundancy for systems where downtime is unacceptable, such as in process control, water treatment, or power distribution facilities.
Rugged Construction for Demanding Environments
Built to industrial standards with a heavy-duty metal housing, the switch resists electromagnetic interference, mechanical stress, and environmental contaminants. Its compact, fanless design allows for space-efficient DIN-rail or panel mounting in control cabinets, machinery, or outdoor enclosures, making it ideal for industrial IoT deployments and equipment modernization projects requiring dependable network infrastructure.
| Hardware Specifications | |||
| Product | FR-7N1008 | FR-7N1008P | FR-7N1008BT |
| Copper Ports | 8×10/100BASE-TX RJ45 Auto-MDI/MDI-X (Port 1-8) | ||
| Fiber Ports | \ | ||
| Enclosure | IP40 aluminum case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 138 x 108 x 49mm | ||
| Weight | 620g(Bare weight), 720g(With package) | ||
| Surge Protection | ±6kV DC, ±4kV RJ45 | ±6kV DC, ±6kV RJ45 | |
| Switching | |||
| Switch Architecture | Store-and-Forward | ||
| Switch Fabric | 1.8Gbps/non-blocking | ||
| Forwarding Rate | 1.19 Mpps(64-byte packet size) | ||
| Packet Buffer Size | 1 Mbits | ||
| MAX. Packet Length | 1536 bytes | ||
| MAC Address Table | 2K entries, automatic source address learning and aging | ||
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex | ||
| Power Supply and PoE | |||
| Power Input | 2 | ||
| Power Connector | 1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm(As required) |
||
| Operating Voltage | DC9-56V | DC48-56V | DC52-56V |
| Power Consumption | 6 Watts Max (without PoE load) | ||
| Protection | Reverse Polarity, Overload Current | ||
| PoE Ports | \ | Port 1 to 8 IEEE802.3 af/at | Port 1 to 8 IEEE802.3 af/at/bt |
| PoE Power Supply Type | \ | End-span | End-span |
| Power Supply Pin | \ | 1/2(+), 3/6(-) | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Max Power Per Port | \ | 30W | 90W |
| PoE Power Budget | \ | 240W
(Depending on power input) |
240W
(Depending on power input) |
| Environmental | |||
| Operating Temperature | -40℃ to +75℃ (-40 to 167 ℉) | ||
| Storage Temperature | -40℃ to +85℃ (-40 to 185 ℉) | ||
| Operating Humidity | 5%~95% (non-condensing) | ||
| Heat Dissipation | 17 BTU/h (Non-PoE), 700 BTU/h (with 240W PoE load) | ||
| Cooling | Passive Cooling | ||
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ | ||
| LED Indicators | |||
| P1 & P2 | ON: Power is being supplied ,OFF: Power is not being supplied | ||
| RJ45 Port Amber LEDs | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Green LEDs | ON: Port is operating at 100 Mb/s, OFF: Port is operating at 10 Mb/s | ||
