Increase your network performance and reliability with 10G Switch
The Layer 3 10G Commercial Grade Managed Switch is a reliable and powerful networking solution for businesses of all sizes. This switch is designed to deliver high-performance, secure, and scalable connectivity. The switch also comes with a web-based management interface for easy configuration and monitoring.
High Reliable and Multi-Service Support
1.Support the Spanning Tree Protocols (IEEE802.1d STP, IEEE802.1w RSTP, standard 802.1s MSTP)
2.Support the IPv4 and IPv6 multicast functions
3.Voice VLAN, Surveillance VLAN
4.Support traffic classification of each field of L2/L3/L4 protocol headers
5.Support IGMP v1/v2/v3, IGMP snooping, MLD
Advance Network Configuration
1.Support OSPFv2, RIPv2
2.Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
3.Support LACP, ERPSv2
4.Class of Service(Port-based, 802.1p, IP TOS Precedence, IP DSCP), Trusted QoS, Rate Limitation
Secure and Simplified Access
1.CLI(Console/Telnet(RFC854)), WebUI(HTTPS), SNMPv3
2.HTTPS/SSLv2v3,TLSv1 RADIUS, TACACS+,AAA SSHv1/v2
3.Support DHCP Snooping, Option 43/82, 802.1X security access
4.Support user hierarchical management
5.Support DOS, port-based MAC filtering/binding, MAC whitelist
6.Support IPv4/IPv6 ACL
Layer 3 10G Switch – A robust solution for businesses of all sizes
The Layer 3 Managed 10G Switch can provide non-blocking communications and wire-speed throughput in looking to easily build a 10G fiber network. A layer 3 managed switch can make it happen. This type of switch offers easy management and configuration of your network, as well as powerful 10G performance. So if you’re looking for an easy way to get started with 10G networking, a layer 3 managed PoE+ switch is the way to go.
Simplified and Secure Ethernet Networks
The L3 10G Rack Mount Managed Switch supports both routing protocols: RIP and OSPF. When RIP is enabled, it uses hop count as a metric for routes. As a result, this prevents routing loops by limiting the number of hops in any path from source to destination. The other one, OSPF (Open Shortest Path First), is a link-state dynamic routing protocol that’s different from RIP’s (strict distance-vector) method of calculating routes. When enabled, this means that when networks send link state updates to peers, each layer 3 switch will collect information about its network links and build a Link State Database. As a result, the Shortest Path First algorithm can then calculate the fastest route available based on that database.
10G Switches are the best way to optimize IoT networks and reduce the cost
IoT and IIoT networks often require a voice VLAN. VoIP devices with an IPcam interface are able to use Voice VLANs and Surveillance, which is a new type of VLAN. They use this feature to create either a voice-only or Surveillance VLAN that’s exclusive to digital devices. This offers the possibility for disruption in industrial networks by providing an alternate voice solution for digital controllers that are connected to analogue devices.
10G Switch with LLDP-MED, which enhances the automation/management of certain types of network devices like IP Phones, etc. In LLDP-MED, the capabilities of a connected device are determined and whether those capabilities are enabled. It will then keep sending out LLDP-MED packets until the remote device to which it is connected ceases to be LLDP-MED capable.
The Managed Switch can be Easily Managed at Any Time.
The L3 Managed Switch comes equipped with console, web, and SNMP management to allow for easy-to-use, platform-independent management. Web-based management allows for a simple, customizable configuration of the FR-5T4624 switch. The L3 Ethernet Switch also provides a complete suite of SNMP capabilities and can be centrally managed with any standard management software. With the built-in Cisco-like command line via Telnet or console, product learning time is reduced while improving remote management capabilities through SSH connections.
| Ethernet Interface | |||

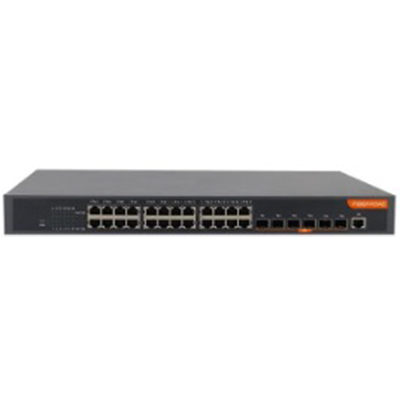

| Model | FR-5T4624 | ||
| Ports | 6×10Gigabit SFP plus
24×10/100/1000M Base-TX RJ45 1xRJ45 Console Port |
||
| Port Mode(Tx) | Auto-Negotiation
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
||
| Standards | IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3ae for 10 Gigabit Ethernet IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP |
||
| Buffer Size | 2Mbits | ||
| Backplane | 216G | ||
| MAC Address Table | 32K | ||
| Transmission Mode | Store and Forward (full/half duplex mode) | ||
| Forwarding Rate | 126M | ||
| Jumbo Frame | 9K | ||
| Flash | 16MB | ||
| DRAM | 512MB | ||
| Routing Table | 12K(IPv4); 6K(IPv6) | ||
| ARP Table | 12K(IPv4); 2K(IPv6) | ||
| Software Features | |
| Management | Console,Telnet,SSHv1/v2,HTTP/HTTPs, SNMPv1/v2/v3,RMON, TFTP,FTP,SFTP |
| DataCenterFeatures | Supports the FVSS virtualization technology(Up to 8 units stacking) |
| MAC | Supports static configuration and dynamic learning of MAC addresses View and clear MAC addresses The MAC address aging time can be configured Limit the number of MAC addresses to be learned Supports MAC address filtering Supports black hole MAC entries Support IEEE 802.1AE MacSec security control |
| VLAN | Supports 4K VLAN entries GVRP is supported Supports 1:1 and N: 1 VLAN Mapping Supports basic QinQ and flexible QinQ functions Private VLAN support |
| STP | Support 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP) Supports BPDU protection, root protection, and loop protection |
| Multicast | IGMP v1/v2/v3 is supported IGMP Snooping is supported IGMP Fast Leave is supported Supports multicast group policies and limits the number of multicast groups Supports cross-VLAN replication of multicast traffic Supports PIM-SM、PIM-DM |
| IPv4 | Supports static routes, RIP v1/v2, OSPF, BGP, IS-IS, and EIGRP Support policy routing Supports equal-cost routes for load balancing Supports BFD for OSPF and BGP |
| IPv6 | Supports ICMPv6, DHCPv6, ACLv6, and IPv6 Telnet Supports IPv6 neighbor discovery Supports Path MTU discovery Support MLD v1/v2Support MLD Snooping Supports IPv6 static routes, RIPng, OSPFv3, and BGP4+ Supports manual tunnels, ISATAP tunnels, and 6to4 tunnels |
| MPLS VPN | Support LDP, MCE Supports the P/PE function requirements of MPLS VPN Support MPLS TE Supports MPLS OAM |
| QOS | Supports traffic classification based on each field of the L2/L3/L4 protocol header Supports CAR traffic limiting802.1P/DSCP priority re-marking is supported Supports SP, WRR, and SP+WRR queue scheduling modes Supports congestion avoidance mechanisms such as Tail-Drop and WRED Supports traffic monitoring and traffic shaping Ingress and Egress ACLs match L2, L3, L4, and IP quintuples for replication, forwarding, and discard Supports Hash same-source load balancing to ensure session integrity of traffic output |
| Security | Supports the security mechanism of ACL traffic identification and filtering based on L2, L3, and L4 Defend against DDoS attacks, TCP SYN Flood attacks, and UDP Flood attacks Supports suppression of multicast, broadcast, and unknown unicast packets Support port isolation Supports port security and IP+MAC+ port bonding DHCP Snooping and DHCP Option 82 are supported Supports IEEE 802.1x authentication Supports Radius and Tacacs+ authentication Support uRPF Supports hierarchical command line protection |
| Reliability | Optional Support 1+1 power backup Link aggregation in static or LACP mode, and link aggregation across service cards Supports EAPS and ERPS ring network protection Supports HSRP and VRRP hot backup GR for OSPF and BGP are supported Supports FD for OSPF and BGP Supports ISSU service uninterrupted system upgrade |
| Maintenance | Supports Console, Telnet, and SSH 2.0 Supports browser-based WEB management SNMP v1, v2, and v3 are supported Supports file upload and download management in TFTP mode Supports RMON event history Supports statistical analysis of traffic such as sFLOW |
| Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 440mmx280mmx44mm (Chassis); 576mmx448mmx94mm(Package) |
| Installation Mode | 1RU Chassis Rack-Mount Installation |
| Weight | 4.6kg |
| Working Environment | |
| Operating Temperature | -10℃~50℃ |
| Operating Humidity | 5%~95% (non-condensing) |
| Storage Temperature | -20℃~70℃ (-4 to 158 ℉) |
| MTBF | ＞200,000 Hours |
| Power Supply | ||||
| Power Consumption | 75W (Full Load) | |||
| Power Inputs | AC 110~240V, 50Hz±10% | |||
