Industrial-Grade Gigabit Performance for Demanding Environments

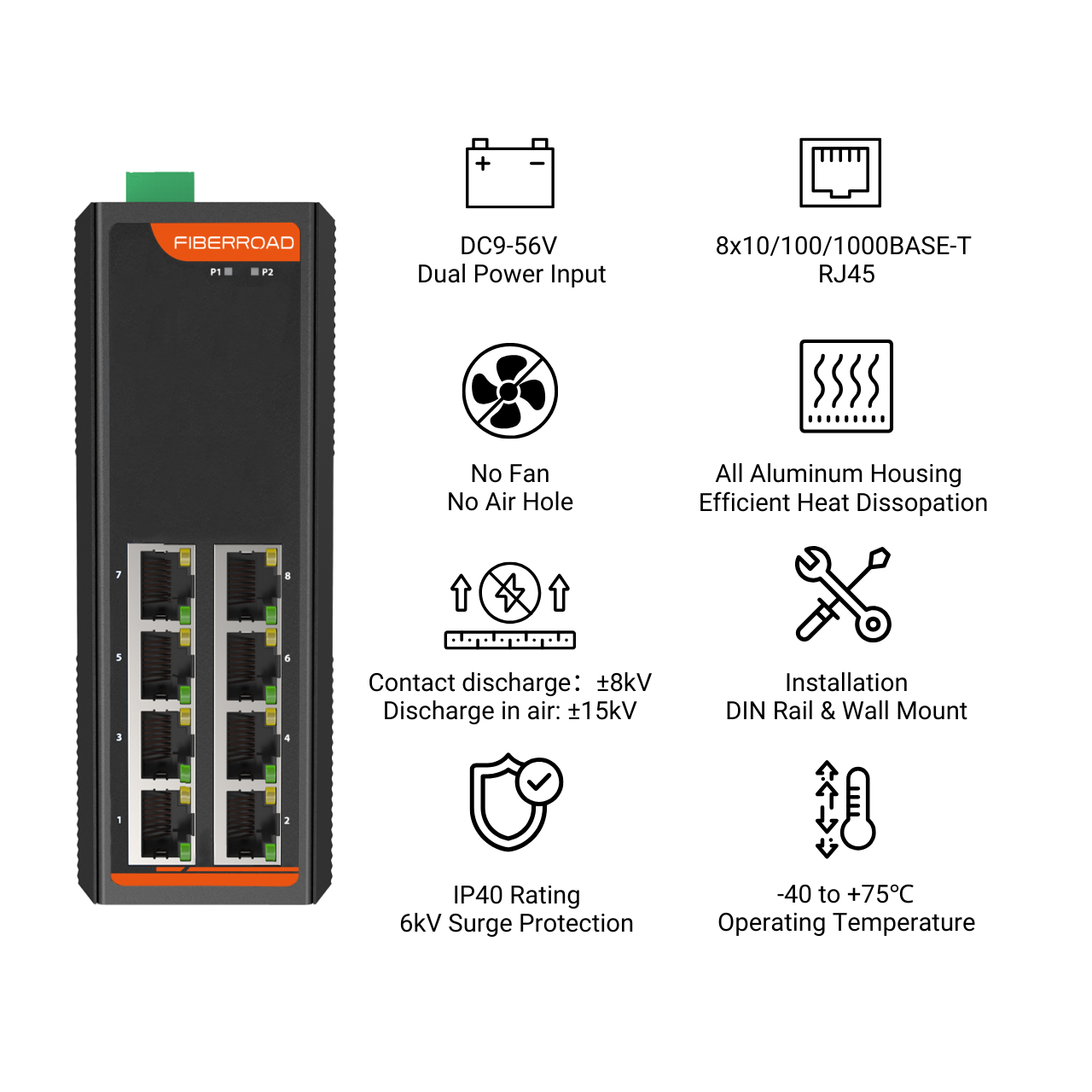

This rugged 8-port Gigabit Ethernet switch delivers reliable 10/100/1000Mbps connectivity in harsh industrial settings. Engineered to operate in extreme temperatures from -40°C to +75°C, it withstands challenging conditions found in manufacturing plants, outdoor installations, and transportation systems while maintaining consistent, high-speed data transmission for critical operations.
Advanced Traffic Management with IEEE 802.3x Flow Control
Featuring IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode, this switch intelligently manages network traffic to prevent data loss during congestion. This ensures smooth operation of real-time industrial applications like process automation, machine vision systems, and SCADA networks where uninterrupted data flow is essential.
Full Wire-Speed Non-Blocking Architecture
The switch’s non-blocking switching architecture delivers maximum throughput by forwarding and filtering packets at full wire-speed across all ports simultaneously. This eliminates bottlenecks in data-intensive applications, making it ideal for high-bandwidth industrial uses such as video surveillance, data acquisition, and equipment monitoring systems.
Redundant Power Protection for Mission-Critical Reliability
With dual 9-56V DC power inputs featuring reverse polarity protection, this switch ensures continuous operation even during power fluctuations or failures. The redundant power design provides essential backup for critical infrastructure in energy grids, water treatment facilities, and production lines where downtime is unacceptable.
Robust Industrial Design for Harsh Condition
Built to industrial standards, the switch features a durable metal housing that resists vibration, dust, and electromagnetic interference. Its rugged construction makes it suitable for deployment in challenging environments like oil rigs, mining operations, and outdoor utility installations where standard networking equipment would fail.
Versatile 8-Port Configuration for Scalable Networks
Offering eight auto-negotiating Gigabit ports, this switch provides flexible connectivity for growing industrial networks. It seamlessly integrates mixed-speed devices from legacy 10Mbps equipment to modern 1000Mbps systems, making it perfect for network expansions, facility upgrades, or new installations requiring reliable, high-performance switching.
| Hardware Specifications | |||
| Product | FR-7N3008 | FR-7N3008P | FR-7N3008BT |
| Copper Ports | 8×10/100/1000BASE-T RJ45 Auto-MDI/MDI-X (Port 1-8) | ||
| Fiber Ports | \ | ||
| Enclosure | IP40 aluminum case | ||
| Installation | DIN-Rail and Wall-mount | ||
| Dimension | 138 x 108 x 49mm | ||
| Weight | 620g(Bare weight), 720g(With package) | ||
| Surge Protection | ±6kV DC, ±4kV RJ45 | ±6kV DC, ±6kV RJ45 | |
| Switching | |||
| Switch Architecture | Store-and-Forward | ||
| Switch Fabric | 20Gbps/non-blocking | ||
| Forwarding Rate | 11.9 Mpps(64-byte packet size) | ||
| Packet Buffer Size | 2Mbits | ||
| MAX. Packet Length | 1500 bytes | ||
| MAC Address Table | 4K entries, automatic source address learning and aging | ||
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex | ||
| Power Supply and PoE | |||
| Power Input | 2 | ||
| Power Connector | 1 removable 6-contact terminal blocks
Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm(As required) |
||
| Operating Voltage | DC9-56V | DC48-56V | DC52-56V |
| Power Consumption | 7 Watts Max (without PoE load) | ||
| Protection | Reverse Polarity, Overload Current | ||
| PoE Ports | \ | Port 1 to 8 IEEE802.3 af/at | Port 1 to 8 IEEE802.3 af/at/bt |
| PoE Power Supply Type | \ | End-span | End-span |
| Power Supply Pin | \ | 1/2(+), 3/6(-) | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Max Power Per Port | \ | 30W | 90W |
| PoE Power Budget | \ | 240W
(Depending on power input) |
240W
(Depending on power input) |
| Environmental | |||
| Operating Temperature | -40℃ to +75℃ (-40 to 167 ℉) | ||
| Storage Temperature | -40℃ to +85℃ (-40 to 185 ℉) | ||
| Operating Humidity | 5%~95% (non-condensing) | ||
| Heat Dissipation | 17 BTU/h (Non-PoE), 700 BTU/h (with 240W PoE load) | ||
| Cooling | Passive Cooling | ||
| MTBF | ＞500,000 hours @MIL-HDBK-217F GF 25℃ | ||
| LED Indicators | |||
| P1 & P2 | ON: Power is being supplied ,OFF: Power is not being supplied | ||
| RJ45 Port Amber LEDs | ON: Port connection is active, Blinking: Data transmitted, OFF: Port connection is not active | ||
| RJ45 Port Green LEDs | ON: Port is operating at 1000 Mb/s, OFF: Port is operating at 10/100 Mb/s | ||
